TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-61

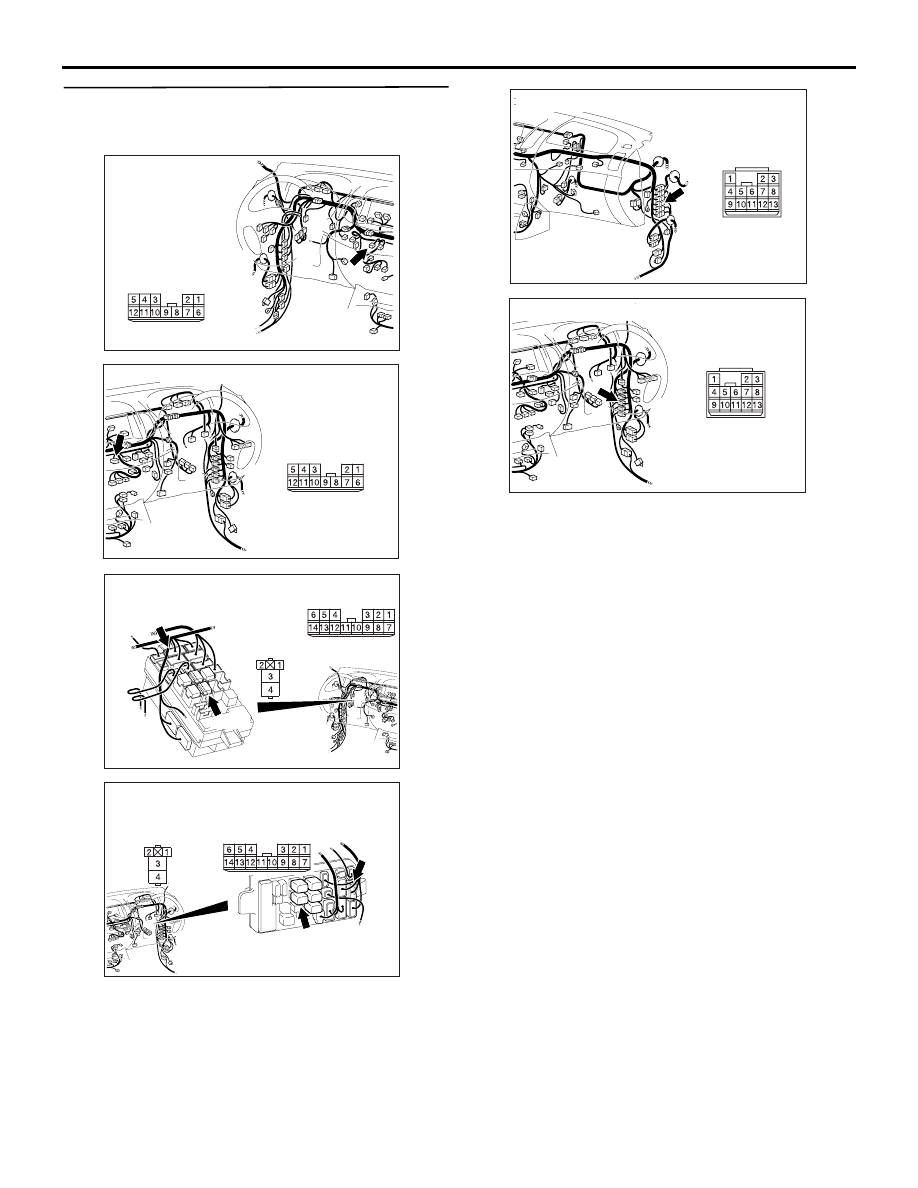

STEP 9. Check the wiring harness between C-217
rear window defogger relay connector No.2 and
C-05 A/C-switch module connector No.8.

AC509611AV

Connector: C-05 <LHD>

Harness side

AC509932 BA

Harness side

Connector: C-05 <RHD>

AC509934 BB

Connectors: C-208, C-217 <LHD>

Harness side

C-208

C-217

C-217

C-208

Junction block side

Junction block (Front view)

AC509936AY

Connectors: C-208, C-217 <RHD>

Harness side

C-208

C-217

C-217

C-208

Junction block side

Junction block (Front view)

NOTE:

AC509613AR

Connector: C-15 <LHD>

AC509932BH

Connector: C-15 <RHD>

Prior to the wiring harness inspection, check junction
block connector C-208 and intermediate connector
C-15, and repair if necessary.

• Check the rear window defogger power supply

line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-62

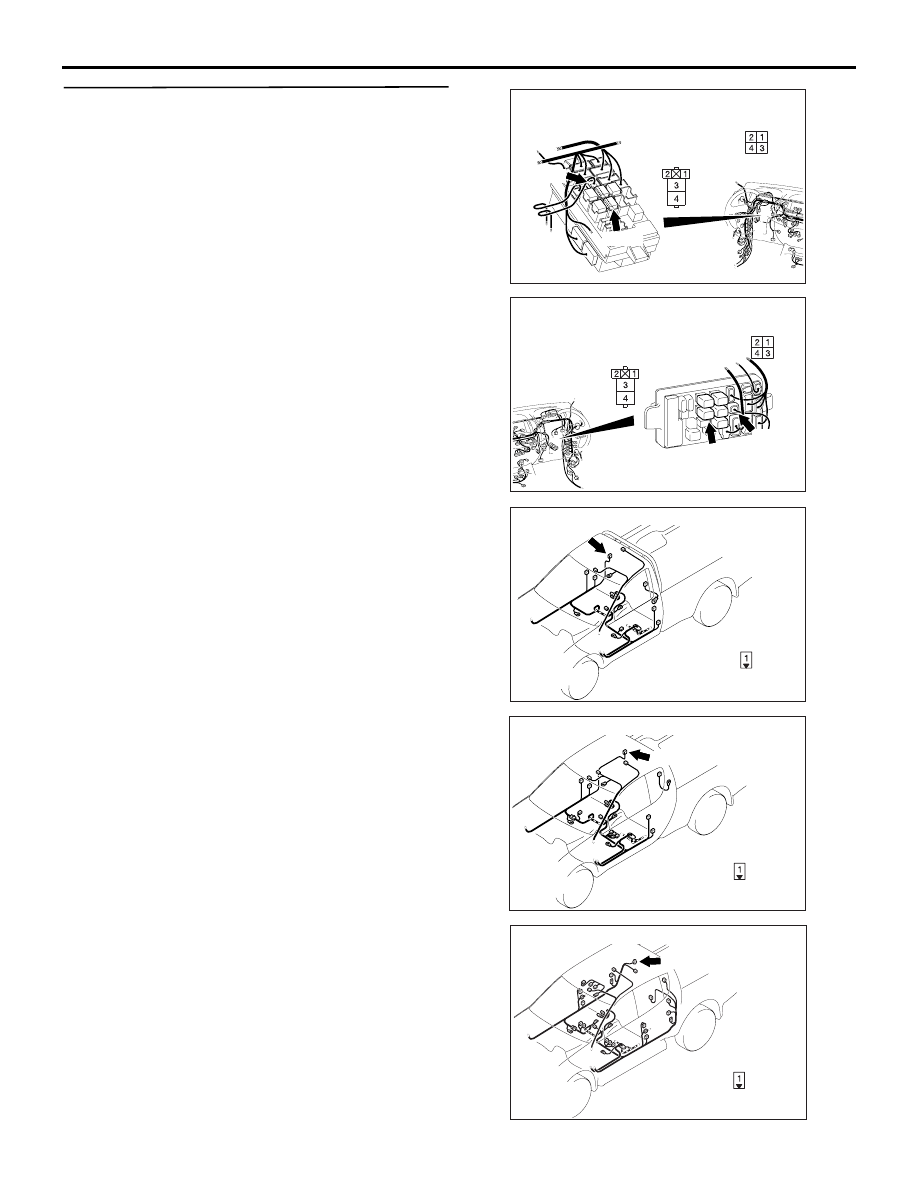

STEP 10. Check the wiring harness between C-
217 rear window defogger relay connector No.3
and D-07 rear window defogger connector No.1.

AC509934BC

Connectors: C-212, C-217 <LHD>

Harness side

C-212

C-217

C-212

C-217

Junction block side

Junction block (Front view)

AC509936AZ

Connectors: C-212, C-217 <RHD>

Harness side

C-212

C-217

C-212

C-217

Junction block side

Junction block (Front view)

AC509961AE

Harness side

Connector: D-07 <Single cab>

D-07 (B)

AC509965AD

Harness side

Connector: D-07 <Club cab>

D-07 (B)

AC509967AO

Harness side

Connector: D-07 <Double cab>

D-07 (B)

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-63

NOTE: Prior to the wiring harness inspection, check
junction block connector C-212, and repair if neces-
sary.

• Check the rear window defogger relay line for

open and short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

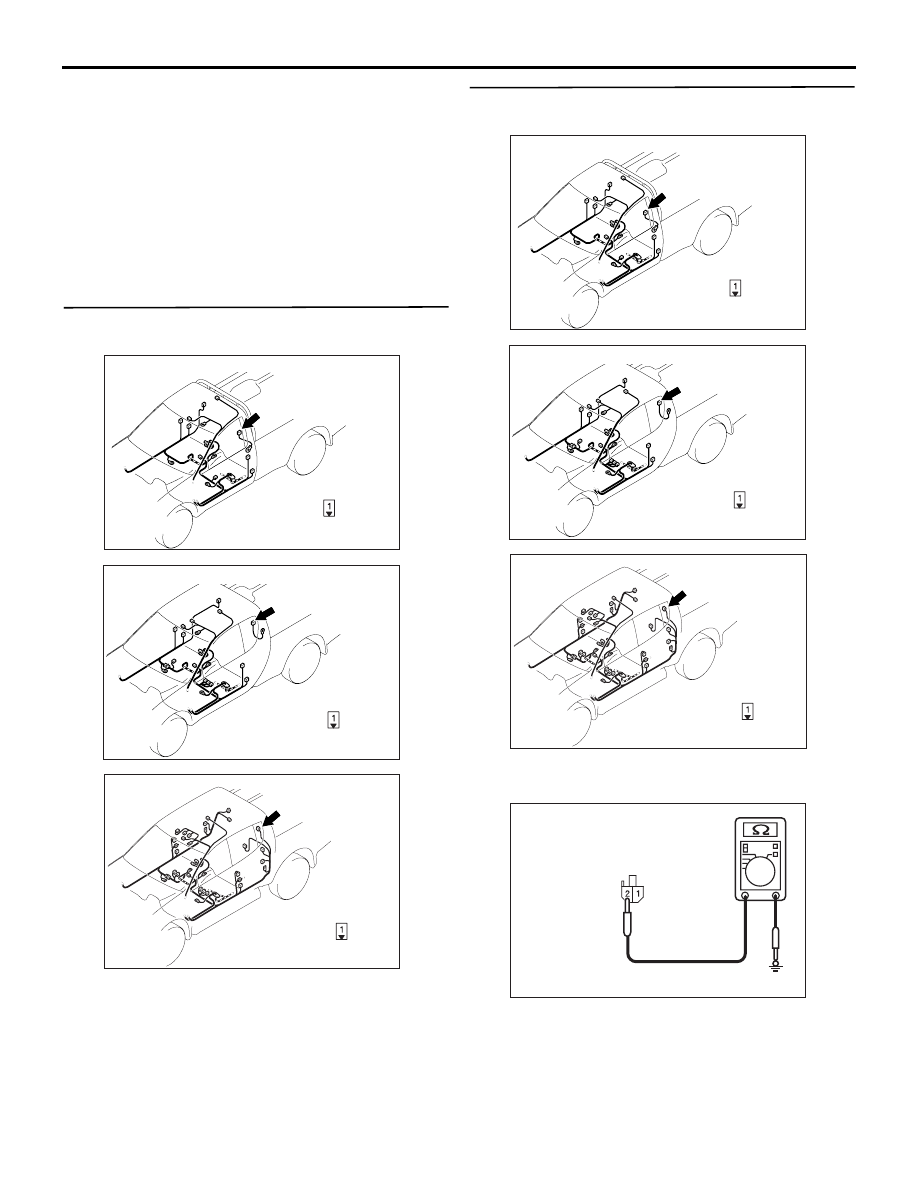

STEP 11. Connector check: D-10 rear window
defogger connector

AC509961AF

Harness side

D-10 (B)

Connector: D-10 <Single cab>

AC509965AI

Harness side

Connector: D-10 <Club cab>

D-10 (B)

AC509967AQ

Harness side

D-10 (B)

Connector: D-10 <Double cab>

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the connector.

STEP 12. Resistance measurement at D-10 rear
window defogger connector.

AC509961AF

Harness side

D-10 (B)

Connector: D-10 <Single cab>

AC509965AI

Harness side

Connector: D-10 <Club cab>

D-10 (B)

AC509967AQ

Harness side

D-10 (B)

Connector: D-10 <Double cab>

(1) Disconnect the connector, and measure at the

wiring harness side.

AC403234

Connector D-08
(Harness side)

EI

(2) Continuity between terminal 1 and body earth.

OK: Continuity (Less than 2

Ω)

Q: Is the check result normal?

YES :

 Go to Step 14.

NO :

 Go to Step 13.

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-64

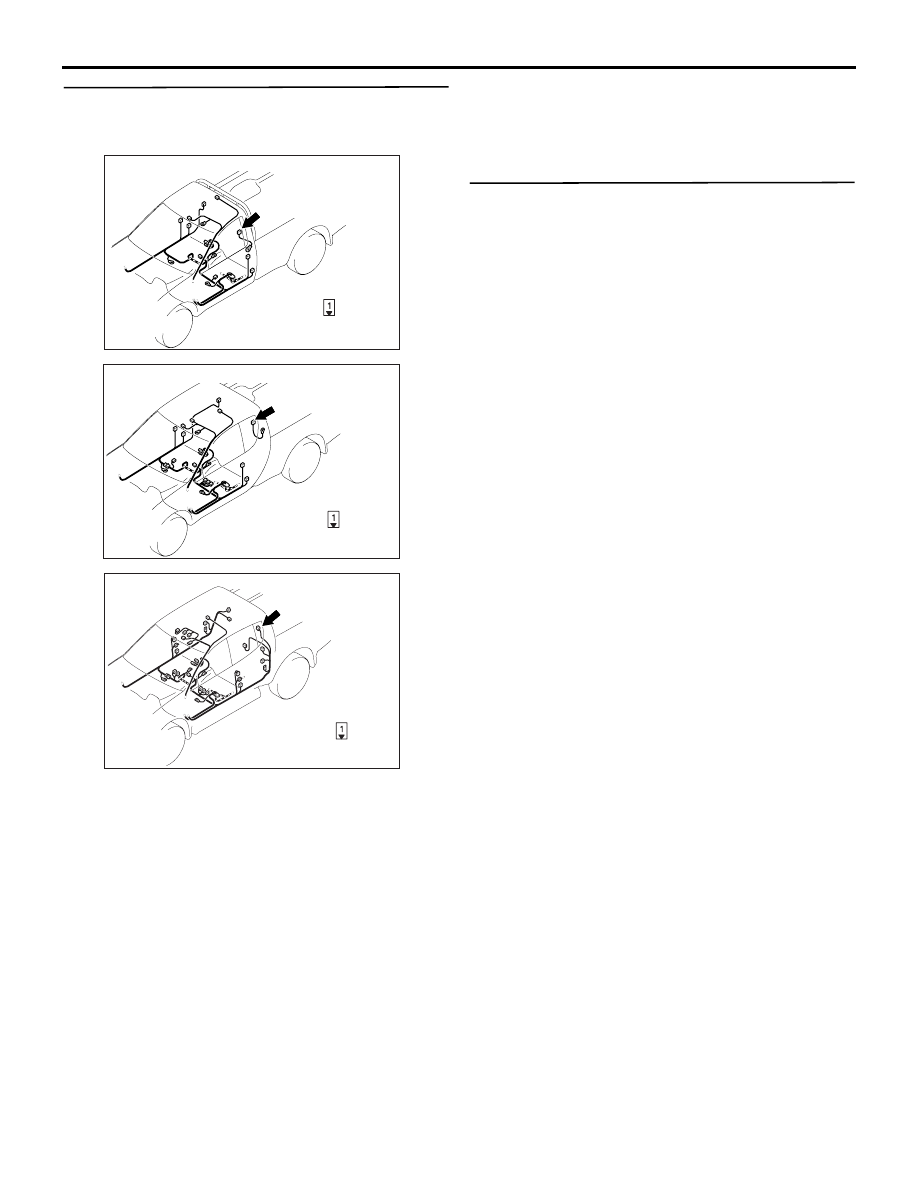

STEP 13. Check the wiring harness between D-10
rear window defogger connector terminal No.1
and earth.

AC509961AF

Harness side

D-10 (B)

Connector: D-10 <Single cab>

AC509965AI

Harness side

Connector: D-10 <Club cab>

D-10 (B)

AC509967AQ

Harness side

D-10 (B)

Connector: D-10 <Double cab>

• Check the rear window defogger earth line for

open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair or replace the wiring harness.

STEP 14. Check the rear window defogger.
Refer to GROUP 54A, Rear Window rear window
defogger Inspection .

Q: Does the rear window defogger work normally?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the rear window defogger.
