TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-20

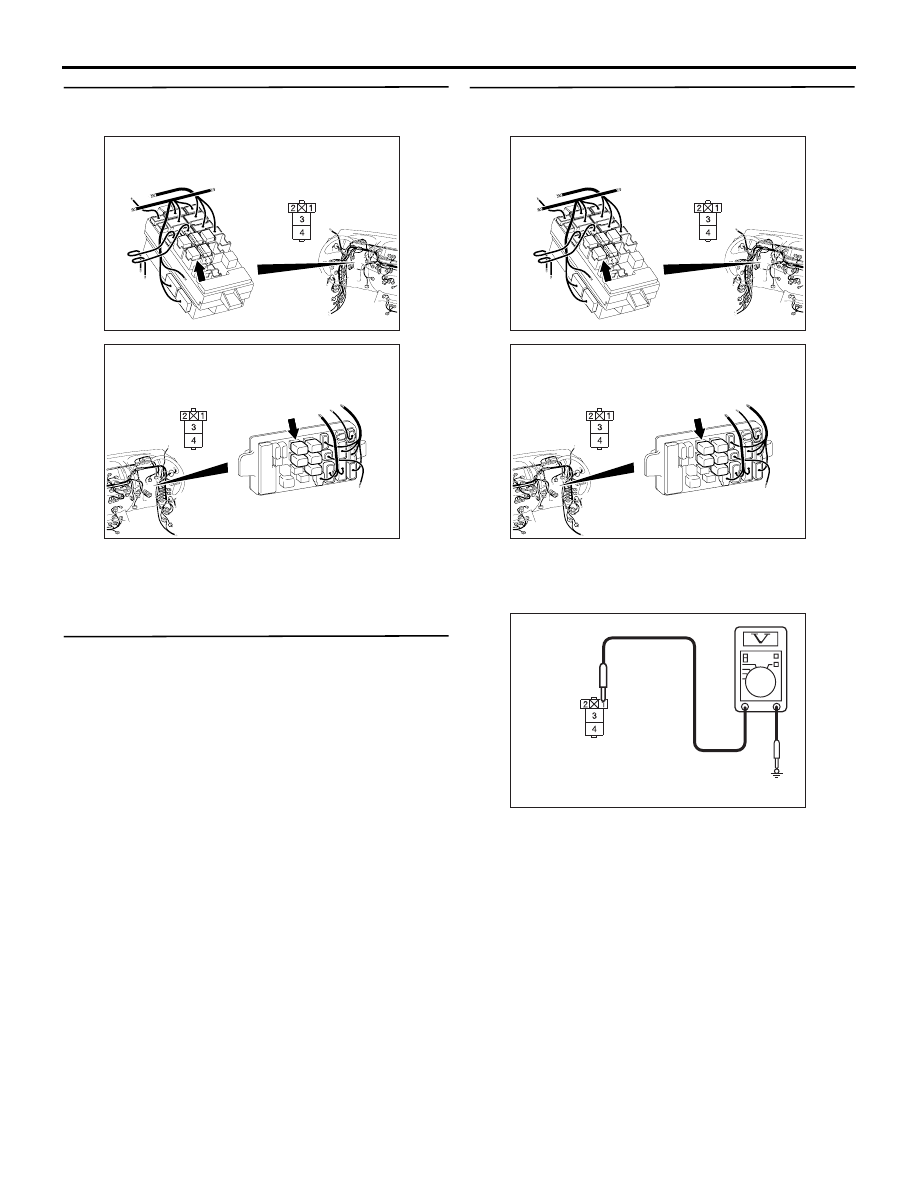

STEP 6. Connector check: C-201 blower relay
connector

AC509934AT

Connector: C-201 <LHD>

Junction block side

Junction block (Front view)

AC509936AP

Connector: C-201 <RHD>

Junction block side

Junction block (Front view)

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

STEP 7. Check the blower relay continuity.
 Refer to

P.55A-66

.

Q: Is the blower relay continuity in good condition?

YES :

Go to Step 8.

NO :

Replace the blower relay.

STEP 8. Voltage measurement at C-201 blower
relay connector.

AC509934AT

Connector: C-201 <LHD>

Junction block side

Junction block (Front view)

AC509936AP

Connector: C-201 <RHD>

Junction block side

Junction block (Front view)

(1) Remove the relay, and measure at the junction

block side.

(2) Turn the ignition switch to the "ON" position.

AC402679

Connector C-201
(Harness side)

CH

(3) Measure the voltage between terminal 1 and

earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 10.

NO :

Go to Step 9.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-21

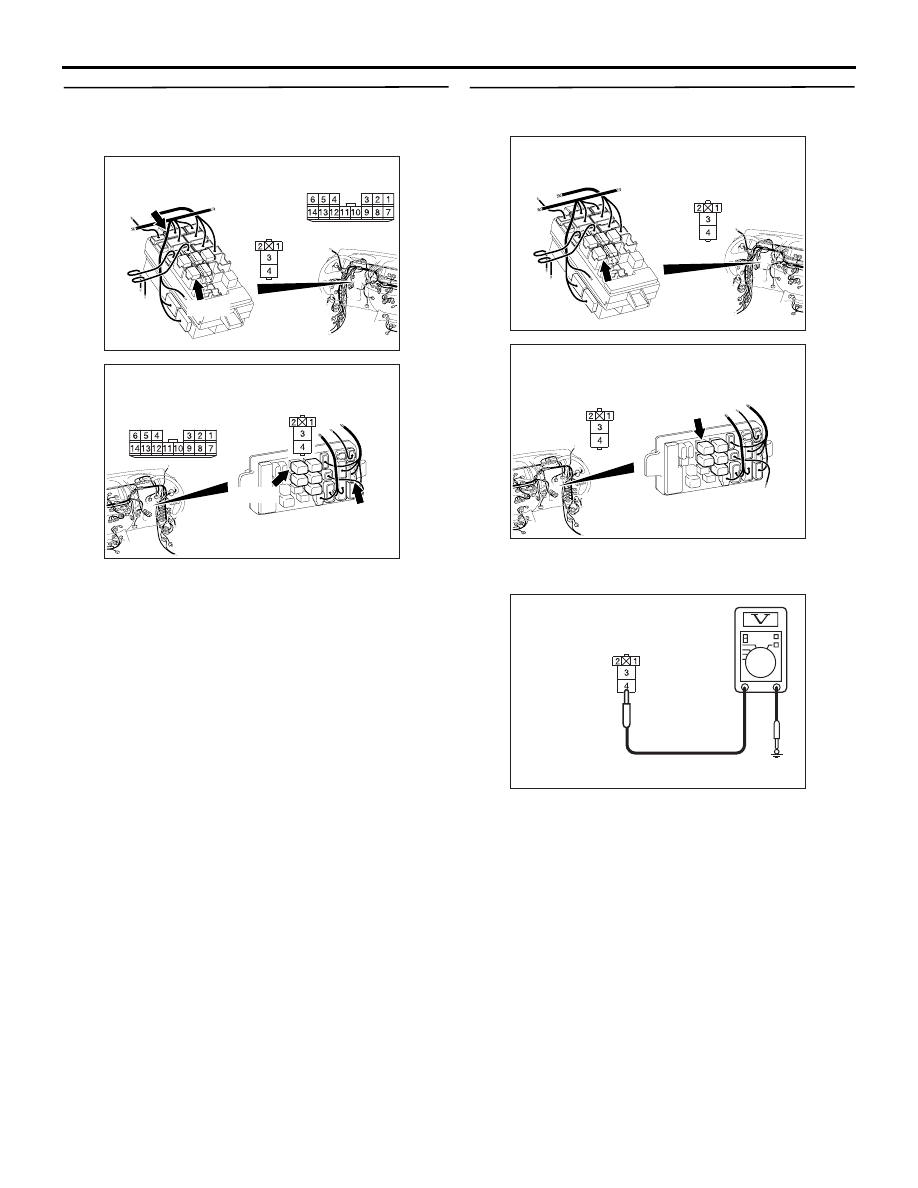

STEP 9. Check the wiring harness between C-201
blower relay connector terminal No.1 and the
ignition switch (IG2).

AC509934 AU

Connectors: C-201, C-207 <LHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-207

C-201

C-207

AC509936 AQ

Connectors: C-201, C-207 <RHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-207

C-201

C-207

NOTE: Prior to the wiring harness inspection, check
junction block connector C-207, and repair if neces-
sary.

• Check the blower relay power supply line for

open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

STEP 10. Measure the resistance at C-201 blower
relay connector.

AC509934AT

Connector: C-201 <LHD>

Junction block side

Junction block (Front view)

AC509936AP

Connector: C-201 <RHD>

Junction block side

Junction block (Front view)

(1) Remove the relay, and measure at the junction

block side.

AC403234

Connector C-201
(Harness side)

CG

(2) Measure the resistance Continuity between

terminal 2 and body earth.

OK: Continuity (Less than 2

Ω)

Q: Is the check result normal?

YES :

 Go to Step 12.

NO :

Go to Step 11.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-22

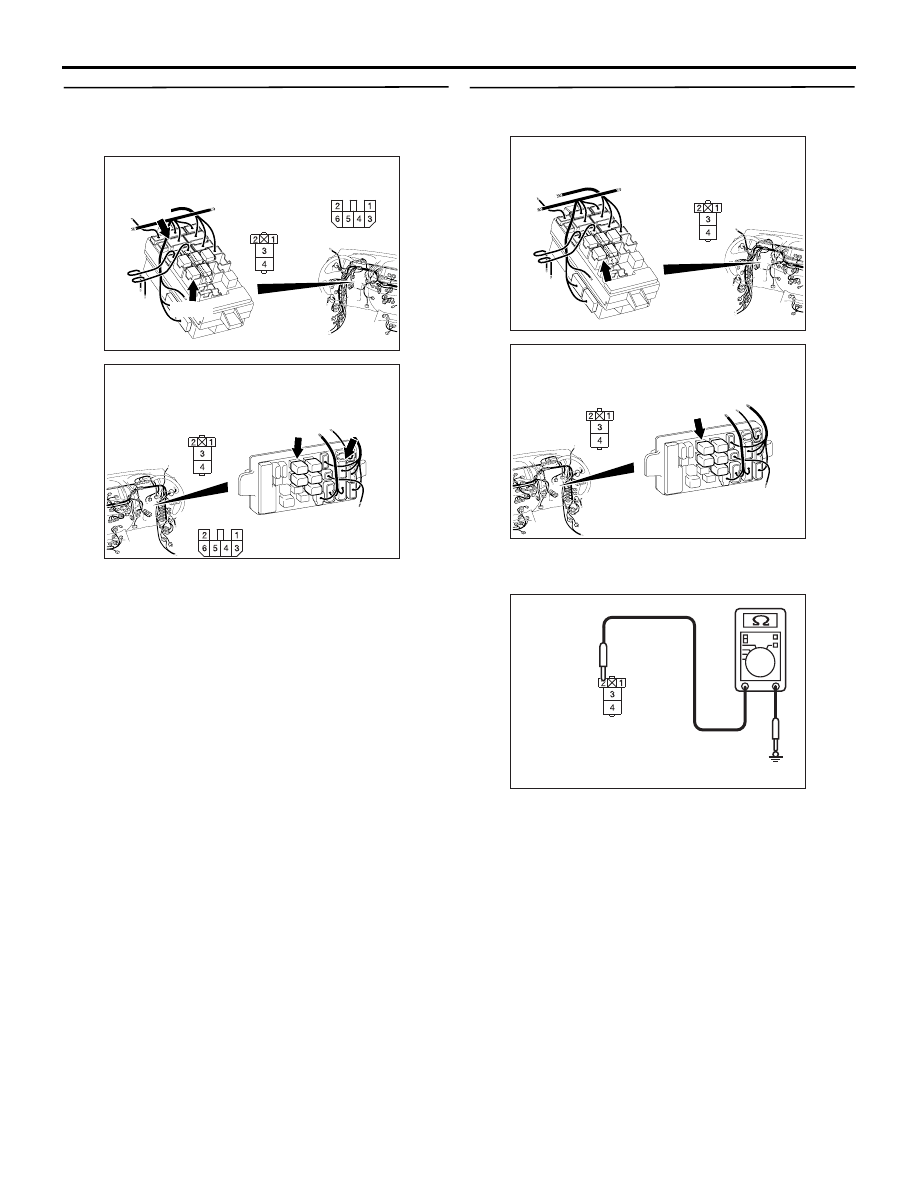

STEP 11. Check the wiring harness between C-
201 blower relay connector terminal No.2 and
earth.

AC509934 AV

Connectors: C-201, C-208 <LHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-208

C-201

C-208

AC509936 AR

Connectors: C-201, C-208 <RHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-208

C-201

C-208

NOTE: Prior to the wiring harness inspection, check
junction block connectors C-208, and repair if neces-
sary.

• Check the blower relay earth wires for open cir-

cuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

STEP 12. Measure the voltage at C-201 blower
relay connector.

AC509934AT

Connector: C-201 <LHD>

Junction block side

Junction block (Front view)

AC509936AP

Connector: C-201 <RHD>

Junction block side

Junction block (Front view)

(1) Remove the relay, and measure at the junction

block side.

AC402679

Connector C-201
(Harness side)

CI

(2) Measure the voltage between terminal 4 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 14.

NO :

Go to Step 13.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-23

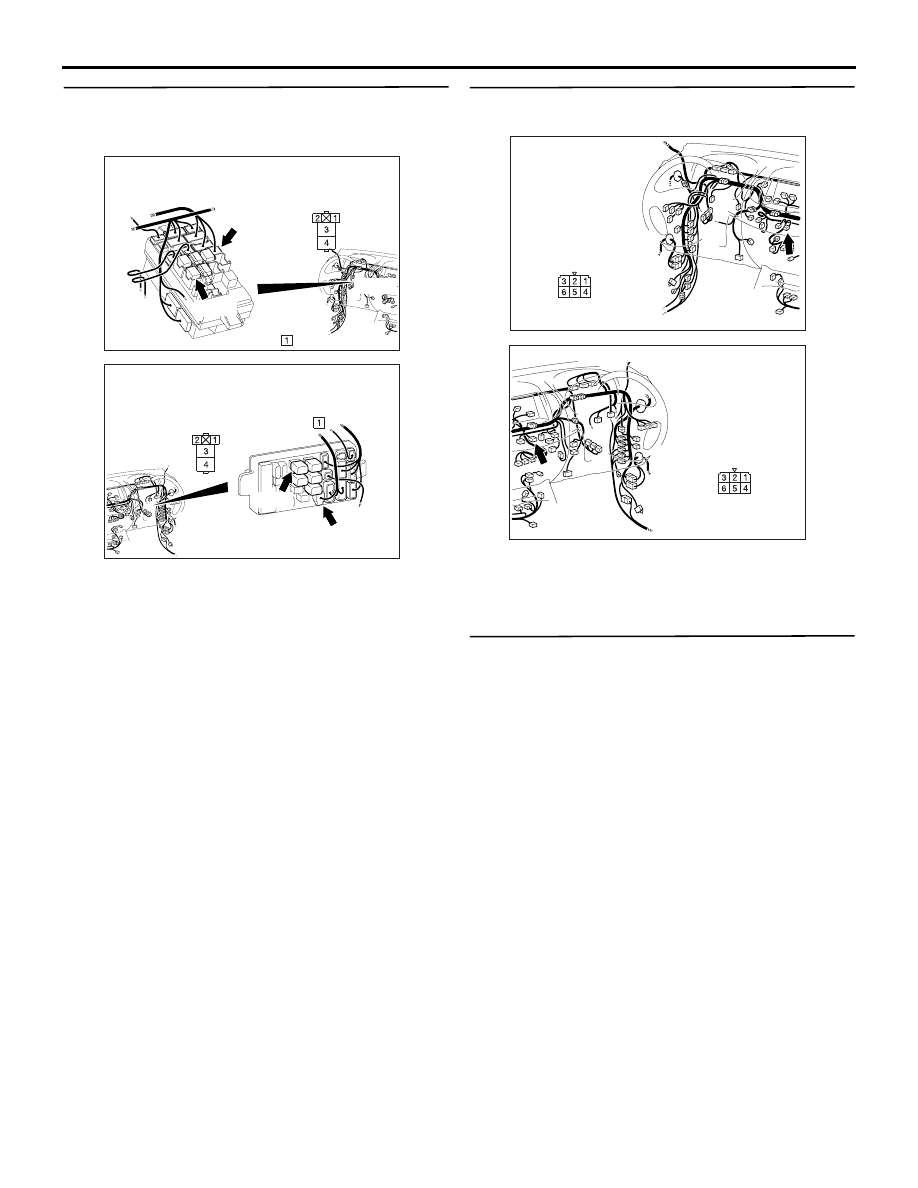

STEP 13. Check the wiring harness between C-
201 blower relay connector terminal No.4 and
fusible link (20).

AC509934 AW

Connectors: C-201, C-213 <LHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-213

C-201

C-213

AC509936AS

Connectors: C-201, C-213 <RHD>

Junction block side

Junction block (Front view)

C-201

Harness side

C-213

C-201

C-213

NOTE: Prior to the wiring harness inspection, check
junction block connector C-213, and repair if neces-
sary.

• Check the blower relay power supply line for

open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

STEP 14. Connector check: C-06 blower switch
connector

AC509611AW

Connector: C-06 <LHD>

Harness side

AC509932 BB

Harness side

Connector: C-06 <RHD>

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the connector.

STEP 15. Check the blower switch continuity.
 Refer to

P.55A-71

.

Q: Is the blower switch continuity in good condition?

YES :

Go to Step 16.

NO :

Replace the blower switch.
