Mitsubishi L200. Manual - part 803

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-23

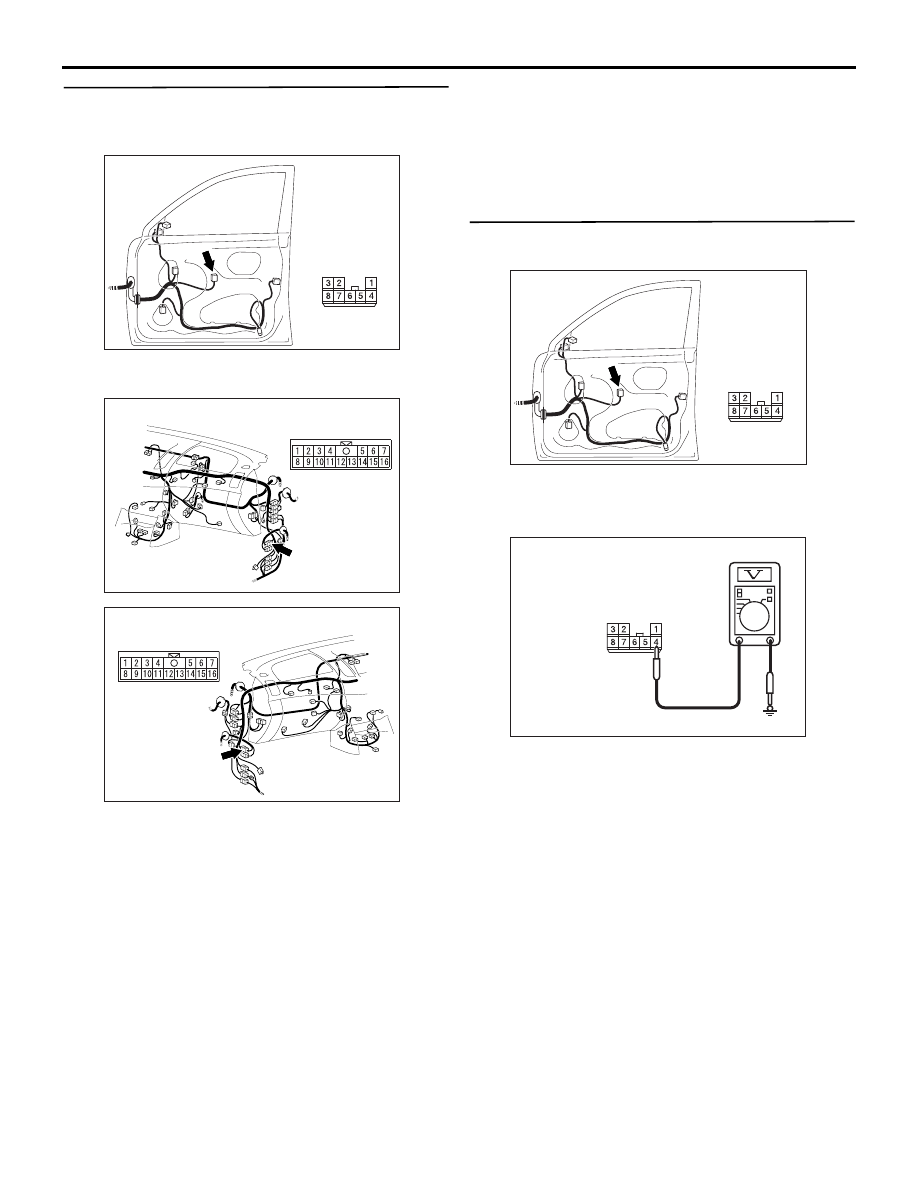

STEP 3. Wiring harness check from E-26 front
power window sub switch connector terminal No.
1 to body earth

AC509954

Connector: E-26

AS

Harness side

Check the earth wires for open circuit.
NOTE:

AC903853

Connector: C-122 <LHD>

AG

AC903865

Connector: C-134 <RHD>

AF

Prior to the wiring harness inspection, check interme-
diate connector C-122 <LHD> or C-134 <RHD>, and
repair if necessary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 4. Voltage measurement at the E-26 front
power window sub switch connector.

AC509954

Connector: E-26

AS

Harness side

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ON position

AC310507

Connector E-26
(Harness side)

MF

(3) Measure the voltage between the E-26 front

power window sub switch connector terminal No.
4 and the body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-24

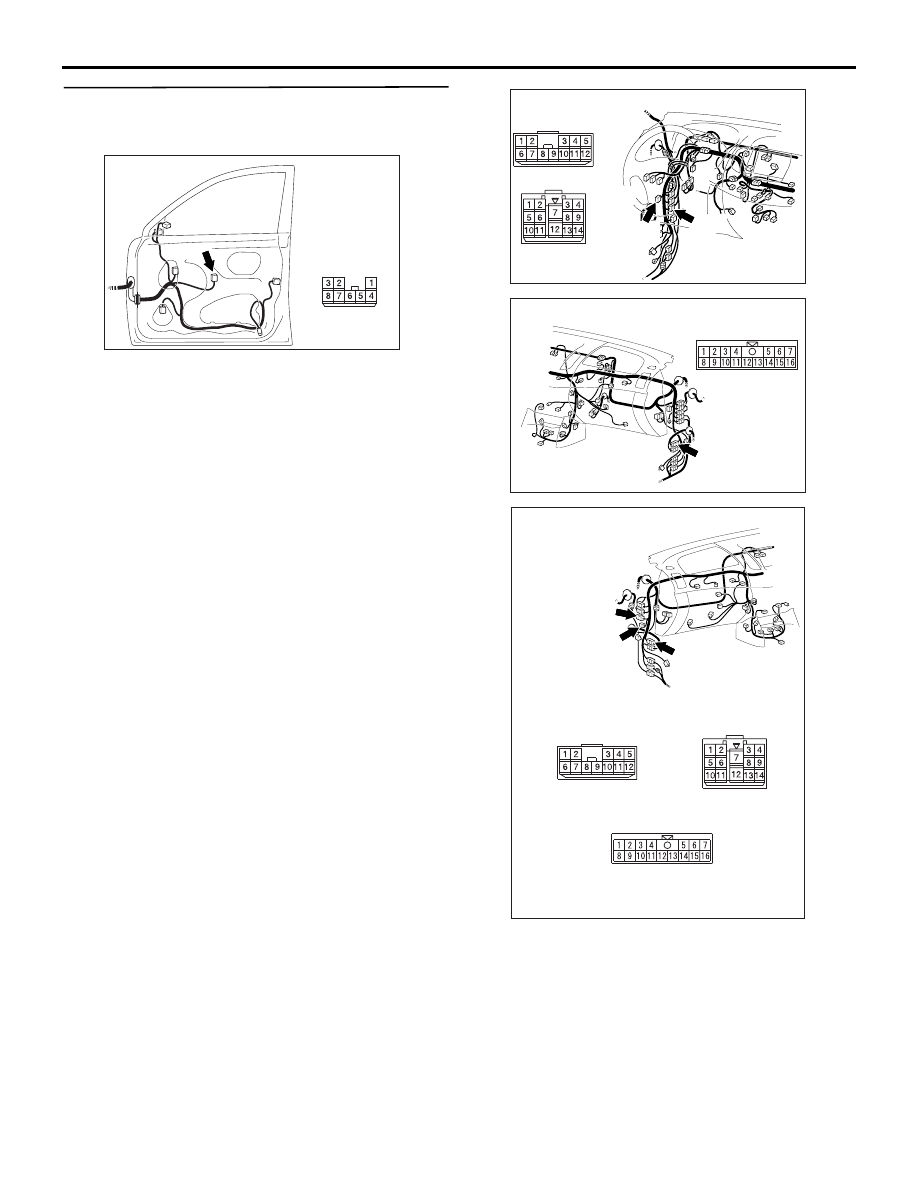

STEP 5. Wiring harness check between the E-26
front power window sub switch connector
terminal No. 4 and the power window relay

AC509954

Connector: E-26

AS

Harness side

Check the power supply line for open circuit and
short circuit.
NOTE:

AC903856

Connectors: C-32, C-33 <LHD>

AJ

C-33

C-32

C-33

C-32 (GR)

AC903853

Connector: C-122 <LHD>

AG

AC903889

Connectors: C-32, C-33, C-134 <RHD>

AB

C-33

C-32

C-33

C-32 (GR)

C-134

C-134

Prior to the wiring harness inspection, check interme-
diate connectors C-33, C-122 <LHD> or C-134
<RHD> and joint connector C-32, and repair if nec-
essary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-25

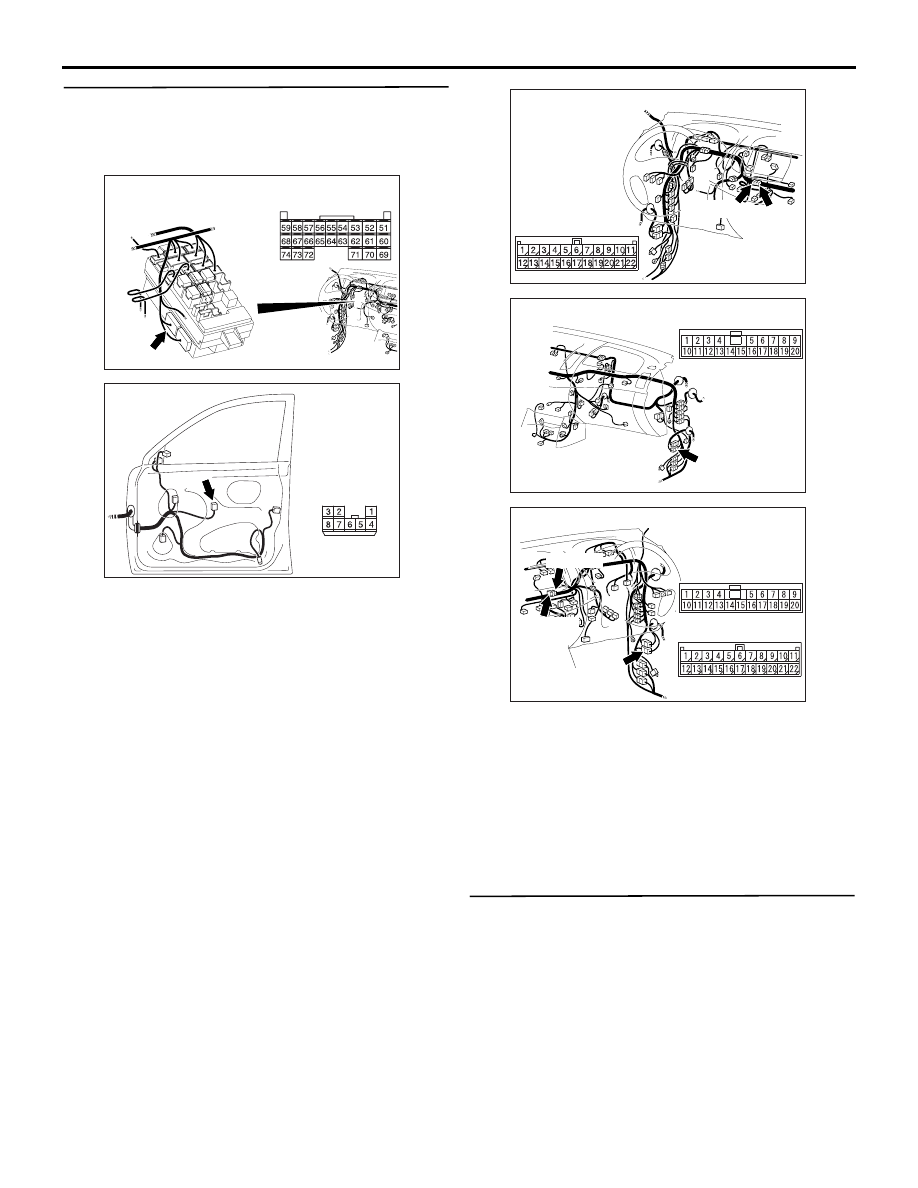

STEP 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.54 and E-26
front power window sub switch connector
terminal No.6.

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509954

Connector: E-26

AS

Harness side

NOTE:

AC903856 AI

Connectors: C-137, C-138 <LHD>

C-138 (L)

C-137, C-138

C-137 (L)

AC903853

Connector: C-121 <LHD>

AI

AC903868

Connectors: C-133, C-137, C-138 <RHD>

C-133

AN

C-138 (L)

C-133

C-137, C-138

C-137 (L)

Prior to the wiring harness inspection, check joint
connectors C-137, C-138 and intermediate connec-
tor C-121 <LHD> or C-133 <RHD>, and repair if nec-
essary.

• Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) On completion, check that the diagnosis code is

reset.

Q: Is the diagnosis code set?

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-26

YES :

Replace the front power window sub switch.

NO :

A poor connection, open circuit or other
intermittent malfunction is present in the LIN
bus lines between the front power window
sub switch and the ETACS-ECU (Refer to
GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

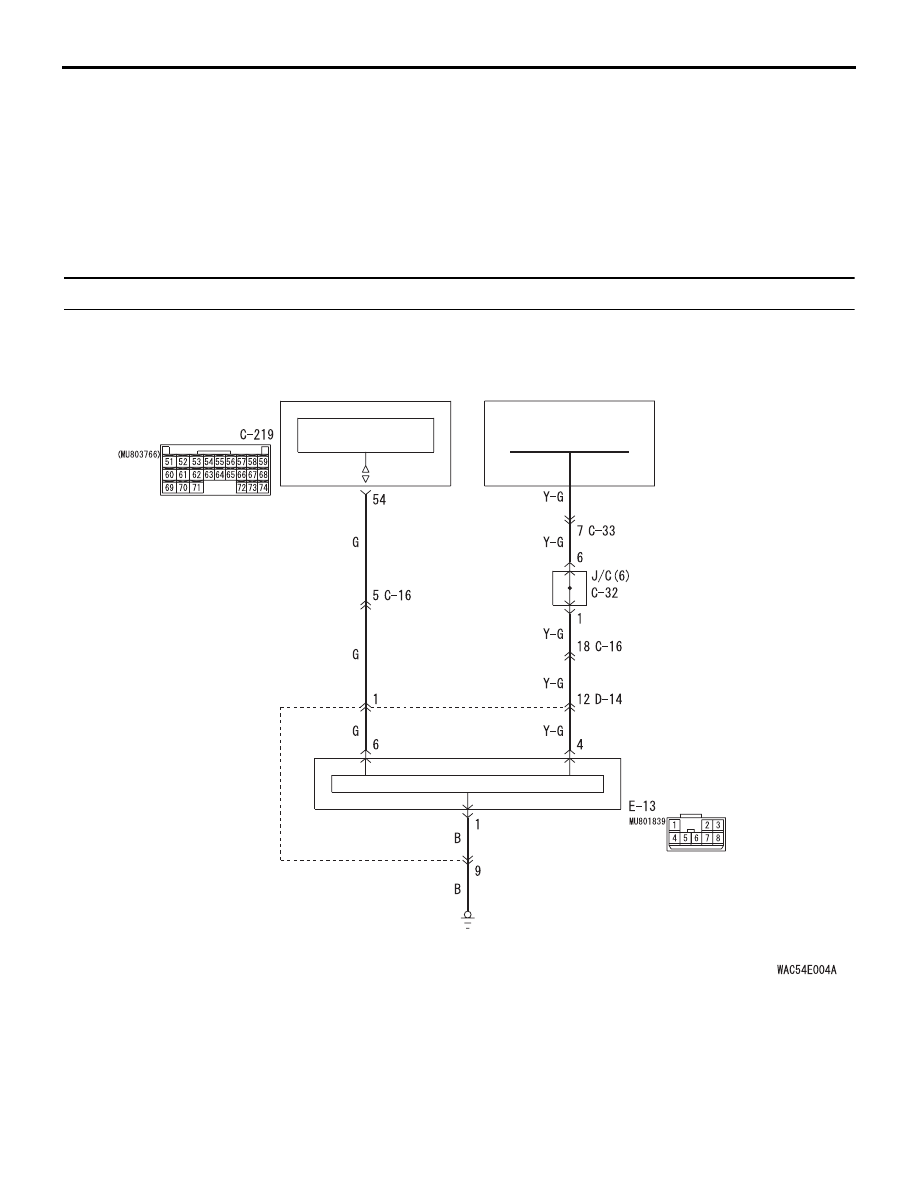

Code No.U1510: Power window sub switch (RL) time-out

Rear Power Window Sub Switch (LH) LIN Communication Circuit

LIN
INTERFACE

POWER WINDOW
SUB SWITCH
(REAR: LH)

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

RELAY
BOX

POWER WINDOW
RELAY

CPU

TROUBLE JUDGEMENT
The ETACS-ECU receives signal from the rear
power window sub switch (LH). If signal cannot be
received at all, diagnosis code No.U1510 will be set.
