ANTENNA

CHASSIS ELECTRICAL

54A-447

REMOVAL AND INSTALLATION

M1544200200885

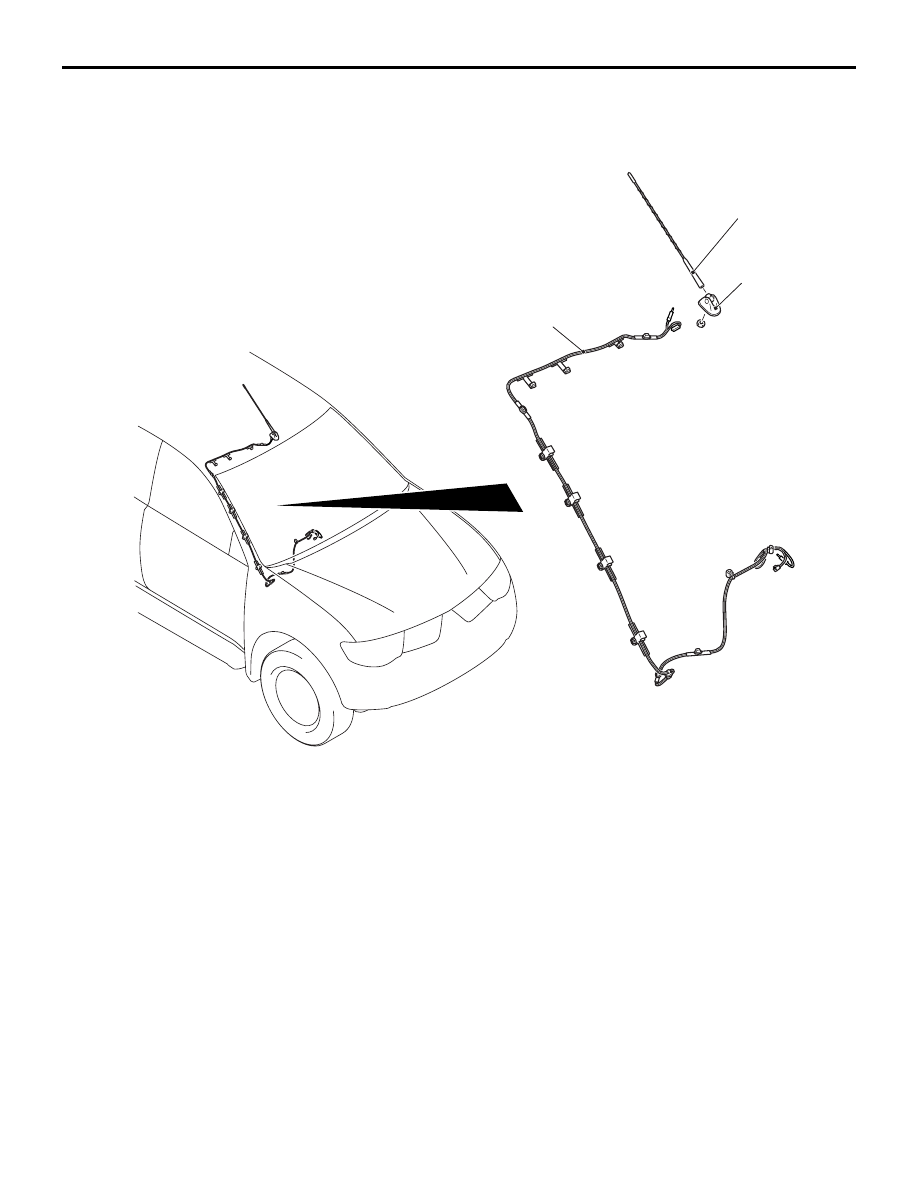

ROOF ANTENNA

AC509435

1

2

3

AB

Removal steps

1.

Antenna rod

•

Headlining (Refer to GROUP 52A,
Headlining  ).

2.

Antenna base

•

RV meter assembly (Refer to

P.54A-489

). <Vehicles with RV

meter>

•

Multivision display assembly (Refer
to

P.54A-379

). <Vehicles with

MMCS>

•

Centre upper box (Refer to GROUP
52A

− Interior, instrument assembly

). <Vehicles without MMCS and RV
meter>

3.

Antenna feeder cable

Removal steps (Continued)

ANTENNA

CHASSIS ELECTRICAL

54A-448

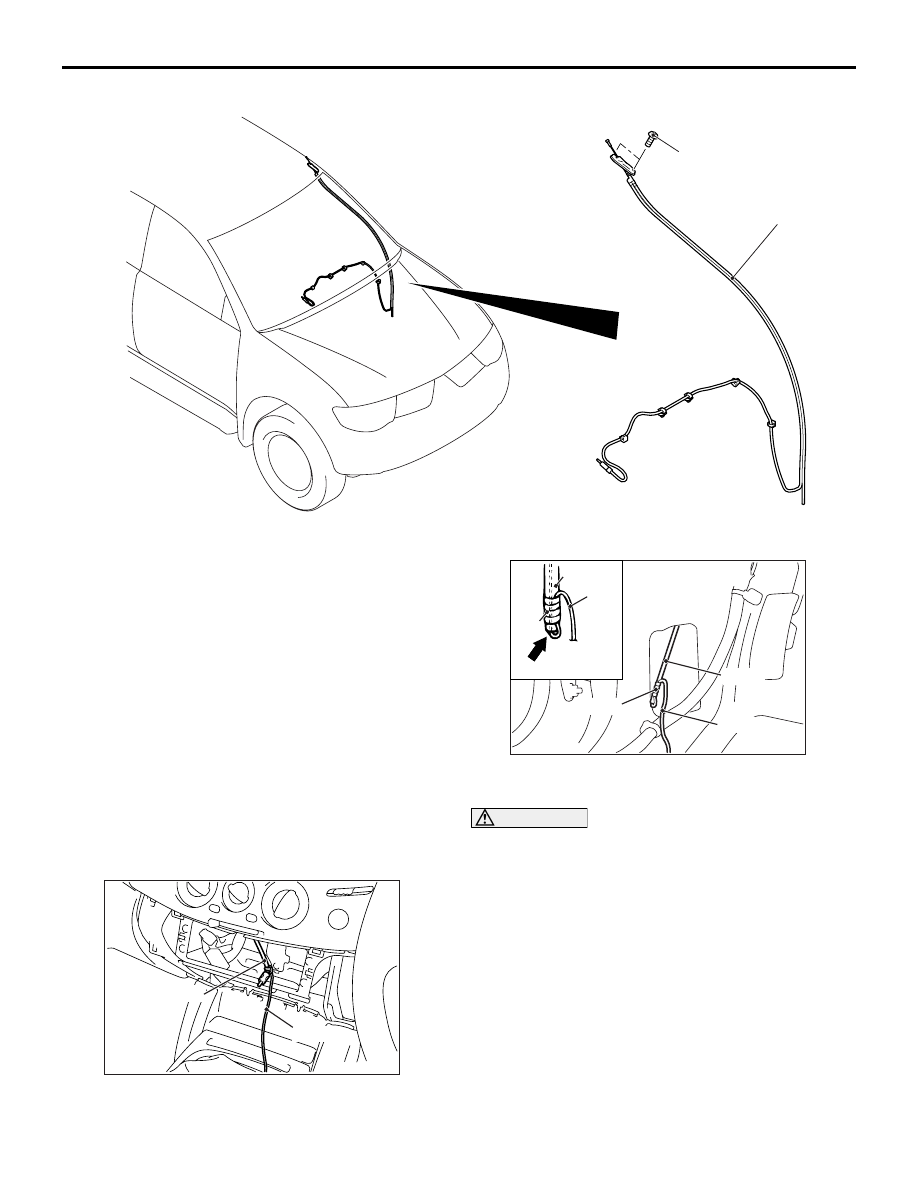

PILLAR ANTENNA

REMOVAL SERVICE POINT

<<A>> ANTENNA ASSEMBLY REMOVAL
Observe the following steps to make the feeder cable
of the antenna to be routed easily during reinstalla-
tion.

1. Secure a cord to the end of the feeder cable.

2. Pull out the feeder cable slightly until the tube end

of the antenna can been seen.

CAUTION

Make sure that the cord is not loosened.
3. Insert a cord into the tube end, and secure the

cord with plastic tape as shown.

4. Remove the antenna assembly by pulling it

gradually.

AC508736

1

1.5 ± 0.5 N·m

AB

Removal steps

•

Centre upper box hood or RV meter
hood, lower panel assembly centre
upper panel assembly and centre
lower panel assembly (Refer to
GROUP 52A, Instrument Panel
Assembly ).

•

Radio and CD player (Refer to

P.54A-294

).

•

Cowl side trim (Refer to GROUP
52A, Interior Trim <Single cab> ).

<<

A

>>

1.

Antenna assembly

AC503099AB

Feeder cable

Cord

AC509609AB

Tube

Cord

Hole

Tape

Cord

Tube

Tape

AMPLIFIER

CHASSIS ELECTRICAL

54A-449

AMPLIFIER

GENERAL INFORMATION

M1544000101133

The 6-channel high power audio amplifier (total out-
put: 420 W) incorporating digital signal processor
(DSP) has been established. The audio amplifier is
installed under the front seat (Drives's seat).

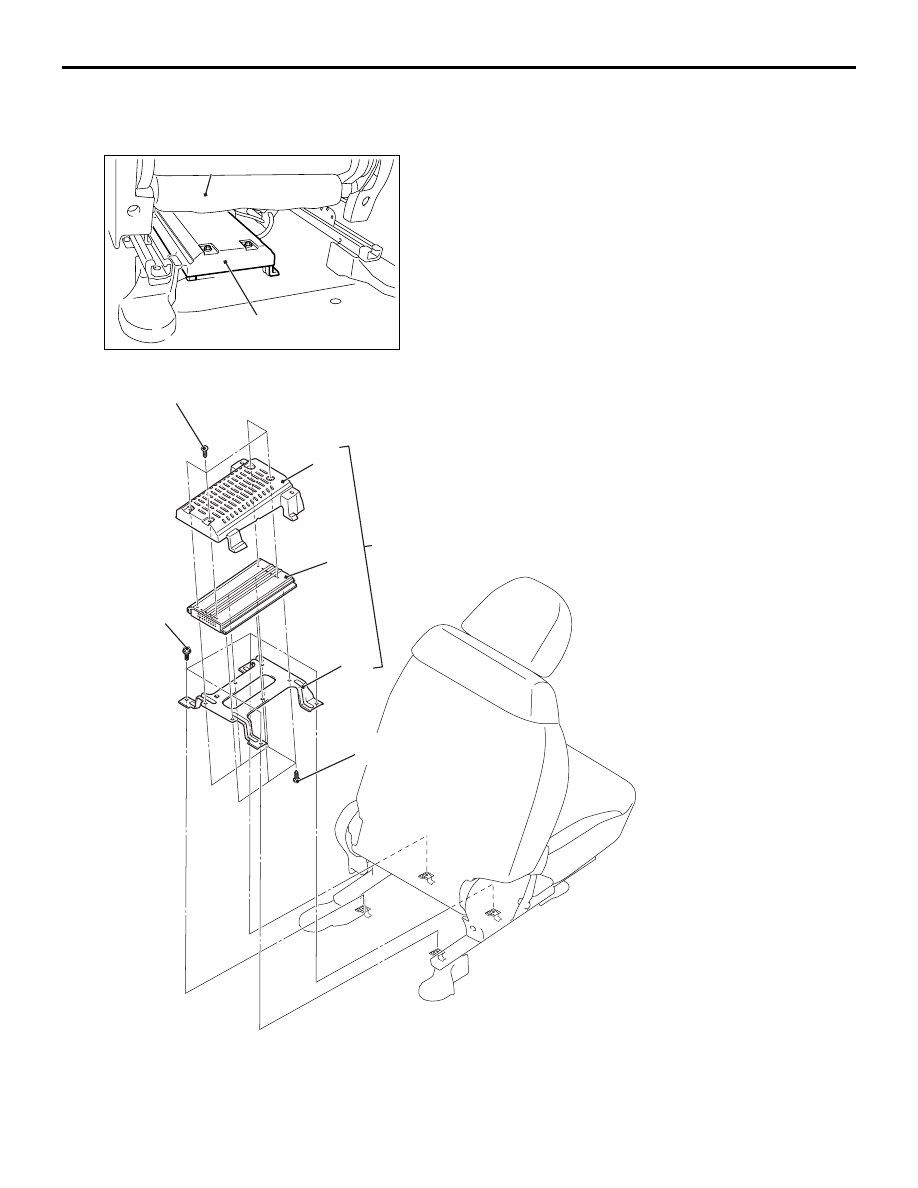

REMOVAL AND INSTALLATION

M1544004100659

AC903454

Front seat (Driver's seat)

Audio amplifier

AC

AC711194AB

1.5 ± 0.5 N·m

5.0 ± 1.0 N·m

2

4

3

1

1.5 ± 0.5 N·m

Removal Steps

1.

Audio amplifier/amplifier box
bracket/audio amplifier cover

2.

Audio amplifier cover

3.

Amplifier box bracket

4.

Audio amplifier

Removal Steps (Continued)

RV METER

CHASSIS ELECTRICAL

54A-450

RV METER

GENERAL INFORMATION

M1546603700043

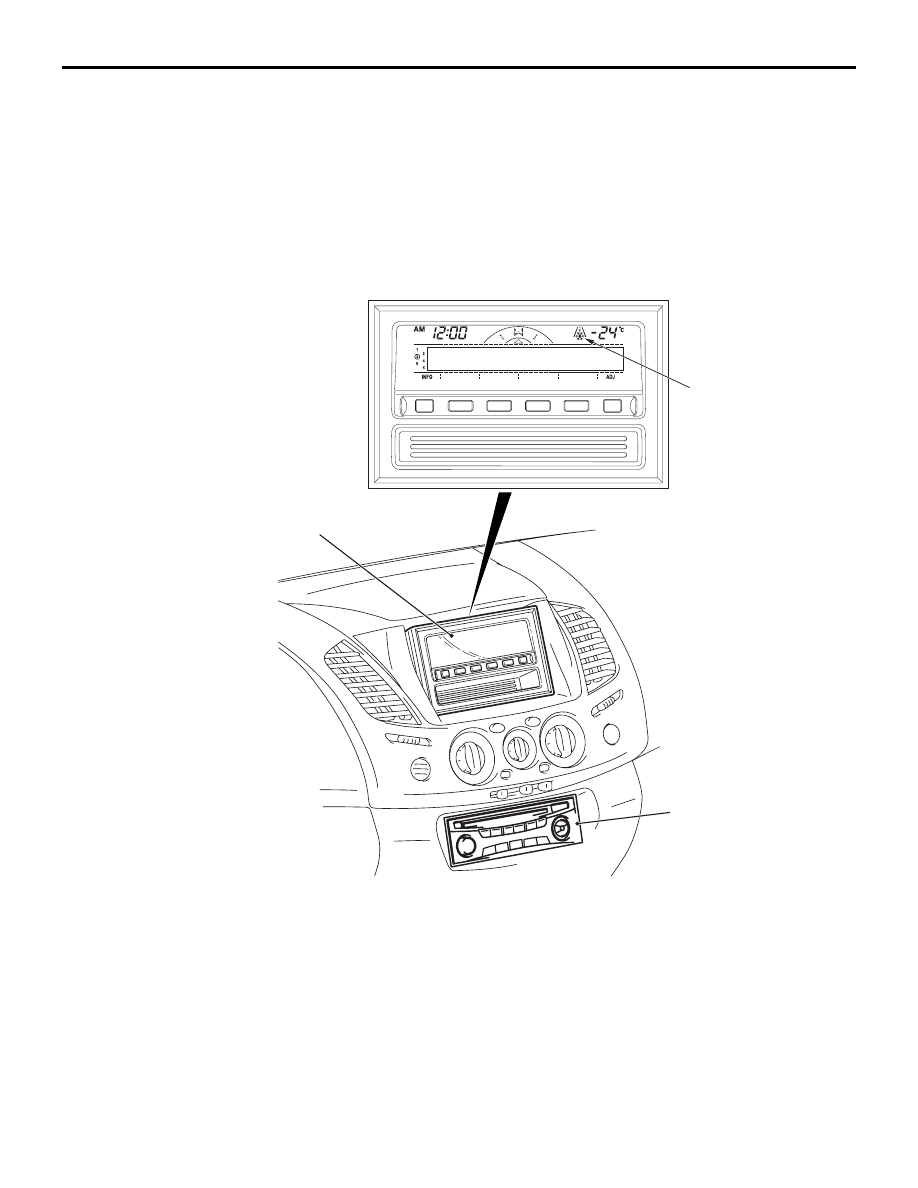

• The RV meter displays drive information, environ-

mental data, time data, and audio system infor-
mation.

• The direction indicator of the RV meter displays

the eight directions as the result of the calculation
based on the earth magnetism detected by the
incorporated geomagnetism sensor.

• The atmospheric pressure indicator of the RV

meter displays the reading of the incorporated
atmospheric pressure sensor. Also the altitude
indicator displays the conversion result of the
atmospheric pressure sensor reading into alti-
tude.

AC900482AB

RV meter

Radio and CD player

Freezing mark
