USB BOX

CHASSIS ELECTRICAL

54A-435

TROUBLE SYMPTOM CHART

M1549100500248

SYMPTOM PROCEDURES

The USB memory device data cannot be replayed. <Vehicles with radio and CD player>

CAUTION

Before replacing the USB box, ensure that the power supply circuit, the earth circuit and the commu-
nication circuit are normal.

Trouble symptom

Reference page

The USB memory device data cannot be
replayed.

Vehicles with radio and CD player

P.54A-435

Vehicles with MMCS

P.54A-438

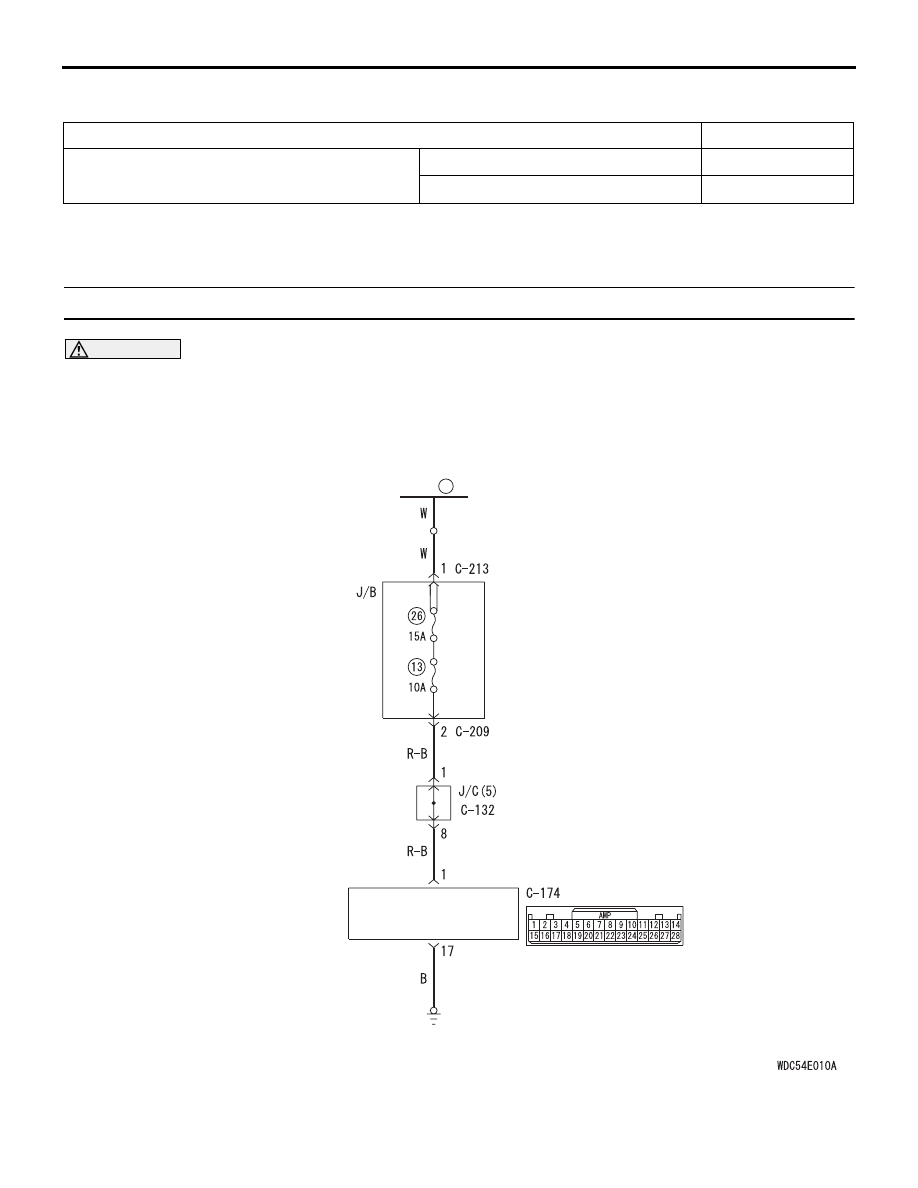

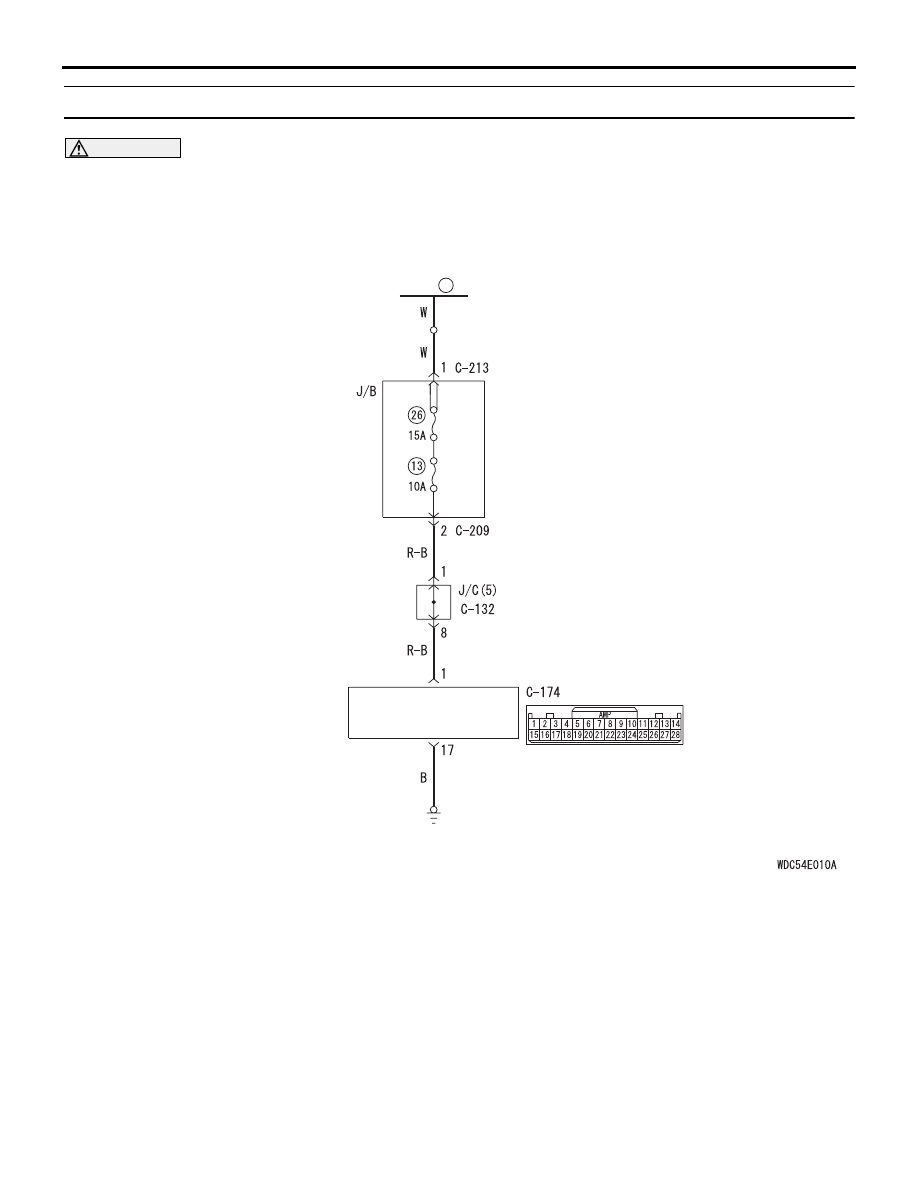

USB Box Power Source Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

FUSIBLE
LINK

20

USB BOX

USB BOX

CHASSIS ELECTRICAL

54A-436

COMMENTS ON TROUBLE SYMPTOM
If the sound replay is impossible with the USB mode,
USB cable, USB box, or radio and CD player may be
defective, or a communication error between the
radio and CD player and USB box may have
occurred.
NOTE: “"USB LSI ERROR" is displayed on the RV
meter when the USB box has an internal error. In this
case, the USB box has an internal error.

PROBABLE CAUSES

• The radio and CD player may be defective.

• The USB box may be defective.

• The USB cable may be defective.

• Damaged harness wires and connectors

DIAGNOSIS

STEP 1. Check the radio and CD player
operation.
Check if the radio and CD player work normally and
the sound is output.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the radio and CD player

P.54A-232

.

STEP 2. Check the external sounds input mode.
Check if the audio unit is switched to the "USB
mode".

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Switch to the external sounds input mode.

STEP 3. Check the RV meter
Check if the RV meter is displayed the "LSI ERROR".

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Go to Step 4.

STEP 4. Check the USB cable.
Check that the USB cable is connected to the USB
box normally. Or check the USB cable for damage
such as bend.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace or repair the USB cable.

STEP 5. Connector check: C-174 USB box
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

STEP 6. Voltage measurement at C-174 USB box
connector.
(1) Disconnect the connector, and measure at the

wiring harness-side connector.

(2) Voltage between connector terminal No.1 and the

body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

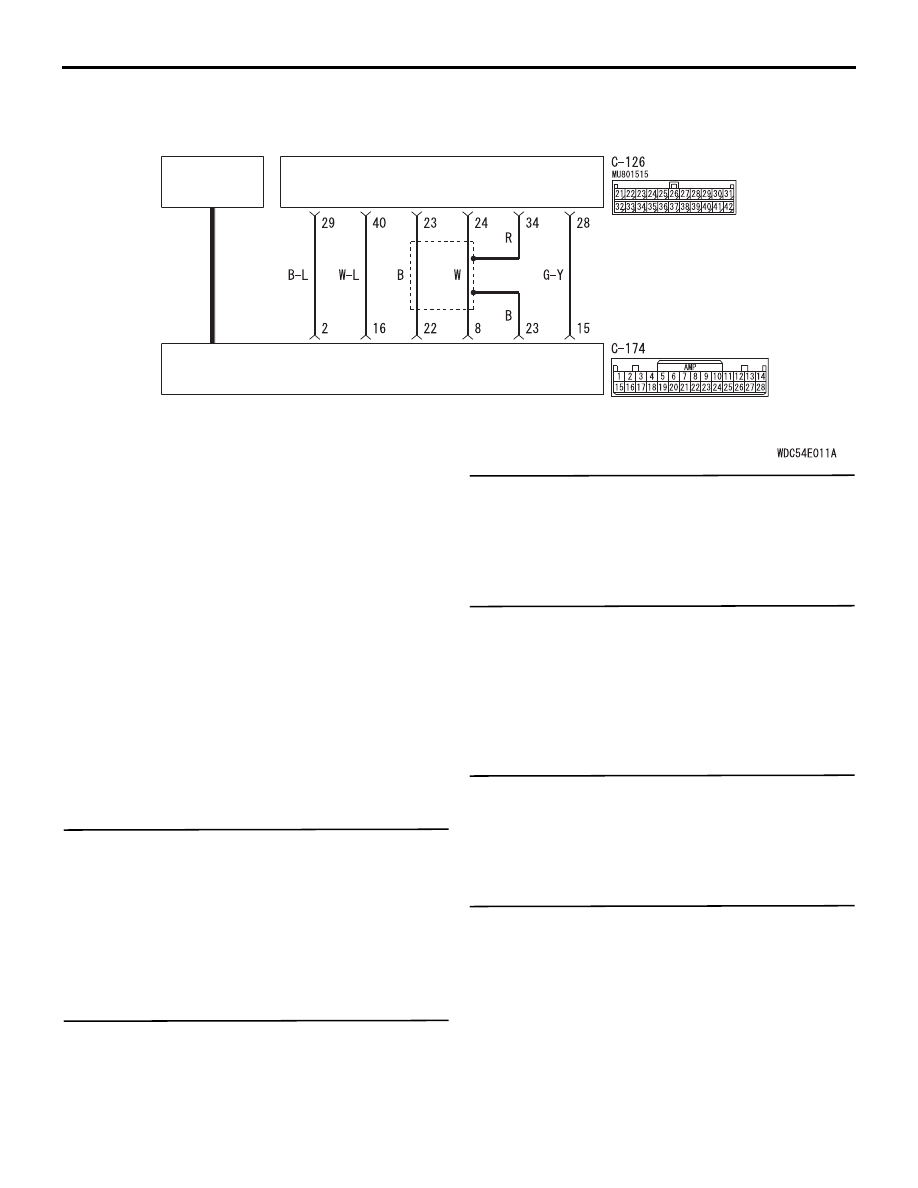

USB Box Communication Circuit

RADIO AND CD PLAYER

USB BOX

USB
CONNECTOR

USB CABLE

USB BOX

CHASSIS ELECTRICAL

54A-437

STEP 7. Check the wiring harness between C-174
USB box connector terminal No.1 and fusible link
20.

• Check the power supply lines (battery power sup-

ply) for open circuit and short circuit.

NOTE: Prior to the wiring harness inspection, check
junction block connectors C-209, C-213 and joint
connector C-132, and repair if necessary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 8. Resistance measurement at C-174 USB
box connector.
(1) Disconnect C-60 USB box connector, and

measure the resistance available at the wiring
harness side of the connector.

(2) Check the continuity between terminal No.17 and

body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

STEP 9. Check the wiring harness between C-174
USB box connector terminal No.17 and body
earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 10. Connector check: C-126 radio and CD
player connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

STEP 11. Check the wiring harness between C-
126 radio and CD player connector terminal No.
23, 24, 28, 29, 34, 40 and C-174 USB box
connector terminal No. 22, 8, 15, 2, 23, 16.

• Check the communication line for open circuit

and short circuit.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the wiring harness.

STEP 12. Replace the USB box temporarily, and
check the trouble symptom.
Replace the USB box temporarily, and check that the
sound is output from the speaker.

Q: Is the check result normal?

YES :

Replace the USB box.

NO :

Replace the radio and CD player.

USB BOX

CHASSIS ELECTRICAL

54A-438

The USB memory device data cannot be replayed. <Vehicles with MMCS>

CAUTION

Before replacing the USB box, ensure that the power supply circuit, the earth circuit and the commu-
nication circuit are normal.

USB Box Power Source Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

FUSIBLE
LINK

20

USB BOX
