RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-271

•

<Tweeter (LH)> Check the wire harness between E-

24 tweeter (LH) connector terminal No.2, 1 and
D-30 audio amplifier connector terminal No.27,
26.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-133 and C-16, and repair if
necessary.

AC903885AD

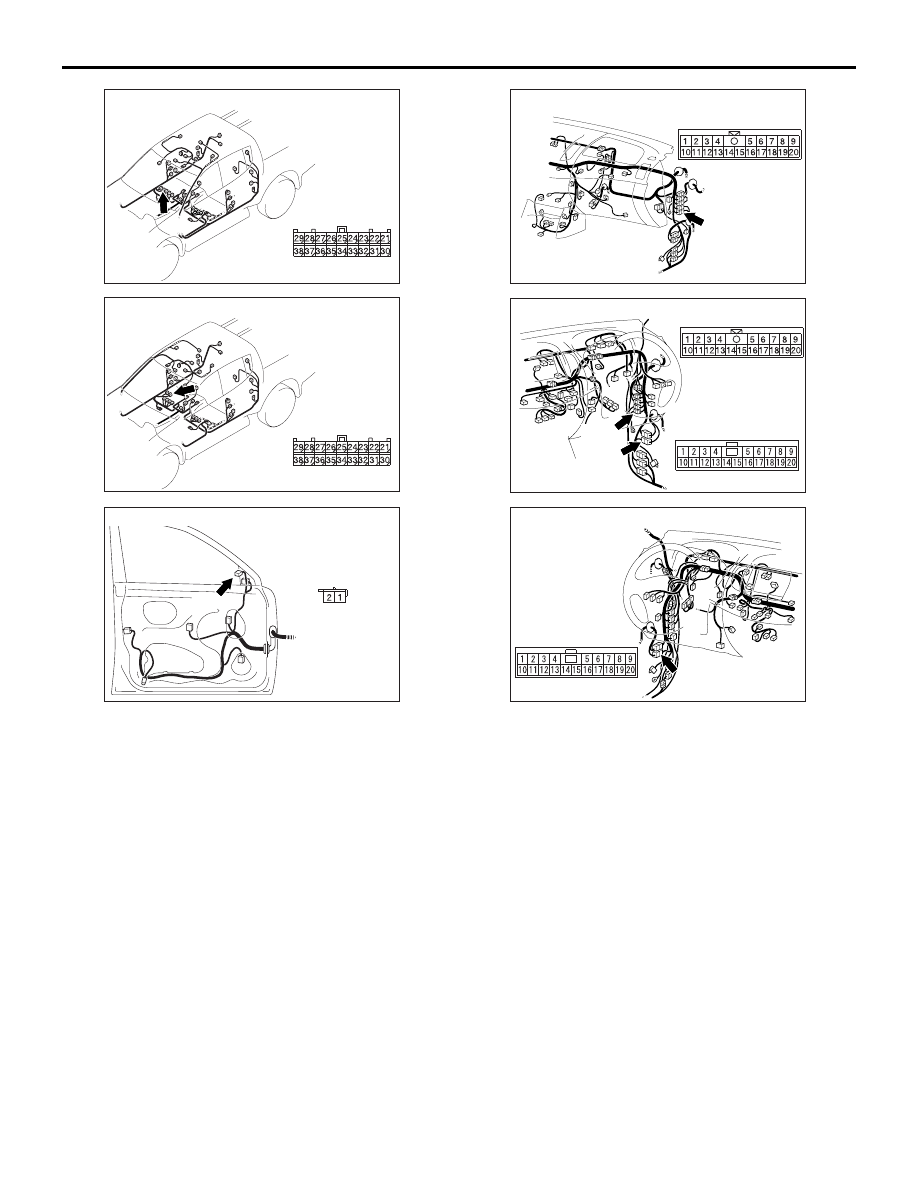

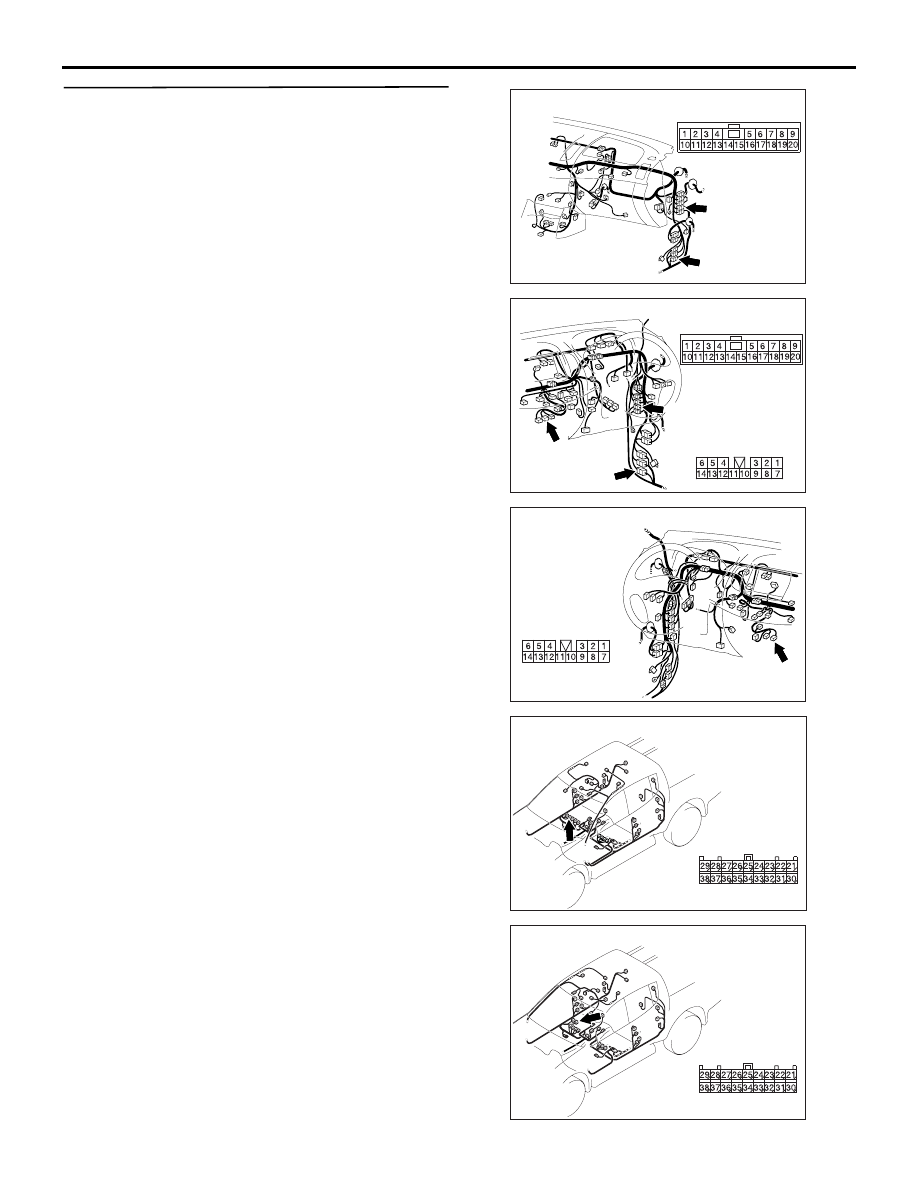

Connector: D-30 <LHD>

Harness side

AC903886 AD

Connector: D-30 <RHD>

Harness side

AC509952

Connector: E-24

AC

Harness side

AC903853

Connector: C-16 <LHD>

AL

AC903868

Connectors: C-16, C-133 <RHD>

C-133

AV

C-133

C-16

C-16

AC903856

Connector: C-133 <LHD>

AN

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-272

•

<Tweeter (RH)> Check the wire harness between E-

25 tweeter (RH) connector terminal No.2, 1 and
D-30 audio amplifier connector terminal No.24,
23.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-121 and C-16, and repair if
necessary.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

STEP 6. Connector check: C-125 radio and CD
player connector

Q: Is the check result normal?

AC903885AD

Connector: D-30 <LHD>

Harness side

AC903886 AD

Connector: D-30 <RHD>

Harness side

AC509954AC

Connector: E-25

Harness side

AC903853

AP

Connectors: C-16, C-121 <LHD>

C-16

C-16

C-121

C-121

AC903868

Connectors: C-16, C-121 <RHD>

AW

C-16

C-121

C-16

C-121

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AE

Harness side

Connector: C-125 <RHD>

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-273

YES <Speakers other than tweeter does not
sound.> :

Go to Step 7.

YES <Tweeter does not sound.> :

Go to Step 8.

NO :

Repair the defective connector.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-274

STEP 7. Check the wire harness between the
audio amplifier connector terminal and the radio
and CD player connector terminal.

Check the communication lines for open circuit and

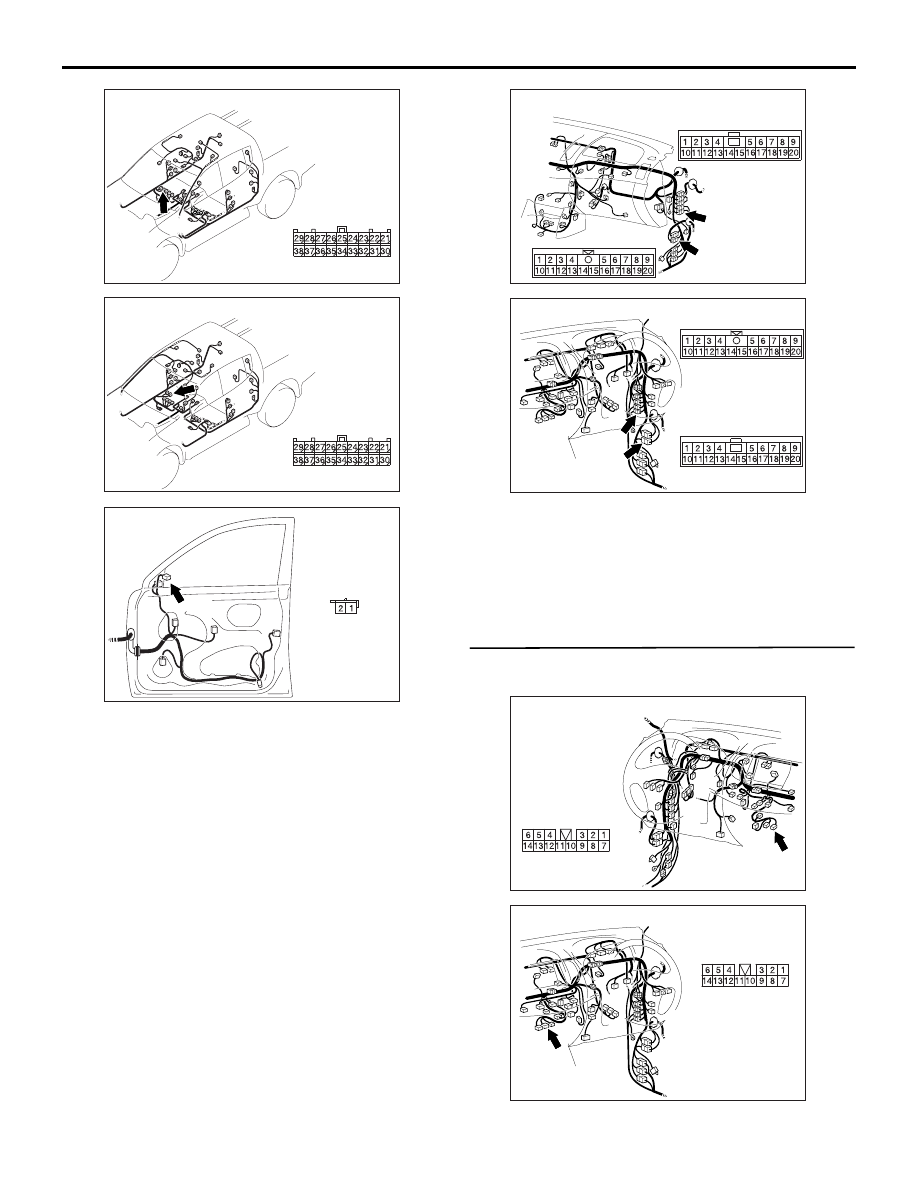

AC903853

Connectors: C-15, C-59 <LHD>

AR

C-59

C-15

C-15, C-59

AC903868

Connectors: C-15, C-59, C-125 <RHD>

AZ

C-59

C-15

C-15, C-59

C-125

C-125

Harness side

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903885AD

Connector: D-30 <LHD>

Harness side

AC903886 AD

Connector: D-30 <RHD>

Harness side
