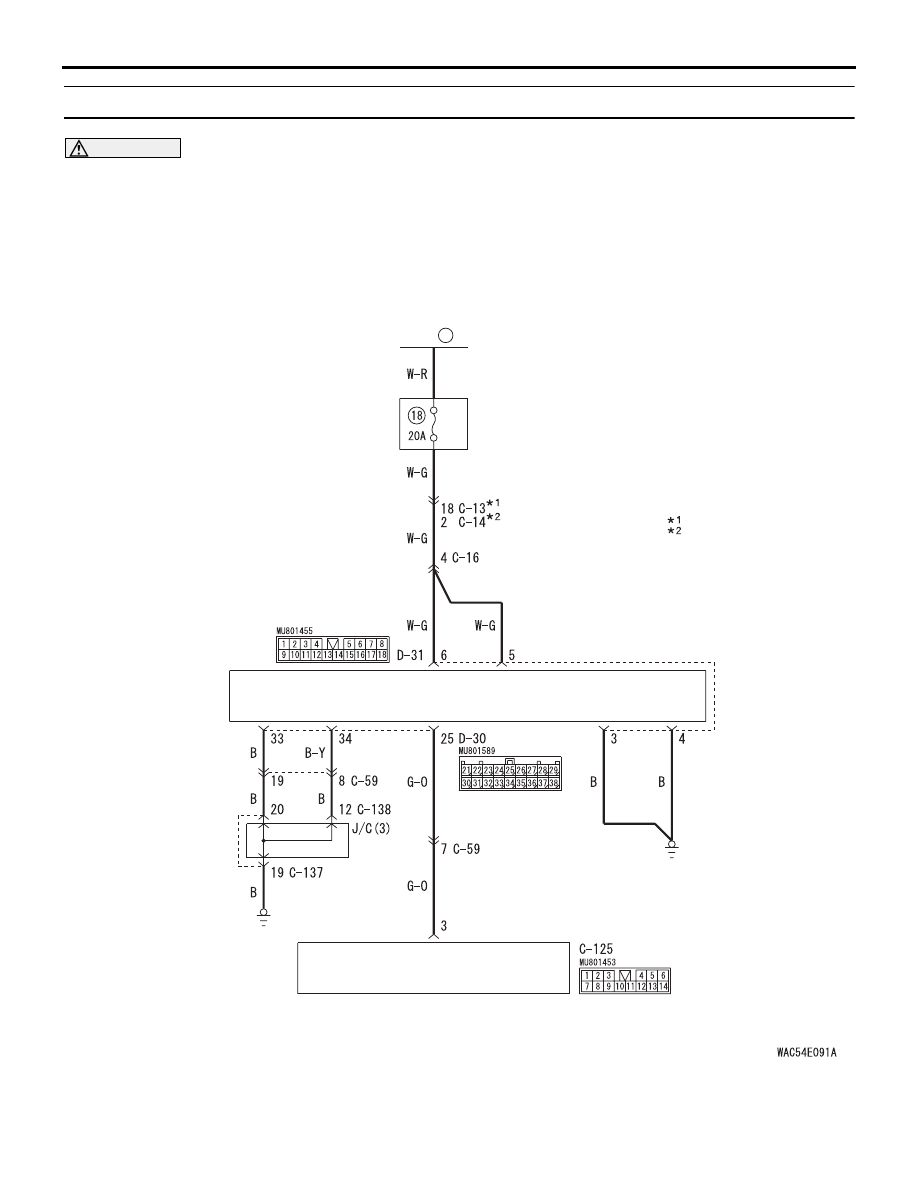

RADIO AND CD PLAYER
CHASSIS ELECTRICAL
54A-243

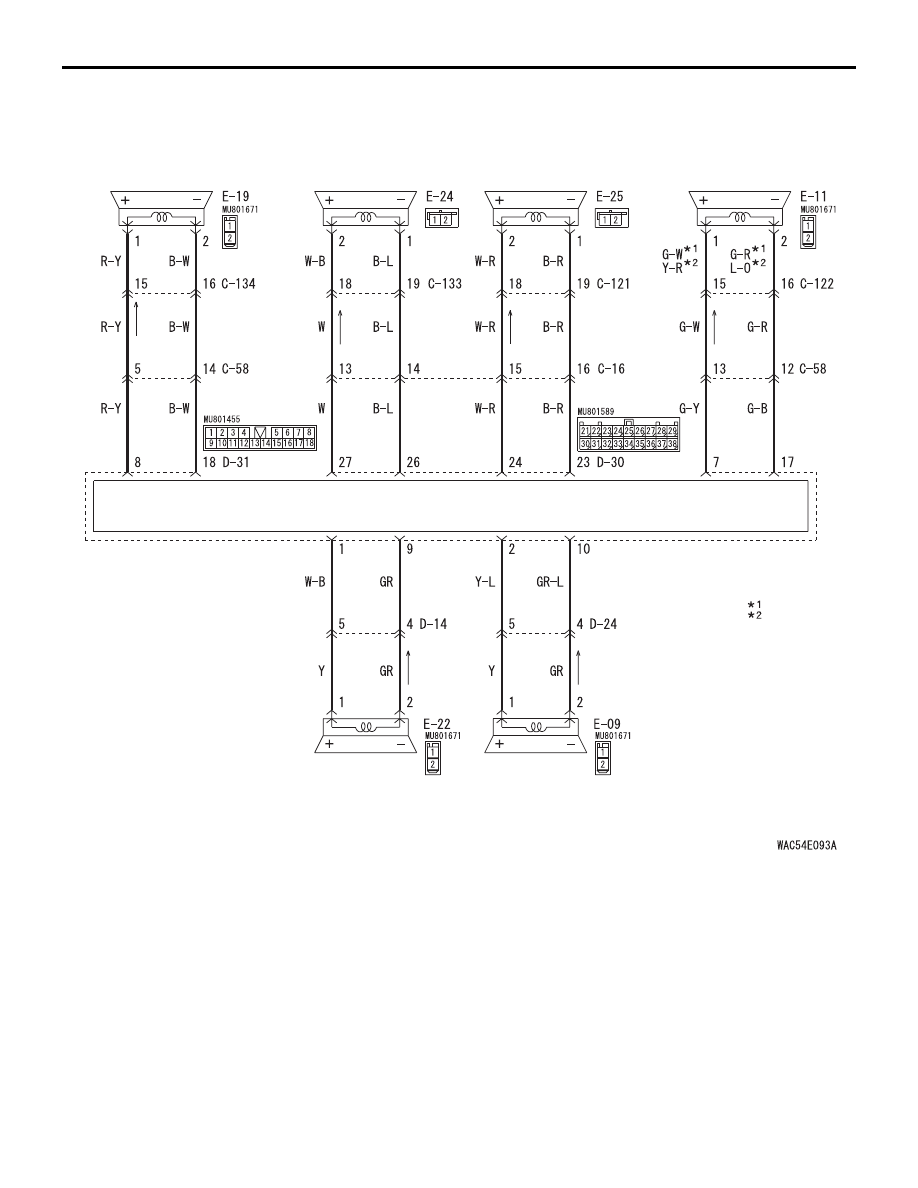

• <Front door speaker (LH), tweeter (LH)> Check
the wiring harness between E-19 front door
speaker (LH) connector terminal No.1, 2 or E-24
tweeter (LH) connector terminal No.2, 1 and C-
125 radio and CD player connector terminal
No.5, 13.
NOTE: Prior to the wiring harness inspection, check
intermediate connectors C-15, C-16, C-58, C-133
and C-134, and repair if necessary.
• <Front door speaker (RH), tweeter (RH)> Check
the wiring harness between E-11 front door
speaker (RH) connector terminal No.1, 2 or E-25
tweeter (RH) connector terminal No.2, 1 and C-
125 radio and CD player connector terminal
No.6, 14.
NOTE: Prior to the wiring harness inspection, check
intermediate connectors C-15, C-16, C-58, C-121
and C-122, and repair if necessary.
• <Rear door speaker (LH)> Check the wiring har-
ness between E-22 rear door speaker (LH) con-
nector terminal No.1, 2 and C-125 radio and CD
player connector terminal No.2, 8.
NOTE: Prior to the wiring harness inspection, check
intermediate connectors C-59 and D-14, and
repair if necessary.
• <Rear door speaker (RH)> Check the wiring har-
ness between E-09 rear door speaker (RH) con-
nector terminal No.1, 2 and C-125 radio and CD
player connector terminal No.1, 7.
NOTE: Prior to the wiring harness inspection, check
intermediate connectors C-59 and D-24, and
repair if necessary.
Q: Is the check result normal?
YES :
Go to Step 5.
NO :
Repair the wiring harness.
STEP 5. Retest the system
Check if the sound is output from all the speakers.
Q: Is the check result normal?

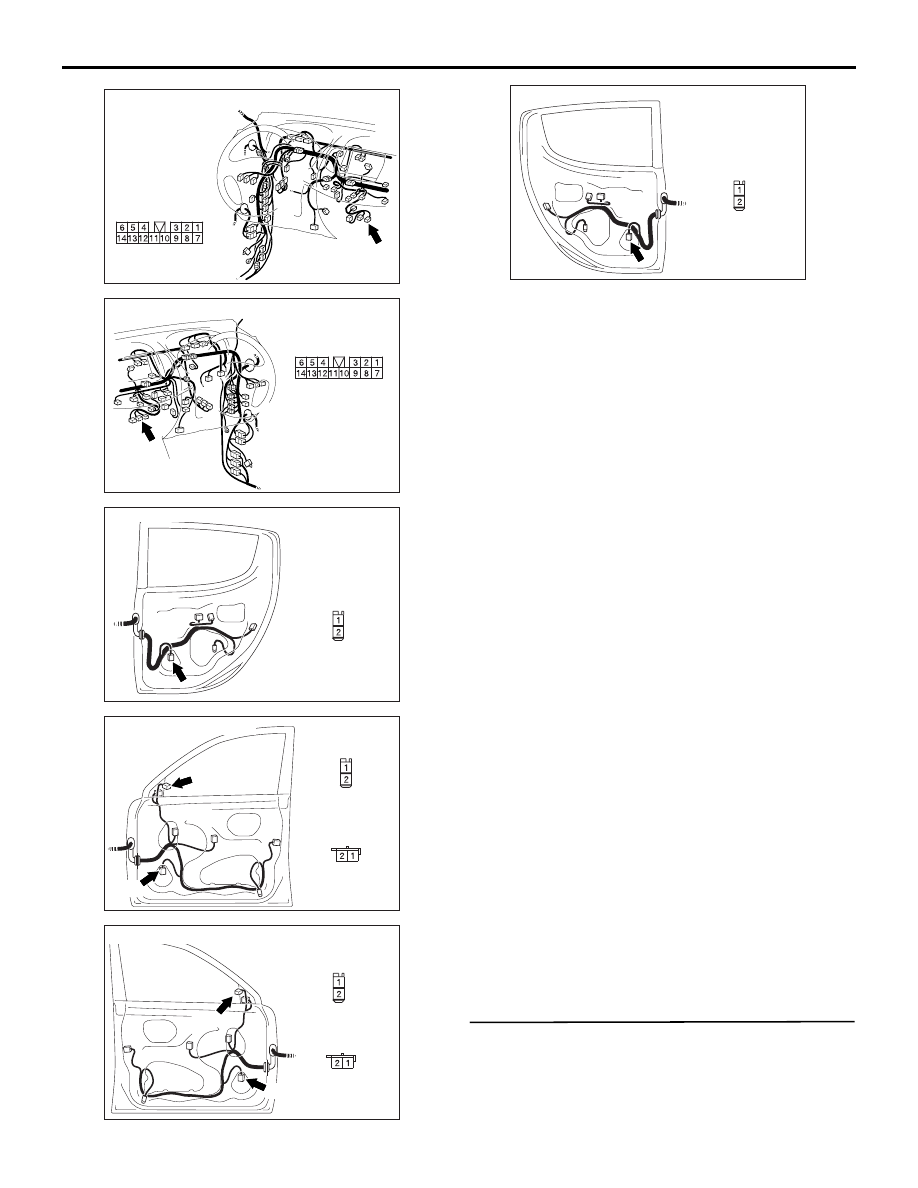

AC903856AE
Harness side
Connector: C-125 <LHD>
AC903868
AE
Harness side
Connector: C-125 <RHD>
AC502334AB
Harness side
Connector: E-09
AC509954AR
Harness side
Connectors: E-11, E-25
E-11
E-11
Harness side
E-25
E-25
AC509952
Connectors: E-19, E-24
AS
Harness side
Harness side
E-19
E-24
E-24
E-19
AC502333AB
Connector: E-22
Harness side
