COLUMN SWITCH

CHASSIS ELECTRICAL

54A-223

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communicati
on Interface
(V.C.I.)

b. M.U.T.-III

USB cable

c. M.U.T.-III

main harness
A (Vehicles
with CAN
communicatio
n system)

d. M.U.T.-III

main harness
B (Vehicles
without CAN
communicatio
n system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger
harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.
Checking ETACS-ECU (service
data and diagnosis codes)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

Tool

Number

Name

Use

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991223

a

d

c

b

DO NOT USE

BA

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-224

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1543101200037

Refer to GROUP 00

− Contents of Troubleshooting .

DIAGNOSTIC FUNCTION

M1543101300023

HOW TO READ DIAGNOSIS CODE

Use the M.U.T.-III to read diagnosis code (Refer to
GROUP 00

− Diagnosis Function ).

HOW TO ERASE DIAGNOSIS CODE

Use the M.U.T.-III to erasing diagnosis code (Refer to
GROUP 00

− Diagnosis Function ).

DIAGNOSIS CODE CHART

M1543100300031

DIAGNOSIS CODE PROCEDURES

Code No.B1763: Column switch abnormality (Lighting switch)



Code No.B1764: Column switch abnormality (Wiper/washer switch)

COMMENTS ON TROUBLE SYMPTOM

• If the ETACS-ECU receives the lighting switch fail

signal, the ETACS-ECU stores the diagnosis
code No. B1763.

• If the ETACS-ECU receives the wiper/washer

switch fail signal, the ETACS-ECU stores the
diagnosis code No. B1764.

PROBABLE CAUSES

• Malfunction of the column switch (lighting switch

or wiper/washer switch)

• Malfunction of the ETACS-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) On completion, check that the diagnosis code

No. B1763 or No. B1764 is reset.

Q: Is the diagnosis code reset?

The diagnosis code is not set. :

A poor

connection, open circuit or other intermittent
malfunction is present in the LIN bus lines
between the column switch and the ETACS-
ECU (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions
).

Diagnosis code No. B1763 is set. :

Go to Step 3.

Diagnosis code No. B1764 is set. :

Go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Replace the windshield wiper and washer switch.
(2) Erase the diagnosis code.
(3) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(4) On completion, check that the diagnosis code

No. B1764 is reset.

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB992006

Code No.

Diagnostic item

Reference page

B1763

Column switch abnormality (lighting switch)

P.54A-224

B1764

Column switch abnormality (wiper/washer switch)

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-225

Q: Is the diagnosis code reset?

YES :

Go to Step 3.

NO :

The procedure is complete.

STEP 3. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Replace the lighting switch (with built-in column-

ECU).

(2) Erase the diagnosis code.
(3) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(4) On completion, check that the diagnosis code is

reset.

Q: Is the diagnosis code reset?

YES :

Return to Step 4.

NO :

The procedure is complete.

STEP 4. Check whether the diagnosis code is
reset.
Check if diagnosis code is reset to the ETACS-ECU.

Q: Is the diagnosis code reset?

YES :

Replace the ETACS-ECU and register the

ID codes (Refer to

P.54A-39

).

NO :

The procedure is complete.

REMOVAL AND INSTALLATION

M1543100700459

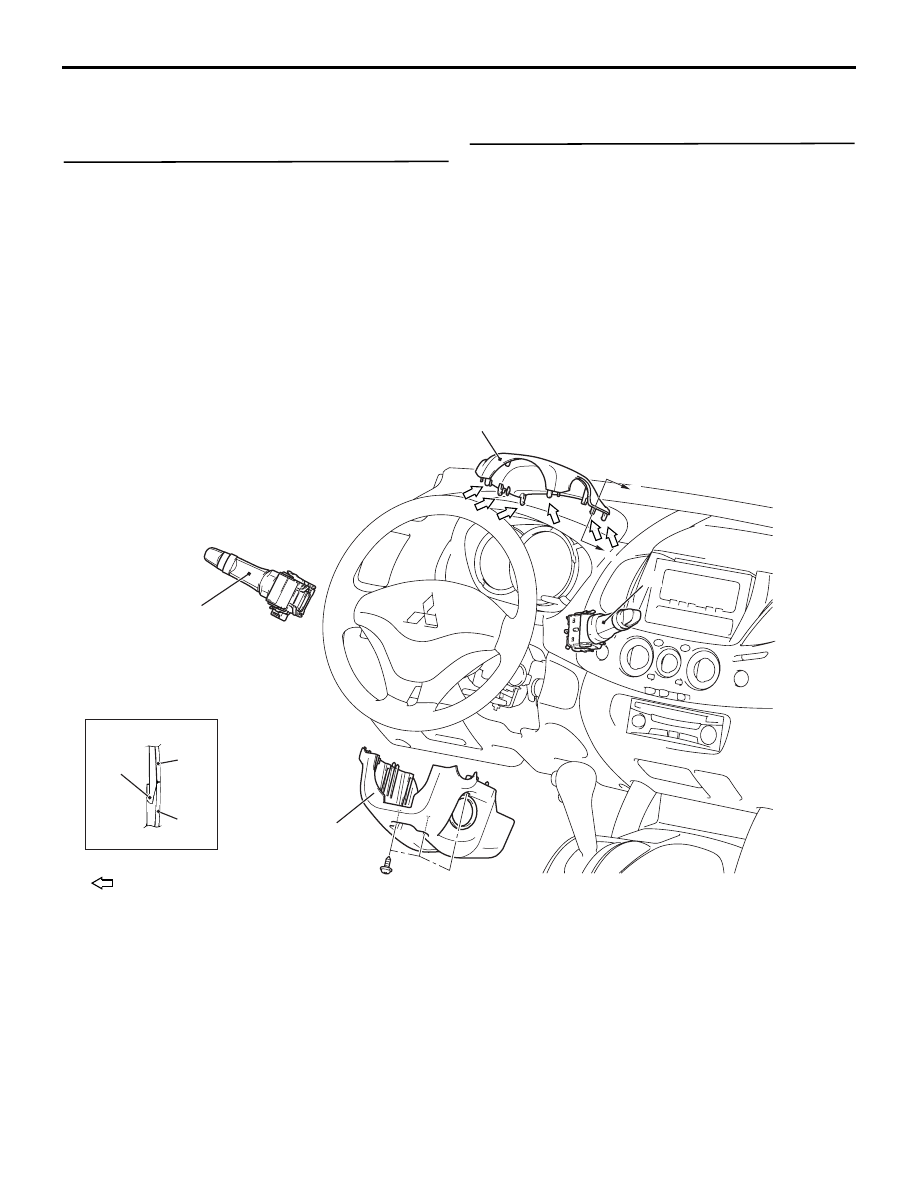

LIGHTING SWITCH AND WIPER/WASHER
SWITCH

AC509692

1

2

1

2

Section A – A

Claw

NOTE
       : Claw position

A

A

AB

4

3

Removal steps

1.

Steering column upper cover (Refer
to GROUP 52A, Instrument Panel
Assembly ).

2.

Steering column lower cover (Refer
to GROUP 52A, Instrument Panel
Assembly ).

3.

Windshield wiper and washer
switch

4.

Lighting switch (with built-in
column-ECU)

Removal steps (Continued)

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-226

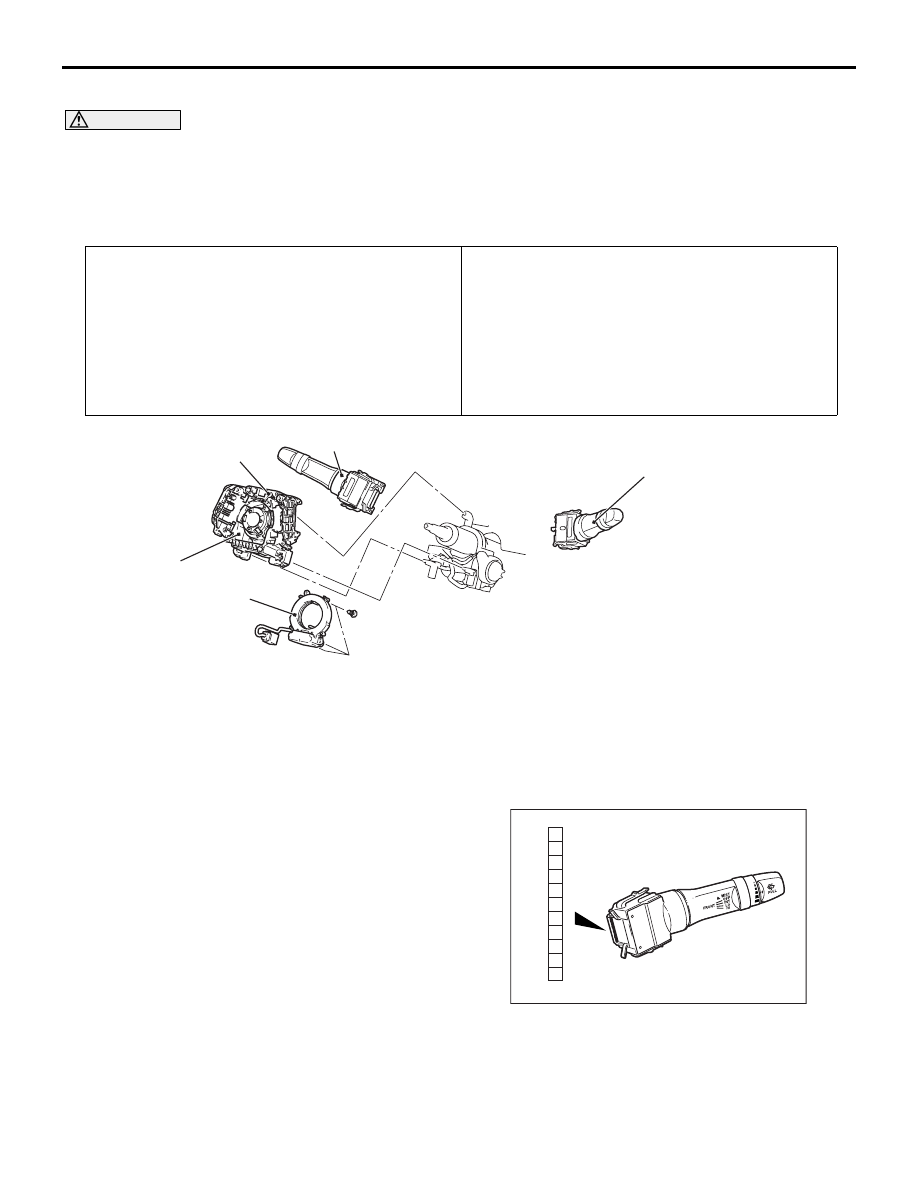

COLUMN SWITCH BODY

CAUTION

• To remove the driver airbag module, refer to GROUP 52B − Service Precautions  and Driver/Front

Passenger's Air Bag Module and Clock Spring .

• After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor

neutral point. (Refer to GROUP 35C, On-vehicle Service

− Steering Wheel Sensor Calibration ).

<Vehicles with ASTC>

INSPECTION

WINDSHIELD WIPER AND WASHER
SWITCH CONTINUITY CHECK

M1543101500027

Pre-removal operation
• Check of steering wheel straight-ahead position
• Removal of steering wheel assembly (Refer to GROUP

52B

− Air Bag Module(s) and Clock Spring .)

• Removal of steering column lower cover, steering column

upper cover (Refer to GROUP 52A

− Instrument Panel

Assembly .)

• Removal of Clock spring (Refer to GROUP 52B - Driver’s

Front Passenger's Air Bag Module and Clock Spring ).

Post-installation operation
• Installation of Clock spring (Refer to GROUP 52B -

Driver’s Front Passenger's Air Bag Module and Clock

Spring ).

• Installation of steering column lower cover, steering col-

umn upper cover  (Refer to GROUP 52A

− Instrument

Panel Assembly .)

• Installation of steering wheel assembly (Refer to GROUP

52B

− Air Bag Module(s) and Clock Spring .)

• Check of steering wheel straight-ahead position

AC808093AC

2

1

3

4

2.5 ± 0.5 N·m

Removal Steps

1.

Windshield wiper and washer
switch

2.

Lighting switch (with built-in
column-ECU)

3.

Column switch body

4.

Steering wheel sensor (Refer to
GROUP 35C - Steering wheel
sensor ). <Vehicles with ASTC>

AC509590

AC509591

1

6

8

11

10

9

7

5

4

3

2
