BATTERY

CHASSIS ELECTRICAL

54A-11

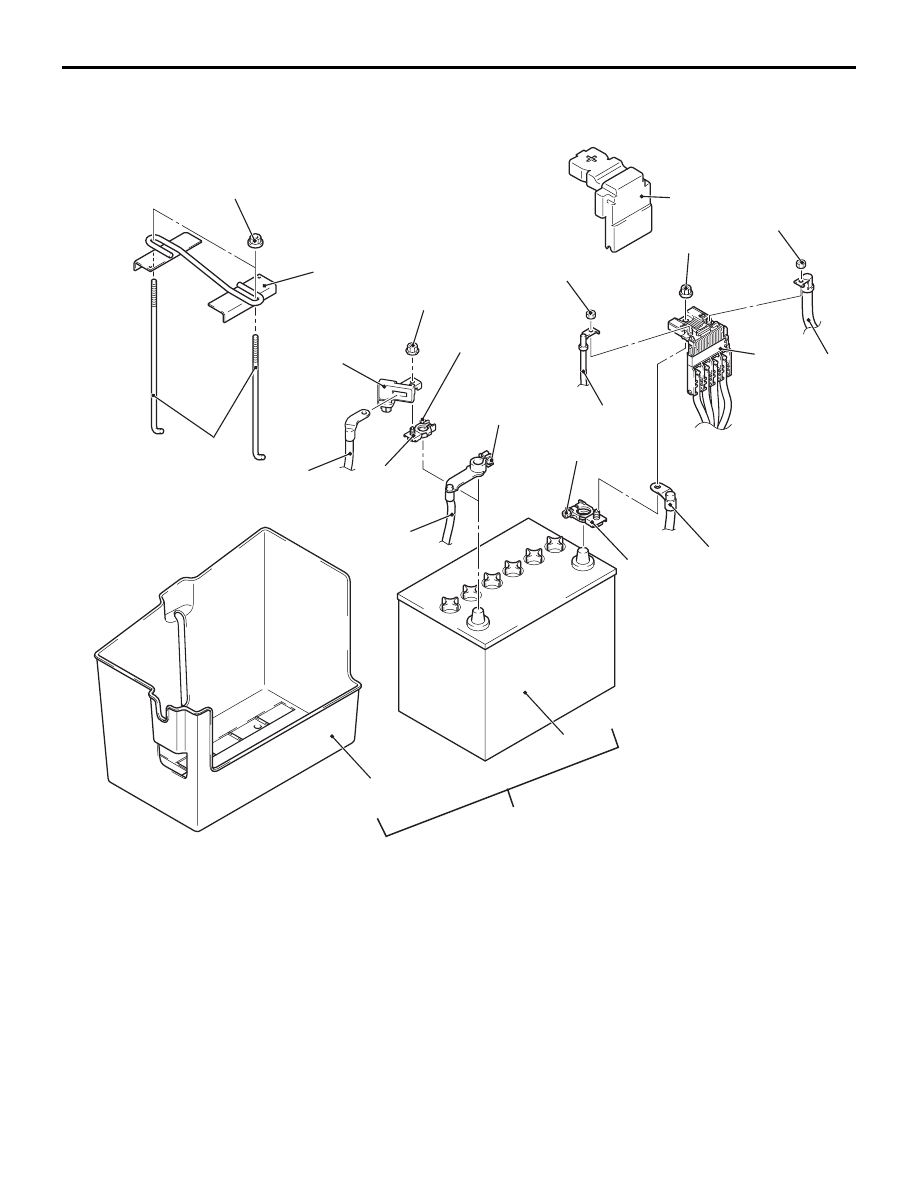

MAIN BATTERY

ACB01677 AB

4.0 ± 1.0 N·m

9

10

13

12

11

12 ± 2 N·m

12 ± 2 N·m

6

4

5

5

9.0 ± 2.0 N·m

9.0 ± 2.0 N·m

7

2

2

1

3

8

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

Removal steps

1.

Battery current sensor <vehicles
with battery current sensor>

2.

Connection of the battery harness
[negative battery terminal]

3.

Battery terminal assembly
[negative battery terminal]
<vehicles with battery current
sensor>

4.

Fusible link box cover

5.

Connection of the harness

6.

Connection of the fusible link box
assembly

7.

Connection of the harness

8.

Battery terminal assembly

9.

Battery holder

10. Battery L-bolt
11. Battery and battery box
12. Battery
13. Battery box

Removal steps (Continued)

BATTERY

CHASSIS ELECTRICAL

54A-12

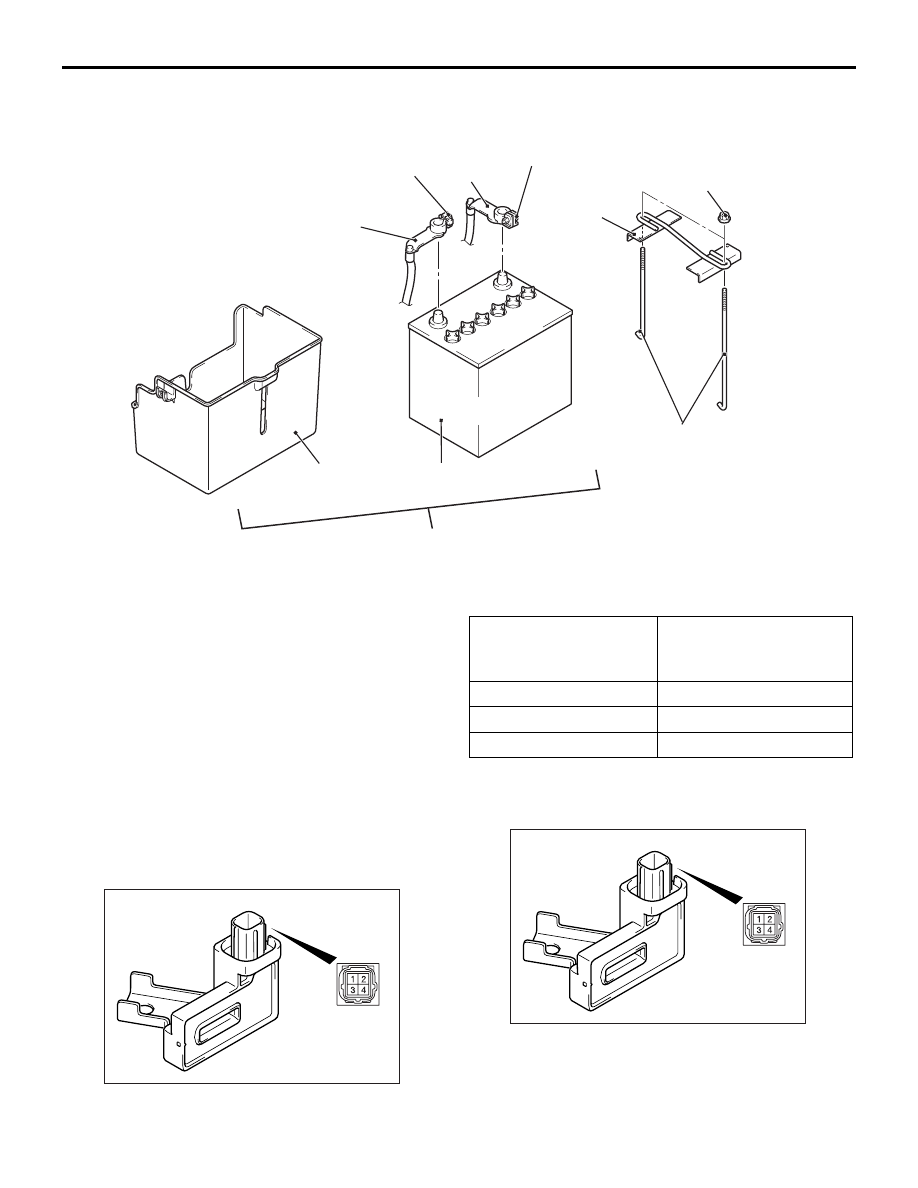

SUB BATTERY

INSPECTION

BATTERY CURRENT SENSOR CHECK

M1541002100234

CURRENT SENSOR RESISTANCE VALUE

Use the circuit tester to measure the resistance value
between battery current sensor connector terminals.

Standard value:

TEMPERATURE SENSOR RESISTANCE
VALUE

Using the circuit tester, measure the resistance value
between the battery current sensor connector termi-
nal No. 2 and No. 3.

Standard value:

AC801117 AC

1

5.0 ± 1.0 N·m

4.0 ± 1.0 N·m

5.0 ± 1.0 N·m

2

7

3

4

5

6

Removal steps

1.

Battery (negative) terminal
connection harness

2.

Battery (positive) terminal
connection harness

3.

Battery holder

4.

Battery L-bolt

5.

Battery and battery box

6.

Battery

7.

Battery box

AC808952AB

Terminal No. (positive
terminal

− negative

terminal)

Resistance (k

Ω)

1

− 3

3

− 10

1

− 4

Less than 0.5

3

− 4

3

− 10

AC808952AB

BATTERY

CHASSIS ELECTRICAL

54A-13

Temperature (

°C)

Resistance (k

Ω)

0

4.5

− 7.2

25

1.6

− 2.5

40

0.96

− 1.40
