PASSENGER'S AIR BAG CUT OFF SWITCH

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-287

PASSENGER'S AIR BAG CUT OFF SWITCH

REMOVAL AND INSTALLATION

M1524026700464

WARNING

•

Never attempt to disassemble or repair the passenger’s air bag cut off switch. If faulty,
replace it.

•

Do not drop or subject the passenger’s air bag cut off switch to impact or vibration.
Replace the passenger’s air bag cut off switch, if a dent, cracking, deformation, or rust is
present.

•

Pre-removal Operation
• Turn the ignition key to the "LOCK" (OFF) position.
• Disconnect the Negative Battery terminal.

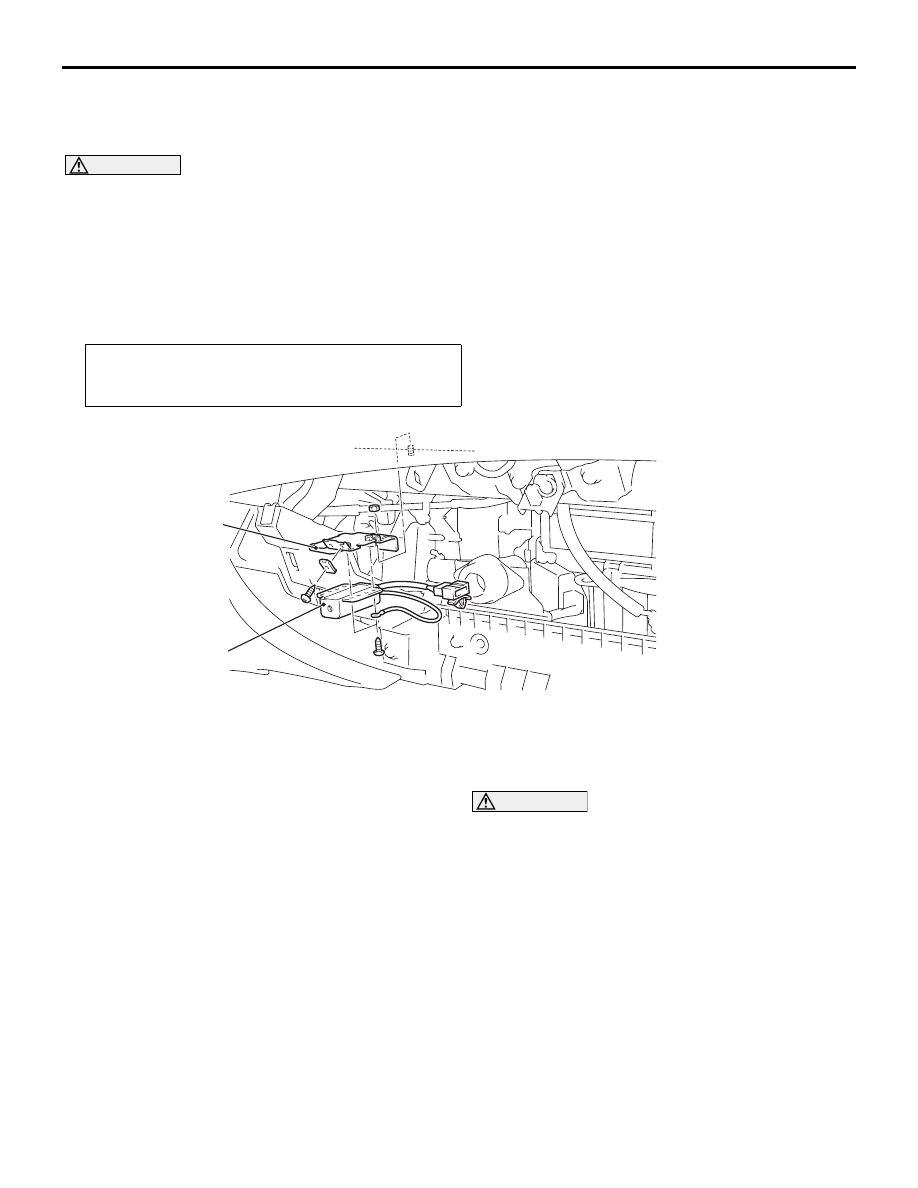

AC509683

1

2

AB

Removal steps

<<

A

>>

•

Passenger's air bag module
connector connection (Refer to

P.52B-268

).

•

Glove box cover (Refer to GROUP
52A, Instrument panel assembly ).

1.

Passenger’s air bag cut off switch

2.

Passenger’s air bag cut off switch
bracket
Installation steps

>>

A

<<

•

Pre-installation inspection

2.

Passenger’s air bag cut off switch
bracket

>>

B

<<

1.

Passenger’s air bag cut off switch

•

Glove box cover (Refer to GROUP
52A, Instrument panel assembly ).

•

Passenger's air bag module
connector connection (Refer to

P.52B-268

).

•

Negative battery cable connection

>>

C

<<

•

Post-installation inspection

After deployment of an air bag, check the passenger’s air bag cut off switch and replace a
new one if there is an abnormality.

REMOVAL SERVICE POINT

<<A>> PASSENGER’S (FRONT) AIR BAG MOD-
ULE CONNECTOR DISCONNECTION

DANGER

Remove the passenger's (front) air bag mod-
ule first to prevent the air bag from deploying
unintentionally, because the passenger's air
bag cut off switch does not have a connector
short circuiting mechanism.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION
Check the passenger’s air bag cut off switch for
dents, breakage and bending and measure the
resistance between the terminals, even when install-
ing a new passenger’s air bag cut off switch.

PASSENGER'S AIR BAG CUT OFF SWITCH

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-288

>>B<< PASSENGER’S AIR BAG CUT OFF
SWITCH INSTALLATION

WARNING

If the passenger’s air bag cut off switch is
not installed securely and correctly, the pas-
senger’s (front) air bag may not operate nor-
mally.

Securely connect the connector.

>>C<< POST-INSTALLATION INSPECTION
1. Reconnect the negative battery cable.
2. Turn the ignition switch to the "ON" position.

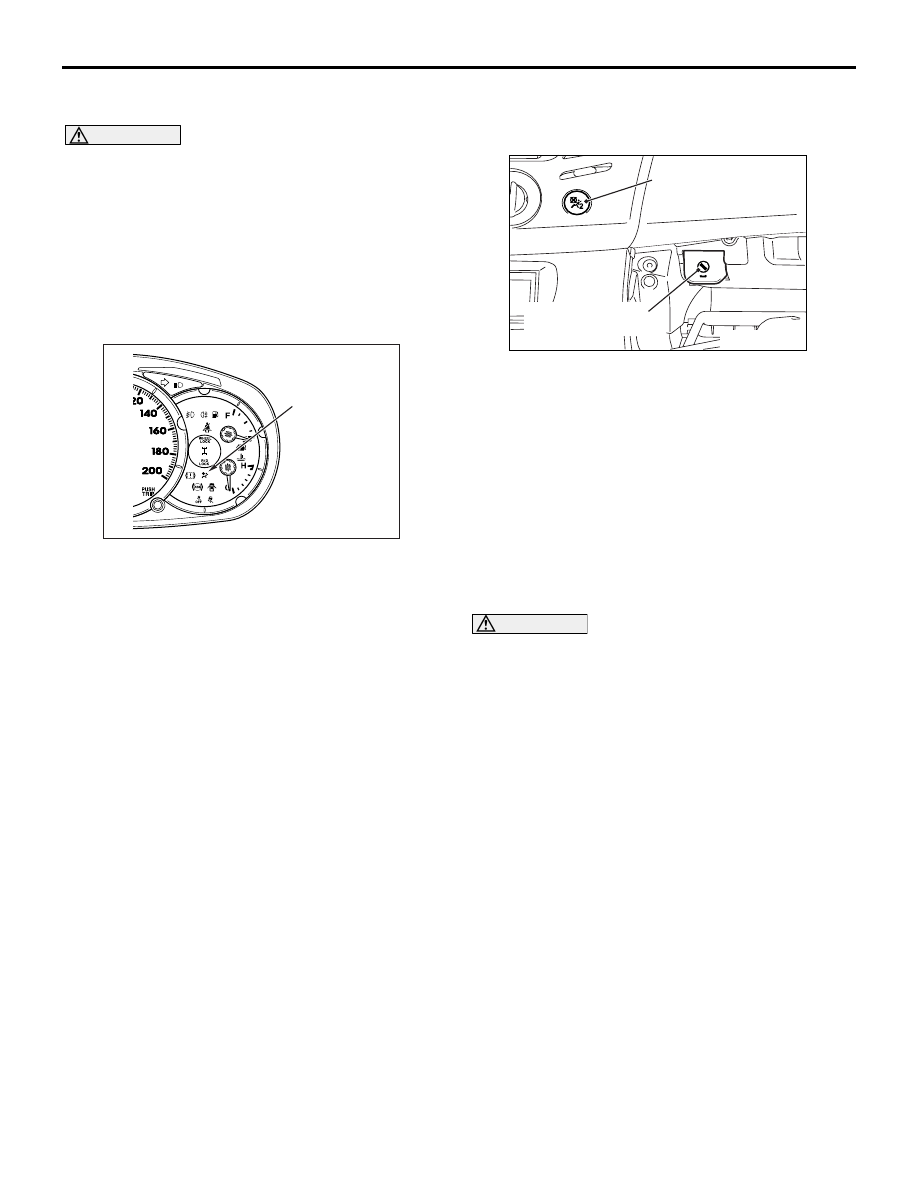

AC900540 AB

SRS warning lamp

3. Does the SRS warning lamp illuminate for about 7

seconds, and go out?

4. If no, refer to troubleshooting (Refer to

P.52B-12

).

ON

OFF

PASSENGER

AIRBAG

AC509715

Passenger's air bag
cut off indicator lamp

Passenger's air bag
cut off switch cylinder

AC

5. When the ignition key is inserted in the

passenger's air bag cut off switch cylinder and
turned to the "OFF" position, check that the
passenger’s air bag cut off indicator lamp
illuminates.

INSPECTION

M1524026800375

PASSENGER’S AIR BAG CUT OFF
SWITCH CONTINUITY CHECK

1. Disconnect the negative battery terminal.

DANGER

To prevents the air bag from deploying unin-
tentionally, disconnect the passenger’s
(front) air bag module connector C-02 to
short the squib circuit.

2. Disconnect the passenger's (front) air bag module

connector C-02.

3. Disconnect the passenger's air bag cut off switch

connector C-39.

AC311368

AC509857

PASSENGER

AIRBAG

ON

OFF

PASSENGER

AIRBAG

ON

OFF

AC

C-39 Passenger's air bag cut off
switch connector (rear view)

 ON position

OFF position

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-289

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.

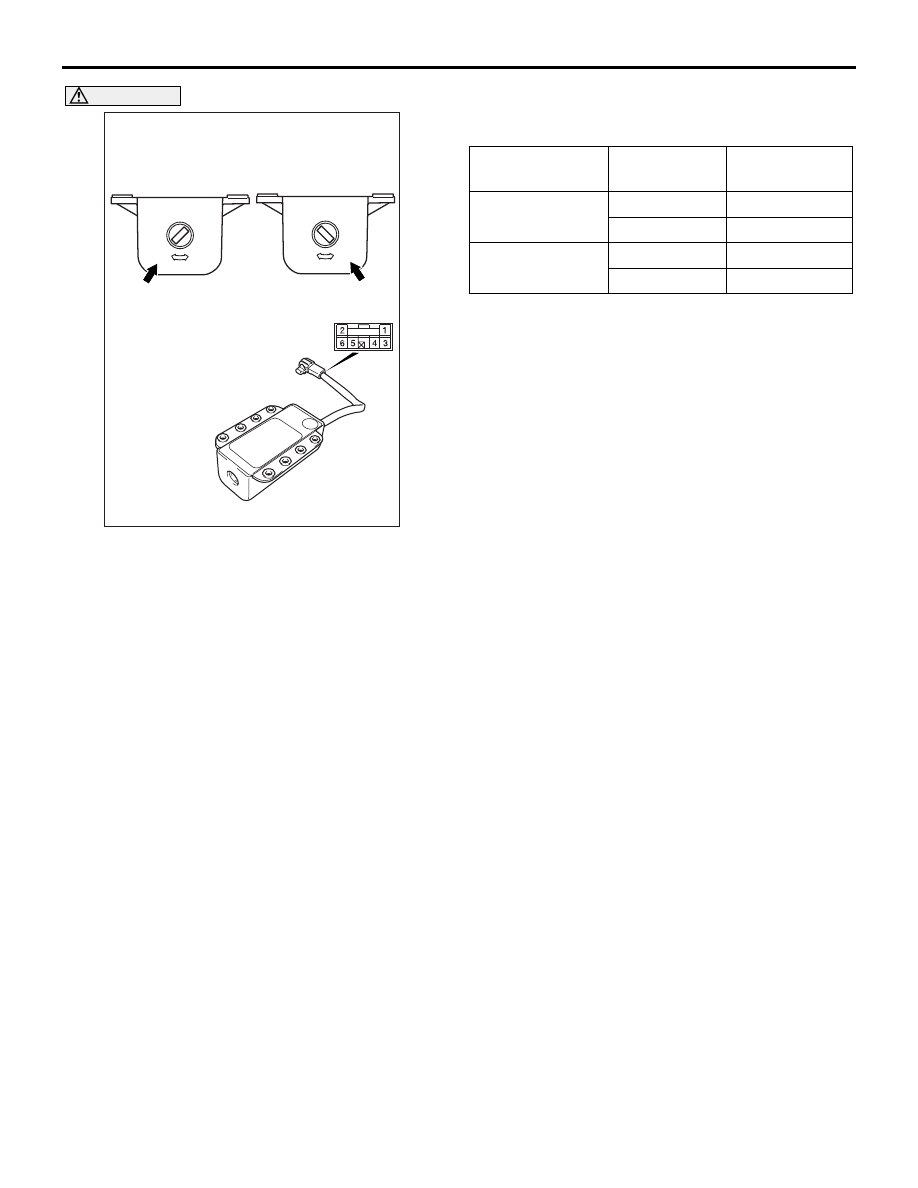

4. Make a short-circuit in connector terminals 1 and

2, and measure the resistance between
connectors.

NOTE: The harness, which is of less resistance
(0.1

Ω

 or less), should be used to earth the termi-

nals 1 and 2.

Switch position Tester

connection

Specified
condition

ON position

4

− 5

Less than 0.1

Ω

3

− 6

Open circuit

OFF position

4

− 5

2.0

± 0.3 Ω

3

− 6

Less than 0.2

Ω

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DISPOSAL PROCEDURES

M1524001201915

Before disposing of an air bag or a vehicle equipped
with an air bag, follow the procedures below to
deploy the air bag.

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-290

UNDEPLOYED AIR BAG MODULE DIS-
POSAL

WARNING

•

If the vehicle is to be scrapped or other-
wise disposed of, deploy the air bags and
operate the seat belt pre-tensioner inside
the vehicle. If the vehicle will continue to
be used and only the air bag modules and
seat belt pre-tensioner are to be disposed
of, deploy the air bags and operate the
seat belt pre-tensioner outside the vehi-
cle.

•

Since a large amount of smoke is pro-
duced when the air bag is deployed and
the seat belt pre-tensioner is operated,
avoid residential areas whenever possi-
ble.

•

Since there is loud noise when the air
bags are deployed and when the seat belt
pre-tensioner are operated, avoid residen-
tial areas whenever possible. If anyone is
nearby, give warning of the impending
noise.

•

Suitable ear protection should be worn by
personnel performing these procedures
or by people in the immediate area.

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <DRIVER'S AIR BAG
MODULE>
1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting
the battery cable before doing any further
work (Refer to

P.52B-5

).

2. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

3. Remove the column cover lower (Refer to

GROUP 37, Steering shaft ).

AC801361AE

C-305 Clock spring
connector (4-pin)

C-305 Harness side
connector
(4-pin, black)

4. Remove the connection between the C-305 clock

spring connector (4-pin) and the harness side
connector (4-pin black).
NOTE: Once disconnected from the instrument
panel wiring harness, both electrodes of the clock
spring connector short automatically. This pre-
vents the driver's air bag from accidental deploy-
ment caused by static, etc.

AC300381AC

Deployment wires

Connector

6 m or longer

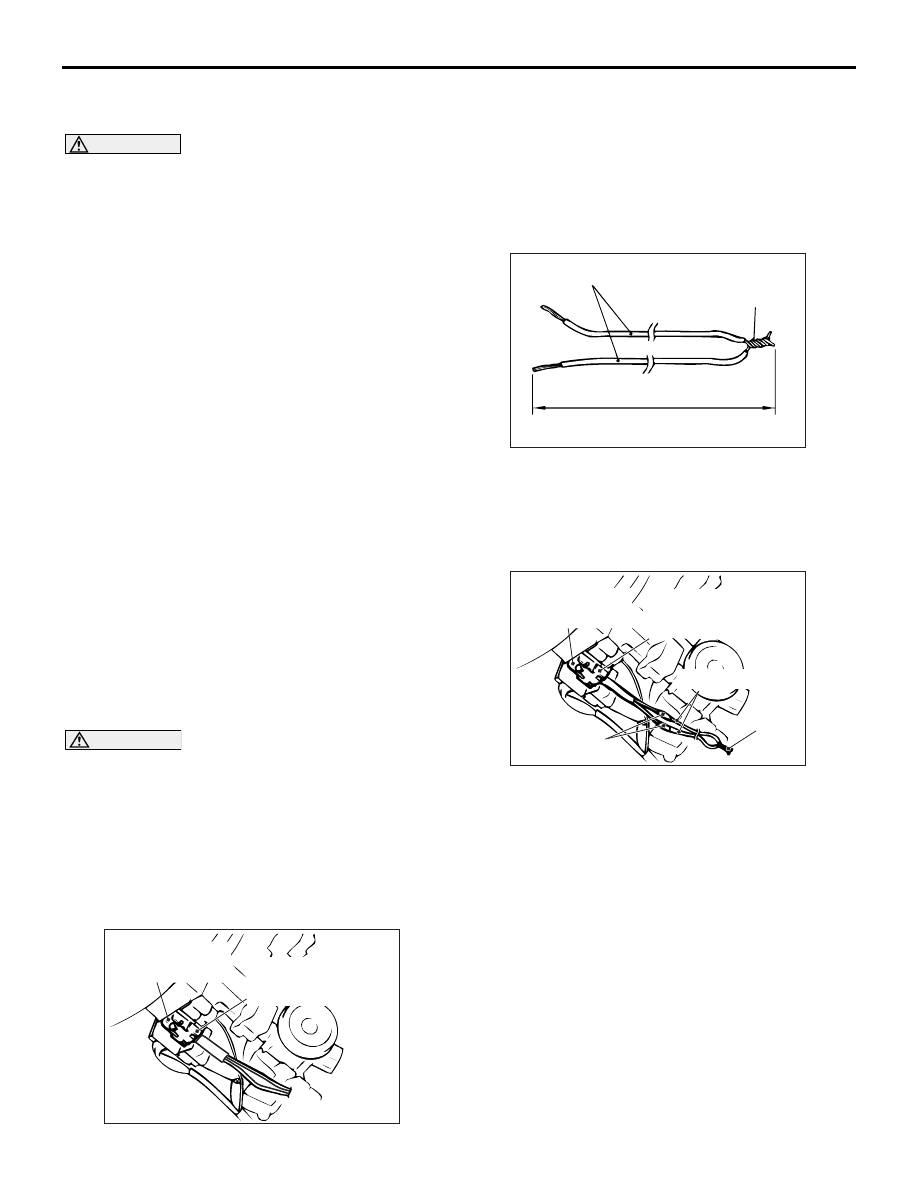

5. Obtain two suitable wires, which are 6 meters or

longer, as deployment wires. Then connect the
wires at one end to short.

6. Touch the vehicle's body with bare hands to

discharge static in you.

AC300384

Deployment wire

AK

Insulator tape

C-305 Clock spring
connector (4-pin)

Connection

C-305 Harness side
connector (4-pin black)

7. Cut with a pliers, etc. the instrument panel wiring

harness shown in the figure of the instructions,
while the C-305 clock spring connector is
disconnected.
NOTE: The disconnection location should be suf-
ficiently away from the C-305 harness side con-
nector with consideration to the expansion
harness connection location upon disconnections.

8. Connect the deployment wires on the two

instrument panel wiring harnesses disconnected,
cover the connection areas with insulator tape
and then pull out the deployment wires outside the
vehicle.

9. Connect the C-305 harness side connector

connected with an expansion harness to the C-
305 clock spring connector.
