Mitsubishi L200. Manual - part 651

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULE(S) AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-275

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the driver’s air bag module to the steering

wheel and check fit and alignment with the wheel.

5. Install the passenger’s (front) air bag module to

the instrument panel and front deck crossmember
and check fit and alignment.

CLOCK SPRING
If any malfunction is found in the following inspec-
tions, replace the clock spring with a new one.

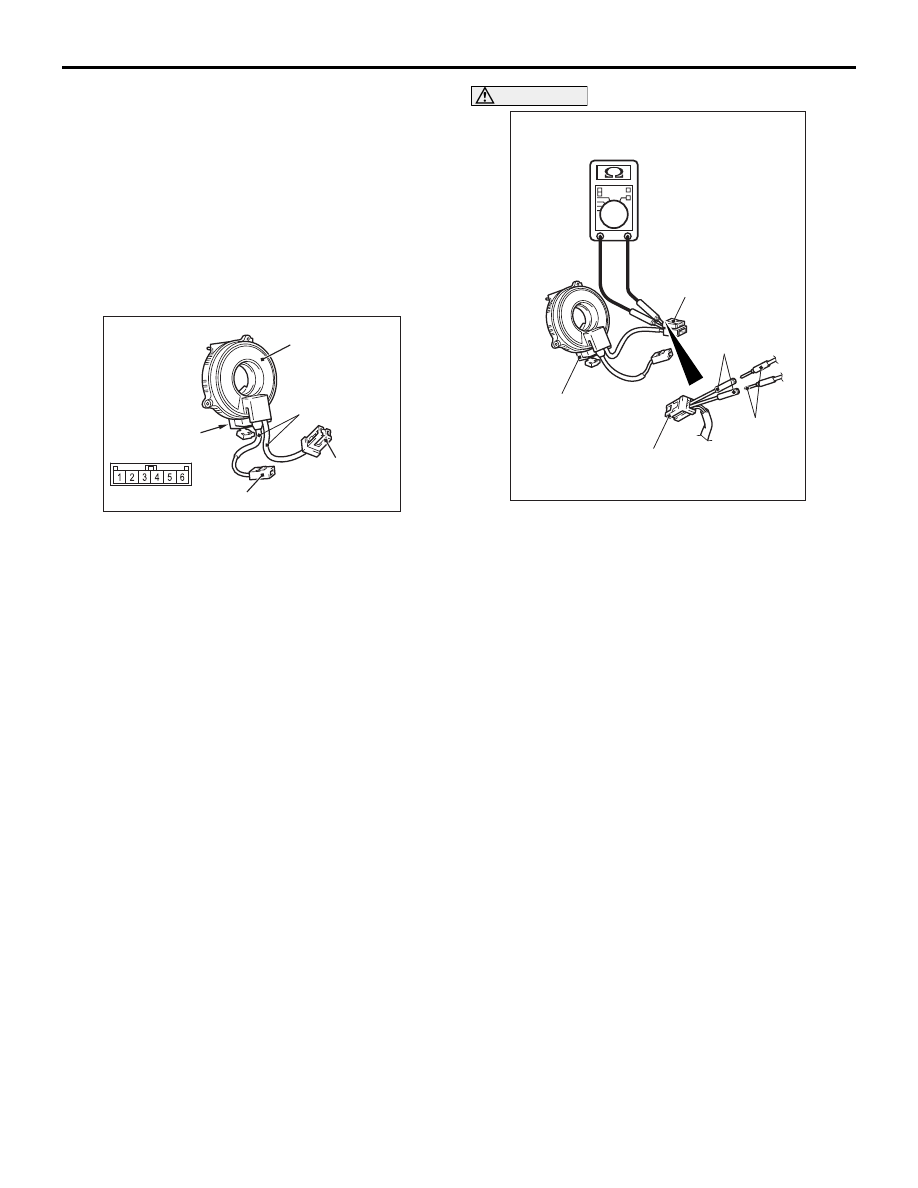

AC711203

C-306 Clock spring
connector

Protective tube

C-303 Air bag
module connector

C-304 Horn switch

Case

1. Check the connectors and protective tubes for

damage and the terminal for deformation.

2. Check the case for damage.
3. Check that the continuity exists between the

following connector terminals.

4. Check to see that there is continuity between the

C-306 clock spring connector terminal 1 and C-
304 horn switch.

AC303007AM

Clock spring

C-303 Driver's air bag
module connector

MB992006

Digital
multi-meter

CAUTION

Do not directly insert a probe, etc. into the termi-
nal from the front of the connector.
5. Insert the special tool extra fine probe

(MB992006) from behind the C-303 driver's air
bag module connector.

6. As shown in the Figure, connect the circuit tester

to the special tool extra fine probe (MB992006)
and check to see that there is a continuity
between the terminals.

SIDE-AIRBAG MODULE(S) <VEHICLES WITH SIDE-AIRBAG AND CURTAIN AIR BAG>

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-276

SIDE-AIRBAG MODULE(S) <VEHICLES WITH SIDE-

AIRBAG AND CURTAIN AIR BAG>

REMOVAL AND INSTALLATION

M1524036500524

WARNING

•

Disconnect the negative battery terminal and wait for 60 seconds or more before starting
work. Furthermore, the disconnected battery terminal should be covered with tape to
insulate it.

•

Never attempt to disassemble or repair the side-airbag modules. If faulty, replace it.

•

Do not drop the side-airbag modules or allow contact with water, grease or oil. Replace it
if a dent, crack, deformation or rust is detected.

•

The removed side-airbag module should be stored in a clean, dry place with the deploy-
ment surface facing up. Do not place anything on top of it.

•

Do not expose the side-airbag modules to temperatures over 93

•

After deployment of an side-airbag, the side-airbag module has been replaced with a new
one.

•

Wear gloves and safety glasses when handling side-airbag that have already deployed.

•

An undeployed side-airbag module should only be disposed of in accordance with the
procedures (Refer to

P.52B-289

Pre-removal Operation
• Turn the ignition switch to the LOCK (OFF) position.
• Disconnect the negative (−) battery terminal.

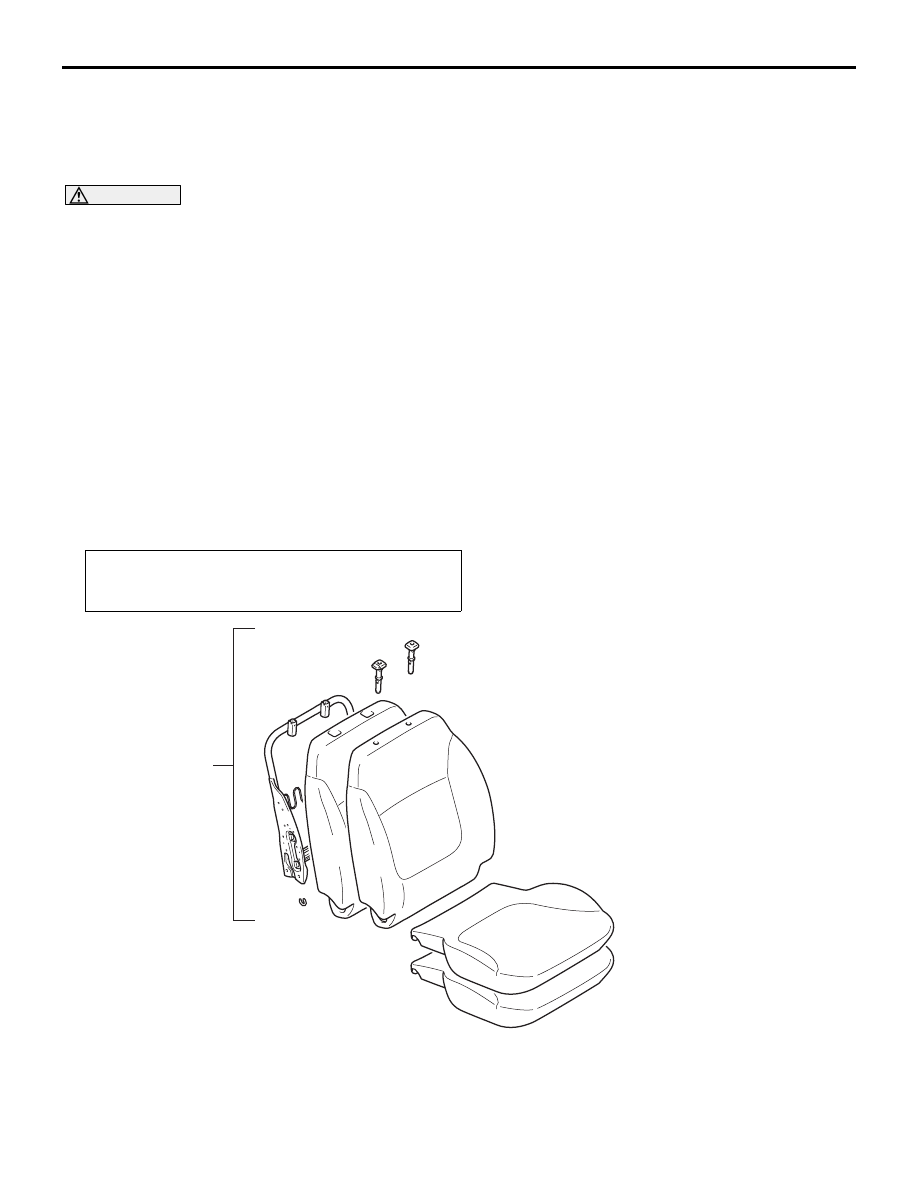

AC900870

Removal step

Front seatback assembly (Refer to
GROUP 52A, Front Seat Assembly
)

Installation step

•

Pre-installation inspection

SIDE-AIRBAG MODULE(S) <VEHICLES WITH SIDE-AIRBAG AND CURTAIN AIR BAG>

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-277

REMOVAL SERVICE POINT

<<A>> SIDE-AIRBAG MODULE ASSEMBLY
REMOVAL

CAUTION

• Never use an electric tester to diagnose the

side-airbag module circuit. Never attempt to
disassemble the side-airbag module.

• Store the removed side-airbag in a clean and

dry place.

• When discarding the side-airbag module, dis-

card after deploying the side-airbag as speci-
fied in the service procedure (Refer to

P.52B-

289

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION
1. Before the installation, check the side-airbag

module (Refer to

P.52B-278

NOTE: Even when installing a new side-airbag
module assembly, perform an inspection before
the installation.

2. Connect the negative (

−) battery terminal.

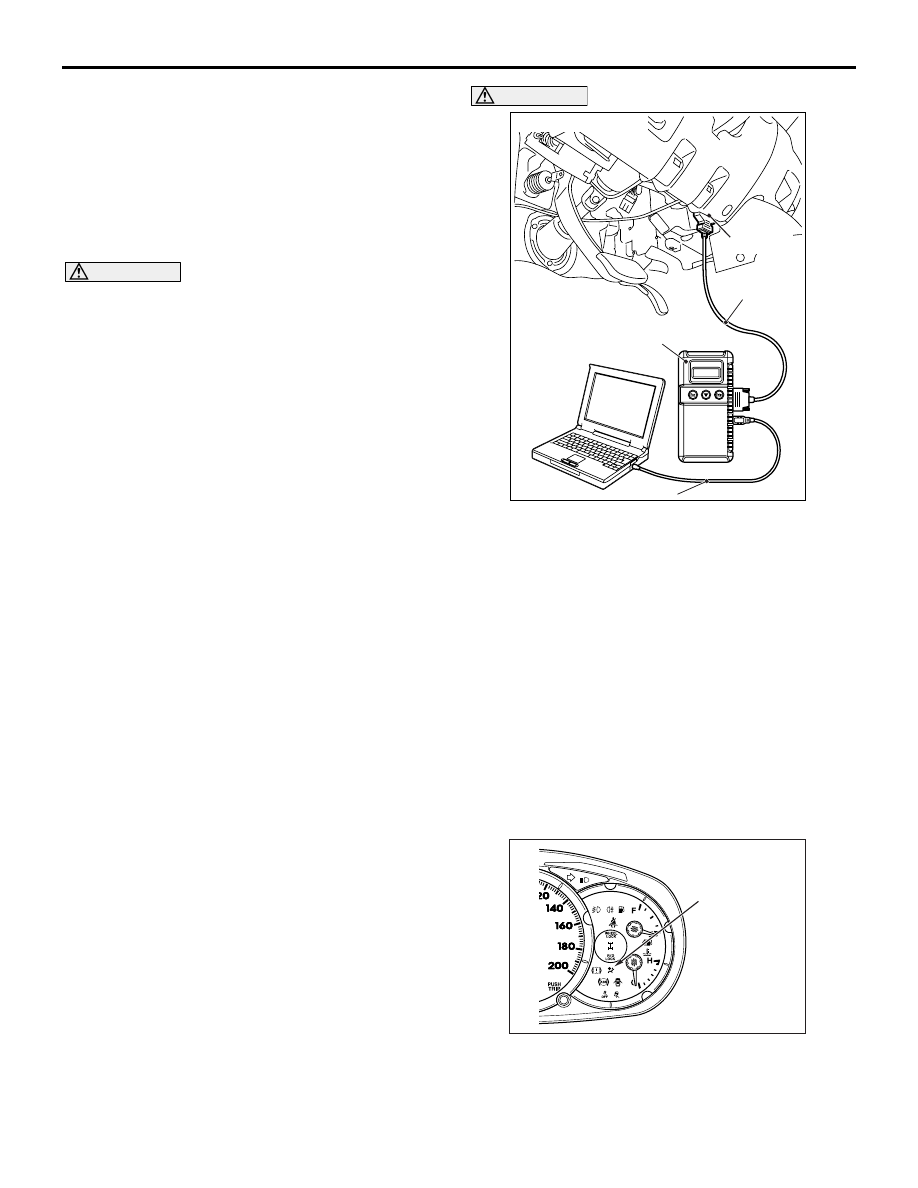

AC509179

Diagnosis

connector

MB991827

MB991824

MB991910

<LH drive vehicles>

CAUTION

Be sure to turn the ignition key to the LOCK
(OFF) position when connecting or disconnect-
ing M.U.T.-III.
3. Connect M.U.T.-III to the diagnosis connector (16

pin).

4. Turn the ignition switch to the ON position.
5. Read the diagnosis code, and check that

everything is normal except the air bag module
open circuit.

6. Turn the ignition switch to the LOCK (OFF)

position.

>>B<< POST-INSTALLATION INSPECTION
1. Connect the negative battery cable.
2. Turn the ignition switch to the "ON" position.

AC900540 AB

SRS warning lamp

3. Does the "SRS" warning lamp illuminate for

approximately seven seconds, and go out?

4. If no, refer to troubleshooting (Refer to

P.52B-12

Front seatback assembly (Refer to
GROUP 52A, Front Seat Assembly
)

•

Post-installation inspection

Installation step (Continued)

SIDE-AIRBAG MODULE(S) <VEHICLES WITH SIDE-AIRBAG AND CURTAIN AIR BAG>

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-278

INSPECTION

M1524036600134

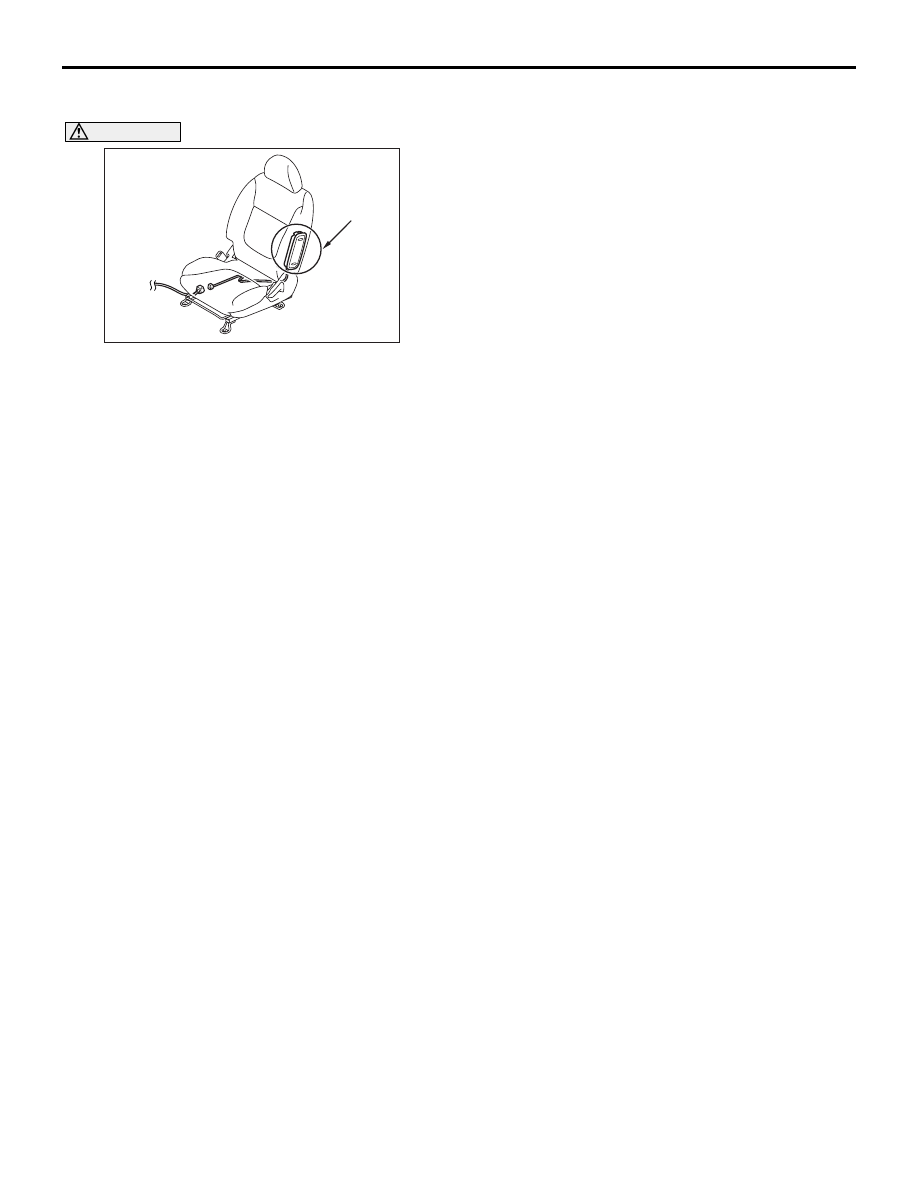

AC801114 AC

Side-airbag
module
deployment
section

CAUTION

• Never measure the side-airbag module

(squib) circuit resistance even with the speci-
fied tester. Measuring the circuit resistance
with a tester causes accidental side-airbag
deployment due to current that flows or static,
resulting in serious personal injury.

• When replacing the parts, discard the old

parts after deploying the side-airbag accord-
ing to the specified procedure (Refer to

P.52B-289

1. Dent or deformation to side-airbag module

deployment part

2. Check the harness and connector for damage

and the terminal for deformation.
