OVERFENDER <VEHICLES WITH WIDE FENDER>

EXTERIOR

51-16

REMOVAL SERVICE POINT

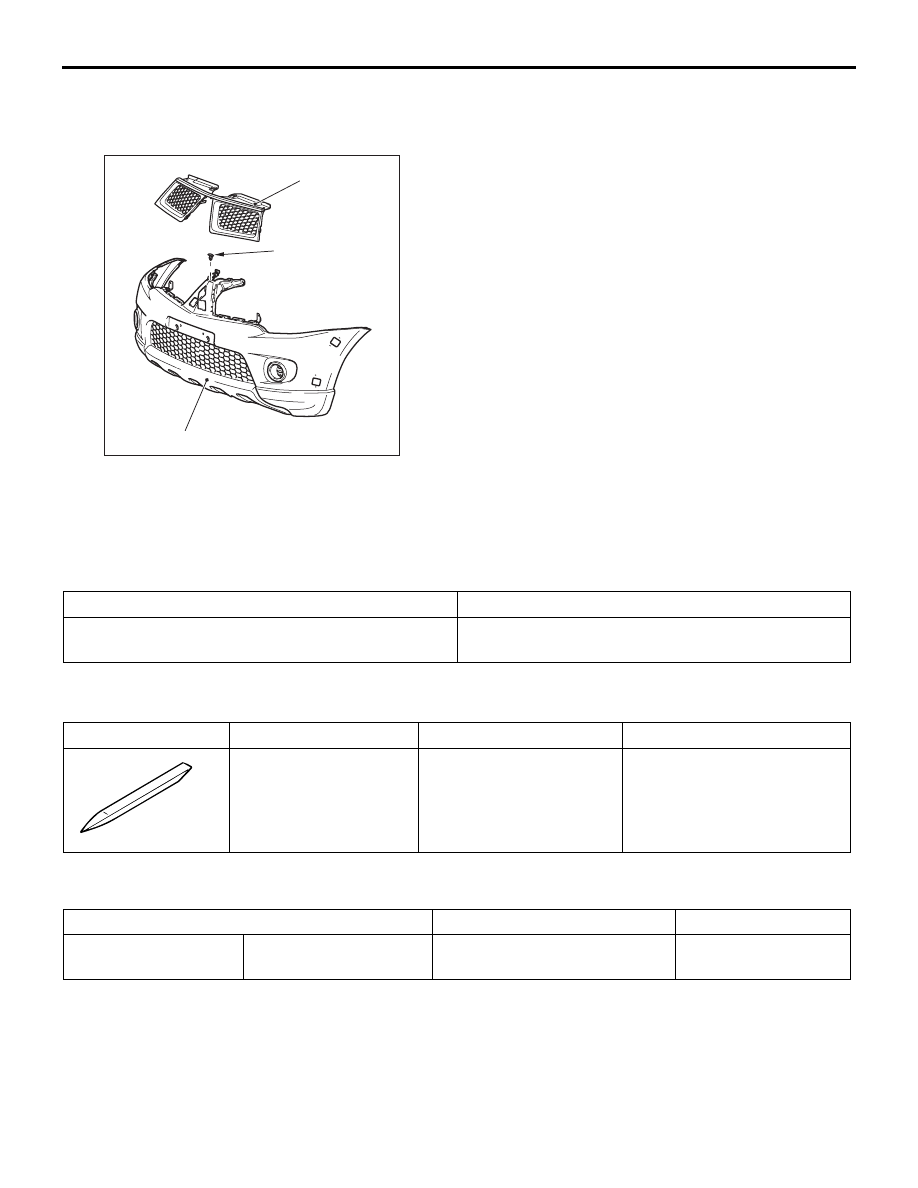

<<A>> RADIATOR GRILLE WEATHERSTRIP
MOUNTING CLIP REMOVAL

AC802243

(2)

(1)

AC

Front bumper assembly

1. Disconnect the radiator grille weatherstrip

mounting clip (1) (one location) that is connecting
the radiator grille assembly (2) to the front bumper
assembly.

2. Remove the radiator grille assembly (2) from the

front bumper assembly toward a diagonal front
upper direction.

OVERFENDER <VEHICLES WITH WIDE FENDER>

ADHESIVE

M1511000501117

Application

Specified adhesive

Front/ rear overfender

Double-sided tape: Generic products, 4.0 mm width
and 0.4 mm thickness

SPECIAL TOOL

M1511000601620

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Removal of overfender

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required

OVERFENDER <VEHICLES WITH WIDE FENDER>

EXTERIOR

51-17

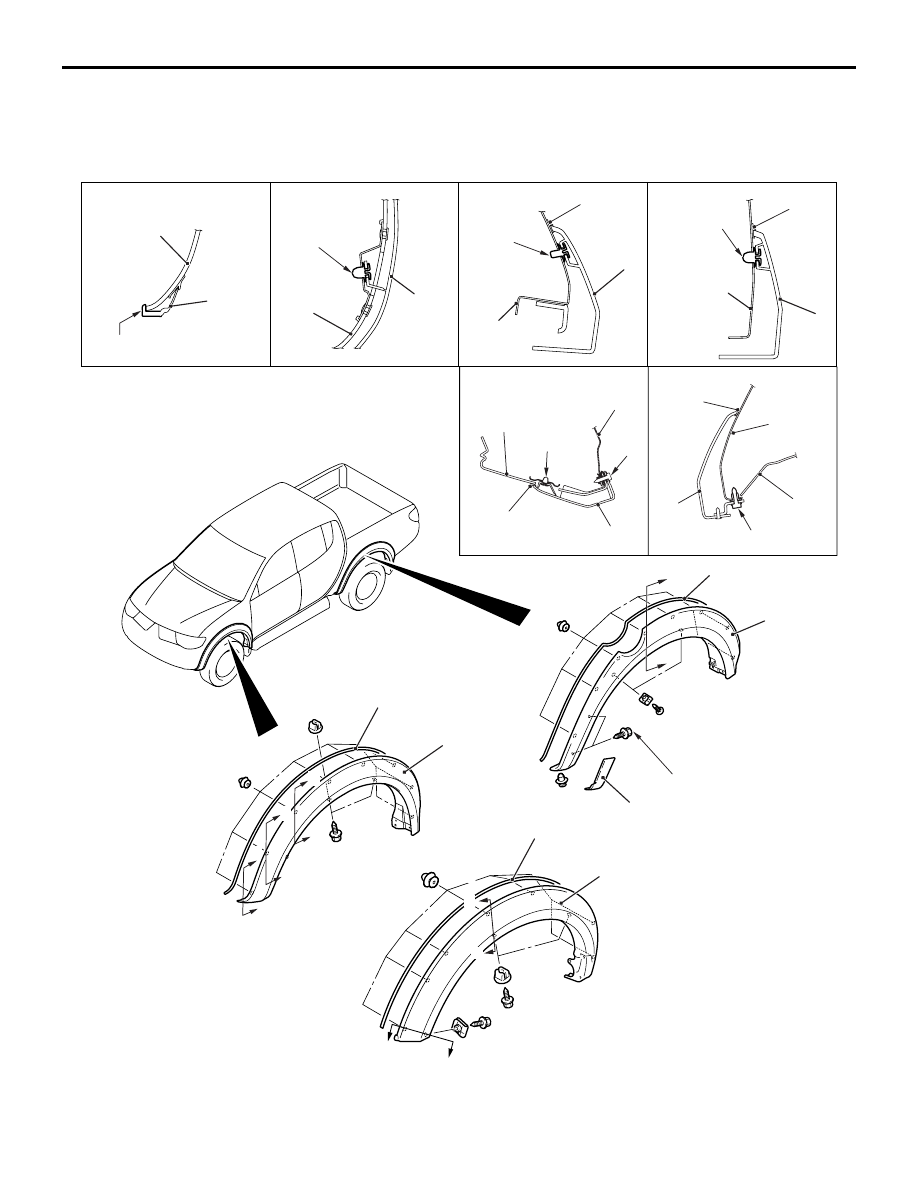

OVERFENDER

REMOVAL AND INSTALLATION

M1511024700543

AC903660

AB

Section A – A

Front bumper

A

A

B

B

C

C

D

D

2

1

5

*

3

*: Club cab only

4

Clip

Hitch to bumper lower end

1

1

Front
bumper

Section B – B

Section C – C

Clip

Front
fender

1

Clip

Section D – D

3

Side gate
outer panel

E

E

F

F

2

1

Section E – E

Front
bumper

1

2

1

2

Front
fender

Section F – F

Splash shield

Clip

Screw

Screw

Splash
shield

<Vehicles for Europe>

<Vehicles for Russia>

2

4

AC611539

AE

G

G

G

H

H

G

1

2

4

4

3

Double-sided tape affixed location

<Front overfender>

<Rear overfender>

Section H – H

Double-sided tape:
Generic products, 4.0 mm width and 0.4 mm thickness

Double cab
(LH only)

: Tape application dimension between pad (4) and body side.

2,4

Section G – G

720 mm

*

*

*

Front overfender removal steps

<<

A

>>

1.

Front overfender

>>

A

<<

2.

Front overfender pad
Rear overfender removal steps

<<

A

>>

3.

Rear overfender

>>

A

<<

4.

Rear overfender pad

>>

B

<<

5.

Protector film <Vehicles without
side step>

OVERFENDER <VEHICLES WITH WIDE FENDER>

EXTERIOR

51-18

REMOVAL SERVICE POINT

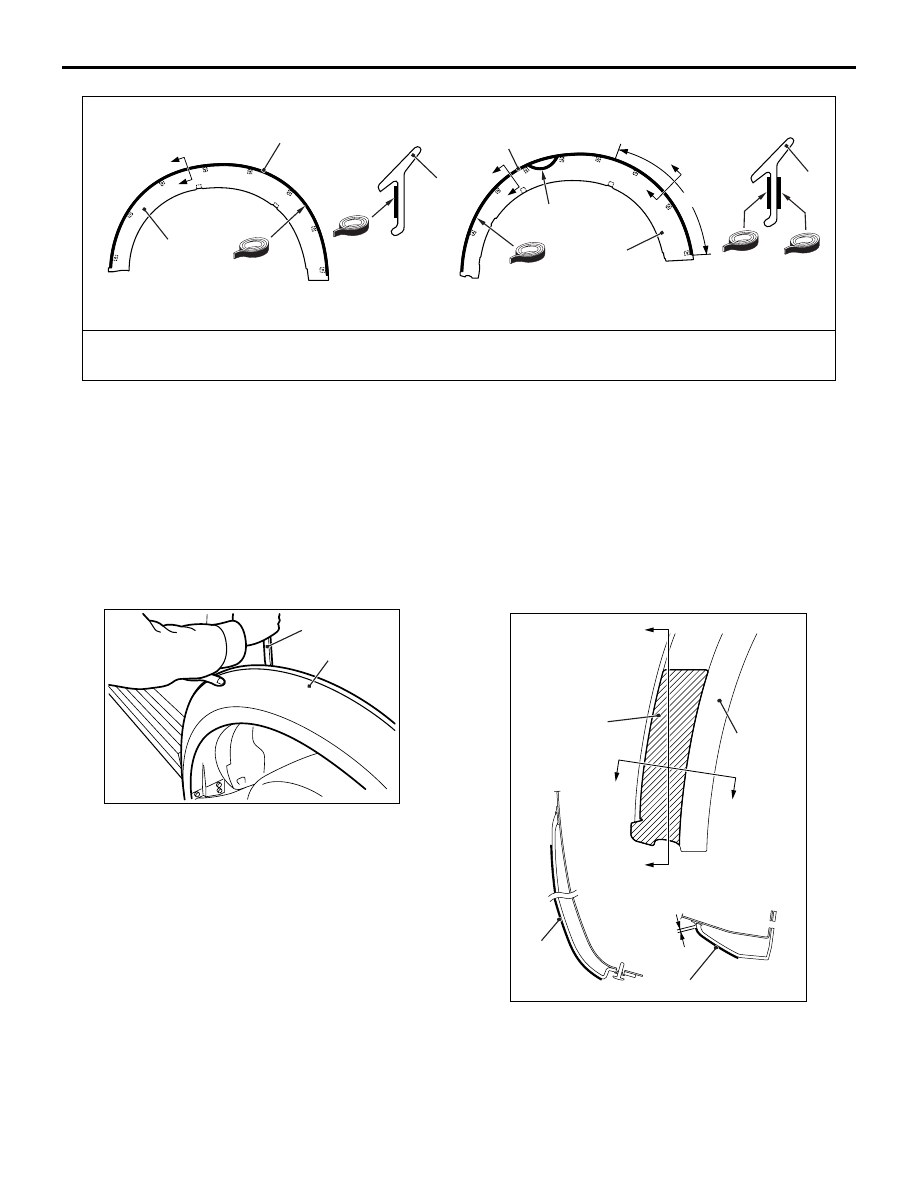

<<A>> FRONT/REAR OVERFENDER REMOVAL

AC501972

AB

MB990784

Overfender

Use the special tool ornament remover (MB990784)
to pry out the overfender.

INSTALLATION SERVICE POINT

>>A<< FRONT/REAR OVERFENDER PAD
INSTALLATION
1. Wipe the double-sided tape application surface on

the front/rear overfender and clean it with a rag
moistened with the parts cleaner (MZ100387 or
equivalent).

2. Tear off the double-sided tape backing paper of

the front/rear overfender pad.

3. Install the pad to the overfender.

NOTE:  If the double-sided tape is difficult to affix
in cold temperature, etc., warm the bonding sur-
faces of the overfender to about 40

−

 60

°

C before

affixing the tape.

4. Firmly press in the pad to the overfender.
>>B<< PROTECTOR FILM INSTALLATION
<VEHICLES WITHOUT SIDE STEP>

AC805160

 AB

Rear
overfender

3.0 mm

(1)

(1)

(1)

Section A – A

Section B – B

A

A

B

B

1.  Installation position

MOULDINGS

EXTERIOR

51-19

CAUTION

• The ambient temperature should be 20 to

38

°C. Ensure that the working area is clean.

• If ambient temperature is less than 20°C, heat

the protector film and application surface to a
temperature of 20 to 30

°C.

• Be careful that air bubbles are not formed

under the protector film.

2. Installation procedure

(1) Wipe the protector film (1) application surface

and clean it with a rag moistened with the
parts cleaner (MZ100387 or equivalent).

(2) Remove backing paper from the protector film

(1), and apply it to the specified position.

MOULDINGS

ADHESIVE

M1511000501377

Application

Specified adhesive

Clip B for roof drip moulding

Double-sided tape: Generic products, 10 mm width
and 30 mm length

Door and rear pillar protect mouldings

Double-sided tape: Generic products

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required
