Mitsubishi L200. Manual - part 529

DOOR

BODY

42-176

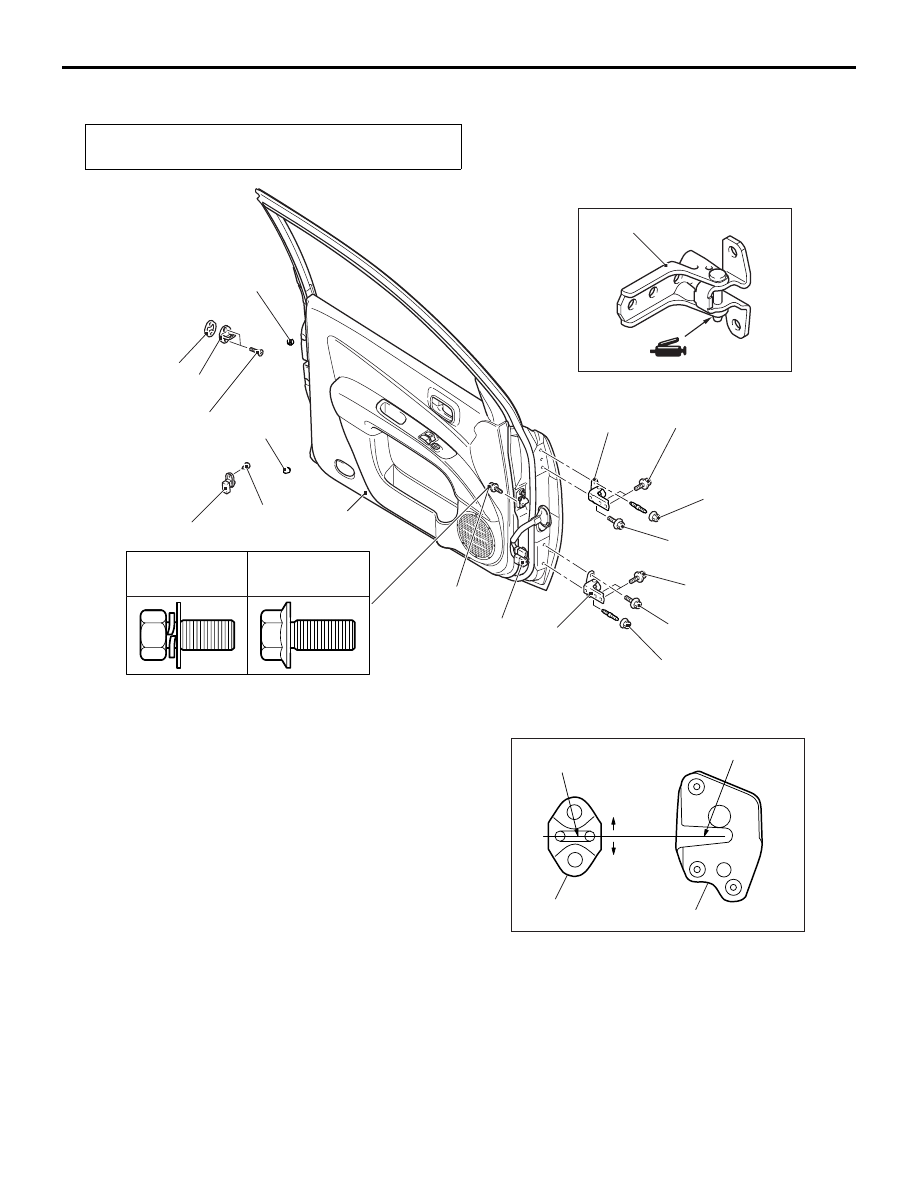

REMOVAL AND INSTALLATION <CLUB CAB>

M1423002200584

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-168

).

AC509761

5, 6

1

1

2

3

4

5

6

7

8

9

AC

22 ± 4 N·m

22 ± 4 N·m

25 ± 7 N·m

25 ± 7 N·m

1.5 ± 0.5 N·m

11 ± 2 N·m

27 ± 5 N·m

27 ± 5 N·m

31 ± 4 N·m
<Up to 2010 year
August>

24 ± 4 N·m
<From to 2010
year July>

Damper removal

1. Damper

Door assembly removal steps

•

Front Scuff Plate and Cowl Side Trim
(Refer to GROUP 52A, Interior Trim .)

2. Wiring harness connector connection
3. Door check connecting bolt
4. Door assembly
5. Door upper hinge
6. Door lower hinge

Striker removal steps

>>

A

<< 7. Striker

8. Striker shim

Door switch removal

9. Door switch

INSTALLATION SERVICE POINT

>>A<< STRIKER INSTALLATION

AC006126AB

Striker centre

Striker

Latch centre

Latch

+1.5 mm

-1.5 mm

Align the centre of the striker and latch within

±1.5

mm, and install.

DOOR

BODY

42-177

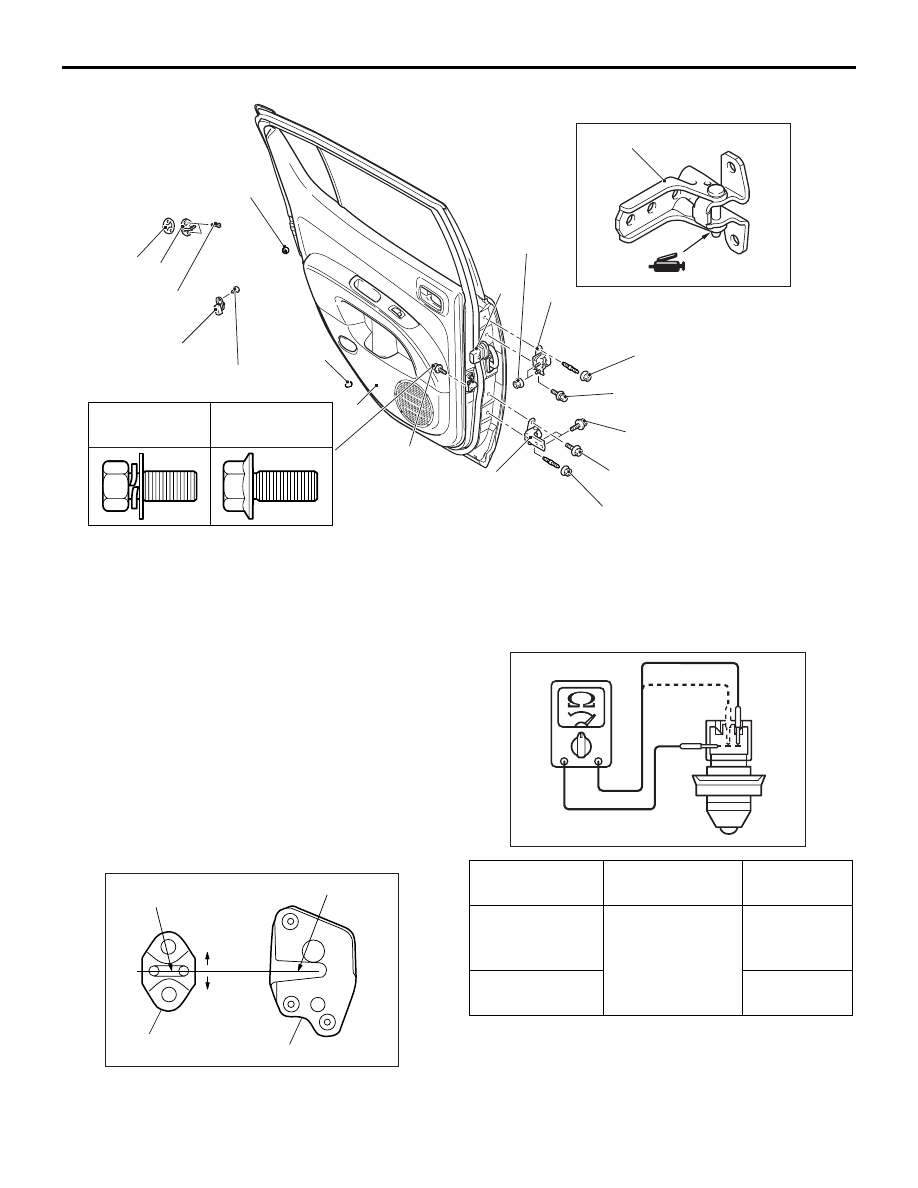

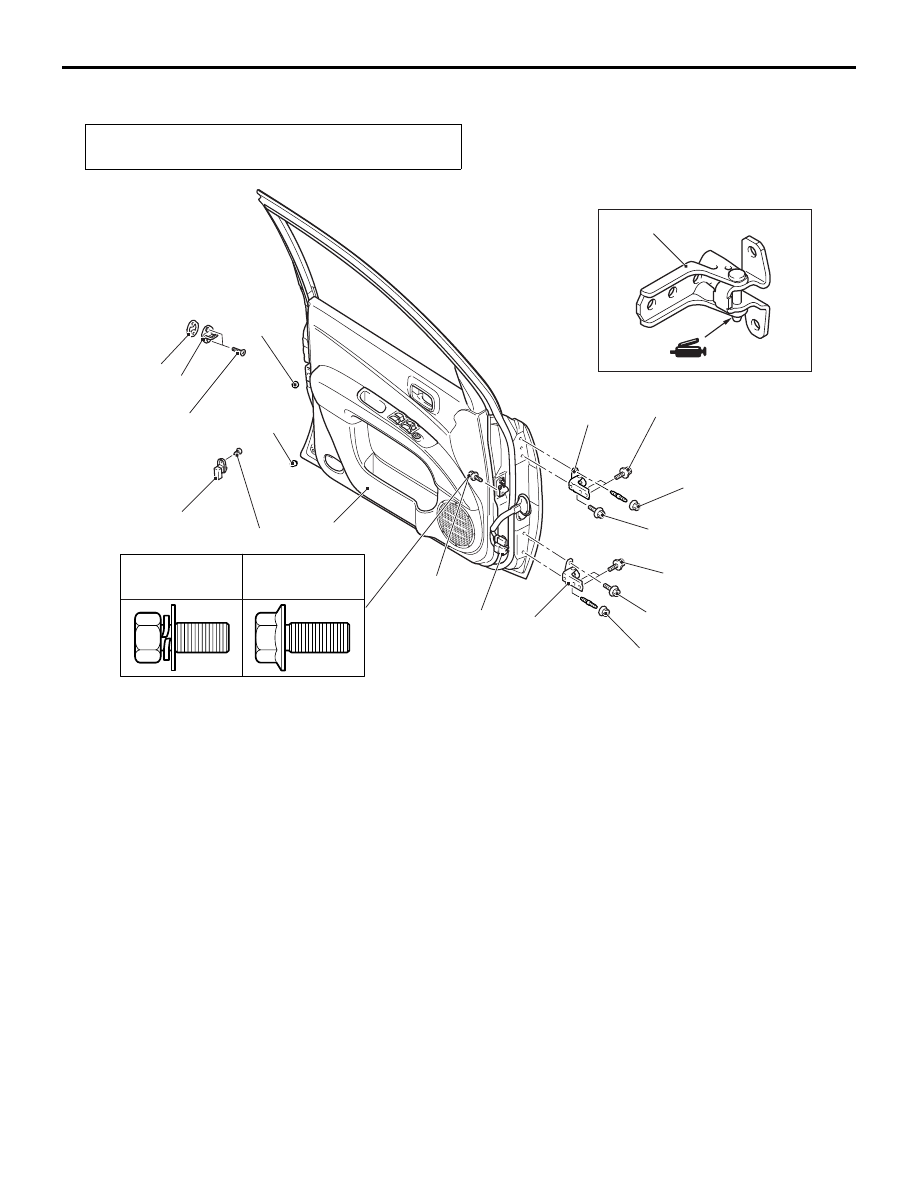

REMOVAL AND INSTALLATION <DOUBLE CAB>

M1423002200595

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-168

).

AC509760

5, 6

1

1

2

3

4

5

6

7

8

9

AC

22 ± 4 N·m

22 ± 4 N·m

25 ± 7 N·m

25 ± 7 N·m

1.5 ± 0.5 N·m

11 ± 2 N·m

27 ± 5 N·m

27 ± 5 N·m

<Front door>

31 ± 4 N·m
<Up to 2010 year
August>

24 ± 4 N·m
<From to 2010
year July>

Damper removal

1. Damper

Door assembly removal steps

•

Front Scuff Plate and Cowl Side Trim
(Refer to GROUP 52A, Interior Trim .)

2. Wiring harness connector connection
3. Door check connecting bolt
4. Door assembly

5. Door upper hinge
6. Door lower hinge

Striker removal steps

>>

A

<< 7. Striker

8. Striker shim

Door switch removal

9. Door switch

Door assembly removal steps

AC509762

5, 6

1

1

2

3

4

5

6

7

8

9

AC

22 ± 4 N·m

22 ± 4 N·m

25 ± 7 N·m

25 ± 7 N·m

1.5 ± 0.5 N·m

11 ± 2 N·m

27 ± 5 N·m

27 ± 5 N·m

<Rear door>

31 ± 4 N·m
<Up to 2010 year
October>

24 ± 4 N·m
<From to 2010
year September>

Damper removal

1. Damper

Door assembly removal steps

2. Wiring harness connector connection
3. Door check connecting bolt
4. Door assembly
•

Centre pillar trim lower (Refer to
GROUP 52A, Interior Trim .)

5. Door upper hinge
6. Door lower hinge

Striker removal steps

>>

A

<< 7. Striker

8. Striker shim

Door switch removal

9. Door switch

DOOR

BODY

42-178

INSTALLATION SERVICE POINT

>>A<< STRIKER INSTALLATION

AC006126AB

Striker centre

Striker

Latch centre

Latch

+1.5 mm

-1.5 mm

Align the centre of the striker and latch within

±1.5

mm, and install.

 INSPECTION

M1423006000559

DOOR SWITCH CHECK

AC005656AB

1

2

3

Switch position Tester

connection

Specified
condition

Released (ON)

1

− 3, 2 − 3

Continuity
exists (2

Ω or

less)

Depressed
(OFF)

Open circuit

DOOR

BODY

42-179

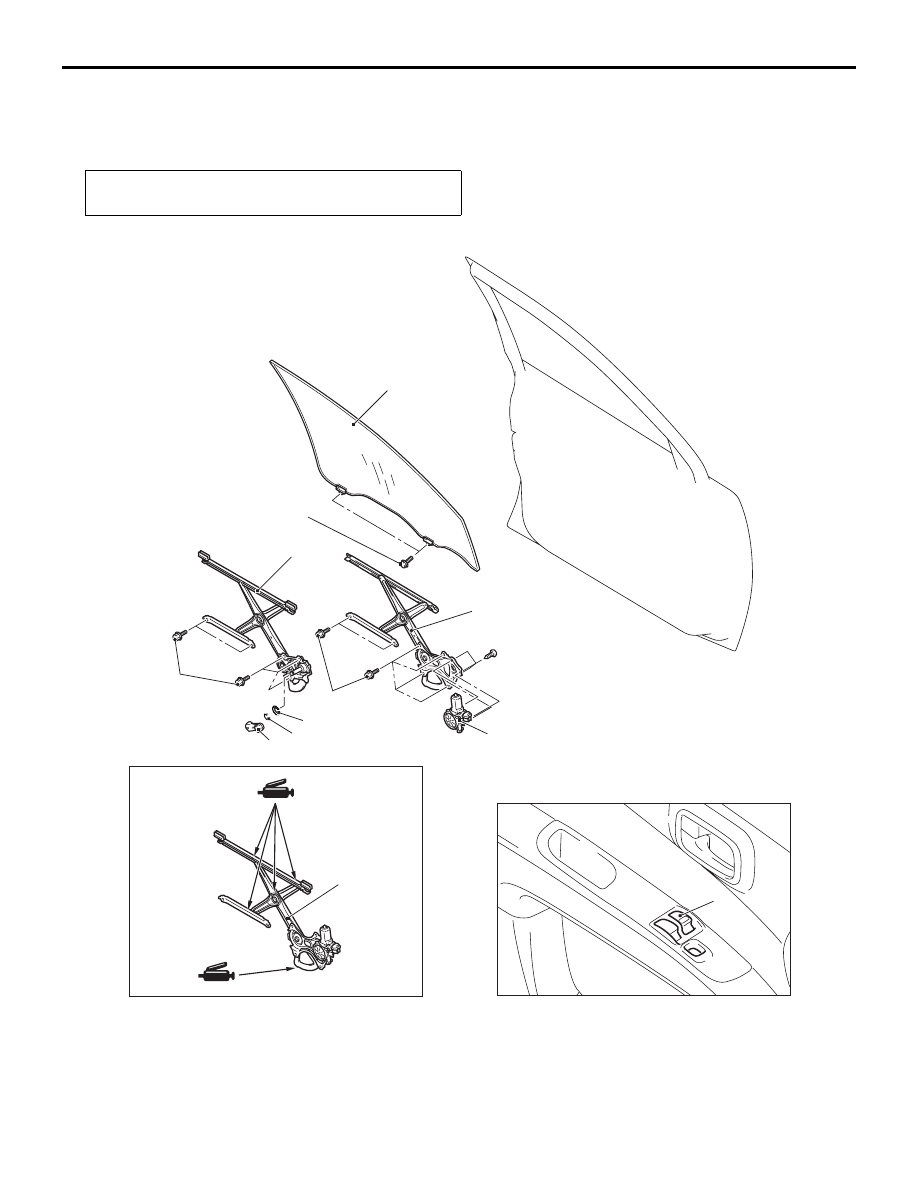

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION <SINGLE CAB>

M1429001301501

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-169

).

AC509763

2

3

4

5

6

6

7

AE

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

<Vehicles with
power window>

<Vehicles without
power window>

AC509768

1

6

AB

Power window switch <Vehicles
with power window> removal

1.

Power window main switch (driver’s
side), power window sub switch
(passenger’s side) (Refer to
GROUP 52A, Door Trim .)

Regulator handle <Vehicles with
manual window> removal steps

<<A>>

>>

B

<<

2.

Clip

>>

B

<<

3.

Regulator handle

>>

B

<<

4.

Escutcheon
