UPPER ARM ASSEMBLY

FRONT SUSPENSION

33-12

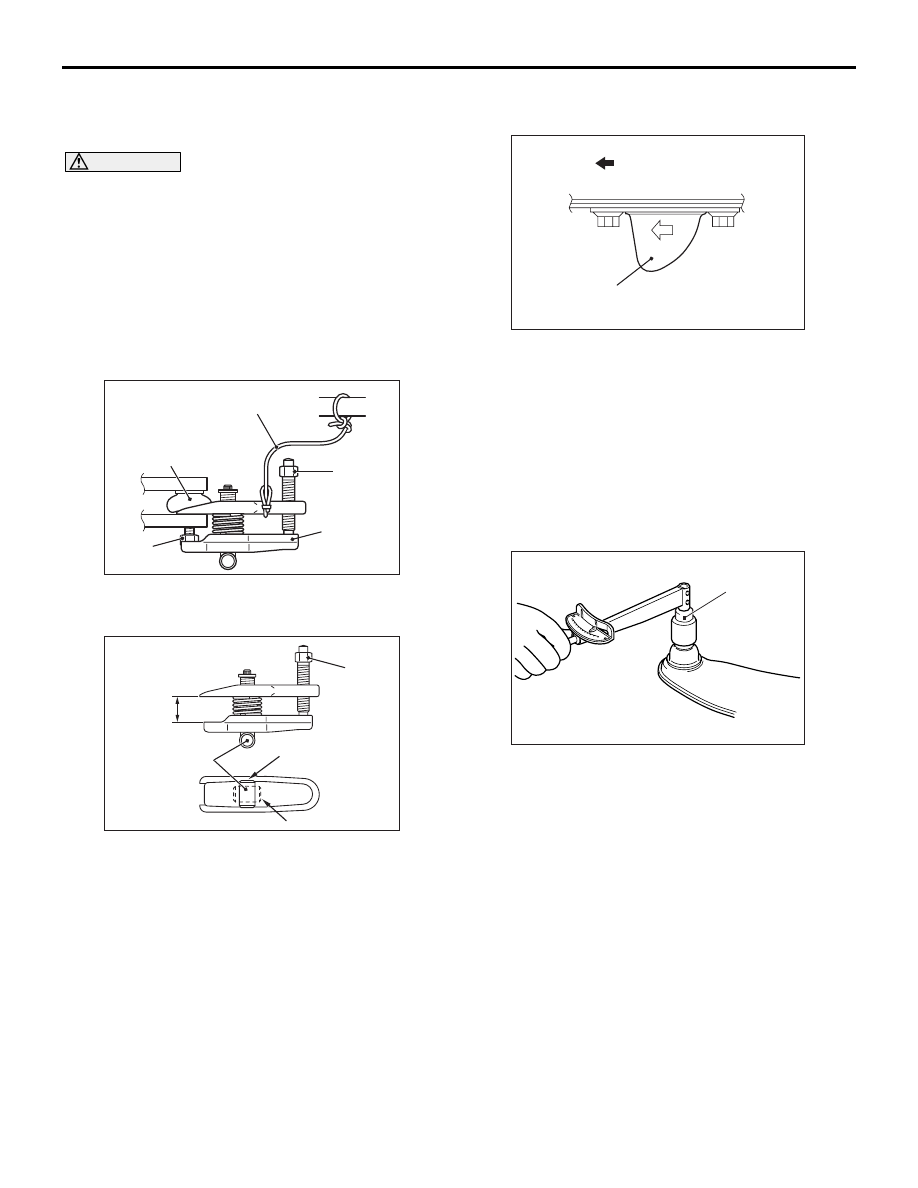

REMOVAL SERVICE POINTS

<<A>> UPPER ARM BALL JOINT AND KNUCKLE
DISCONNECTION

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use special tool to avoid possible dam-
age to ball joint threads.

• Hang special tool with a cord to prevent it

from falling.

•

AC106820 AF

Cord

Bolt

MB992011

Nut

Ball joint

Because it is very dangerous when the ball
joint comes off, raise the lower arm using a
jack or similar device, making sure that the
rebound stopper is free from any reaction
force.

1. Install special tool ball joint remover (MB992011)

as shown in the figure.

AC106821

Knob

Parallel

Bolt

Good

Bad

AB

2. Turn the bolt and knob as necessary to make the

jaws of special tool parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

ball joint.

<<B>> UPPER ARM ASSEMBLY AND FRONT
FRAME CONNECTION REMOVAL
Remove the mounting bolts and nuts from the shock
absorber assembly, and secure a working space.

INSTALLATION SERVICE POINT

>>A<< REBOUND STOPPER INSTALLATION

AC502383AB

Inside of  vehicle

Rebound stopper

Install the rebound stopper with its arrow mark point-
ing toward inside the vehicle.

INSPECTION

M1332004400176

• Check the bushing for wear and deterioration.

• Check the upper arm for bend or breakage.

• Check all bolts for condition and straightness.

UPPER ARM BALL JOINT STARTING TORQUE
CHECK

AC504006AB

MB990326

1. After shaking the ball joint stud several times,

install the nut to the stud and use special tool
preload socket (MB990326) to measure the
starting torque of the ball joint.
NOTE: Rotation starting torque measurement
should be carried out with parts temperature
above 0

°

C.

Standard value: 1.0

− 5.6 N⋅m

2. If the measured value exceeds the standard

value, replace the upper arm ball joint assembly
(Refer to

P.33-9

 <2WD (except High rider)> or

P.33-11

 <2WD (High rider), 4WD>).

3. If the measured value is lower than the standard

value, check that the upper arm ball joint turns
smoothly without excessive play. If so, it is
possible to use that ball joint.

SHOCK ABSORBER AND COIL SPRING <2WD (except High rider)>

FRONT SUSPENSION

33-13

UPPER ARM BALL JOINT DUST COVER CHECK
1. Press the dust cover with your finger to check that

there are no cracks or damage in the dust cover.

2. If the dust cover is cracked or damaged, replace

the upper arm ball joint assembly (Refer to

P.33-9



<2WD (except High rider)> or

P.33-11

 <2WD

(High rider), 4WD>).

NOTE: If the dust cover is cracked or damaged, it
is possible that there may also be damage to the
ball joint.

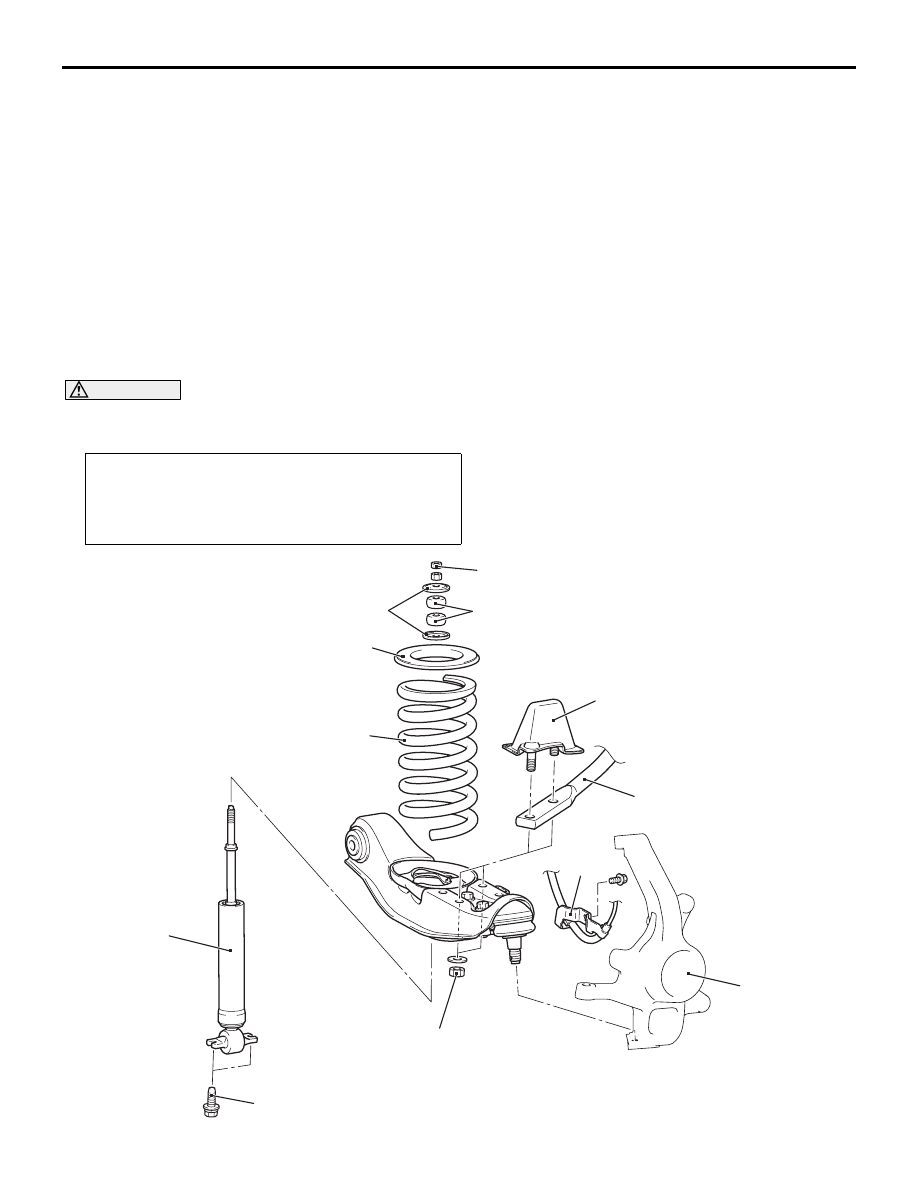

SHOCK ABSORBER AND COIL SPRING <2WD (except

High rider)>

REMOVAL AND INSTALLATION

M1332012200036

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the earth in an unladen condition.

Post-installation Operation
• Check the dust cover for cracks or damage by pushing it

with finger.

• Front wheel alignment check and adjustment (Refer to

P.33-5

).

AC501937AE

7

5

4

3

98 ± 12 N·m*

8

6

2

9

19 ± 3 N·m

1

15 ± 2 N·m

Removal steps

1.

Washer

2.

Shock absorber bushing

>>

B

<< 3.

Shock absorber

4.

Hub and knuckle assembly (Refer to
GROUP 26, Hub and knuckle
assembly ).

5.

Front wheel speed sensor bracket
<Vehicles with ABS>

6.

Bump stopper

7.

Strut bar

<<

A

>> >>

A

<< 8.

Coil spring

9.

Spring pad

SHOCK ABSORBER AND COIL SPRING <2WD (except High rider)>

FRONT SUSPENSION

33-14

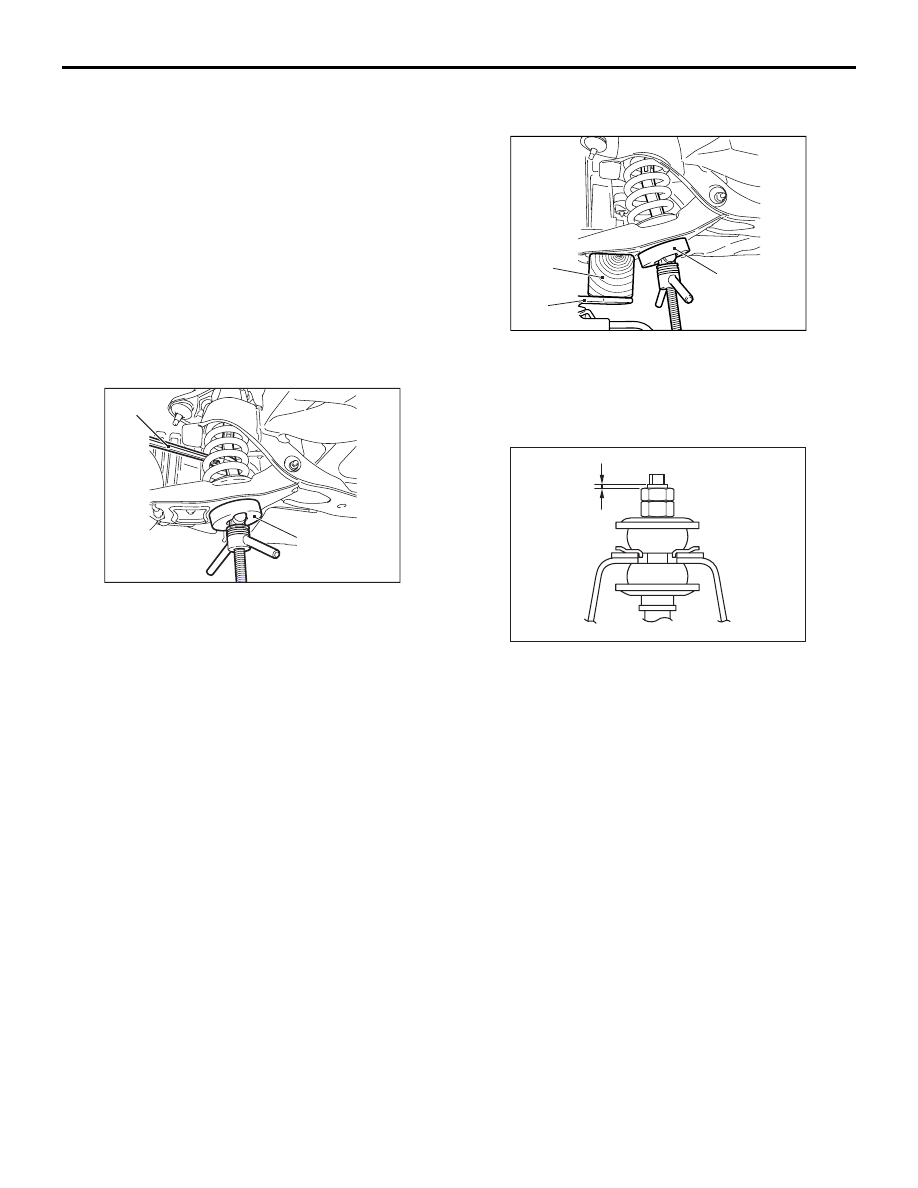

REMOVAL SERVICE POINT

<<A>> COIL SPRING REMOVAL

AC502093AB

MB992058

Wrench

Install as shown in the figure. Then, use a wrench to
hold the special tool Coil spring compressor
(MB992058), and remove the coil spring.

INSTALLATION SERVICE POINTS

>>A<< COIL SPRING INSTALLATION

AC502094AB

MB992058

Piece of
wood

Jack

Support the lower arm by the special tool Coil spring
compressor (MB992058), and install the coil spring
by compressing it using a jack.

>>B<< SHOCK ABSORBER INSTALLATION

AC407426

A

AB

Tighten the nuts until its protruding length meets the
standard value (A).

Standard value (A): 2

− 3 mm

INSPECTION

M1332012300011

• Check for oil leaks from the shock absorber

assembly.

• Check the shock absorber assembly for damage

or deformation.

SHOCK ABSORBER ASSEMBLY <2WD (High rider), 4WD>

FRONT SUSPENSION

33-15

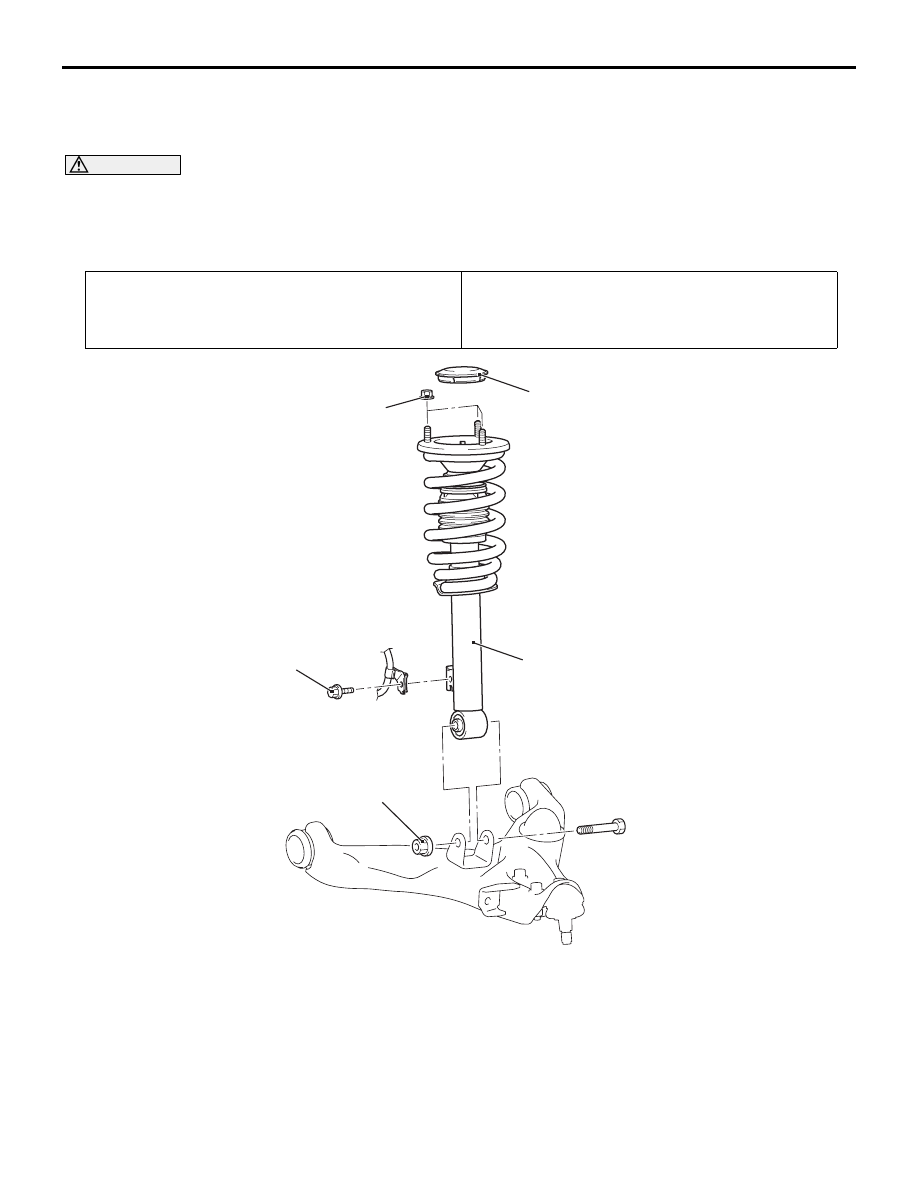

SHOCK ABSORBER ASSEMBLY <2WD (High rider), 4WD>

REMOVAL AND INSTALLATION

M1332004600233

CAUTION

• *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the earth in an unladen condition.

• When the suspension is adjusted or replaced, the calibration of steering wheel sensor must be

performed. (Refer to GROUP 35C, On-vehicle Service ). <Vehicles with ASTC>

Pre-removal Operation
• Upper arm assembly (Refer to

P.33-11

).

Post-installation Operation
• Upper arm assembly (Refer to

P.33-11

).

• Front wheel alignment check and adjustment (Refer to

P.33-6

).

AC502982 AB

105 ± 10 N·m*

3

44 ± 5 N·m

1

2

Removal steps

1.

Cap

2.

Front wheel speed sensor harness
clamp <Vehicles with ABS or ASTC>

3.

Shock absorber assembly

INSPECTION

M1332004700025

• Check for oil leaks from the shock absorber

assembly.

• Check the shock absorber assembly for damage

or deformation.
