Mitsubishi L200. Manual - part 299





TROUBLESHOOTING

AUTOMATIC TRANSMISSION

23A-103

DATA LIST REFERENCE TABLE

M1231111300208

Data list
No.

Check item

Inspection conditions

Normal condition

1

Engine speed

• Engine: Idling

• Selector lever

position: P

Compare the engine
speeds displayed on the
tachometer and the
M.U.T.-III.

Identical

5

Input shaft speed
sensor

Driving at a constant speed of 40 km/h in 3rd
gear <4A/T> or 60 km/h in 4th gear <5A/T>

1,100

− 1,400 r/min

<4A/T>
1,600

− 1,900 r/min

<5A/T>

6

Output shaft speed
sensor

Driving at a constant speed of 40 km/h in 3rd
gear <4A/T> or 60 km/h in 4th gear <5A/T>

1,100

− 1,400 r/min

<4A/T>
1,600

− 1,900 r/min

<5A/T>

7

A/T fluid temperature
sensor

Driving after engine has warmed up

Gradually increases.

8

A/T control relay
output voltage

Ignition switch: ON

System voltage

10

Damper clutch
amount of slippage

Driving at a constant speed 60 km/h in 3rd gear

−10 to 10 r/min

Driving at 60 km/h in 3rd gear, then fully close
the accelerator pedal

The value changes
from the above value.

11

Shift position

Selector lever
position: D, 2, L <4A/
T> or Sport mode
<5A/T>

Driving at a constant
speed of 10 km/h in 1st

1st

Driving at a constant
speed of 20 km/h in 2nd

2nd

Driving at a constant
speed of 40 km/h in 3th

3rd

Driving at a constant
speed of 60 km/h in 4th

4th

Driving at a constant
speed of 70 km/h in 5th
<5A/T>

5th

Selector lever position: P

P, N

Selector lever
position: R

Driving at a constant
speed of 5 km/h in reverse

REV

Selector lever position: N

P, N

12

Low-reverse
solenoid valve duty
ratio

Driving at a constant speed of 10 km/h in 1st

0%

Driving at a constant speed of 20 km/h in 2nd

100%

Driving at a constant speed of 40 km/h in 3rd

100%

Driving at a constant speed of 60 km/h in 4th

100% <4A/T>
0% <5A/T>

Driving at a constant speed of 70 km/h in 5th
<5A/T>

0%

TROUBLESHOOTING

AUTOMATIC TRANSMISSION

23A-104

13

Underdrive solenoid
valve duty ratio

Driving at a constant speed of 10 km/h in 1st

0%

Driving at a constant speed of 20 km/h in 2nd

0%

Driving at a constant speed of 40 km/h in 3rd

0%

Driving at a constant speed of 60 km/h in 4th

100% <4A/T>
0% <5A/T>

Driving at a constant speed of 70 km/h in 5th
<5A/T>

100%

14

Second solenoid
valve duty ratio

Driving at a constant speed of 10 km/h in 1st

100%

Driving at a constant speed of 20 km/h in 2nd

0%

Driving at a constant speed of 40 km/h in 3rd

100%

Driving at a constant speed of 60 km/h in 4th

0% <4A/T>
100% <5A/T>

Driving at a constant speed of 70 km/h in 5th
<5A/T>

0%

15

Overdrive solenoid
valve duty ratio

Driving at a constant speed of 10 km/h in 1st

100%

Driving at a constant speed of 20 km/h in 2nd

100%

Driving at a constant speed of 40 km/h in 3rd

0%

Driving at a constant speed of 60 km/h in 4th

0%

Driving at a constant speed of 70 km/h in 5th
<5A/T>

0%

16

Reduction solenoid
valve duty ratio <5A/
T>

Driving at a constant speed of 10 km/h in 1st

0%

Driving at a constant speed of 20 km/h in 2nd

0%

Driving at a constant speed of 40 km/h in 3rd

0%

Driving at a constant speed of 60 km/h in 4th

100%

Driving at a constant speed of 70 km/h in 5th

100%

17

Damper clutch
control solenoid
valve duty ratio

Driving at a constant speed 90 km/h in 3rd gear
<4A/T> or 100 km/h in 4th gear <5A/T>

70

− 99.6%

Driving at 90 km/h in 3rd gear <4A/T> or 100 km/
h in 4th gear <5A/T>, then fully close the
accelerator pedal

70

− 99.6% to 0%

21

A/C compressor
relay

Engine: Idling

A/C switch: ON

ON

A/C switch: OFF

OFF

26

Overdrive switch
<4A/T>

Ignition switch: ON

Overdrive switch: ON

ON

Overdrive switch: OFF

OFF

Data list
No.

Check item

Inspection conditions

Normal condition

TROUBLESHOOTING

AUTOMATIC TRANSMISSION

23A-105

27

Select switch <5A/
T>

Ignition switch: ON

Transmission range: D

OFF

Selector lever operation:
Select sport mode

ON

Selector lever operation:
Upshift and hold the
selector lever

ON

Selector lever operation:
Downshift and hold the
selector lever

ON

28

Shift lever switch
(Up) <5A/T>

Ignition switch: ON

Transmission range: D

OFF

Selector lever operation:
Select sport mode

OFF

Selector lever operation:
Upshift and hold the
selector lever

ON

Selector lever operation:
Downshift and hold the
selector lever

OFF

29

Shift lever switch
(Down) <5A/T>

Ignition switch: ON

Transmission range: D

OFF

Selector lever operation:
Select sport mode

OFF

Selector lever operation:
Upshift and hold the
selector lever

OFF

Selector lever operation:
Downshift and hold the
selector lever

ON

31

4LLc switch <4WD> Ignition switch: ON

Transfer lever position: 4L
<Vehicles with easy select
4WD> or 4LLc <Vehicles
with super select 4WD>

ON

Transfer lever position:
Other than the above

OFF

34

Inhibitor switch

Ignition switch: ON

Selector lever position: P

P

Selector lever position: R

R

Selector lever position: N

N

Selector lever position: D

D

Selector lever position: 2
<4A/T>

2

Selector lever position: L
<4A/T>

L

Data list
No.

Check item

Inspection conditions

Normal condition

TROUBLESHOOTING

AUTOMATIC TRANSMISSION

23A-106

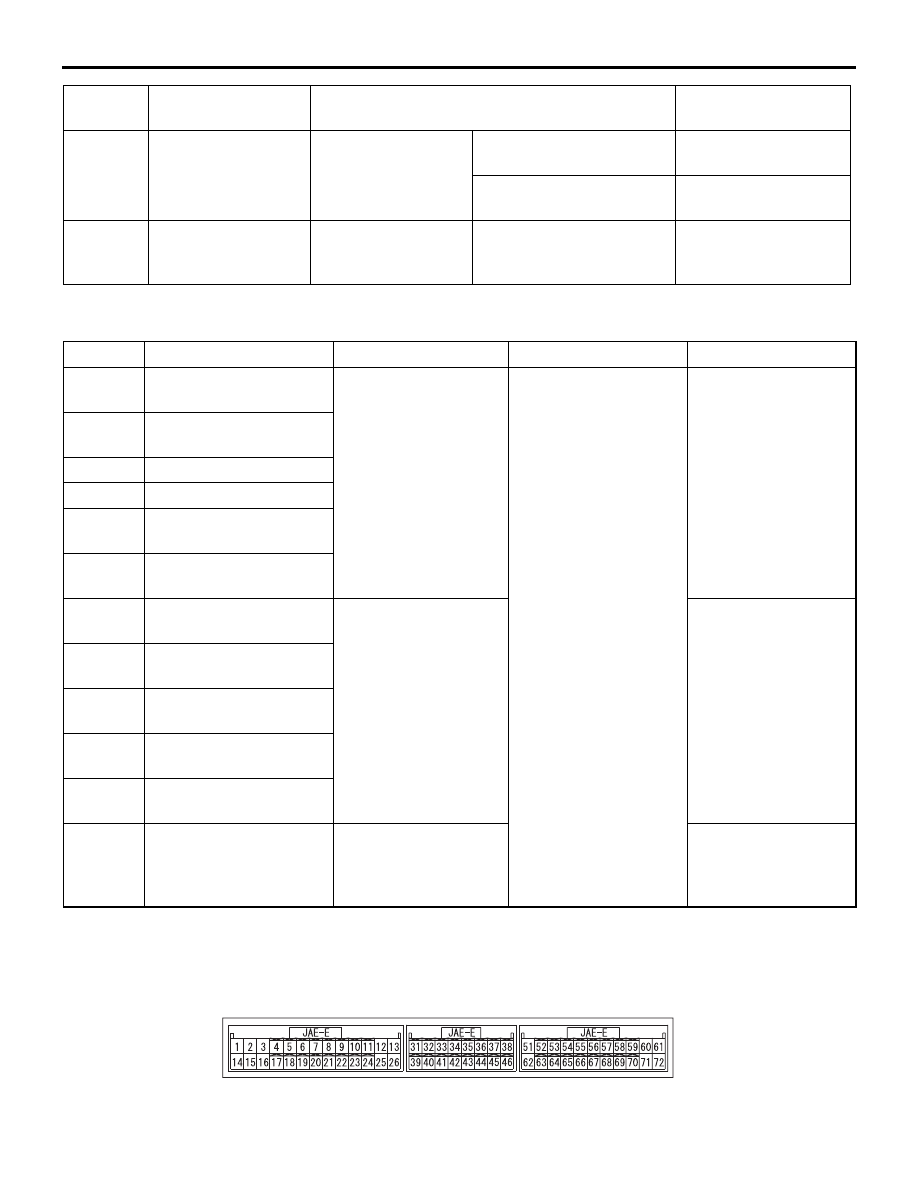

ACTUATOR TEST REFERENCE TABLE

M1231111400153

Item No. Inspection item

Test description

Inspection condition Normal status

1

Low-reverse solenoid
valve

• Actuate solenoid

valve indicated by
M.U.T.-III for 5
seconds at duty
ratio of 50%.

• Other remaining

solenoid valve are
not ON.

• Ignition switch: ON

• Selector lever

position: P

• Engine: Stopped

• Accelerator pedal:

Released

When solenoid valve
is actuated, operating
sound is audible.

2

Underdrive solenoid
valve

3

Second solenoid valve

4

Overdrive solenoid valve

5

Reduction solenoid
valve <5A/T>

6

Damper clutch control
solenoid valve

7

1st indicator lamp <5A/
T>

Illuminate each
indicator lamp for 3
seconds to the signal
from the M.U.T.-III.

Shift indicator lamp
illuminates.

8

2nd indicator lamp <5A/
T>

9

3rd indicator lamp <5A/
T>

10

4th indicator lamp <5A/
T>

11

5th indicator lamp <5A/
T> <5A/T>

12

A/T control relay

A/T control relay is
OFF for three
seconds.

• Data list No.8

• During test: 0 V

• Normal: System

voltage (V)

A/T-ECU TERMINAL VOLTAGE
REGERENCE CHART

M1231124500365

AC501291AB

C-12

C-19

C-20

35

APS

Ignition switch: ON

Accelerator pedal: Fully
closed

15

− 35%

Accelerator pedal:
Depressed

Gradually increases
from the above value.

36

Engine torque

• Engine: Idling

• Selector lever

position: N, P

Accelerator pedal: fully
closed to depressed

Data changes

Data list
No.

Check item

Inspection conditions

Normal condition
