Mitsubishi L200. Manual - part 230





CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-24

Inspection Procedure 4: When the "CANCEL" Switch is Pushed, Cruise Control is not Cancelled.

COMMENT ON TROUBLE SYMPTOM
The cause is probably an open-circuit in the circuit
inside the "CANCEL" switch.

PROBABLE CAUSE

• Malfunction of the cruise control switch.

• Malfunction of the engine-ECU.

DIAGNOSIS PROCEDURE

STEP 1. Check the data list.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 137: "CANCEL" switch

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Check the cruise control switch system
(Refer to

P.17-10



− Diagnosis Code

Procedures, Code No.P1564: Abnormal
voltage at cruise control switch. Then go to
Step 3 .

STEP 2. Check the symptom.

Q: When the "CANCEL" switch is pushed, is the

cruise control cancelled?
YES :

It can be assumed that this malfunction is

intermittent (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points, How to Cope with Intermittent
Malfunctions ).

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 3.

STEP 3. Check the symptom.

Q: When the "CANCEL" switch is pushed, is the

cruise control cancelled?
YES :

The procedure is complete.

NO :

Return to Step 1.

Inspection Procedure 5: Cruise Control cannot be Set (No Response when the "COAST/SET" Switch
and the "ACC/RES" Switch is Pushed).

COMMENTS ON TROUBLE SYMPTOM
The fail-safe function is probably cancelling cruise
control system. In this case, checking the cruise con-
trol system, diesel fuel system, CAN bus system, A/T
system <A/T> and ASTC system diagnosis codes.
The M.U.T.-III can also be used to check if the cir-
cuits of each input switches are normal or not by
checking the data list.
NOTE: Push the cruise control switches one by one
securely. Otherwise, the cruise control system may
not be started.

PROBABLE CAUSE

• Malfunction of CAN bus system.

• Malfunction of the diesel fuel system.

• Malfunction of the A/T system <A/T>.

• Malfunction of the ASTC system.

• Malfunction of the cruise control switch.

• Malfunction of the stop lamp switch.

• Malfunction of the clutch switch <M/T>.

• Malfunction of the inhibitor switch <A/T>.

• Malfunction of the engine-ECU.

DIAGNOSIS PROCEDURE

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus
lines.

• Before replacing the ECU, ensure that the

CAN bus lines is normal.

STEP 1. Check the CAN bus system diagnosis.
Using M.U.T.-III, perform CAN bus diagnosis (Refer
to GROUP 54C

− Explanation About The M.U.T-III

Can Bus Diagnostics ).

Q: Is the check result satisfactory?

YES :

Go to Step 2.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− Troubleshooting, Can Bus Diagnostic

Table ). Then go to Step 11.

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-25

STEP 2. Check the diesel fuel system diagnosis
code.
Using M.U.T.-III, perform diesel fuel system diagno-
sis code (Refer to GROUP 13A

− Troubleshooting,

Diagnosis Function ).

Q: Is any diagnosis code set?

YES :

Repair the diesel fuel system (Refer to

GROUP 13A

− Troubleshooting, Inspection

Chart for Diagnosis Code ). Then go to Step
11.

NO :

Go to Step 4 <M/T>.

NO :

Go to Step 3 <A/T>.

STEP 3. Check the A/T system diagnosis code
<A/T>.
Using M.U.T.-III, perform A/T system diagnosis code
(Refer to GROUP 23A

− Troubleshooting, Diagnosis

Function ).

Q: Is any diagnosis code set?

YES :

Repair the A/T system (Refer to GROUP

23A

− Troubleshooting, Diagnosis Code

Chart ). Then go to Step 11.

NO :

Go to Step 4.

STEP 4. Check the ASTC system diagnosis code.
Using M.U.T.-III, perform ASTC system diagnosis
code (Refer to GROUP 35C

− Troubleshooting,

Diagnosis Function ).

Q: Is any diagnosis code set?

YES :

Repair the ASTC system (Refer to GROUP

35C

− Troubleshooting, Diagnosis Code

Chart ). Then go to Step 11.

NO :

Go to Step 5.

STEP 5. Read the diagnosis code.
(1) Use the M.U.T.-III, erase the diagnosis code of

the cruise control system (Refer to

P.17-9

).

(2) Turn the ignition switch to the "ON" position, and

push the "ON/OFF" switch to turn the cruise
control system to ON (turn on the cruise control
indicator lamp).

(3) After turning the cruise control system to ON,

when 2 minutes or more has elapsed without
operating the cruise control switches.

(4) With the cruise control switches not operated,

depress the brake pedal for several seconds, and
then use the M.U.T.-III to read the diagnosis code
of the cruise control system (Refer to

P.17-9

).

Q: Is any diagnosis code set?

YES :

Repair the cruise control system (Refer to

P.17-9



− Diagnosis Code Chart). Then go to

Step 11.

NO :

Go to Step 6.

STEP 6. Check the data list.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 136: "ON/OFF" switch

• Item 137: "CANCEL" switch

• Item 138: "COAST/SET" switch

• Item 139: "ACC/RES" switch

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Check the cruise control switch system
(Refer to

P.17-10



− Diagnosis Code

Procedures, Code No.P1564: Abnormal
voltage at cruise control switch). Then go to
Step 11  .

STEP 7. Check the data list.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 134: Brake switch

• Item 135: Stop lamp switch

Q: Is the check result normal?

YES :

Go to Step 8 <M/T>.

YES :

Go to Step 9 <A/T>.

NO :

Check the stop lamp switch system (Refer
to

P.17-15



− Diagnosis Code Procedures,

Code No.P1571: Malfunction of the stop
lamp switch system). Then go to Step 11 .

STEP 8. Check the data list <M/T>.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 131: Clutch switch

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Check the clutch switch system (Refer to

P.17-21



− Symptom Procedures, Inspection

Procedure 2). Then go to Step 11.

STEP 9. Check the data list <A/T>.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 42: Inhibitor switch

Q: Is the check result normal?

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-26

YES :

Go to Step 10.

NO :

Check the inhibitor switch system [Refer to
GROUP 23A

− Troubleshooting, Diagnosis

Code Procedures Code No.P1770: Inhibitor
switch system (Open Circuit) , Code
No.P1771: Inhibitor switch system (Short
Circuit) ] <4A/T> or [Refer to GROUP 23A

−

Troubleshooting, Diagnosis Code
Procedures Code No.P1770: Inhibitor
switch system (Open Circuit) , Code
No.P1771: Inhibitor switch system (Short
Circuit) ] <5A/T>. Then go to Step 11.

STEP 10. Check the symptom.

Q: Can cruise control be set?

YES :

It can be assumed that this malfunction is

intermittent (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points, How to Cope with Intermittent
Malfunctions ).

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 11.

STEP 11. Check the symptom.

Q: Can cruise control be set?

YES :

The procedure is complete.

NO :

Return to Step 1.

Inspection Procedure 6: Hunting (Repeated Acceleration and Deceleration) Occurs at the Set Vehicle
Speed.

COMMENTS ON TROUBLE SYMPTOM
The vehicle speed sensor or the diesel fuel system is
suspected.
NOTE: When the vehicle is driven with the low-
speed gear in the sport mode, hunting occurs easily,
however, this is not a failure <A/T>.

PROBABLE CAUSE

• Malfunction of the vehicle speed sensor.

• Malfunction of the diesel fuel system.

• Malfunction of the A/T system <A/T>.

• Malfunction of the engine-ECU.

DIAGNOSIS PROCEDURE

STEP 1. Check the diesel fuel system diagnosis
code.
Using M.U.T.-III, perform diesel fuel system diagno-
sis code (Refer to GROUP 13A

− Diagnosis Function

).

Q: Is any diagnosis code set?

YES :

Repair the diesel fuel system (Refer to

GROUP 13A

− Troubleshooting, Inspection

Chart for Diagnosis Code ). Then go to Step
5.

NO :

Go to Step 3 <M/T>.

NO :

Go to Step 2 <A/T>.

STEP 2. Check the A/T system diagnosis code
<A/T>.
Using M.U.T.-III, perform A/T system diagnosis code
(Refer to GROUP 23A

− Troubleshooting, Diagnosis

Function ).

Q: Is any diagnosis code set?

YES :

Repair the A/T system (Refer to GROUP

23A

− Troubleshooting, Diagnosis Code

Chart ). Then go to Step 5.

NO :

Go to Step 3.

STEP 3. Check the data list.
Using M.U.T.-III, check the data list (Refer to

P.17-29



− data list reference table).

• Item 04: Vehicle speed signal

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 5.

STEP 4. Check the symptom.

Q: Does a hunting occur?

YES :

Replace the engine-ECU (Refer to GROUP

13A

− Engine-ECU ). Then go to Step 5.

NO :

It can be assumed that this malfunction is
intermittent (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points, How to Cope with Intermittent
Malfunctions ).

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-27

STEP 5. Check the symptom.

Q: Does a hunting occur?

YES :

Return to Step 1.

NO :

The procedure is complete.

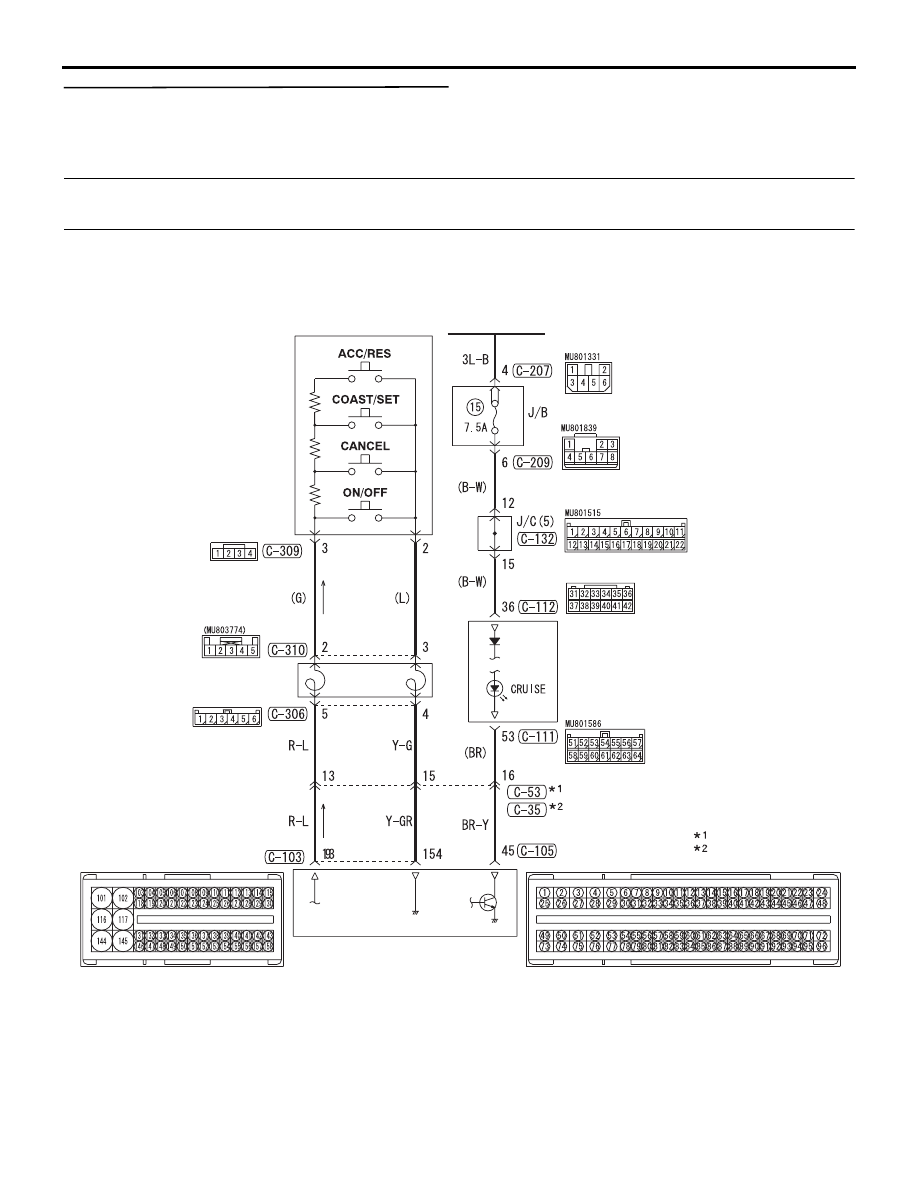

Inspection Procedure 7: When the "ON/OFF" Switch is Turned ON, the Cruise Control Indicator Lamp
does not Illuminate (However, the Cruise Control System is Normal).

ACA01422

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

NOTE

:
:

LH drive vehicles
RH drive vehicles

CLOCK
SPRING

ENGINE-ECU

CRUISE CONTROL
SWITCH

IGNITION
SWITCH (IG1)

COMBINATION
METER

Cruise Control Indicator Lamp System Circuit

AB
