TROUBLESHOOTING

DIESEL FUEL

13A-520

• Damaged harness (Open or short circuit between

engine-ECU and glow plug relay, and open or
short circuit between glow plug relay and glow
plug, Open circuit between engine control relay
and glow plug relay, engine control relay and fusi-
ble link, and open circuit between engine-ECU
and combination meter)

• Damaged connector (Engine-ECU connector,

glow plug relay connector, combination meter
connector)

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check the glow indicator lamp
illuminates.

•  Ignition switch: ON

•  Engine coolant temperature: 40°C or lower

Q: Is the glow indicator lamp illuminates?

YES :

Go to Step 4 .

NO :

Go to Step 2 .

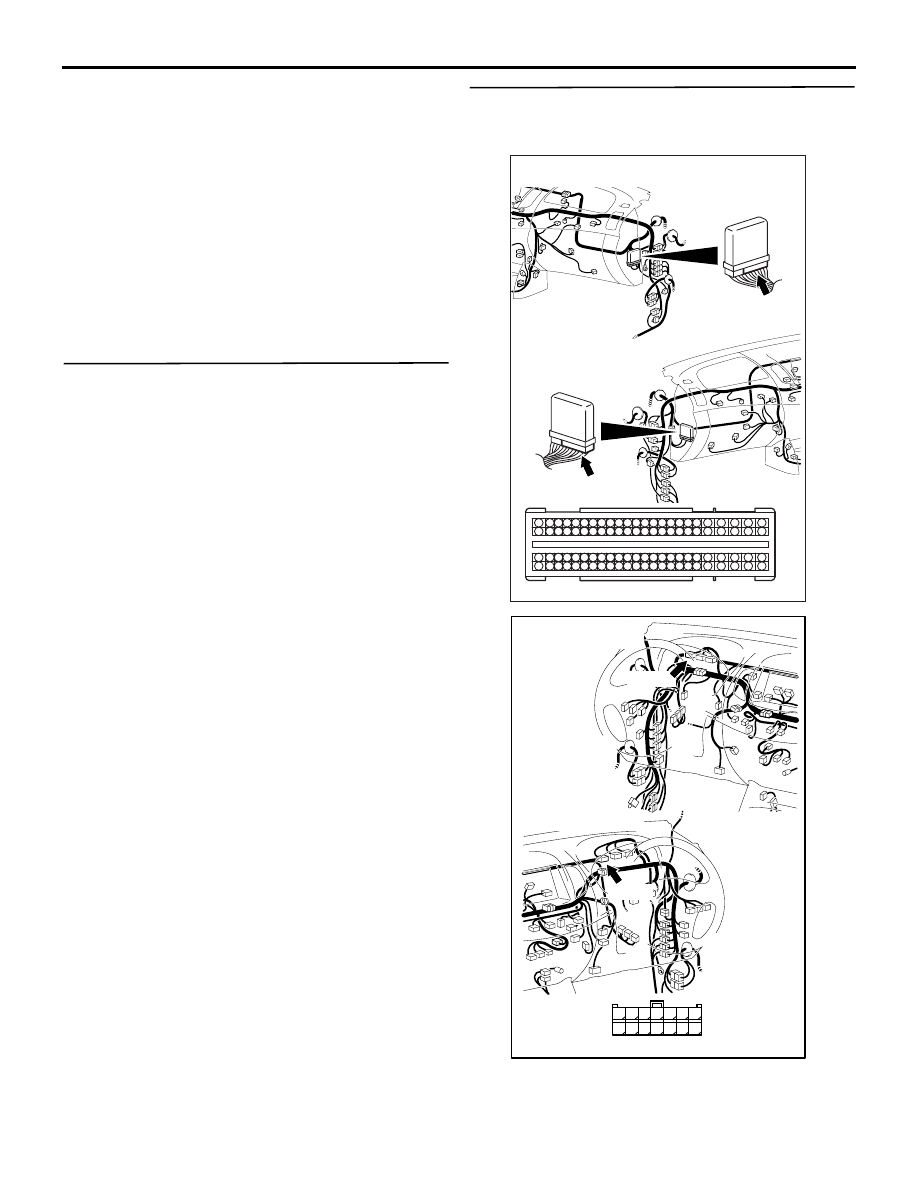

STEP 2. Connector check: C-105 engine-ECU
connector and C-111 combination meter
connector.

Q: Are the check results normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK700806

62

64

61 60 59 58

63

57

53

54

55

52 51

56

Harness side connector

C-111

C-111

Connector: C-111

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

TROUBLESHOOTING

DIESEL FUEL

13A-521

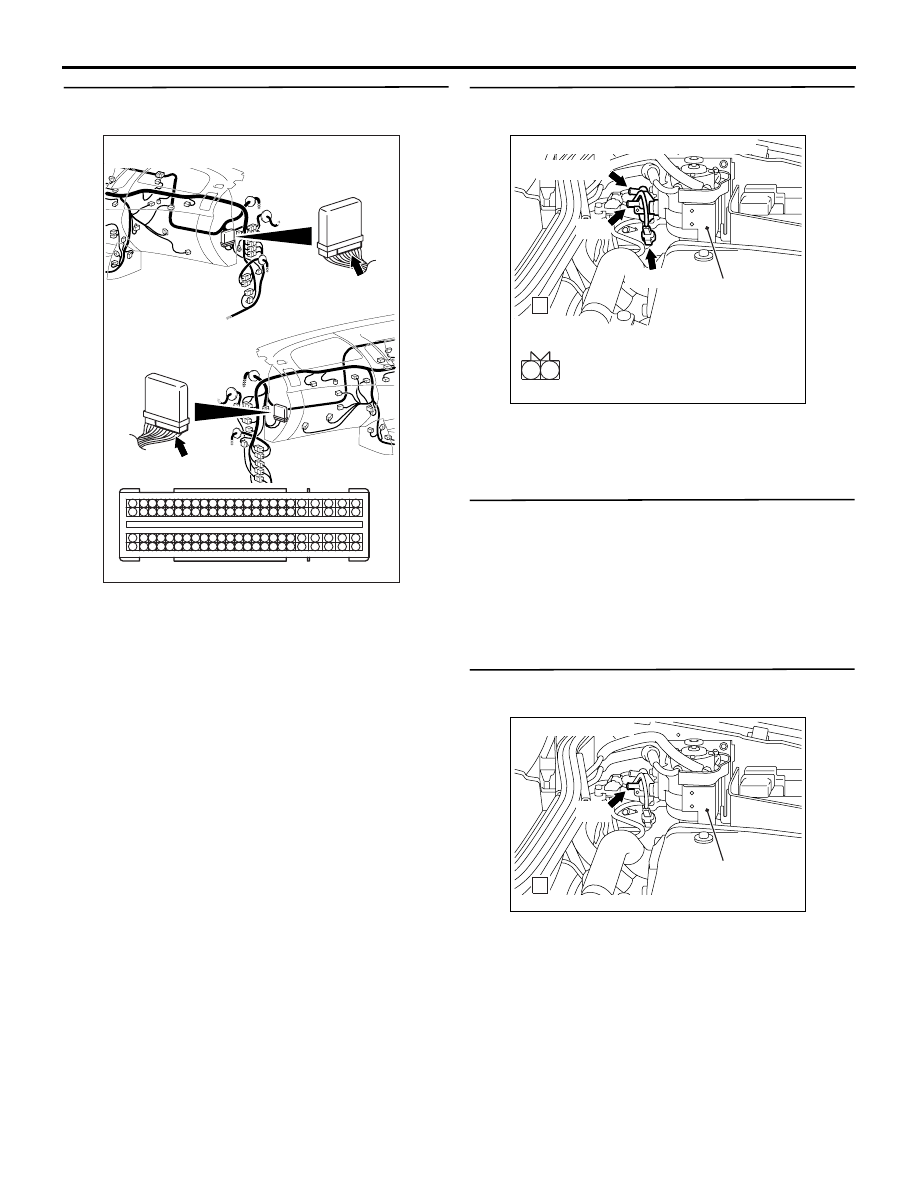

STEP 3. Perform voltage measurement at C-105
engine-ECU connector.

• Disconnect connector, and measurement at har-

ness side.

•  Ignition switch: ON

• Voltage between terminal No. 22 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

NO :

Check intermediate connector C-53 <L. H.
drive vehicles> or C-35 <R. H. drive
vehicles>, and repair if necessary. If
intermediate connector is normal, check and
repair harness between C-111 (terminal No.
51) combination meter connector and C-105
(terminal No. 28) engine-ECU connector.

STEP 4. Connector checks: A-11, A-111 and A-
112 glow plug relay connectors.

Q: Are the check results normal?

YES :

Go to Step 5 .

NO :

Repair or replace.

STEP 5. Check the glow plug relay itself.

• Check the glow plug relay itself (Refer to GROUP

16

− Glow System − On-vehicle Service − Glow

Plug Relay Check ).

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Replace the glow plug relay.

STEP 6. Perform voltage measurement at A-11
glow plug relay connector.

• Disconnect connector, and measurement at har-

ness side.

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check harness between fusible link No. 24
and A-11 (terminal No. 1) glow plug relay
connector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AC501628

AK501004

1

1

2

Fuel filter

A-112 (B)

A-111 (GR)

A-11

Connector: A-11, A-111 and A-112

A-11, A-111
Harness side connector

A-112 Harness side connector

AB

AC501628

AK501005

1

Fuel filter

A-11

Connector: A-11

AB

Harness side connector

TROUBLESHOOTING

DIESEL FUEL

13A-522

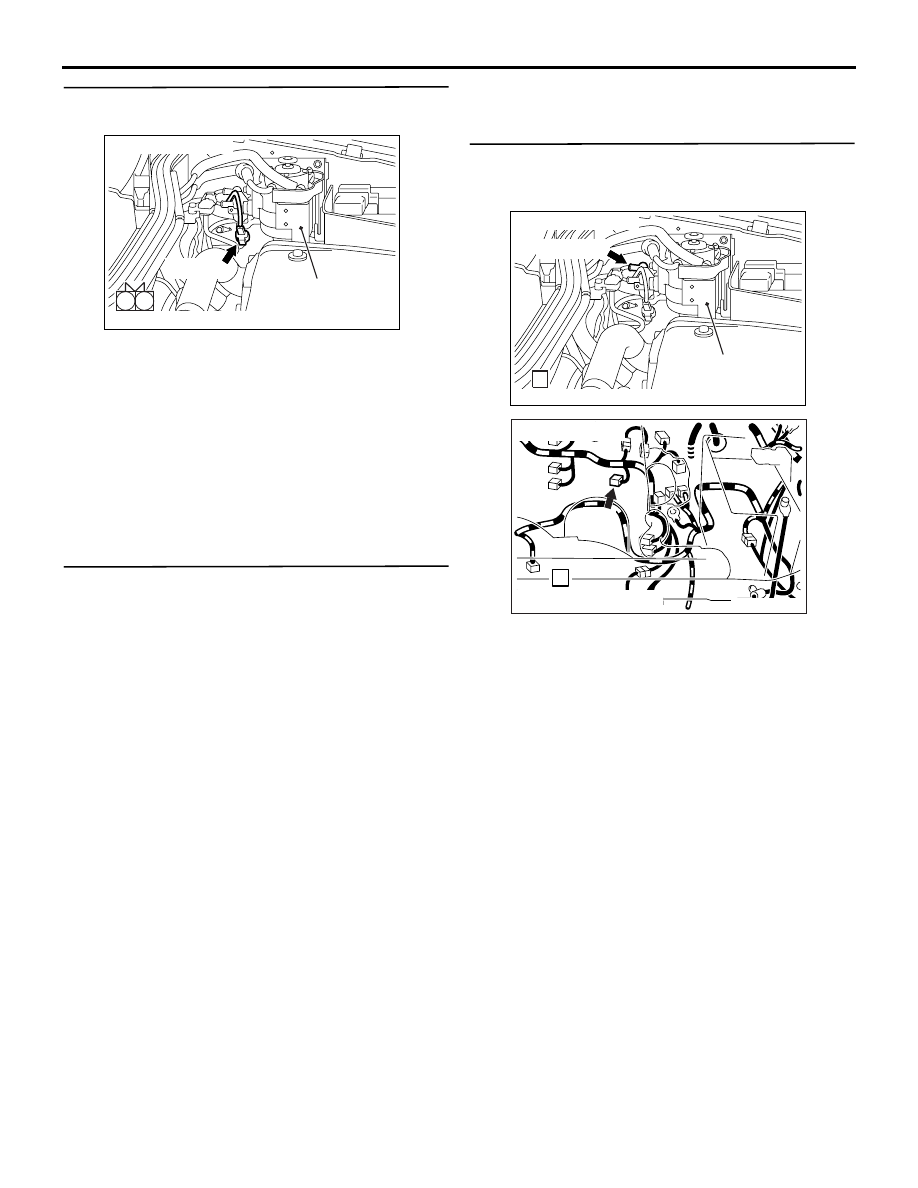

STEP 7. Perform voltage measurement at A-112
glow plug relay connector.

• Disconnect connector, and measurement at har-

ness side.

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Check harness between A-112 (terminal No.
1) glow plug relay connector and A-20X
(terminal No. 3) engine control relay
connector.

STEP 8. Check glow plug itself.

• Check glow plug itself (Refer to GROUP 16 −

Glow System

− On-vehicle Service − Glow Plug

Check ).

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Replace the glow plug.

STEP 9. Check harness between A-111 (terminal
No. 1) glow plug relay connector and A-06
(terminal No. 1) glow plug connector.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair the harness wire.

AC501628

AK501006

1

2

Fuel filter

A-112 (B)

Connector: A-112

AB

Harness side connector

AC501628

AK501007

1

Fuel filter

A-111 (GR)

Connector: A-111

AB

Harness side connector

1

AK700923

Harness side connector

Connector: A-06

AB

A-06

TROUBLESHOOTING

DIESEL FUEL

13A-523

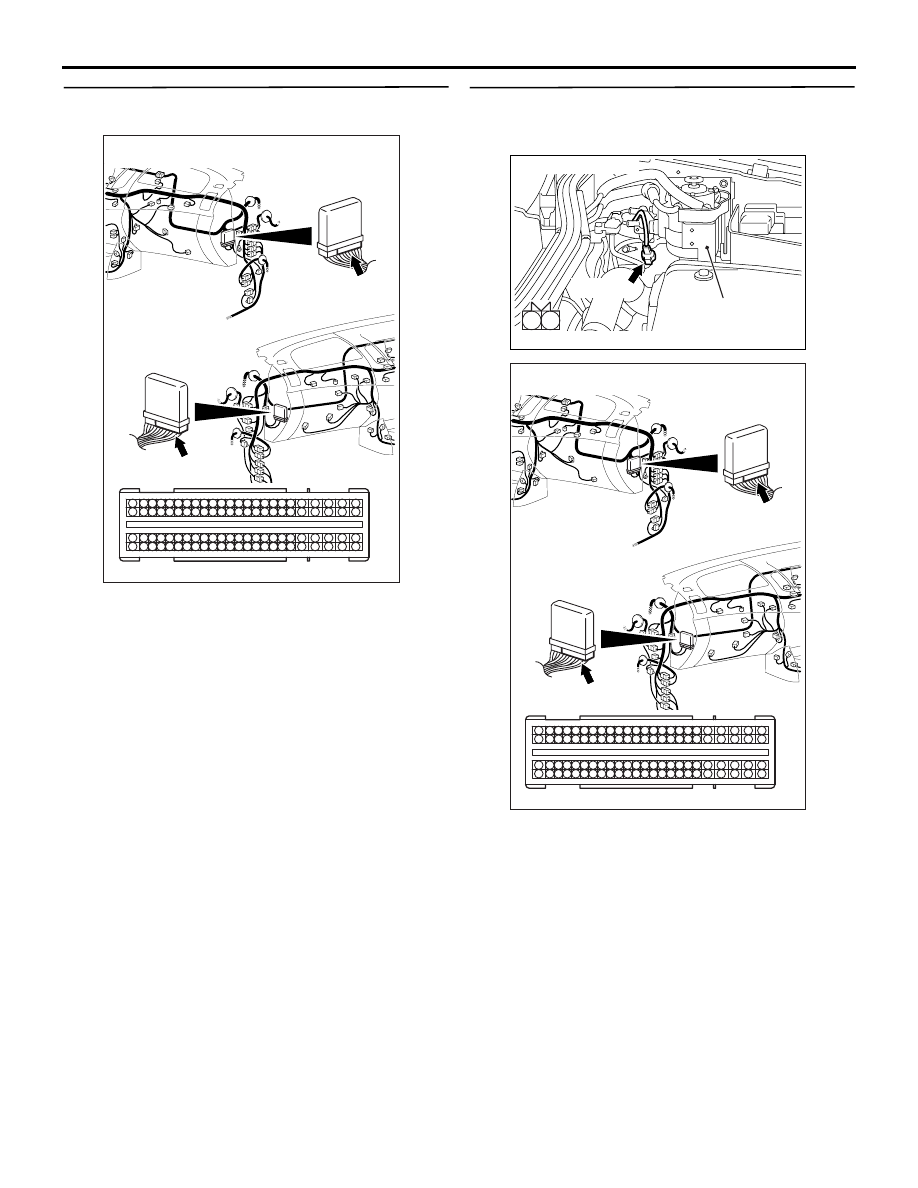

STEP 10. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair or replace.

STEP 11. Check harness between A-112 (terminal
No. 2) glow plug relay connector and C-105
(terminal No. 20) engine-ECU connector.

Q: Is the check result normal?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

NO :

Repair the harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AC501628

AK501006

1

2

Fuel filter

A-112 (B)

Connector: A-112

AB

Harness side connector

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
