TROUBLESHOOTING

DIESEL FUEL

13A-500

• Damaged harness (Open circuit between back-

up lamp switch and engine-ECU, and open circuit
between back-up lamp switch and J/B)

• Damaged connector (Engine-ECU connector,

back-up lamp switch connector)

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 73: Reverse shift switch

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 2 .

STEP 2. Check back-up lamp switch itself

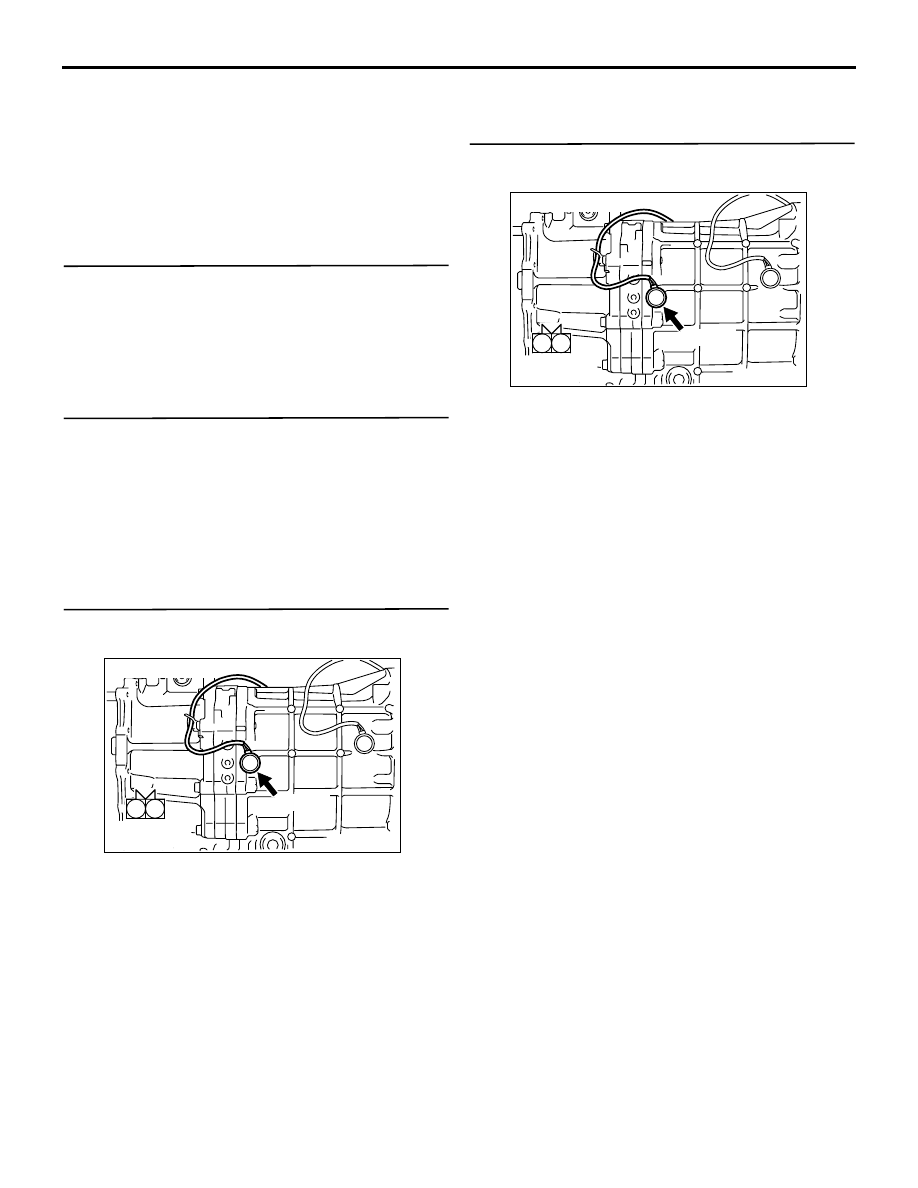

• Check back-up lamp switch itself (Refer to

GROUP 22B

− Transmission − Transmission

Inspection  <2WD>, GROUP 22C

− Transmission

− Transmission Inspection  <4WD>).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the back-up lamp switch.

STEP 3. Connector check: B-02 back-up lamp
switch connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace.

STEP 4. Perform voltage measurement at B-02
back-up lamp switch connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 2 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Check intermediate connector C-30, and
repair if necessary. If intermediate
connector is normal, check and repair
harness between B-02 (terminal No. 2)
back-up lamp switch connector and C-208
(terminal No. 2) connector.

AK501385

1

2

AB

Harness side
connector

B-02 (B)

Connector: B-02

AK501385

1

2

AB

Harness side
connector

B-02 (B)

Connector: B-02

TROUBLESHOOTING

DIESEL FUEL

13A-501

STEP 5. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

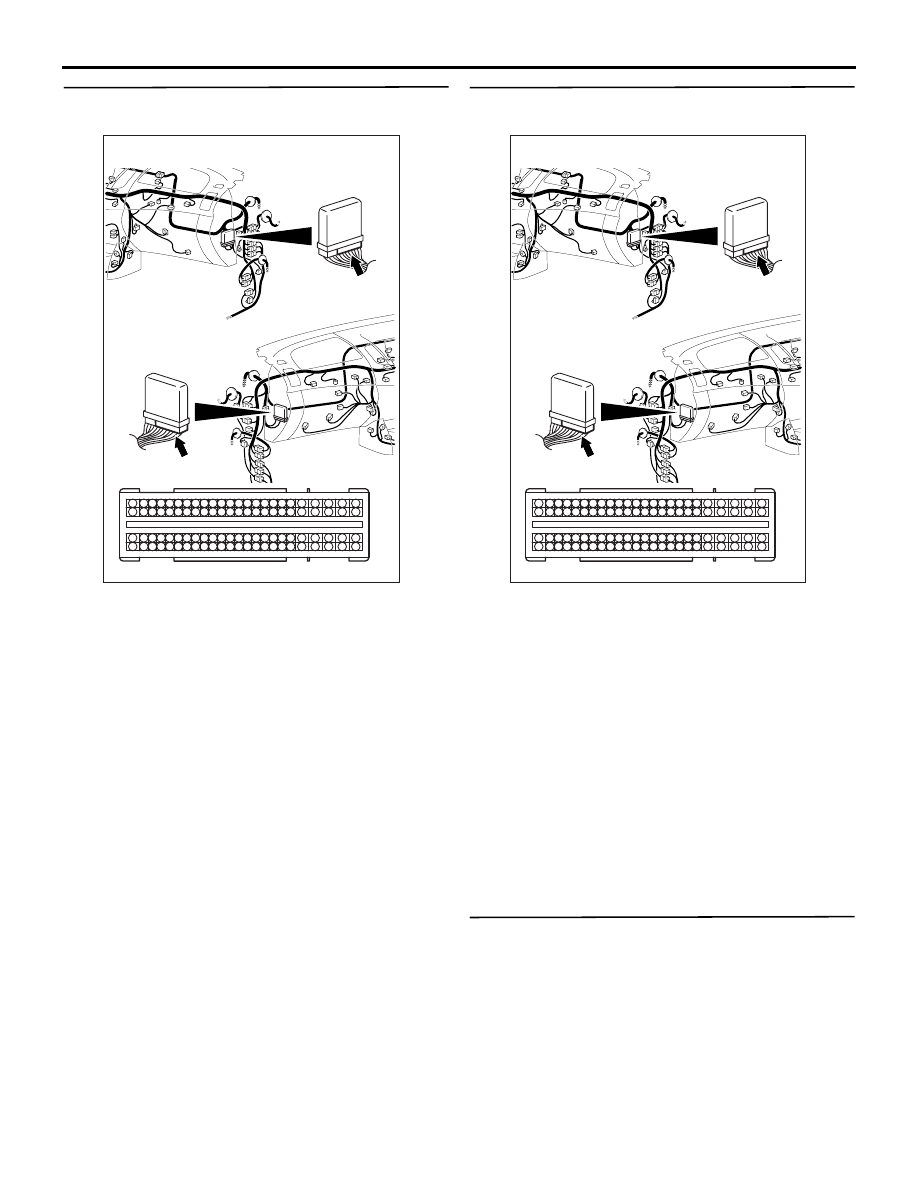

STEP 6. Perform voltage measurement at C-105
engine-ECU connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 9 and earth.

OK:

System voltage (Shift lever position: Reverse)
0 V (Shift lever position: Neutral)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check intermediate connectors A-28 and C-
29, and repair if necessary. If intermediate
connectors are normal, check and repair
harness between C-105 (terminal No. 9)
engine-ECU connector and B-02 (terminal
No. 1) back-up lamp switch connector.

STEP 7. Check the trouble symptoms.

Q: Does trouble symptom persist?

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-502

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunction ).

TROUBLESHOOTING

DIESEL FUEL

13A-503

Inspection Procedure 20: 4LLC Switch System <M/T-High power engine vehicle>

OPERATION

• A 4LLC switch detects that a transmission is

shifted into a 4LLC position.

• An engine-ECU controls an engine speed to be 3,

000 r/min or less so that an excessive load can-
not be applied to a drive train system due to a
sudden start in a reverse gear position.

PROBABLE CAUSES

• Failed 4LLC switch

• Damaged harness (Open circuit between 4LLC

switch and engine-ECU, and open circuit
between 4LLC switch and J/B)

• Damaged connector (Engine-ECU connector,

4LLC switch connector)

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check 4LLC switch itself

• Check 4LLC switch itself (Refer to GROUP 22A −

On-vehicle service

− 4LLC detection switch conti-

nuity check ).

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Replace the 4LLC switch.

AKB00291

1

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

13

7

5

A-115

C-29

1

4LLC switch

ON

OFF

L-R

L-R

L-B

Engine-ECU

B-05

MU802653

C-105

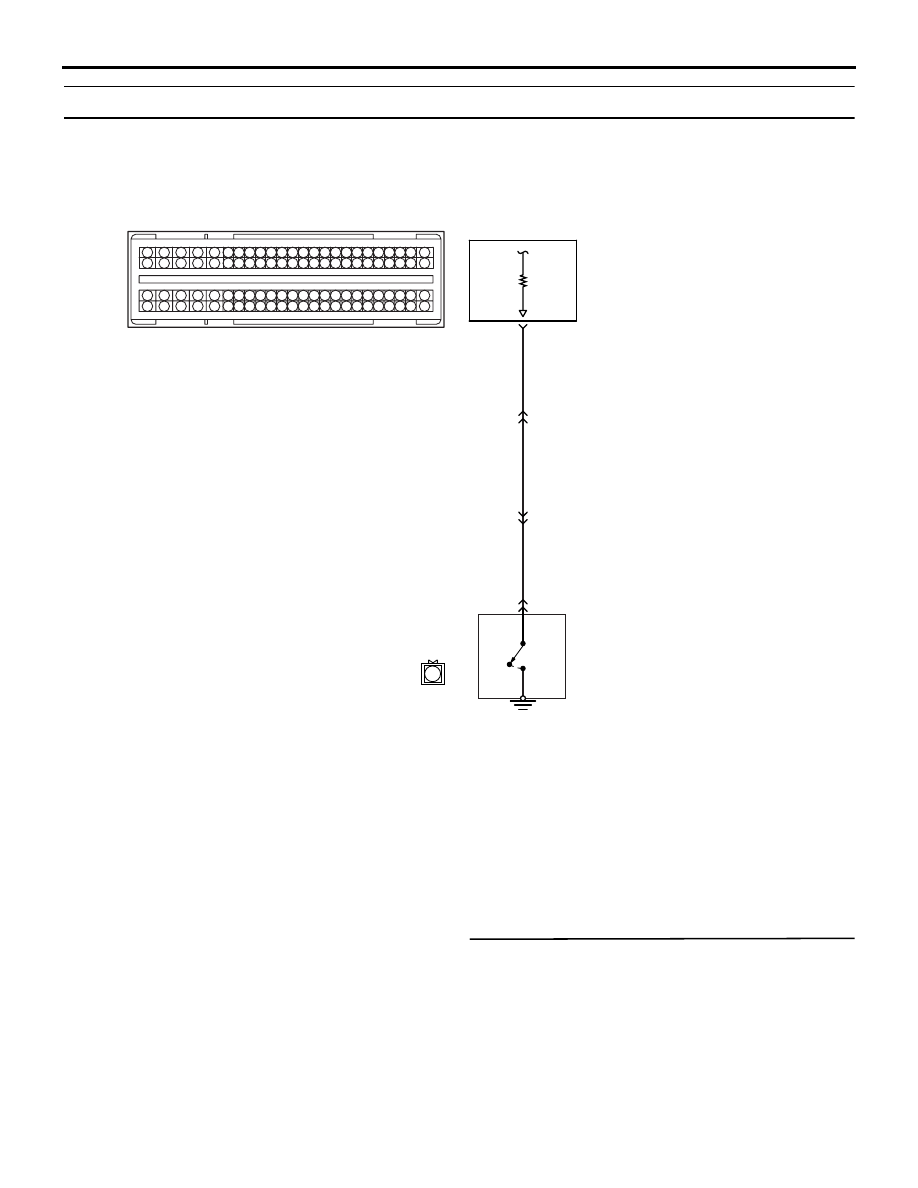

4LLC Switch Circuit

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

AB
