TROUBLESHOOTING

DIESEL FUEL

13A-92

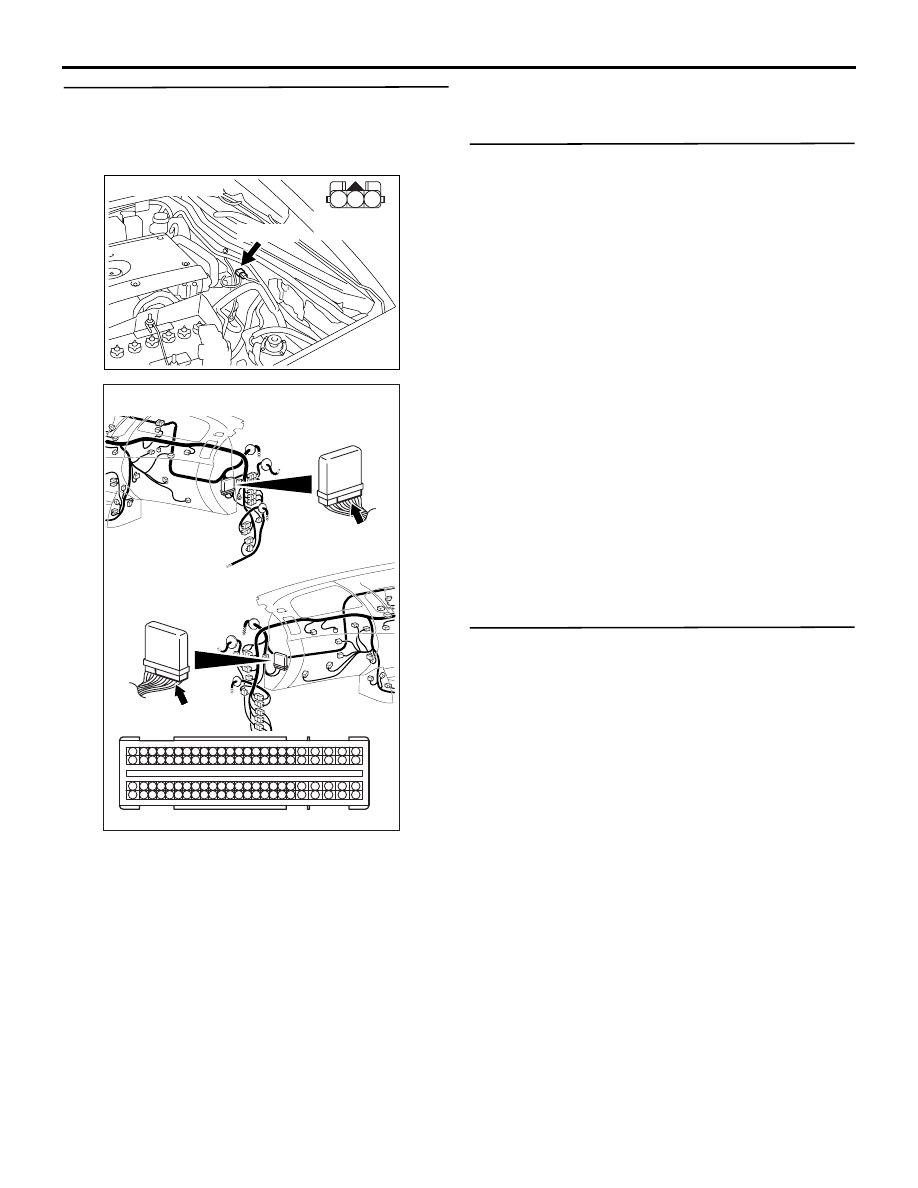

STEP 5. Check harness between A-105 (terminal
No. 3) manifold absolute pressure sensor
connector and C-105 (terminal No. 31) engine-
ECU connector.

• Check earthing line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 6: Manifold absolute pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

STEP 7. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 6: Manifold absolute pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the manifold absolute pressure
sensor.

AK900797

1

3 2

AB

Harness side
connector

A-105 (L)

Connector: A-105

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-93

Code No. P0112: EGR Gas Temperature Sensor Circuit Low Input <Euro5>

OPERATION

• A power voltage of 5 V is applied to the EGR gas

temperature sensor output terminal (terminal No.
2) from the engine-ECU (terminal No. 36).

• The power voltage is earthed to the engine-ECU

(terminal No. 30) from the EGR gas temperature
sensor (terminal No. 1).

FUNCTION

• The EGR gas temperature sensor converts the

EGR gas temperature into a voltage and inputs
the voltage signal to the engine-ECU.

• The EGR gas temperature sensor is a kind of

resistor, which has characteristics to reduce its
resistance as the EGR gas temperature rises.
Therefore, the sensor output voltage varies with
the EGR gas temperature, and becomes lower as
the EGR gas temperature rises.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up.

Judgment Criterion

• The EGR gas temperature sensor output voltage

is 0.11 V or less (the EGR gas temperature is
above 500

°C or equivalent).

PROBABLE CAUSES

• Failed EGR gas temperature sensor

• Short circuit or harness damage in EGR gas tem-

perature sensor circuit or loose connector contact

• Failed engine-ECU

AKB00262

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

1 2

AB

30

36

EGR gas temperature
sensor

Engine-ECU

1

2

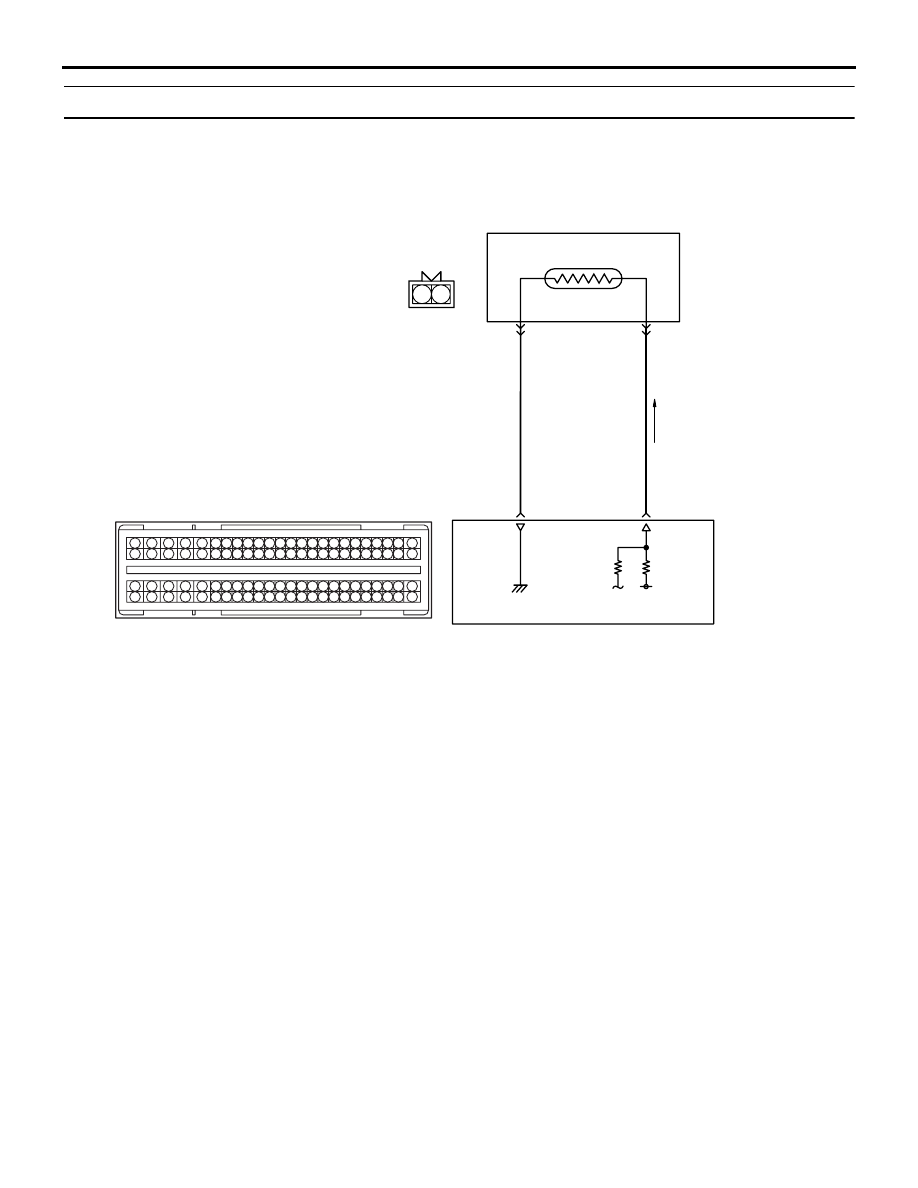

EGR Gas Temperature Sensor Circuit

B-P

L-R

A-157

C-105

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

TROUBLESHOOTING

DIESEL FUEL

13A-94

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

a. Item 8: EGR gas temperature sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

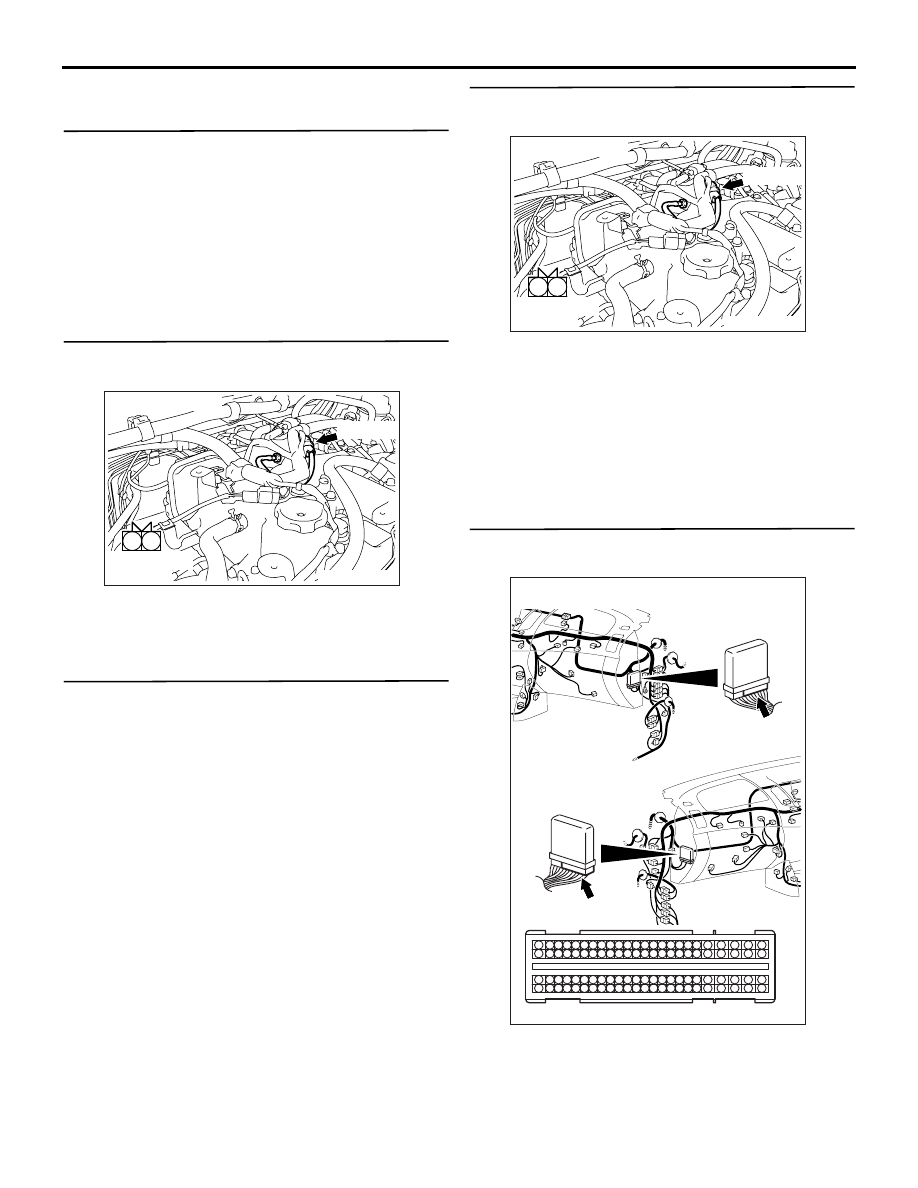

STEP 2. Connector check: A-157 EGR gas
temperature sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check EGR gas temperature sensor
itself.

• Check EGR gas temperature sensor itself (Refer

to GROUP 17

− Emission Control − Exhaust Gas

Recirculation (EGR) System

− EGR Gas Temper-

ature Sensor Check ).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the EGR gas temperature sensor.

STEP 4. Perform voltage measurement at A-157
EGR gas temperature sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 2 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

STEP 5. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

AKB00263

1

2

AB

A-157 (B)

Harness side
connector

Connector: A-157

AKB00263

1

2

AB

A-157 (B)

Harness side
connector

Connector: A-157

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-95

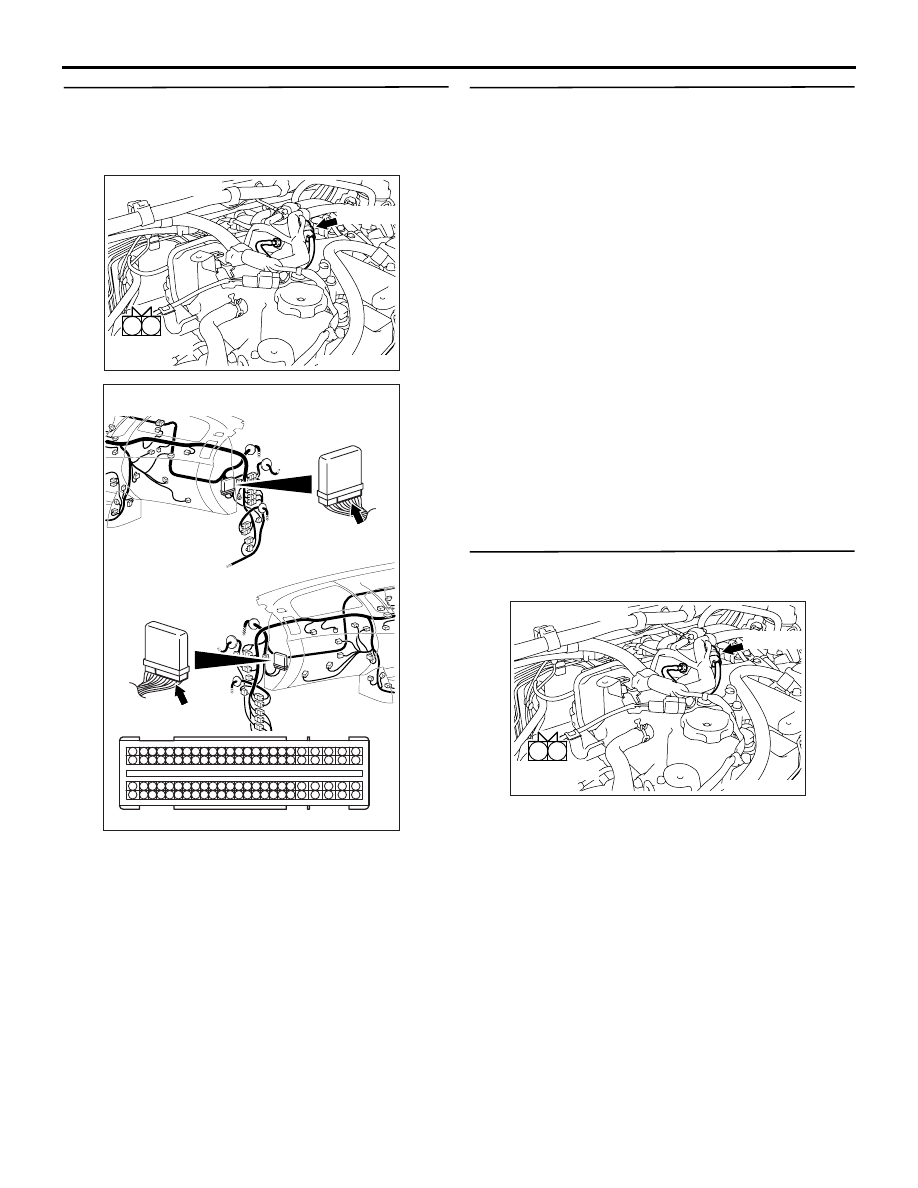

STEP 6. Check harness between A-157 (terminal
