TROUBLESHOOTING

DIESEL FUEL

13A-60

• Based on The input signals, the engine-ECU

checks whether the fuel pressure in the common
rail exceeds the maximum withstand pressure of
the system.

TROUBLE JUDGMENT

Check Conditions

• Rail pressure sensor is normal

• Battery positive voltage is 8 − 16 V

Judgment Criterion

• The rail pressure exceeds the threshold value of

an abnormal high pressure for 3 seconds (contin-
uous or accumulated).

PROBABLE CAUSES

• Failed suction control valve

• Failed rail pressure sensor

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is any other diagnosis code than P0088 output?

YES :

Inspection chart for diagnosis codes (Refer

to

P.13A-21

).

NO :

Go to Step 2 .

STEP 2. Check suction control valve itself

• Check suction control valve itself (Refer to

P.13A-

596

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the suction control valve. After
replacing the suction control valve, learn the
supply pump (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

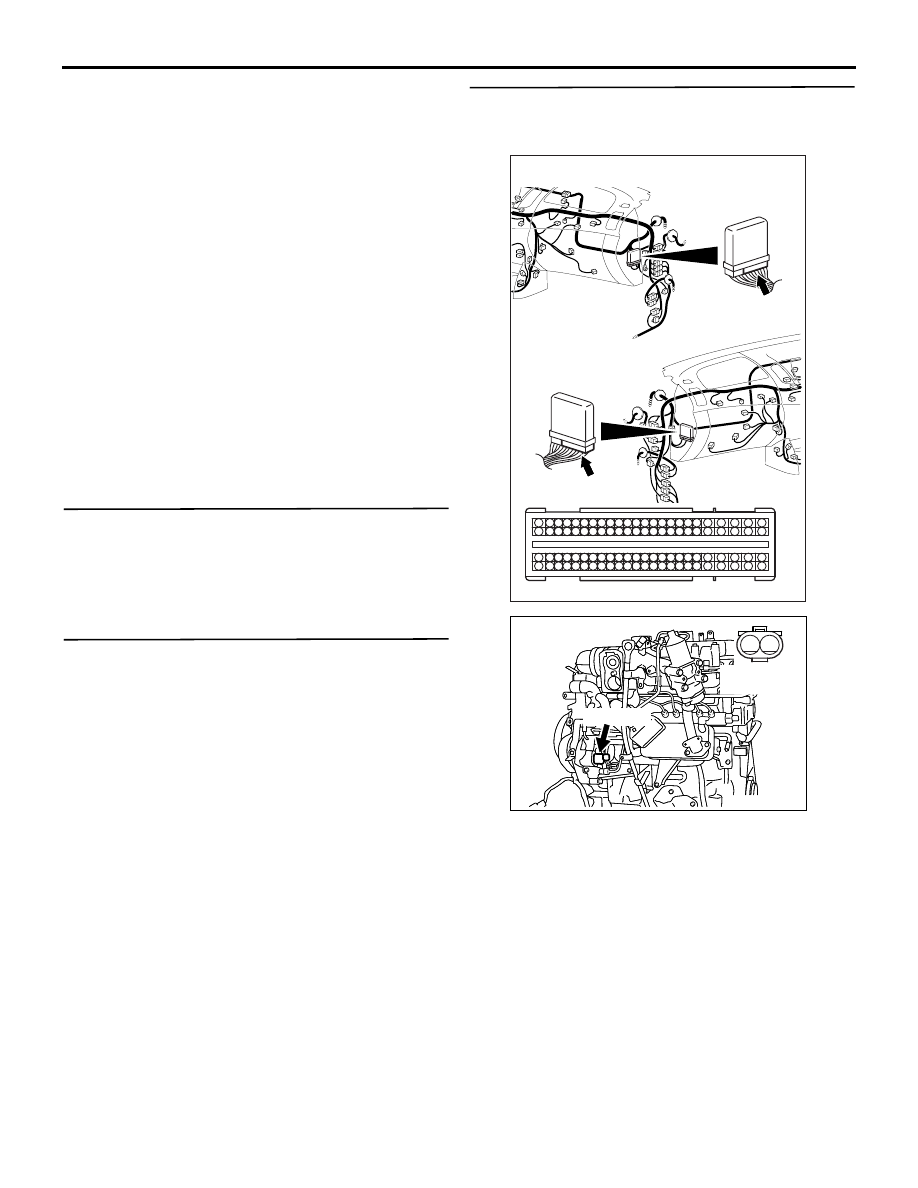

STEP 3. Connector check: C-105 engine-ECU
connector and A-47 suction control valve
connector.

Q: Are the check results normal?

YES :

Go to Step 4 .

NO :

Repair or replace the connector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

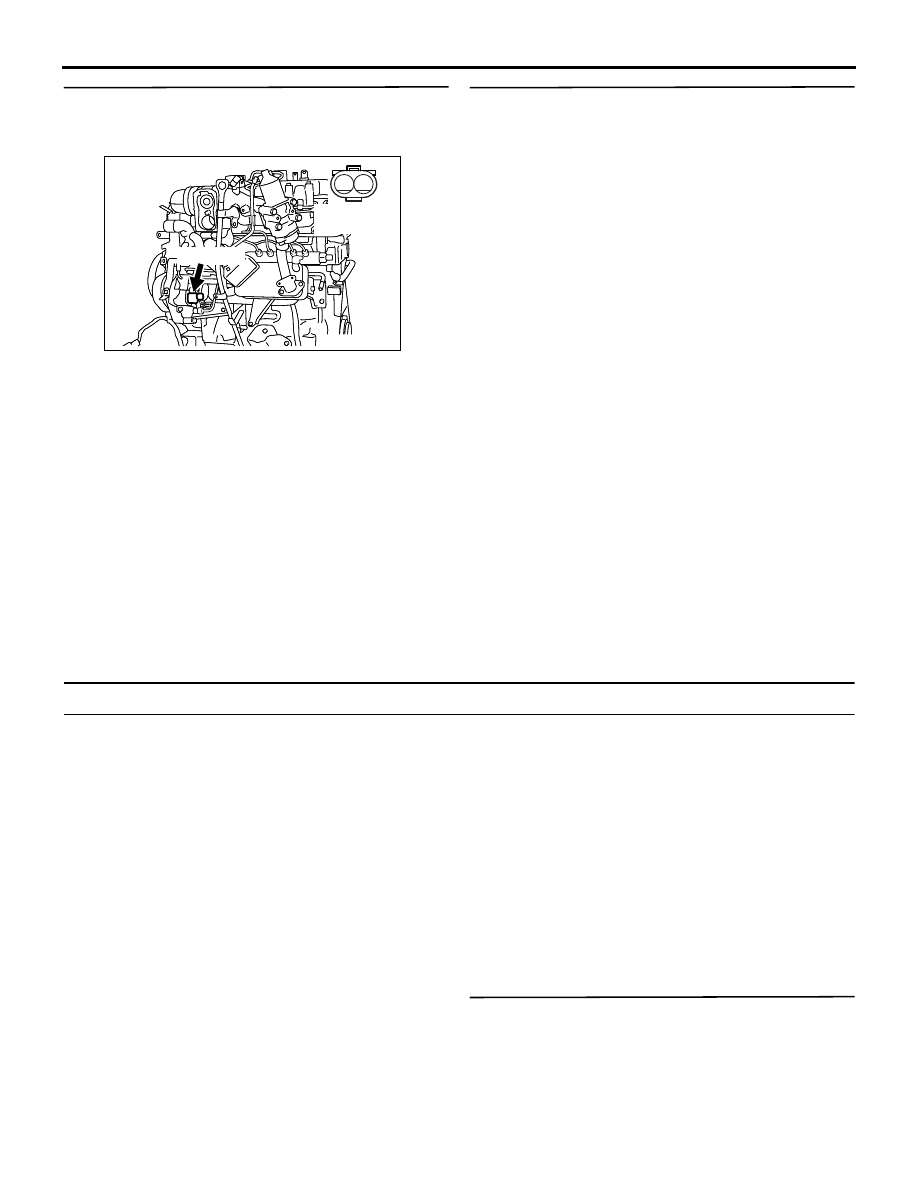

AK503644

2

1

A-47 (GR)

Harness side
connector

AB

Connector: A-47

TROUBLESHOOTING

DIESEL FUEL

13A-61

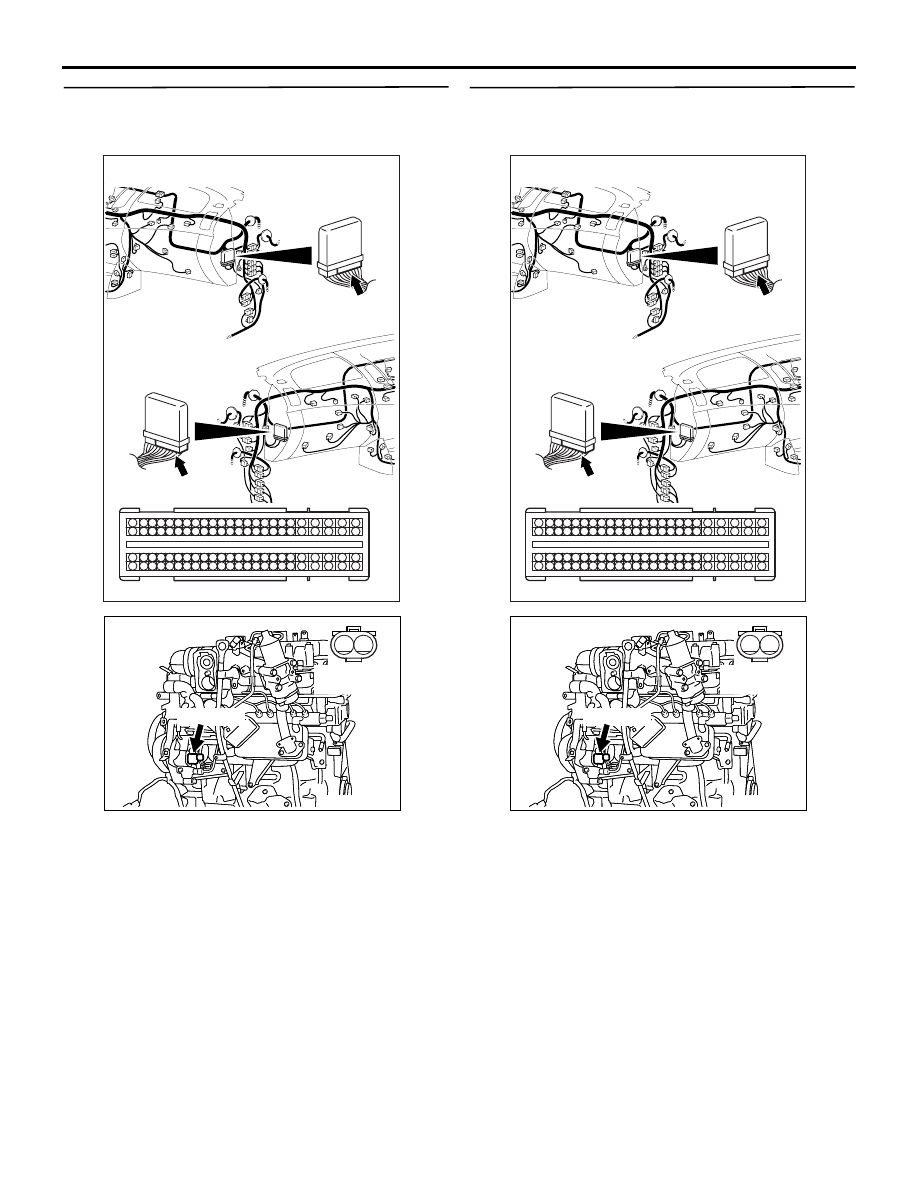

STEP 4. Check harness between C-105 (terminal
No. 131) engine-ECU connector and A-47
(terminal No. 1) suction control valve connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

STEP 5. Check harness between C-105 (terminal
No. 146) engine-ECU connector and A-47
(terminal No. 2) suction control valve connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK503644

2

1

A-47 (GR)

Harness side
connector

AB

Connector: A-47

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK503644

2

1

A-47 (GR)

Harness side
connector

AB

Connector: A-47

TROUBLESHOOTING

DIESEL FUEL

13A-62

STEP 6. Perform output wave pattern
measurement at A-47 suction control valve
(Using an oscilloscope).

• Engine: Idling

• Connect the oscilloscope special patterns pickup

to engine-ECU terminal No. 146 and earth.

OK: The waveform should show a pattern
similar to the illustration of inspection proce-
dure using an oscilloscope (Refer to

P.13A-

586

).

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Replace the suction control valve. After
replacing the suction control valve, learn the
supply pump (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

STEP 7. Replace the common rail assembly and
fuel injection tubes.

• After replacing the common rail assembly and

fuel injection tubes, re-check the trouble symp-
toms

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

NO :

The check is end.

Code No. P0089: Suction Control Valve Stuck

OPERATION

• Battery power is supplied from the engine-ECU

(terminal No. 131) to the suction control valve
(terminal No. 1).

• The engine-ECU (terminal No. 146) turns on the

power transistor to flow current to the suction
control valve (terminal No. 2).

FUNCTION

• The engine-ECU monitors the signals input from

the rail pressure sensor.

• The engine-ECU monitors the difference between

the target fuel pressure and actual fuel pressure
to check whether the suction control valve is
open or fixed.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up

Judgment Criterion

• The actual rail pressure remains higher than the

objective rail pressure by 10 MPa or more for a
certain interval.

PROBABLE CAUSES

• Failed suction control valve

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III actuator test.

• Refer to Actuator Test Table

P.13A-574

.

a. Item 19: Suction control valve

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Go to Step 4 .

AK503644

2

1

A-47 (GR)

Harness side
connector

AB

Connector: A-47

TROUBLESHOOTING

DIESEL FUEL

13A-63

STEP 2. Make a check on the following items.

• Check for foreign matters (water, kerosene, etc.)

in fuel and replace if necessary.

• Check fuel filter itself.

Q: Are the check results normal?

YES :

Go to Step 3 .

NO :

Make a repair or replacement for items
whose checking results are abnormal.

STEP 3. M.U.T.-III diagnosis code.

• Reconfirmation of diagnosis code

Q: Is the diagnosis code set?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

STEP 4. Replace the suction control valve.

• After the suction control valve, learn the supply

pump. (Refer to GROUP 00

− Precautions Before

Service

− What The Common Rail Engine Learns

).

• After learning the supply pump assembly, re-

check the trouble symptoms

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

NO :

The check is end.

Code No. P0093: Fuel Leak Problem

OPERATION

• Refer to Code No. P0192: Rail Pressure Sensor

Circuit Low Input

P.13A-147

.

FUNCTION

• The engine-ECU monitors the signals input from

the rail pressure sensor.

• The engine-ECU controls the suction control

valve so that necessary fuel pressure can be
obtained before fuel injection.

• The engine-ECU compares the fuel pressure

immediately before fuel injection and the fuel
pressure after injection to check whether. The
pressure drop greatly exceeds the expected
range determined based on fuel consumption.
The engine-ECU detects fuel leaks in this way.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up

• The engine speed is 600 r/min or more

• Rail pressure sensor is normal

Judgment Criterion

• The fuel discharge rate of the supply pump con-

tinues to exceed its threshold value against the
fuel injection rate.

PROBABLE CAUSES

• Fuel leakage or fuel line blocked

• Failed injector

• Failed suction control valve
