REAR WASHER NOZZLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

3. Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION .)

4. Press the tabs and remove the rear washer nozzle.

5. Install in the reverse order of removal.

6. Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT.)

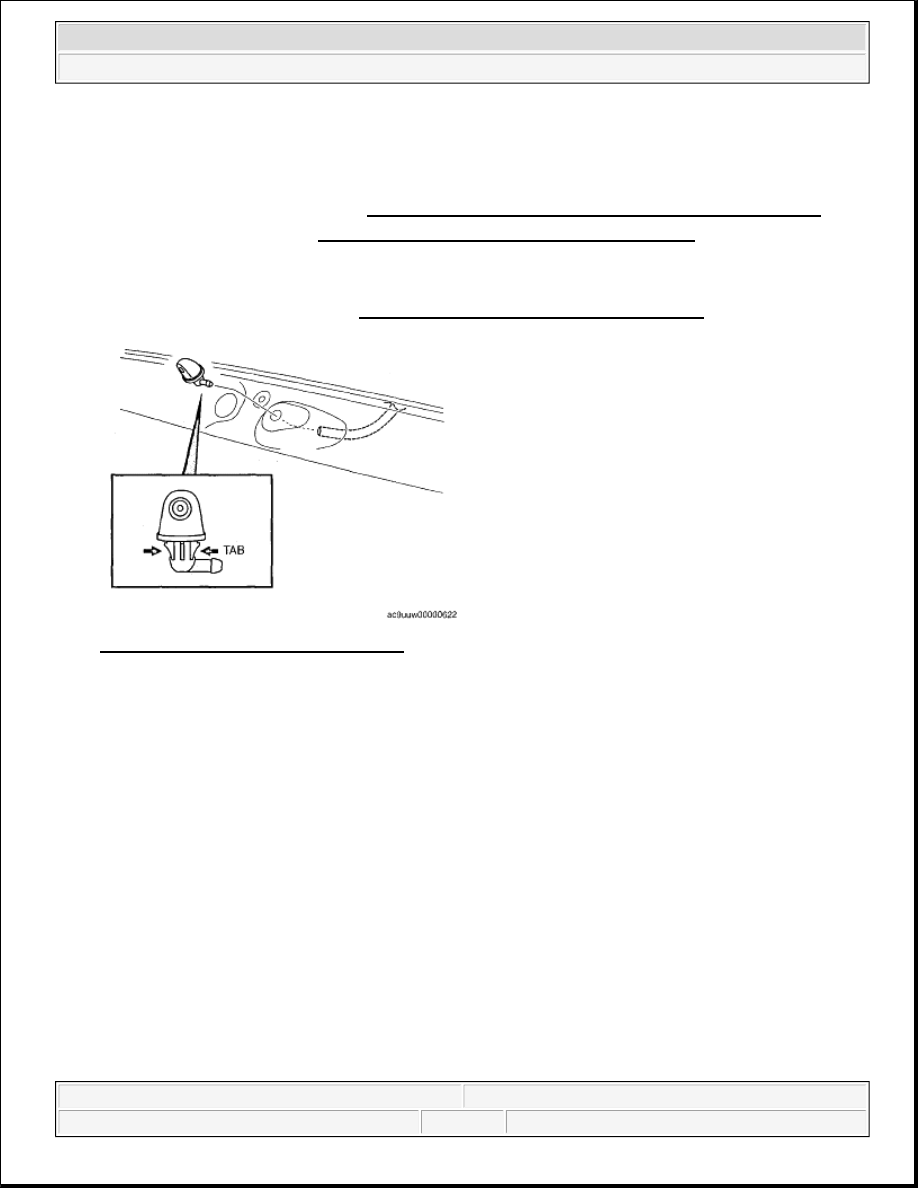

Fig. 34: Removing Rear Washer Nozzle
Courtesy of MAZDA MOTORS CORP.

REAR WASHER NOZZLE ADJUSTMENT

1. Insert a needle or an equivalent tool into the spray hole of the rear washer nozzle and adjust the nozzle

direction as shown.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 22

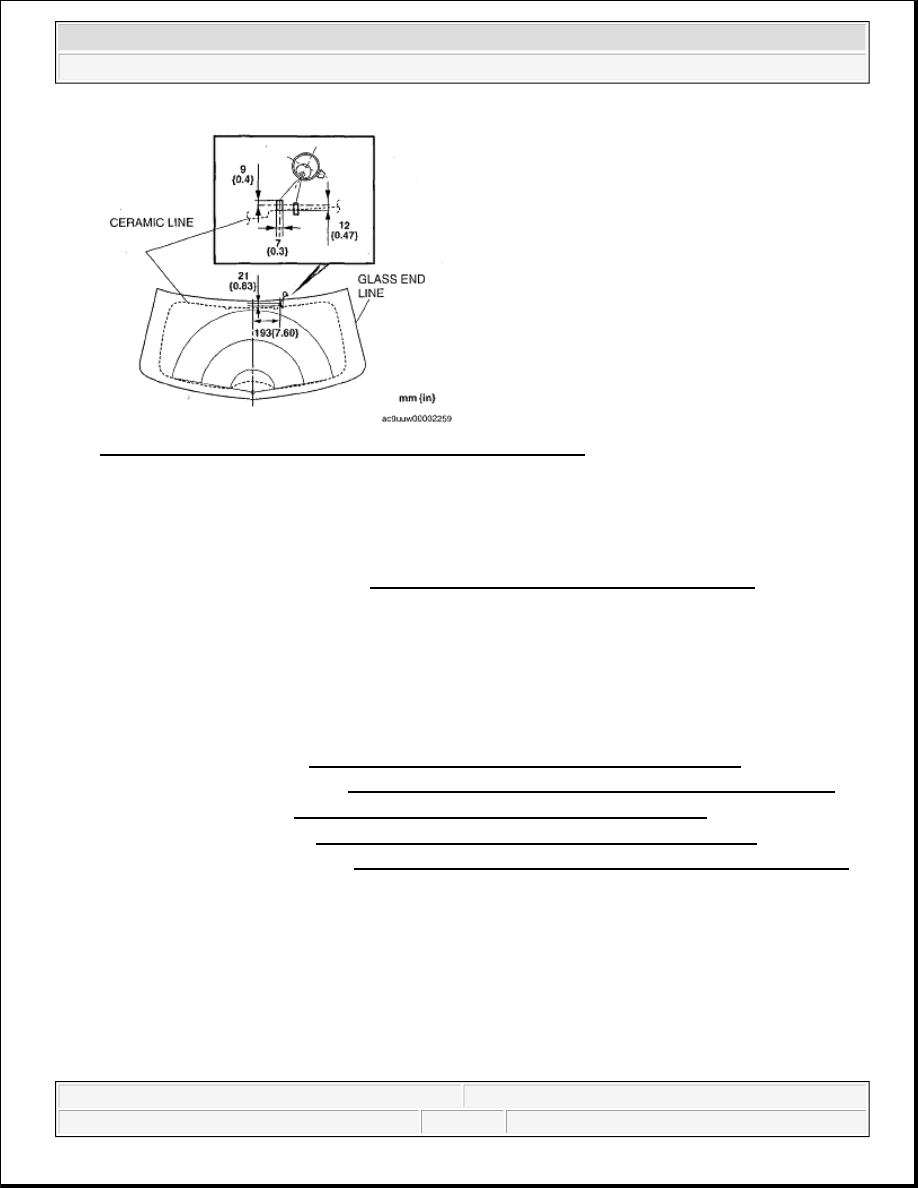

Fig. 35: Identifying Rear Washer Nozzle Adjusting Dimensions
Courtesy of MAZDA MOTORS CORP.

REAR WASHER HOSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

3. Disconnect rear washer hose A from the washer tank.

4. Remove rear washer hose A from clip A, B.

5. Disconnect joint pipe A and remove rear washer hose A.

6. Disconnect joint pipe B and remove rear washer hose B.

7. Remove the grommet.

8. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 23

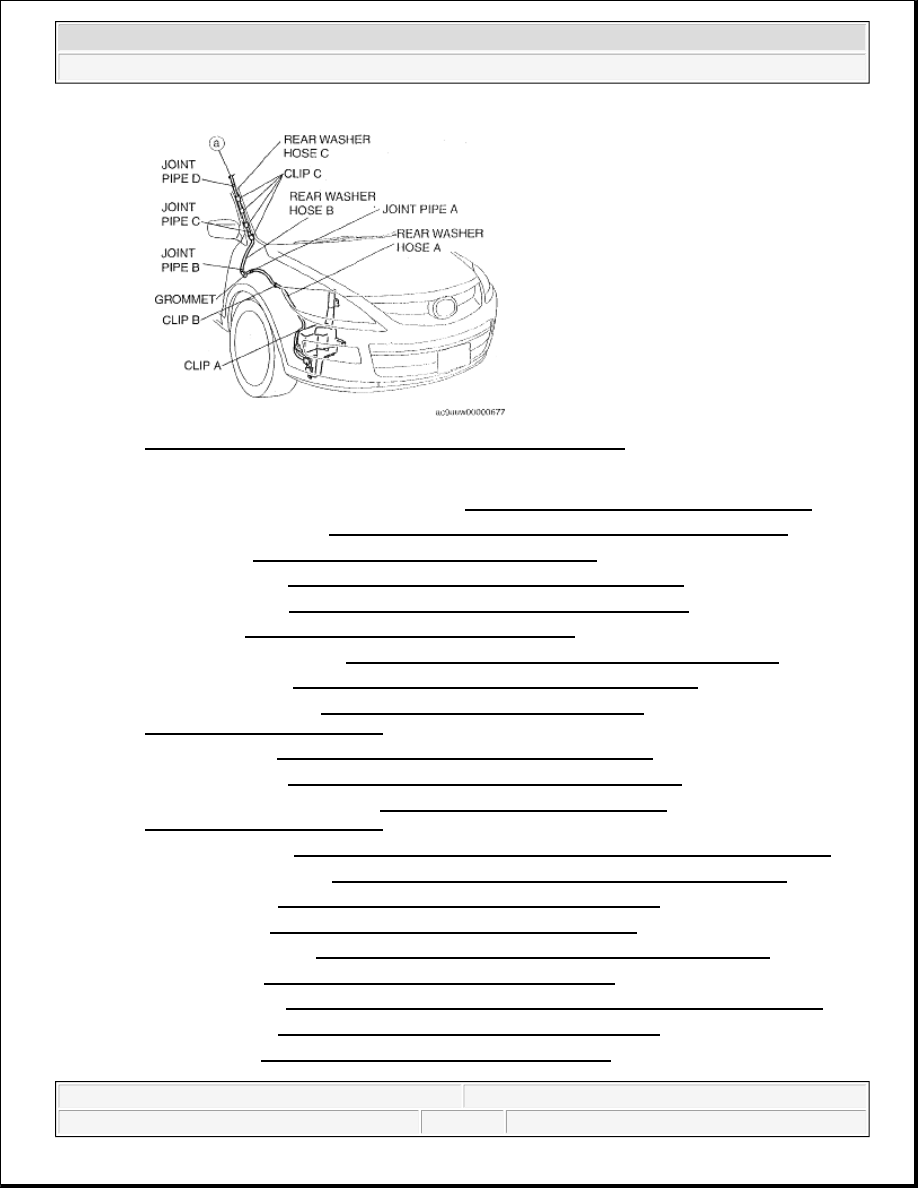

Fig. 36: Identifying Rear Washer Hoses, Joint Pipes And Clips
Courtesy of MAZDA MOTORS CORP.

6. Glove compartment service hole cover (See AIR FILTER REMOVAL/INSTALLATION .)

7. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

9. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)

10. Console cover (See CONSOLE COVER REMOVAL/INSTALLATION .)

11. Console (See CONSOLE REMOVAL/INSTALLATION .)

12. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

13. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

14. Hood release lever (See HOOD LATCH AND RELEASE LEVER

REMOVAL/INSTALLATION .)

15. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

16. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

17. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

18. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

19. Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION .)

20. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)

21. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)

22. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

23. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)

24. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

25. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

26. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 24

9. Disconnect joint pipe C and remove rear washer hose B.

10. Remove rear washer hose C from clips C.

11. Disconnect joint pipe D and remove rear washer hose C.

12. Remove the following parts:

1. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

2. Front seat belt lower anchor installation bolt (Driver side) (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

4. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)

6. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

7. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

8. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

9. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

10. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

11. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

12. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

13. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT

REMOVAL/INSTALLATION .)

14. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

15. Third-row seat belt upper anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

16. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

17. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

18. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)

19. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)

13. Disconnect joint pipe E and remove rear washer hose D.

14. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)

NOTE:



Rear washer hose C is integrated with the headliner. If rear washer
hose C is to be replaced, replace it with the headliner as a single unit.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM
