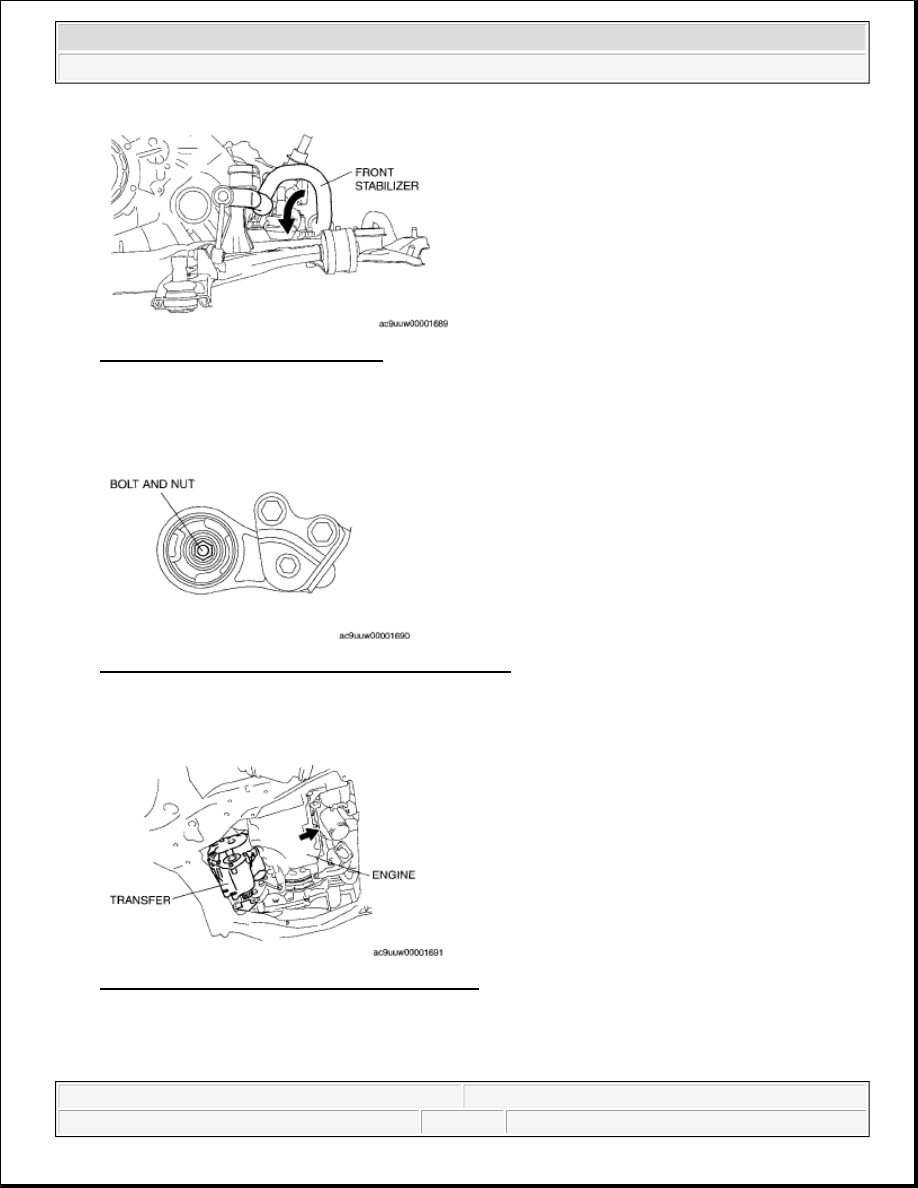

Fig. 10: Rotating Stabilizer To Front
Courtesy of MAZDA MOTORS CORP.

2. Remove the No.1 engine mount bolt and nut.

3. Remove the transfer installation bolts.

Fig. 11: Identifying No.1 Engine Mount Bolt And Nut
Courtesy of MAZDA MOTORS CORP.

4. Push the engine forward so that the front side of the transfer faces downward, then remove the transfer.

Fig. 12: Identifying Front Side Of Transfer Faces
Courtesy of MAZDA MOTORS CORP.

TRANSFER INSTALLATION NOTE



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Transfer - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:32:26 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

1. Push the engine forward so that the front side of the transfer faces downward, then install the transfer.

2. Install the transfer installation bolts.

Tightening torque

90-100 N.m {9.2-10.1 kgf.m, 66.4-73.7 ft.lbf}

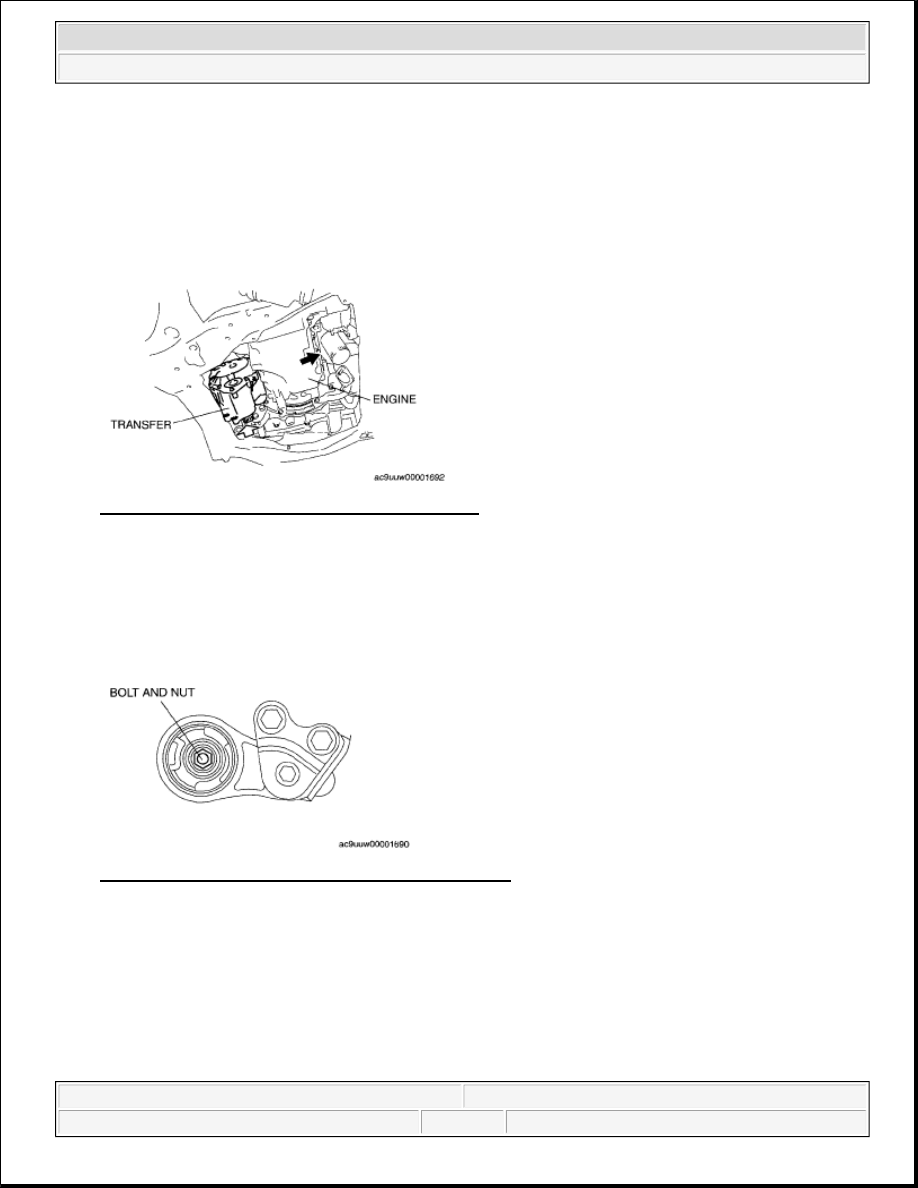

Fig. 13: Identifying Front Side Of Transfer Faces
Courtesy of MAZDA MOTORS CORP.

3. Install the No.1 engine mount bolt and nut.

Tightening torque

85.3-116.6 N.m {8.70-11.88 kgf.m, 63.0-85.9 ft.lbf}

Fig. 14: Identifying No.1 Engine Mount Bolt And Nut
Courtesy of MAZDA MOTORS CORP.

4. Rotate the front stabilizer to the rear to set it in its original position.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Transfer - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:32:26 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

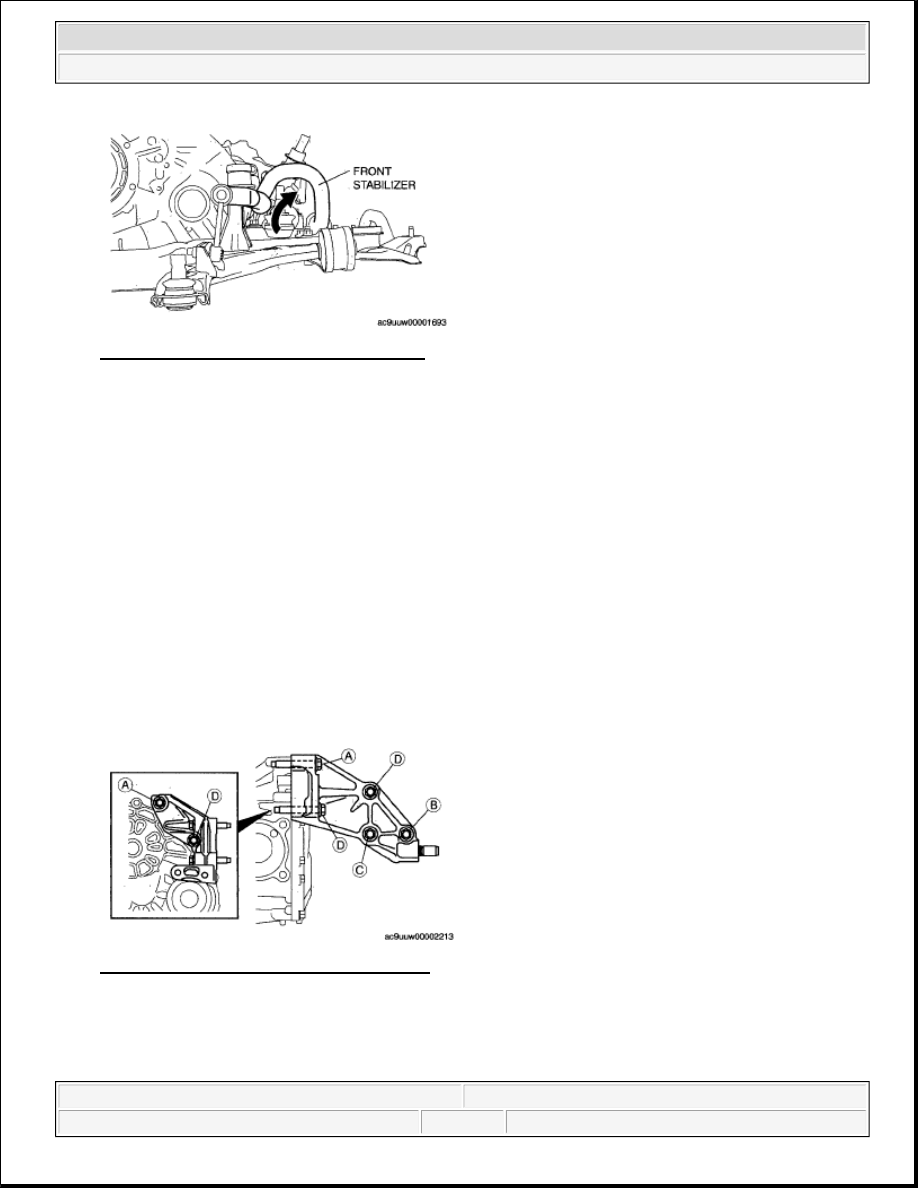

Fig. 15: Rotating Front Stabilizer To Rear
Courtesy of MAZDA MOTORS CORP.

TRANSFER BRACKET INSTALLATION NOTE

1. Install the transfer bracket to the transfer, then temporarily tighten bolt C.

2. Temporarily tighten bolt A and B.

3. Tighten bolt A, B and G in the order of C-->A-->B.

Tightening torque

Bolt A, B, C: 42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}

4. Tighten bolt D.

Tightening torque

Bolt D: 42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}

Fig. 16: Identifying Transfer Bracket Bolts
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Transfer - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:32:26 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

2008 SUSPENSION

Wheels and Tires - Mazda CX-9

WHEEL AND TIRE SPECIFICATION

WHEEL AND TIRE SPECIFICATION

Temporary spare tire

WHEEL AND TIRE SPECIFICATION

Item

Specification

Standard
tire

Tire

Size

P245/60R18 104H

P245/50R20 102V

Air pressure

Front

250 {36}

230 {34}

(kPa {psi}) Rear

Remaining
treed

(mm {in})

1.6 {0.07}

Wheel

Size

18x7 1/2J

20x7 1/2J

Material

Aluminum alloy

Wheel offset

(mm {in})

45 {1.8}

Wheel pitch
circle
diameter

(mm {in})

114.3 {4.5}

Wheel and tire
runout

Lateral
direction

2.0 {0.08}

(mm {in})

Radial
direction

1.5 {0.06}

Wheel and tire
imbalance

(g {oz})

Adhesive-type

*1

 : 10 {0.35}

max.

Knock-type

*2

 : 6 {0.21} max.

Adhesive-type

*1

 : 6 {0.21}

max.

Knock-type

*2

 : 4 {0.14} max.

*1

 : Total weight exceeds 160 g {5.65 oz} .

*2

 : One balance weight: 60 g {2.12 oz} max . If the total

weight exceeds 100 g {3.53 oz} on one side, rebalance after
moving the tire around on the rim. Do not use three or more
balance weights.

Wheel nut tightening
torque

(N.m

{kgf.m,

ft.bf})

107.8-147.0 {11.0-14.9, 79.6-108.4}

Item

Specification

Tire

Size

T155/90D 18

195/80R17 99M

Air pressure (kPa {psi})

420 {60}

250 {36}

Remaining treed

(mm {in})

1.6 {0.07}

Size

18x4T

17x5 1/2J
