Mazda CX-9 Grand Touring. Manual - part 576

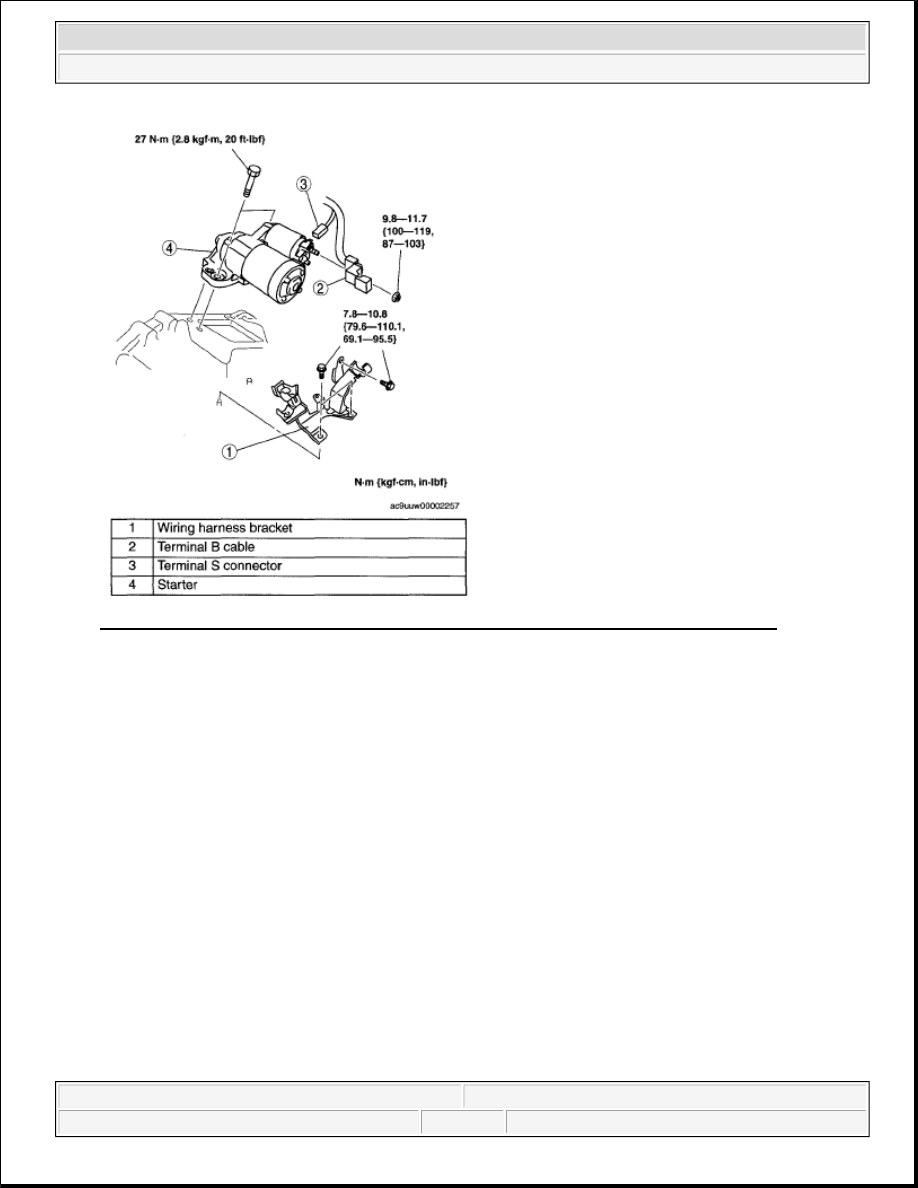

Fig. 2: Identifying Wiring Harness Bracket, Starter, Connector & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

STARTER INSPECTION [MZI-3.7]

ON-VEHICLE INSPECTION

1. Verify that the battery is fully charged.

2. The starter is normal if it rotates smoothly and without any noise when the engine is cranked.



If the starter does not operate, inspect the following:



Remove the starter, and inspect the starter unit.



Inspect the related wiring harnesses, the ignition switch, and the transaxle range switch.

NO-LOAD TEST

1. Verify that the battery is fully charged.

2. Connect the starter, battery, and a tester as shown in the figure.

3. Operate the starter and verify that it rotates smoothly.



If the starter does not rotate smoothly, inspect the starter unit.

4. Measure the voltage and current while the starter is operating.

2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 9:56:47 AM

Page 2



If not within the specification, replace the starter.

Starter no-load test voltage 11 V

Starter no-load test current 90 A or less

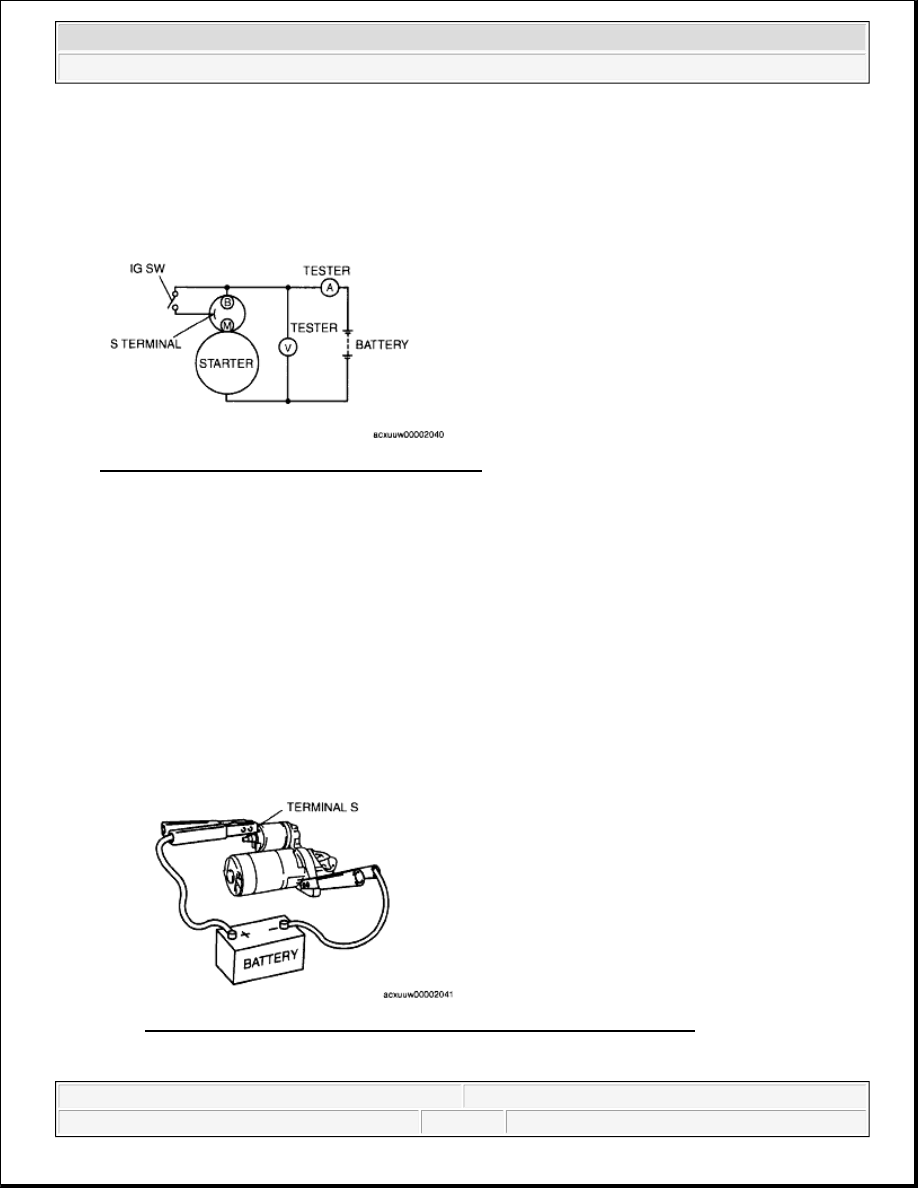

Fig. 3: Connecting Starter, Battery, And A Tester
Courtesy of MAZDA MOTORS CORP.

MAGNETIC SWITCH OPERATION INSPECTION

Pull-out test

1. Verify that the starter motor pinion is extended while battery positive voltage is connected to terminal S

and the starter body is grounded.



If the starter motor pinion is not extended, repair or replace the starter.

Fig. 4: Checking Battery Positive Voltage Terminal S And Starter Body
Courtesy of MAZDA MOTORS CORP.

NOTE:



Depending on the battery charge condition, the starter motor pinion may
rotate while in an extended state. This is due to current flowing to the
starter motor through the pull-in coil to turn the starter motor, and does
not indicate an abnormality.

2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 9:56:47 AM

Page 3

Return test

1. Disconnect the motor wire from terminal M.

2. Connect battery positive voltage to terminal M and ground the starter body.

3. Pull out the drive pinion with a screwdriver. Verify that it returns to its original position when released.



If it does not return, repair or replace the starter.

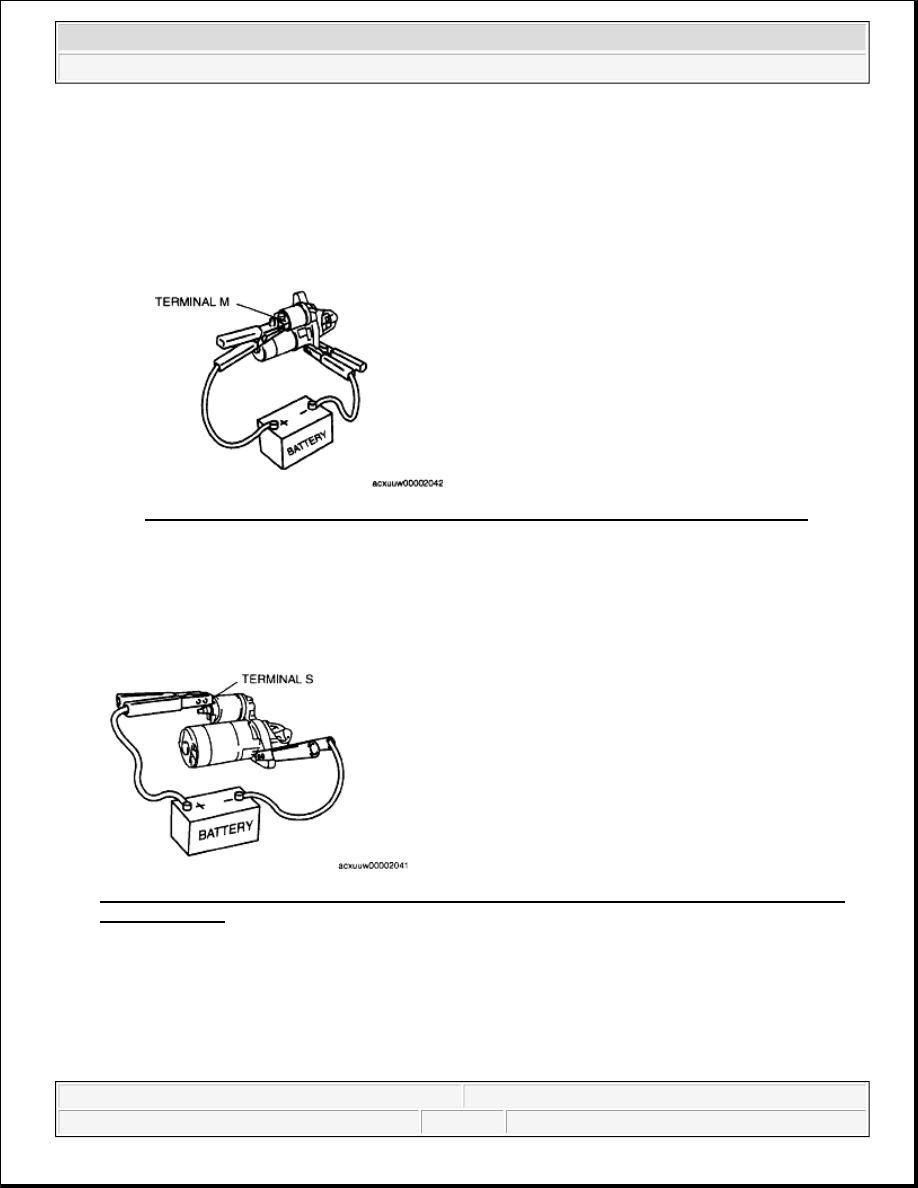

Fig. 5: Connecting Battery Positive Voltage To Terminal M And Ground Starter Body
Courtesy of MAZDA MOTORS CORP.

PINION GAP INSPECTION

1. Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body

grounded.

Fig. 6: Pulling Drive Pinion With Battery Positive Voltage Connected To Terminal S And Starter
Body Grounded
Courtesy of MAZDA MOTORS CORP.

2. Measure the pinion gap while the drive pinion is extended.



If not as specified, adjust with an adjustment washer (between drive housing front cover and

CAUTION:



Applying power for more than 10 s can damage the starter. Do
not apply power for more than 10 s.

2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 9:56:47 AM

Page 4

magnetic switch).

Starter pinion gap 0 mm {0 in}

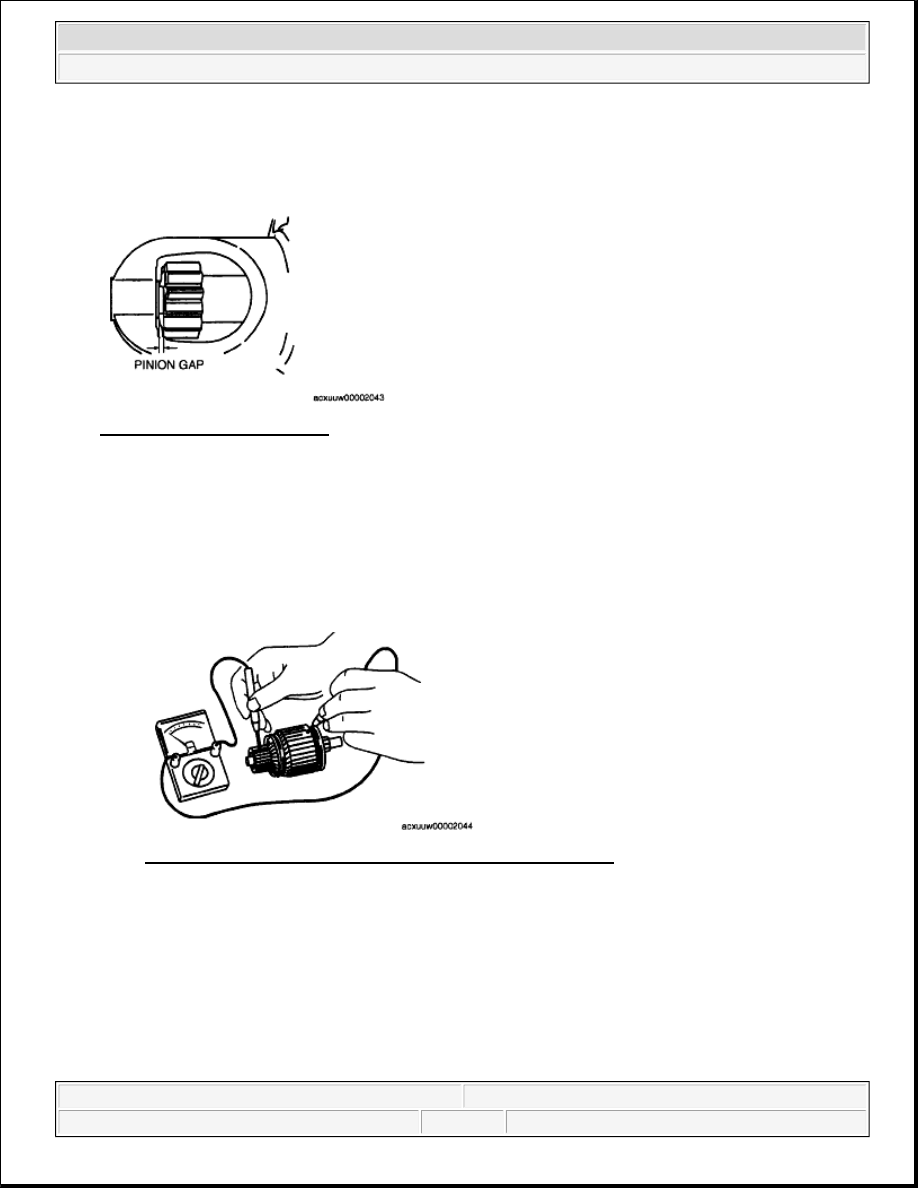

Fig. 7: Measuring Pinion Gap
Courtesy of MAZDA MOTORS CORP.

STARTER INNER PARTS INSPECTION

Armature

1. Verify that there is no continuity between the commutator and the core at each segment using a tester.



If there is continuity, replace the armature.

Fig. 8: Checking Continuity Between Commutator And Core
Courtesy of MAZDA MOTORS CORP.

2. Verify that there is no continuity between the commutator and the shaft using a tester.



If there is continuity, replace the armature.
