DTC B267B [POWER LIFTGATE (PLG) SYSTEM]

DTC B267B - DETECTION CONDITION POSSIBLE CAUSE CHART



Is the wiring harness normal?

2

INSPECT WIRING HARNESS BETWEEN
LIFTGATE LATCH AND LOCK
ACTUATOR AND BODY GROUND



Inspect the wiring harness between
liftgate latch and lock actuator terminal C
and body ground for an open circuit.



Is the wiring harness normal?

Yes

Replace the liftgate latch and lock actuator.
(See LIFTGATE LATCH AND LOCK
ACTUATOR
REMOVAL/INSTALLATION .)

No

Repair or replace the wiring harness.

Go to the next step.

3

VERIFY CORRECTION COMPLETED



Reconnect the disconnected connector.



Clear the DTC.



Operate the PLG system. (Open
operation)



Is DTC B267A stored?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION .)

No

DTC troubleshooting completed.

DTC B267B

Full latch switch circuit malfunction

DETECTION

CONDITION

A short circuit to the ground system in the wiring harness between the liftgate latch
and lock actuator and PLG control module.

POSSIBLE CAUSE



Short to GND in wiring harness between PLG control module terminal 3G and
liftgate latch and lock actuator terminal D



Full latch switch malfunction



PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

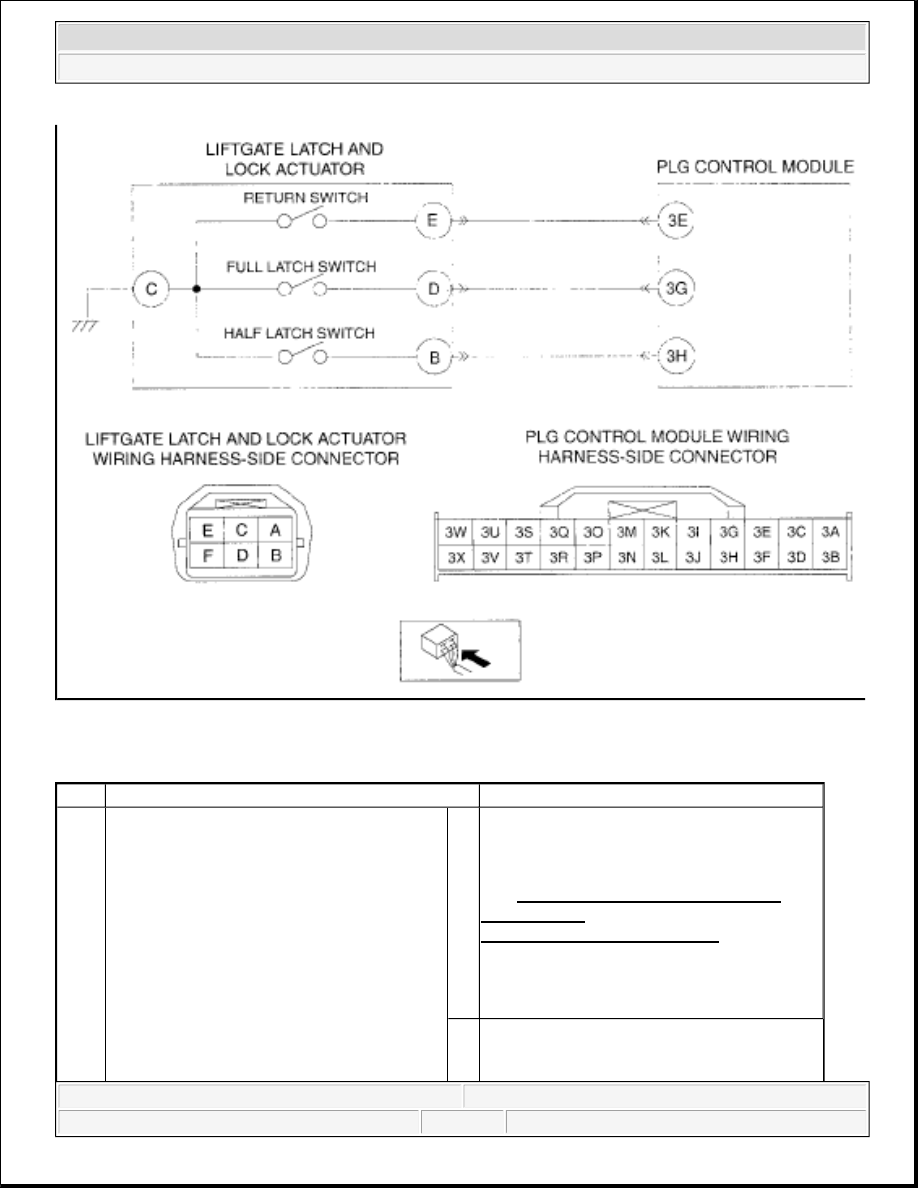

DIAGNOSTIC PROCEDURE

DTC B267B - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL UNIT AND
LIFTGATE LATCH AND LOCK
ACTUATOR



Disconnect the PLG control module
connector.



Disconnect the liftgate latch and lock
actuator connector.



Inspect the wiring harness between PLG
control module terminal 3G and liftgate
latch and lock actuator terminal D for a
short circuit to ground system.

Yes

Replace the liftgate latch and lock actuator.
(See LIFTGATE LATCH AND LOCK
ACTUATOR
REMOVAL/INSTALLATION .)
Go to the next step.

No

Repair or replace the wiring harness.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

DTC B267C [POWER LIFTGATE (PLG) SYSTEM]

DTC B267C - DETECTION CONDITION POSSIBLE CAUSE CHART



Is the wiring harness normal?

Go to the next step.

2

VERIFY CORRECTION COMPLETED



Reconnect the disconnected connector.



Clear the DTC.



Operate the PLG system. (Close
operation)



Is DTC B267B stored?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION .)

No

DTC troubleshooting completed.

DTC B267C

Return switch circuit malfunction

DETECTION

CONDITION

The voltage input to the return switch does not change while the PLG system is
operating.

POSSIBLE CAUSE



Open circuit in wiring harness between PLG control module terminal 3E and
liftgate latch and lock actuator terminal E



Short to power supply in wiring harness between PLG control module terminal
3E and liftgate latch and lock actuator terminal E



Short to GND in wiring harness between PLG control module terminal 3E and
liftgate latch and lock actuator terminal E



Open circuit in wiring harness between liftgate latch and lock actuator terminal C
and body GND



Return switch malfunction



PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

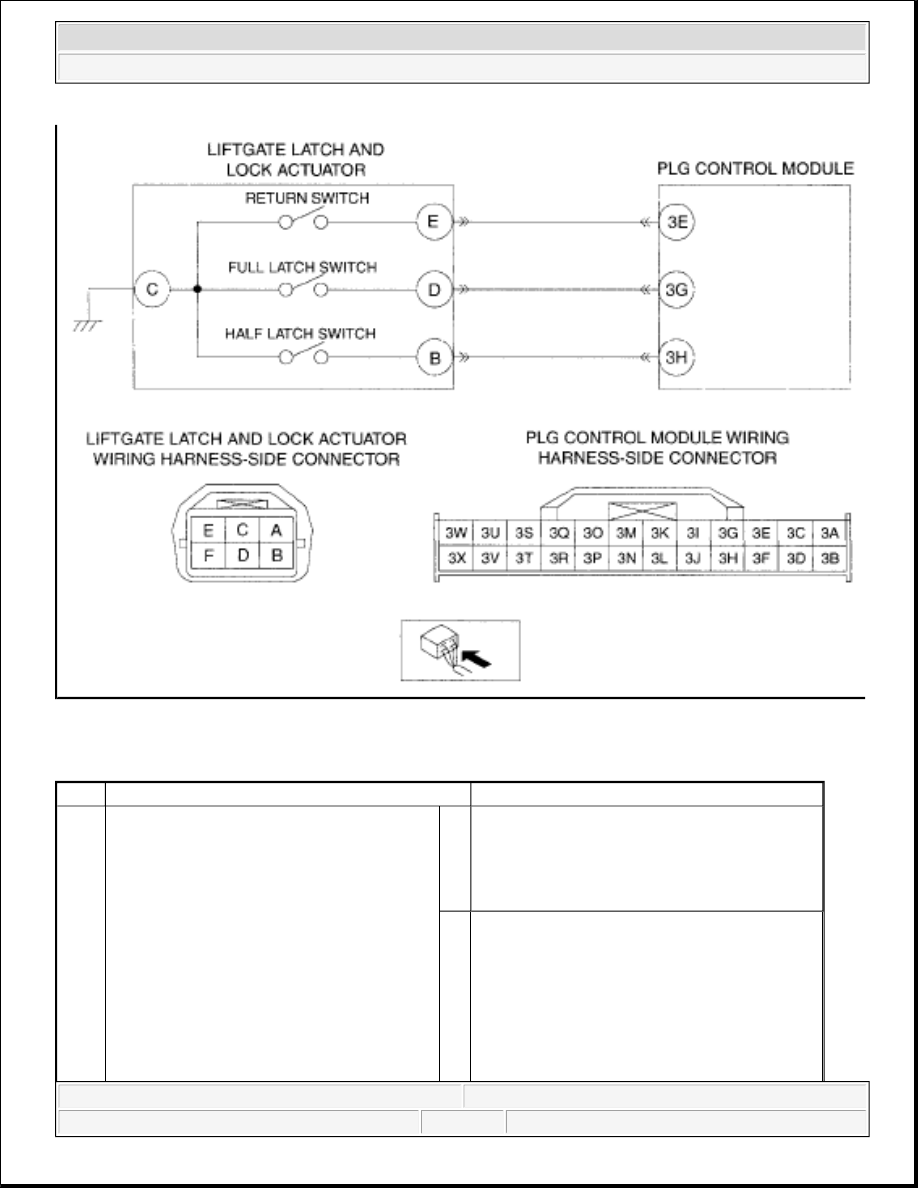

DIAGNOSTIC PROCEDURE

DTC B267C - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL UNIT AND
LIFTGATE LATCH AND LOCK
ACTUATOR



Disconnect the PLG control module
connector.



Disconnect the liftgate latch and lock
actuator connector.



Inspect the wiring harness between
PLG control module terminal 3E and
liftgate latch and lock actuator terminal
E for an open circuit.

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 3.
