DTC P0119 [MZI-3.7]

DTC P0119 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

DIAGNOSTIC PROCEDURE

DTC P0119 (MZI-3.7) DIAGNOSTIC PROCEDURE



Is same DTC present?

6

VERIFY AFTER REPAIR PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER REPAIR
PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See
DTC TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P0119

CHT sensor circuit intermittent/erratic

DETECTION

CONDITION



Indicates the ECT circuit became intermittently open or shorted while
the engine was running.

POSSIBLE CAUSE



Harness malfunction



Connector or terminal malfunction



Low engine coolant



CHT sensor malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins
availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to
available Service Bulletins.



If vehicle is not repaired, go to the next
step.

No

Go to the next step.

3

INSPECT CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect PCM connector and CHT
sensor connectors.



Inspect for poor connection (such as

Yes

Repair or replace suspected part, then go to Step
7.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:35 AM

Page 73

© 2005 Mitchell Repair Information Company, LLC.

damaged, pulled-out pins, and
corrosion).



Is there any malfunction?

No

Go to the next step.

4

INTERMITTENT INSPECTION



Turn the ignition switch to the ON
position (Engine off).



Access the PCM and monitor the CHT
PID.



While observing the PID, perform the
following:



Tap on the sensor to simulate
road shock



Wiggle the sensor connector



Is there a large change in the voltage
reading?

Yes

Inspect the CHT sensor. (See CYLINDER
HEAD TEMPERATURE (CHT) SENSOR
INSPECTION [MZI-3.7] .)
Replace if necessary, then go to Step 7.

No

Go to the next step.

5

INSPECT ELECTRONIC ENGINE
CONTROL (EEC) WIRING HARNESS



Access the PCM and monitor the CHT
PID.



While observing the PID, wiggle,
shake, and bend small sections of the
wiring harness while working from the
sensor to the PCM.



Is there a large change in the voltage
reading?

Yes Repair if necessary, then go to Step 7.

No

Go to the next step.

6

INSPECT FOR CORRECT PCM
OPERATION



Disconnect the PCM connector.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors and
verify that they seat correctly.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

Yes Go to the next step.

No

The system is correctly. Go to the next step.

VERIFY TROUBLESHOOTING OF
DTC P0119 HAS BEEN COMPLETED



Make sure to reconnect all



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:35 AM

Page 74

© 2005 Mitchell Repair Information Company, LLC.

DTC P0122 [MZI-3.7]

DTC P0122 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

7

disconnected connectors.



Clear the DTC from memory using M-
MDS.



Start the engine.



Perform the "KOEO/KOER self-
test" (See KOEO/KOER SELF TEST
[MZI-3.7].)



Is same DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

8

VERIFY AFTER REPAIR PROCEDURE




Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

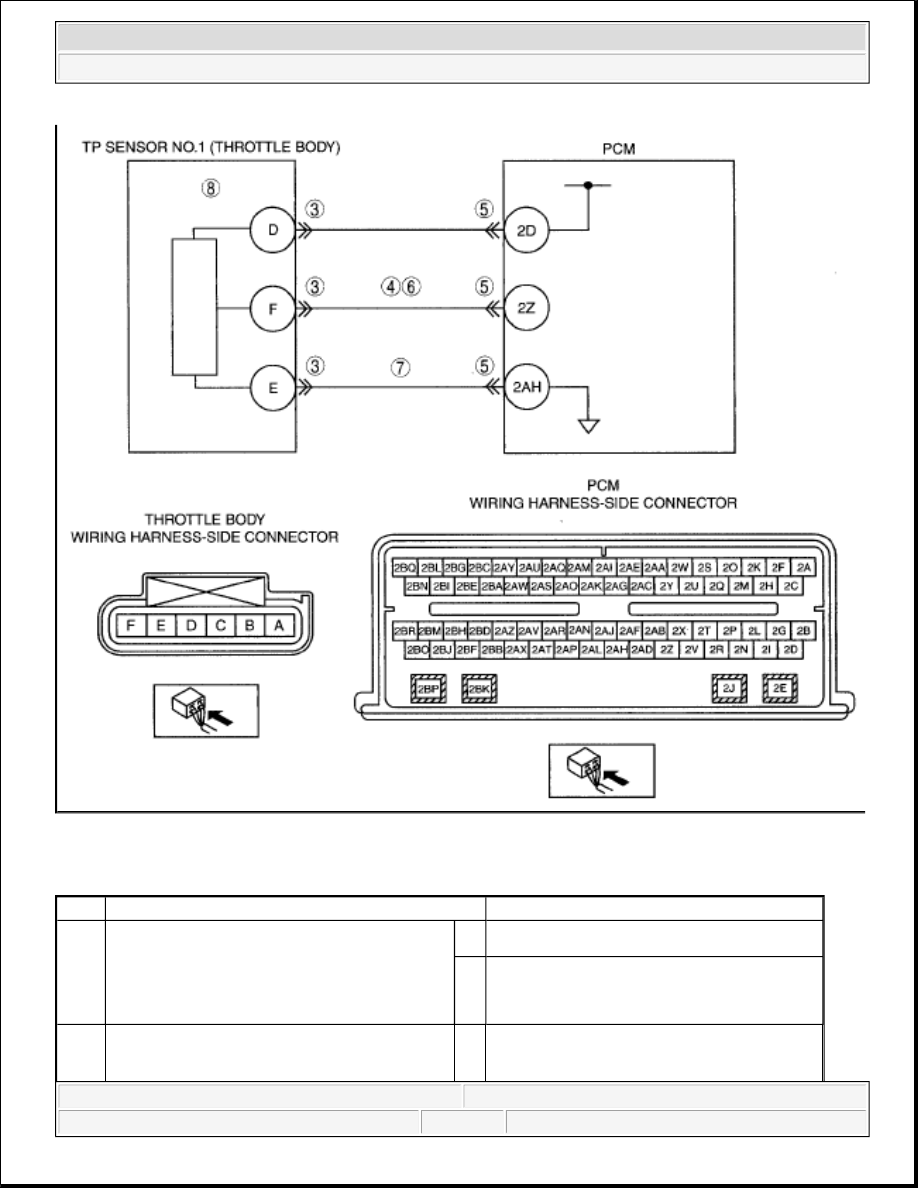

DTC P0122

TP sensor No.1 circuit low input

DETECTION

CONDITION



The TP sensor No.1 circuit was flagged as a concern by the PCM indicating a
low voltage or open circuit.

POSSIBLE CAUSE



TP sensor No.1 malfunction



Connector or terminal malfunction



Open circuit between throttle body terminal F and PCM terminal 2Z



Short to ground circuit between throttle body terminal F and PCM terminal 2Z



Open circuit between throttle body terminal E and PCM terminal 2AH



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:35 AM

Page 75

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0122 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY

Perform repair or diagnosis according to the
available Service Bulletins.
