DTC B1231

DTC B1231 DETECTION CONDITION AND POSSIBLE CAUSE

DIAGNOSTIC PROCEDURE

DTC B1231 DIAGNOSTIC PROCEDURE

DTC B1317, B1318

DTC B1317, B1318 DETECTION CONDITION AND POSSIBLE CAUSE

DTC B1231

SAS control module activation (deployment) control freeze

DETECTION

CONDITION



SAS control module determined collision

WARNING:



Detection conditions are for understanding the DTC outline before
performing an inspection. Performing an inspection with only detection
conditions may cause injury due to an operating error, or damage the
system. When performing an inspection, always follow the inspection
procedure.

ACTION

Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION .)

DTC

B1317 SAS control module power supply voltage increases (18.1 V or more)
B1318 SAS control module power supply voltage decreases (less than 8 V)

DETECTION

CONDITION



When the SAS control module power supply voltage is not within 8-18 V.

WARNING:



Detection conditions are for understanding the DTC outline before performing an
inspection. Performing an inspection with only detection conditions may cause
injury due to an operating error, or damage the system. When performing an
inspection, always follow the inspection procedure.

POSSIBLE

CAUSE



Open or short circuit in wiring harness between battery and SAS control module



SAS 7.5 A fuse malfunction



Battery malfunction



SAS control module malfunction



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 69

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B1317, B1318 DIAGNOSTIC PROCEDURE

Step

Inspection

Action

1

INSPECT FUSE



Remove the SAS 7.5 A fuse.



Is the fuse normal?

Yes Go to the next step.

No

Replace the fuse.

2

INSPECT BATTERY



Measure the battery positive voltage.



Is the voltage 8 V-18 V?

Yes Go to the next step.

No

The battery has a malfunction.

Inspect the charge/discharge system.

3

INSPECT WIRING HARNESS BETWEEN
BATTERY AND FUSE BLOCK

Yes

Install the fuse, then go to the next
step.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 70

© 2005 Mitchell Repair Information Company, LLC.



Turn the ignition switch to the ON position.



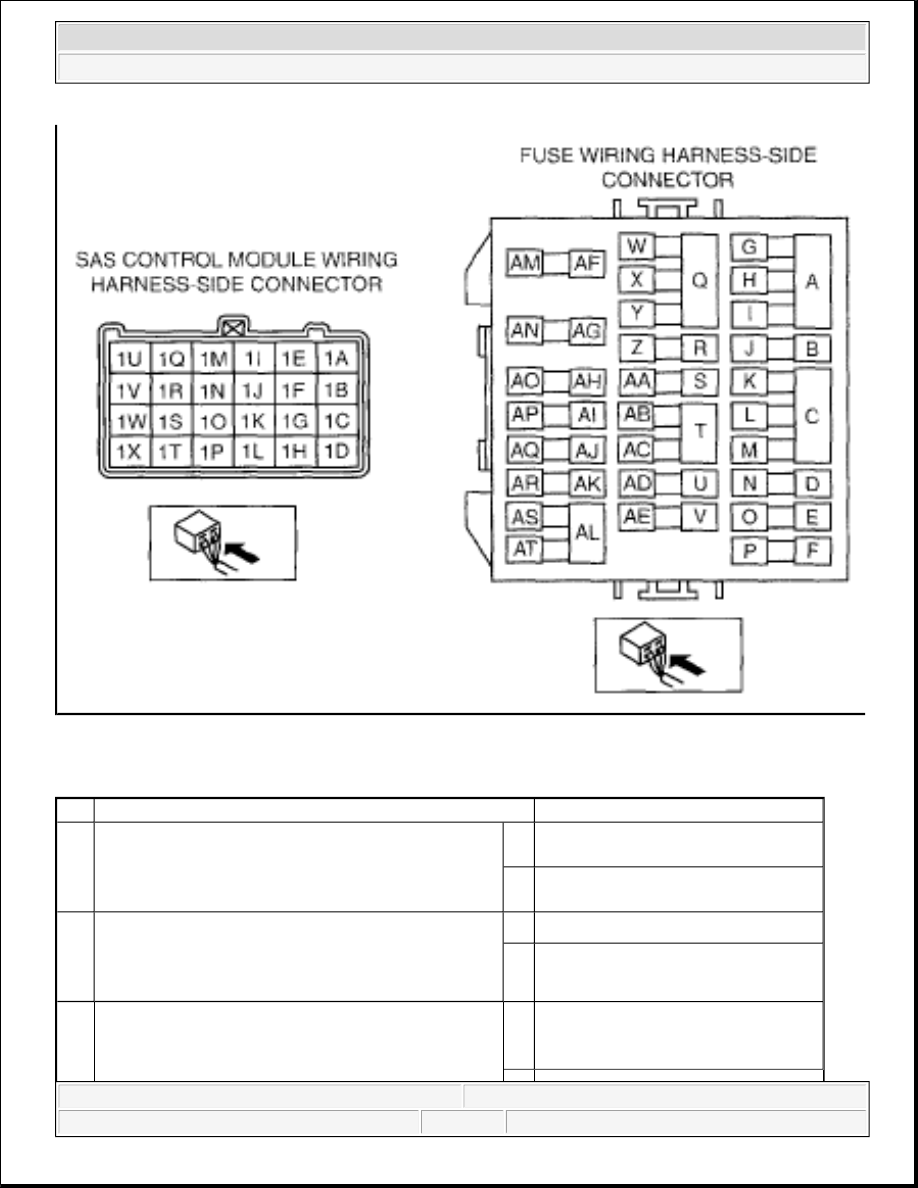

Measure the fuse block terminal H voltage.



Is the voltage 8 V-18 V?

No

Repair the wiring harness between the

battery and fuse block.

4

INSPECT SAS CONTROL MODULE





Turn the ignition switch to the LOCK position.



Disconnect the negative battery cable and wait
for 1 min or more.



Remove the column cover. (See COLUMN
COVER REMOVAL/INSTALLATION .)



Disconnect the clock spring connector. (See
COMBINATION SWITCH
REMOVAL/INSTALLATION .)



Remove the glove compartment. (See GLOVE
COMPARTMENT
REMOVAL/INSTALLATION .)



Disconnect the passenger-side air bag module
connector. (See PASSENGER-SIDE AIR BAG
MODULE REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side front
seat connectors. (See FRONT SEAT
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side curtain
air bag module connectors. (See CURTAIN AIR
BAG MODULE
REMOVAL/INSTALLATION .)



Remove the B-pillar lower trim. (See B-PILLAR
LOWER TRIM
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side pre-
tensioner seat belt connectors. (See FRONT

WARNING:



Handling the air bag system components
improperly can control module. accidentally
deploy the air bag modules and pre-tensioner
seat belts, which may seriously injure you.
Read the service warnings before handling the
air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS .)

(See AIR BAG SYSTEM SERVICE CAUTIONS .)

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)

No

Repair the wiring harness between the



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 71

© 2005 Mitchell Repair Information Company, LLC.

DTC B1342, B1921

DTC B1342, B1921 DETECTION CONDITION AND POSSIBLE CAUSE

DIAGNOSTIC PROCEDURE

DTC B1342, B1921 DIAGNOSTIC PROCEDURE

DTC B1868

DTC B1868 DETECTION CONDITION AND POSSIBLE CAUSE

SEAT BELT REMOVAL/INSTALLATION .)



Disconnect the SAS control module connectors.
(See SAS CONTROL MODULE
REMOVAL/INSTALLATION .)



Connect the negative battery cable.



Turn the ignition switch to the ON position.



Measure the voltage at the SAS control module
terminal 1D.



Is the voltage 8 V-18 V?

fuse block and SAS

DTC

B1342 SAS control module (internal circuit abnormal)
B1921 Air bag diagnostic ground circuit open

DETECTION

CONDITION



Malfunction in the SAS control module internal circuit

WARNING:



Detection conditions are for understanding the DTC outline before
performing an inspection. Performing an inspection with only detection
conditions may cause injury due to an operating error, or damage the
system. When performing an inspection, always follow the inspection
procedure.

POSSIBLE

CAUSE



SAS control module malfunction

ACTION

Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION .)

DTC B1868

Air bag warning system light malfunction

DETECTION

CONDITION

WARNING:



Detection conditions are for understanding the DTC outline before
performing an inspection. Performing an inspection with only detection
conditions may cause injury due to an operating error, or damage the
system. When performing an inspection, always follow the inspection
procedure.
