WIRING DIAGRAM SYMBOLS

Article Text (p. 4)

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 10:05AM

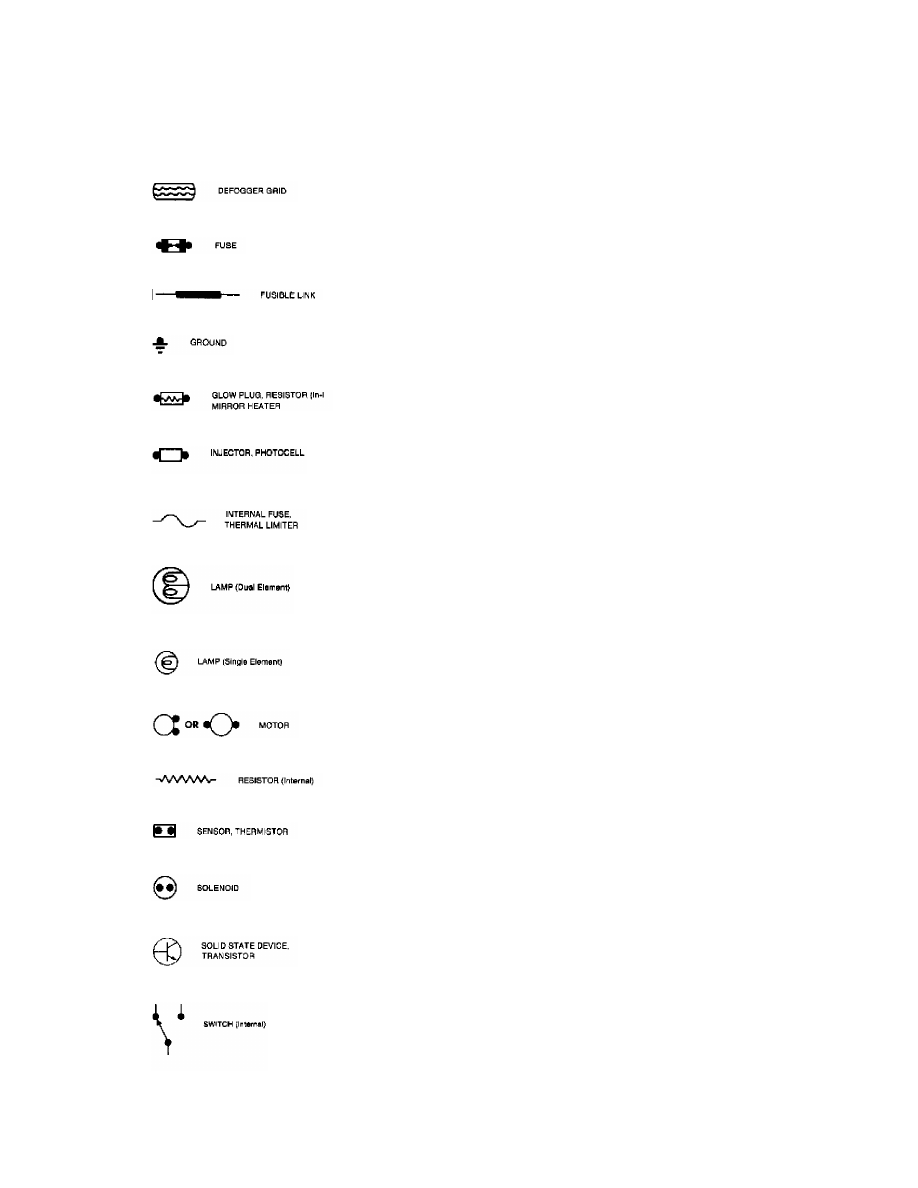

Fig. 9: Defogger Grid

Fig. 10: Fuse

Fig. 11: Fusible Link

Fig. 12: Ground

Fig. 13: Glow Plug Resistor (In-Line) or Mirror Heater

Fig. 14: Injector (Diesel) or Photocell (Gasoline)

Fig. 15: Internal Fuse, Thermal Limiter

Fig. 16: Lamp (Dual Element)

Fig. 17: Lamp (Single Element)

Fig. 18: Motor

Fig. 19: Resistor (Internal)

Fig. 20: Sensor, Thermistor

Fig. 21: Solenoid

Fig. 22: Solid State Device, Transistor

Fig. 23: Switch (Internal)

WIRING DIAGRAM SYMBOLS

Article Text (p. 5)

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 10:05AM

Fig. 24: Two Pin Switch

Fig. 25: Variable Resistor or Potentiometer

END OF ARTICLE

WIRING DIAGRAMS

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 10:05AM

ARTICLE BEGINNING

1983 Wiring Diagrams
Mazda

RX7

IDENTIFICATION

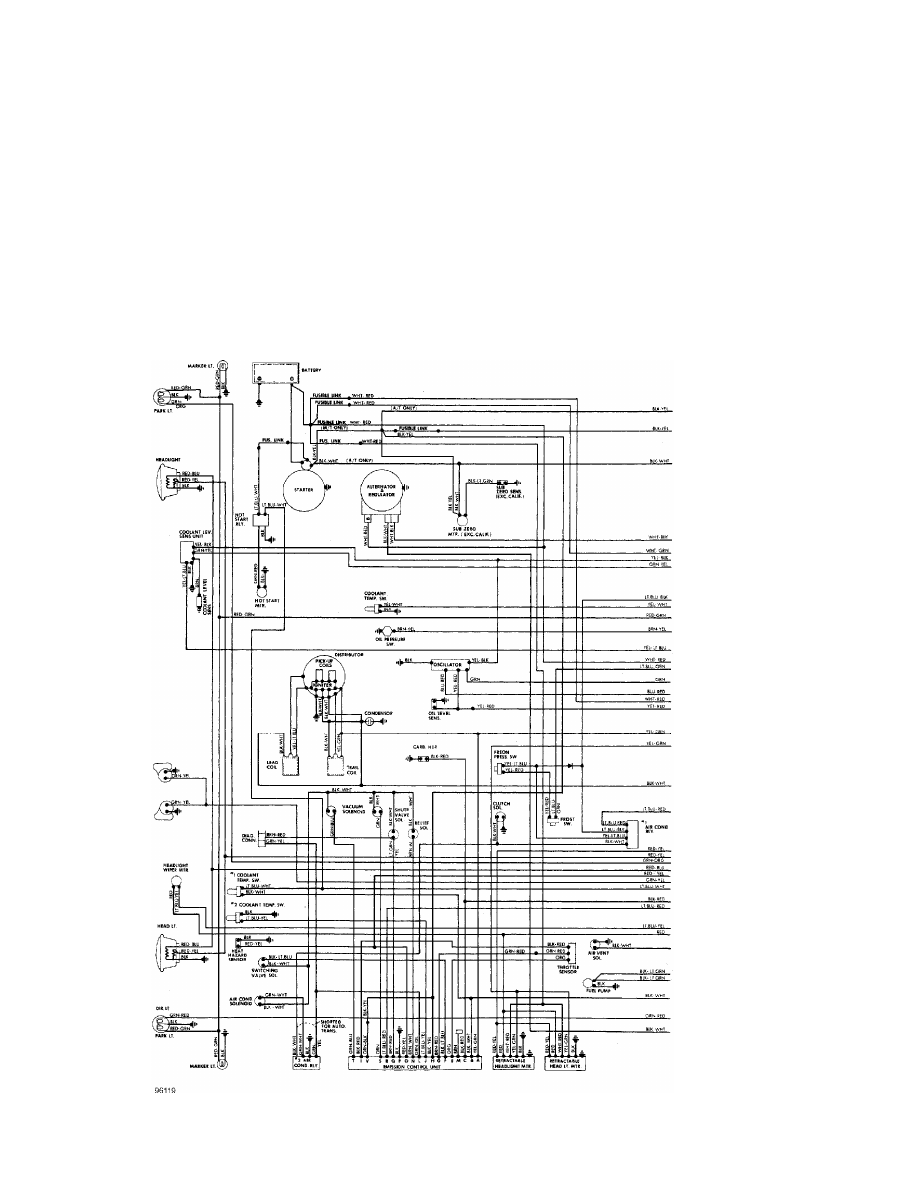

Fig. 1: Engine Compartment

WIRING DIAGRAMS

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 10:05AM

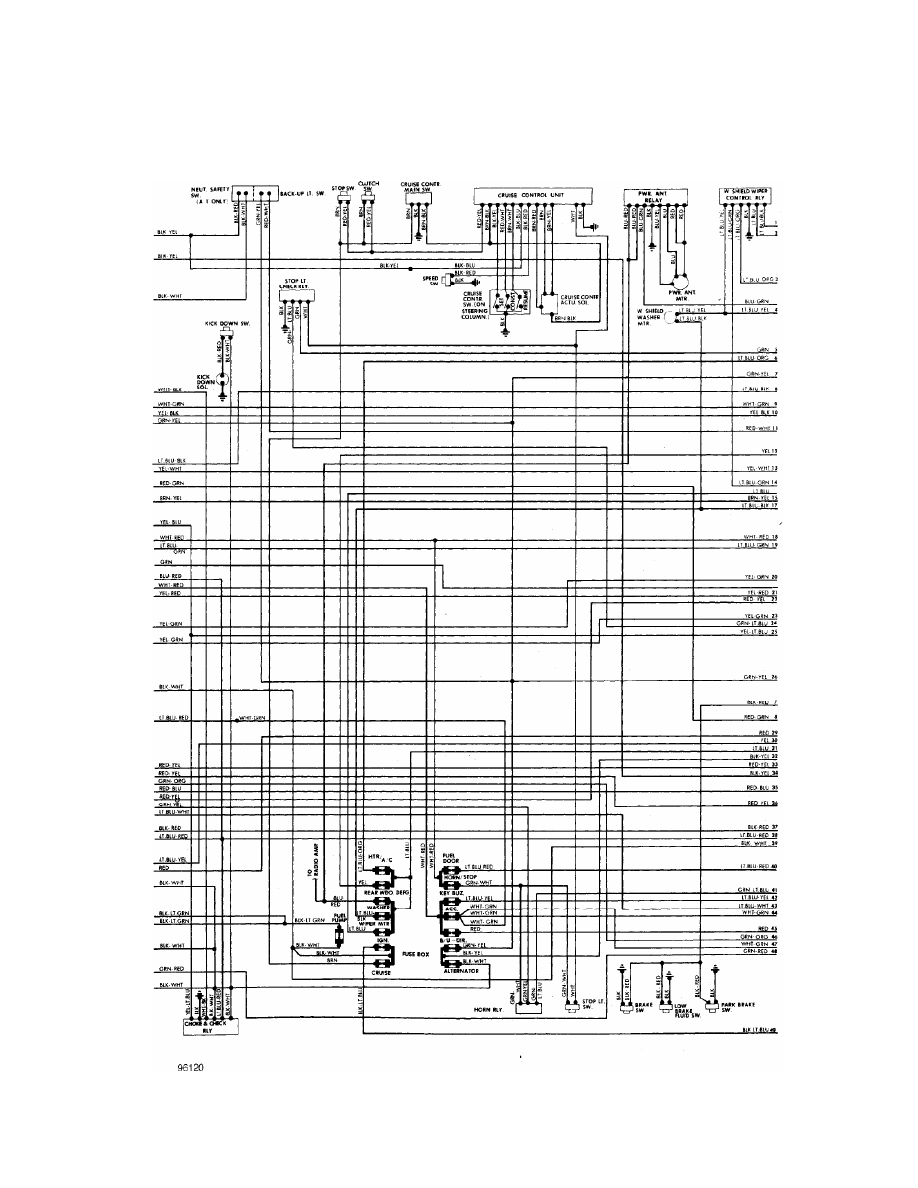

Fig. 2: Fuse Block & Underdash
