GLASS/WINDOWS/MIRRORS

09-12–31

09-12

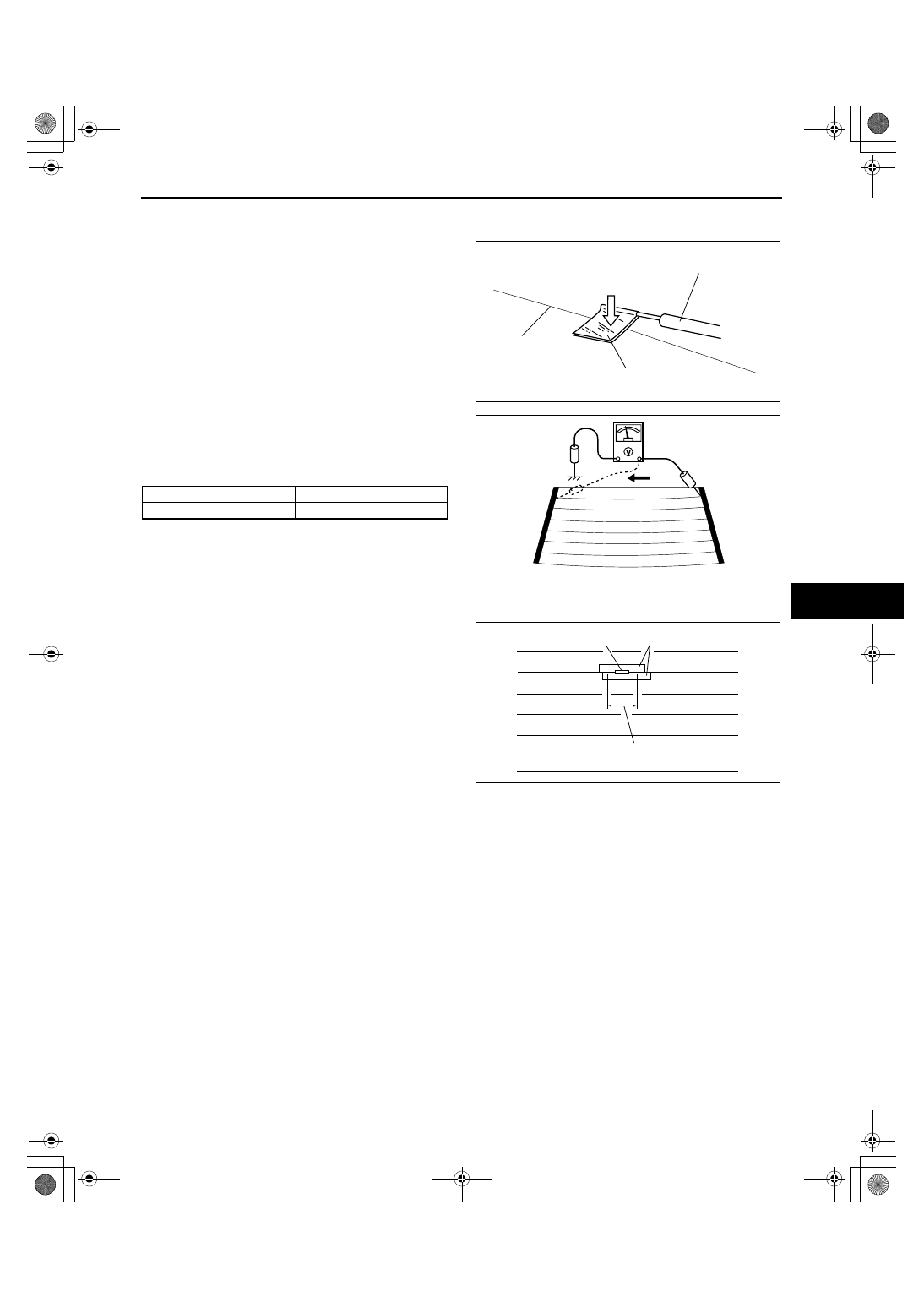

FILAMENT INSPECTION

id091200801000

1. Turn the ignition switch to the ON position.
2. Turn the rear window defroster switch on.

Caution

• Directly touching the rear window

defroster filament with the lead of the
tester could damage it. Wrap aluminum
foil around the end of the lead and
inspect the filament by touching it with
the foil.

3. Connect the positive lead of the tester to the

positive side of each filament and the negative
lead to ground.

4. Gradually slide the positive lead from the positive

side to the negative side and verify that the
voltage decreases accordingly.

• If the voltage changes rapidly, the filament

has a malfunction. Repair the filament.

End Of Sie

FILAMENT REPAIR

id091200801100

1. Clean the filament using isopropyl alcohol.
2. Attach tape to both sides of the filament.
3. Using a small brush or marking pen, apply silver

paint.

4. After 2— 3 min, carefully remove the tape without

damaging the applied area.

Caution

• Do not operate the rear window defroster

until the paint is completely dry. It may
cause other malfunctions if it is used
before the paint is dry.

5. Dry the repaired part according to the following

procedure.

• When the room temperature is 25 °C {77 °F} ,

leave it as it is for 24 h.

• When a hot air blower is used, dry with the 150 °C {302 °F} air for 30 min.

End Of Sie

WM: OUTER MIRROR

Measured part

Voltage (Reference)

(1) to (2)

Approx. 11 V to 0 V

LEAD OF VOLTMETER

PUSH

ALUMINUM FOIL

FILAMENT

acxuuw00001514

POSITIVE
SIDE

NEGATIVE
SIDE

(1)

(2)

acxuuw00001515

SECTION TO BE REPAIRED

BROKEN FILAMENT

TAPE

acxuuw00001516

GLASS/WINDOWS/MIRRORS

09-12–32

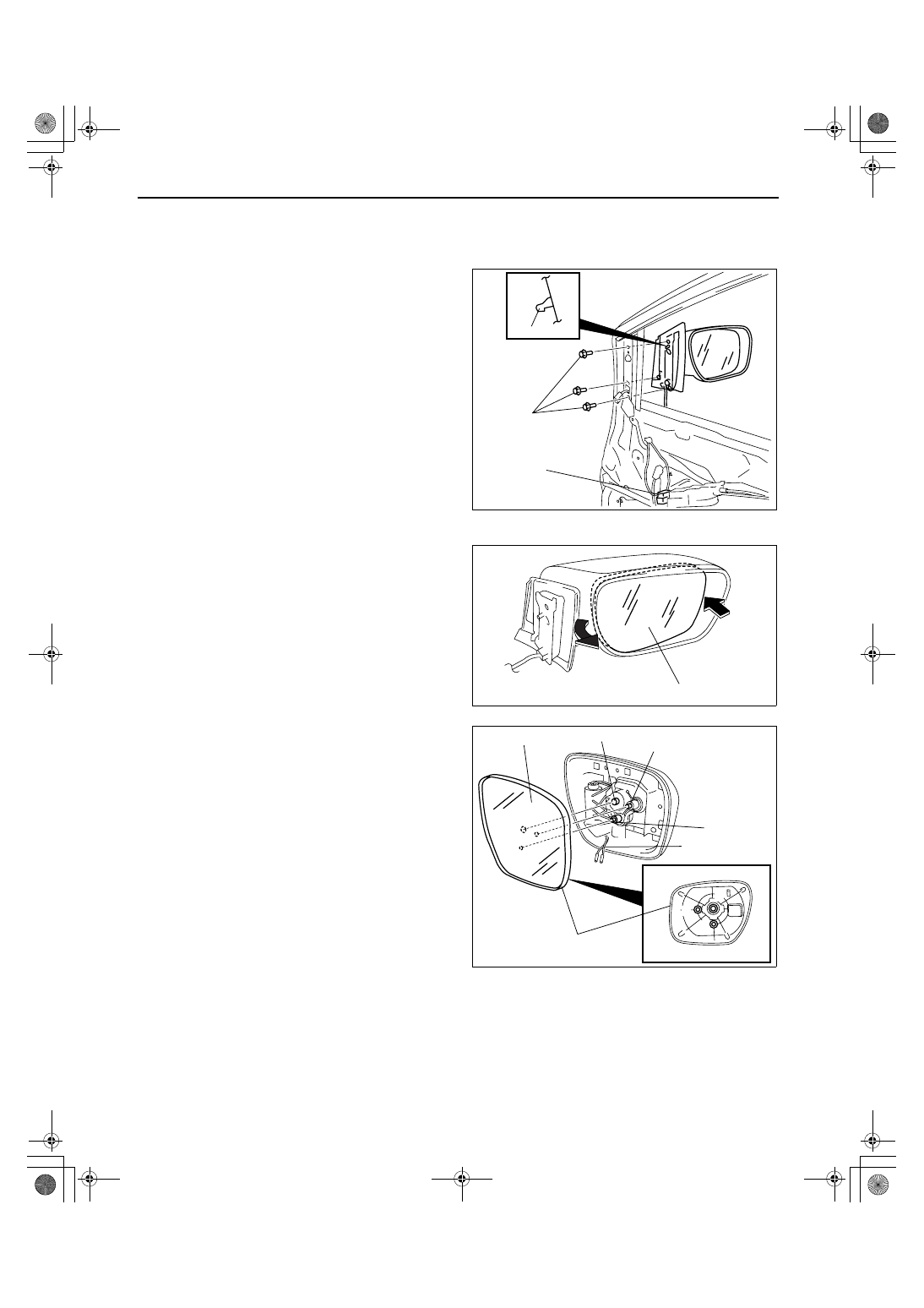

POWER OUTER MIRROR REMOVAL/INSTALLATION

id091200802500

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
3. Remove the front door trim. (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
4. Disconnect the power outer mirror connector.
5. Remove the bolts.
6. Push the power outer mirror against the vehicle

and detach the tab while lifting the mirror up to
remove.

7. Install in the reverse order of removal.

End Of Sie

OUTER MIRROR GLASS REMOVAL

id091200802600

1. Press area A of the mirror glass so that area B

moves outward.

2. Detach pin A while lifting up the inside of the

mirror glass holder.

3. Pull the mirror glass holder and remove pins B.
4. Disconnect the connectors. (vehicles with heated

outer mirrors)

5. Remove the mirror glass holder and the outer

mirror glass as a single unit.

End Of Sie

POWER OUTER MIRROR
CONNECTOR

TAB

BOLT

3.5—5.0 N·m
{36—50 kgf·cm,
31—44 in·lbf}

acxuuw00001657

OUTER MIRROR GLASS

A

B

acxuuw00001658

PIN A

PIN B

PIN B

MIRROR GLASS HOLDER

A

A

B

B

B

B

OUTER MIRROR
GLASS

CONNECTOR

acxuuw00001659

GLASS/WINDOWS/MIRRORS

09-12–33

09-12

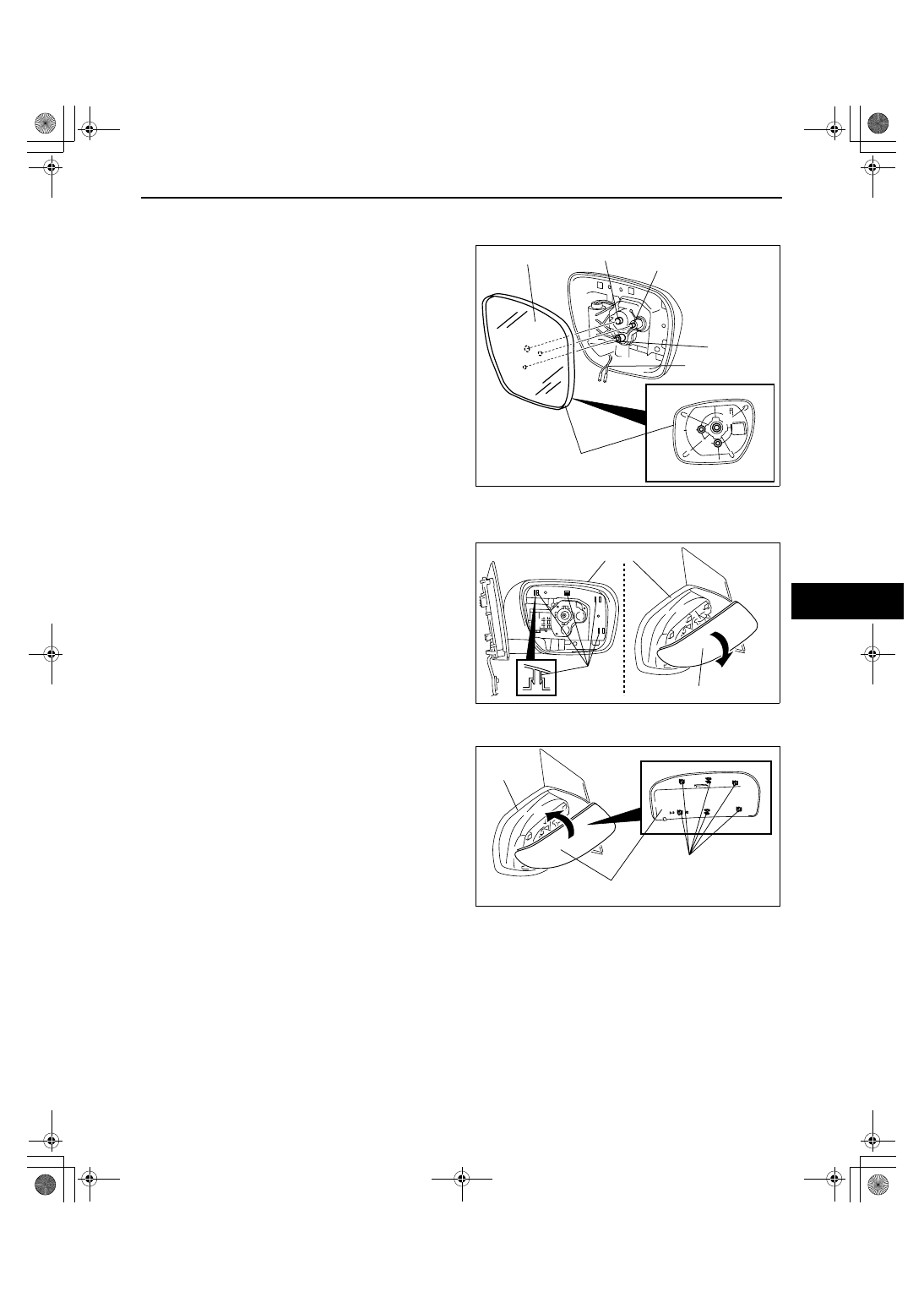

OUTER MIRROR GLASS INSTALLATION

id091200802700

1. Connect the connectors. (vehicles with heated outer mirrors)
2. Press part A on the outer mirror glass and install

pin A

3. Press part B on the outer mirror glass and install

pins B.

End Of Sie

OUTER MIRROR GARNISH REMOVAL

id091200802800

1. Remove the outer mirror glass from the outer mirror. (See 09-12-32 OUTER MIRROR GLASS REMOVAL.)
2. Pinch the clip ends using pincers and detach the

clips by pushing them forward.

3. Grasp the upper side of the outer mirror garnish

and remove it by pulling it in the direction of the
arrow.

End Of Sie

OUTER MIRROR GARNISH INSTALLATION

id091200802900

1. Position the outer mirror garnish against the

mirror body in the direction of the arrow shown in
the figure, and insert the outer mirror garnish clips
(6 locations) into the mirror body.

2. Install the outer mirror garnish so that there are

no gaps around the component.

End Of Sie

PIN A

PIN B

PIN B

MIRROR GLASS HOLDER

A

A

B

B

B

B

OUTER MIRROR
GLASS

CONNECTOR

acxuuw00001660

MIRROR BODY

CLIP

OUTER MIRROR GARNISH

acxuuw00001661

MIRROR
BODY

CLIP

OUTER MIRROR
GARNISH

acxuuw00001663

GLASS/WINDOWS/MIRRORS

09-12–34

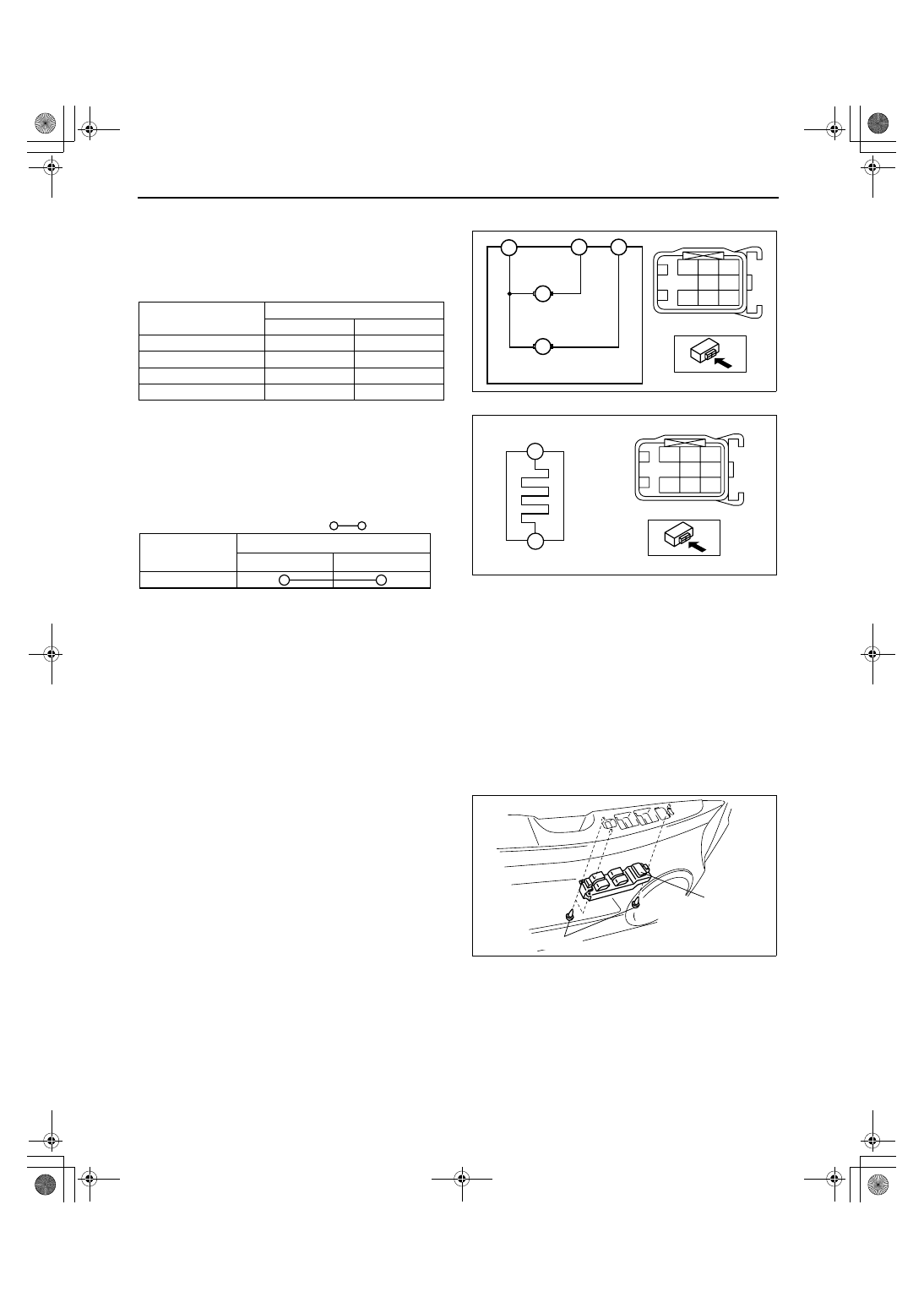

POWER OUTER MIRROR INSPECTION

id091200803000

1. Apply battery positive voltage to the power outer

mirror terminals and inspect the operation of the
power outer mirror.

• If not as specified, replace the power outer

mirror.

2. Inspect for continuity between the power outer

mirror heater terminals.

• If not as specified, replace the power outer

mirror.

End Of Sie

WM: MIRROR SWITCH

POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION

id091200802300

Note

• The power outer mirror switch is integrated with the power window main switch.

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
3. Remove the front door trim. (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION)
4. Disconnect the power door mirror switch connector and the power window main switch connector.
5. Remove the screws, then the power outer mirror

switch.

6. Install in the reverse order of removal.

End Of Sie

Mirror operation

terminal

B+

GND

Up

A

B

Down

B

A

Left

C

B

Right

B

C

B

C

A

M

M

LEFT/RIGHT
ADJUSTMENTMOTOR

UP/DOWN
ADJUSTMENT MOTOR

A

G

C

I

B

*
*

*

acxuuw00001664

G

I

A

G

C

I

B

*
*

*

acxuuw00001665

: Continuity

Mirror operation

Heater

Terminal

I

G

acxuuw00001666

SCREW

POWER OUTER
MIRROR SWITCH

acxuuw00002430
