GLASS/WINDOWS/MIRRORS

09-12–11

09-12

POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

id091200802100

Passenger’s Side

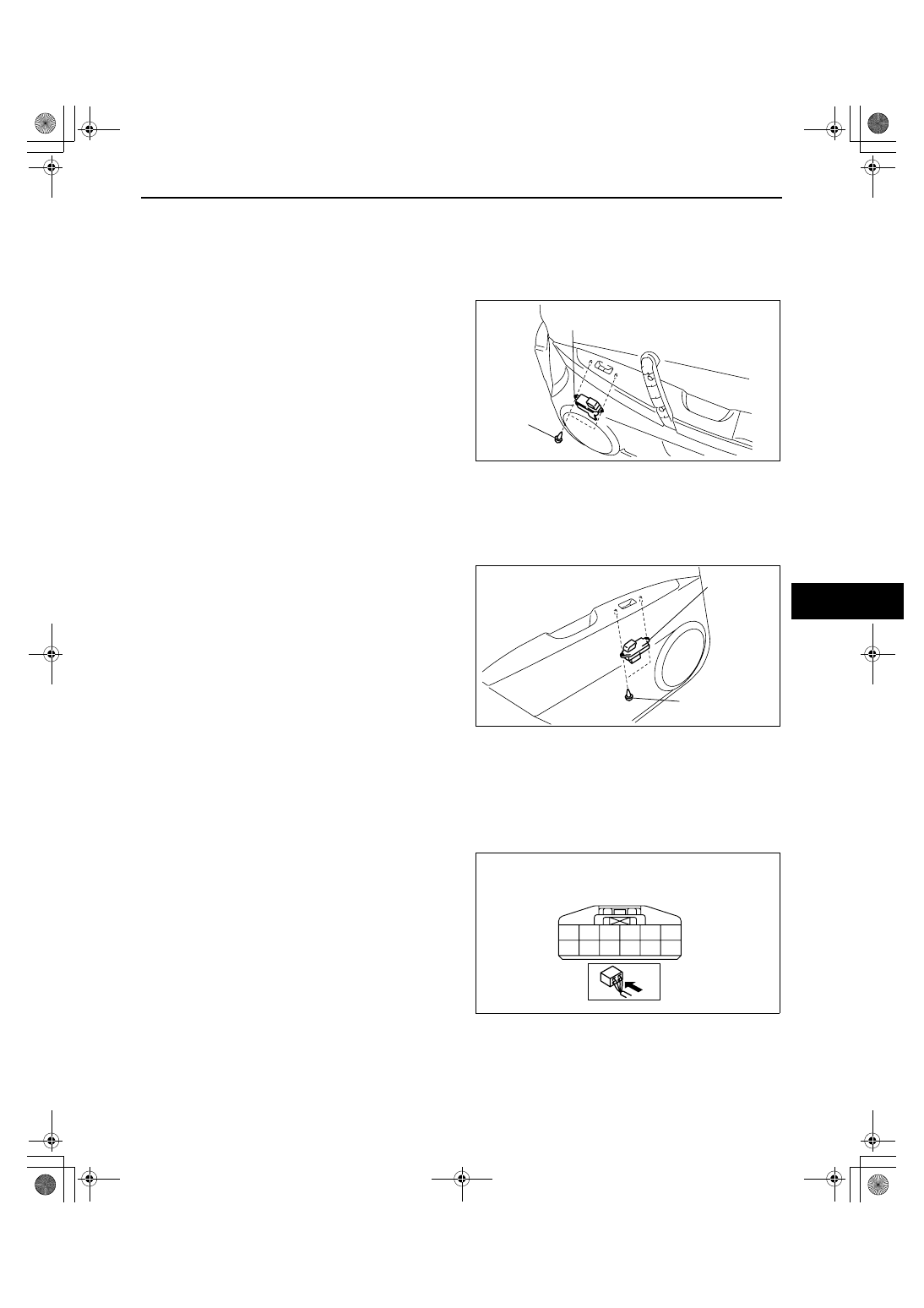

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
3. Remove the front door trim. (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION)
4. Disconnect the power window subswitch connector.
5. Remove the screws, then the power window

subswitch.

6. Install in the reverse order of removal.

Rear Side

1. Disconnect the negative battery cable.
2. Remove the sail garnish. (See 09-17-12 SAIL GARNISH REMOVAL/INSTALLATION.)
3. Remove the rear door trim. (See 09-17-23 REAR DOOR TRIM REMOVAL/INSTALLATION)
4. Disconnect the power window subswitch connector.
5. Remove the screws, then the power window

subswitch.

6. Install in the reverse order of removal.

End Of Sie

POWER WINDOW SUBSWITCH INSPECTION

id091200802200

Passenger’s Side

1. Measure the voltage at each terminal (other than terminals H and I).

• If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under “Inspection item(s)”

and related wiring harnesses.

2. Disconnect the negative battery cable.
3. Inspect the power window subswitch connector for continuity at terminals H and I.
4. If the system does not work properly even though

the inspection items or related wiring harnesses
do not have any malfunction, replace the power
window subswitch.








acxuuw00001182










acxuuw00001183

POWER WINDOW SUBSWITCH

HARNESS-SIDE CONNECTOR

K

L

H

C

A

B

D

F

*

J

I

*

acxuuw00001387

GLASS/WINDOWS/MIRRORS

09-12–12

Terminal

Signal name

Connected to

Measured condition

Voltage (V)/

Continuity

Inspection item (s)

L

Power-cut

signal

Power window main

switch

Ignition switch at ON and
power-cut switch at UNLOCK

B+

• Power window main

switch(See09-12-8
POWER WINDOW
MAIN SWITCH
INSPECTION)

• Related wiring

harnesses

K

Open output

Power window motor

While door glass is opening

B+

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

While door glass is closing

1.0 or less

J

Pulse 1

Power window motor Door glass moving

Alternates

between 1.0

and B+

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

I

Power supply

P/W 30 A fuse

Under any condition

B+

• P/W 30 A fuse

• Related wiring

harnesses

H

Pulse 2

Power window motor

Door glass moving

Alternates

between 1.0

or less and

B+

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

Door glass stopped

1.0 or less or

B+

F

GND

Body ground

Under any condition: Inspect
for continuity to ground

Continuity

detected

• GND

D

Sensor
ground

Power window motor

Under any condition: inspect
for continuity to ground

Continuity

detected

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

C

Close output

Power window motor

While door glass is opening

1.0 or less

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

While door glass is closing

B+

B

Power supply

Power window motor

Ignition switch at ON or during
IG-OFF timer

B+

• Power window motor

(See09-12-7 POWER
WINDOW MOTOR
INSPECTION.)

• Related wiring

harnesses

A

Communicati

on

Power window main

switch

— —

—

GLASS/WINDOWS/MIRRORS

09-12–13

09-12

Rear Side

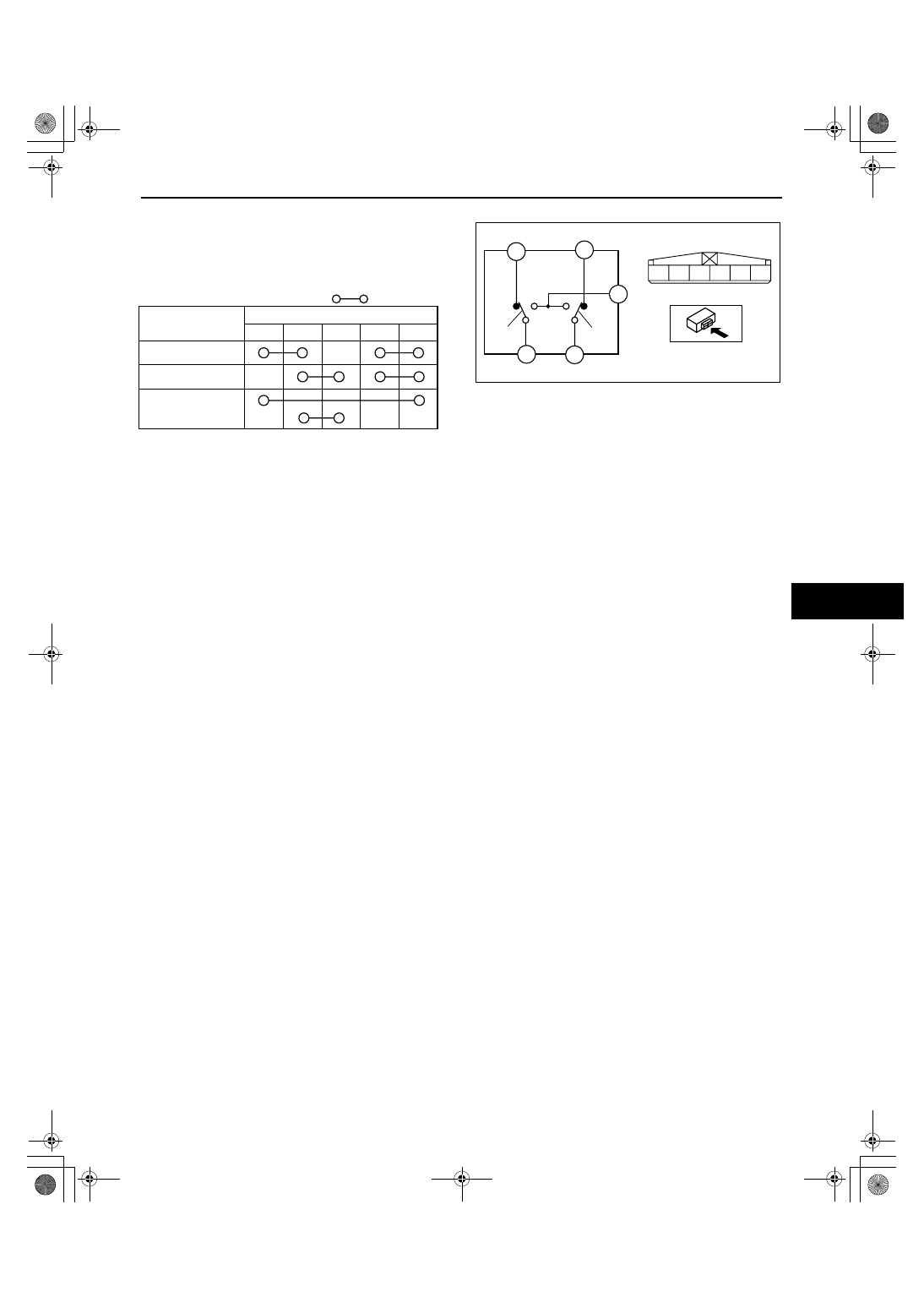

1. Inspect for continuity between the power window

subswitch terminals.

• If not as specified, replace the power window

subswitch.

End Of Sie

WM: POWER WINDOW SYSTEM

POWER WINDOW INITIALIZATION PROCEDURE

id091200807400

Note

• Initial setting must be performed for the switch of each window front and rear.

• If the following operations have been performed, initial setting is reset, and auto up/down and two-step

down operation are disabled. Therefore, performing initial setting is necessary.

— Negative battery cable disconnected or power window system power supply fuse removed. (perform

initial setting for the switches of all seats.)

— Power window switch connector disconnected. (Perform initial setting for the switch connected with the

connector.)

— Prolonged open/close operation of the power window main or sub switches causes the circuit breaker

to activate and automatic operation is disabled.

1. Turn the ignition switch to the ON position.
2. Press the switch of each window and fully open the door glass.
3. Pull the switch of each window to the manual-up position to fully close the door glass, and keep holding the

switch up at the position for approx. 2 s.

End Of Sie

E

*

C

A

C

E

A

D

B

CLOSE

OPEN

D

B

acxuuw00001388

OFF

Close

Open

D

B

C

E

A

: Continuity

Switch

position

Terminal

acxuuw00001389

GLASS/WINDOWS/MIRRORS

09-12–14

TWO-STEP DOWN FUNCTION OPERATIVE/NON-OPERATIVE SWITCHING  PROCEDURE

id091200803500

Note

• By following the procedure below, the two-step down function is switched to non-operative when it is

operative, and to operative when it is non-operative.

End Of Sie

Start

1. Turn the ignition switch to ON position.

2. Perform auto open two times.

3.  Perform auto close two times.

Perform within 5 s.

Perform within 5 s.

Start the following procedure within 43 s.

Switching completed.

Turn the ignition switch to OFF position.

1.  Turn the ignition switch to ON position.

2.  Perform auto open two times.

3.  Perform auto close two times.

acxuuw00001670
