BODY PANELS

09-10–11

09-10

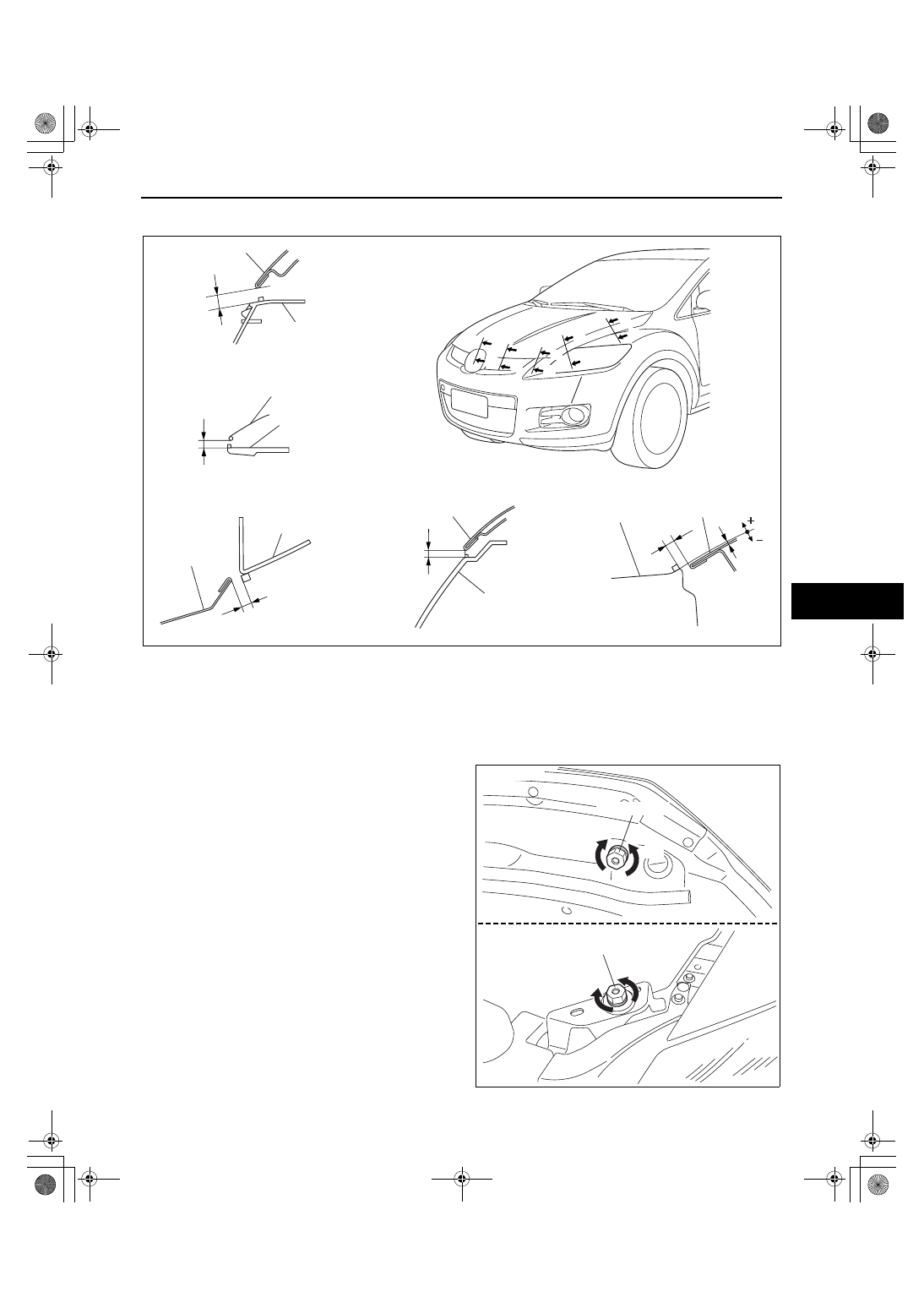

Height Adjustment

1. Measure the height difference between the hood and body.

Clearance

a: 2.8— 5.8 mm {0.11— 0.22 in}
b: 3.0— 6.0 mm {0.12— 0.23 in}
c: 2.0— 5.5 mm {0.07— 0.21 in}
d: -1.2— 1.2 mm {-0.04— 0.04 in}

2. Turn the stop rubber to adjust.

End Of Sie

WM: SHROUD PANEL

SEC. A—A

a

b

c

HOOD

SEC. B—B

SEC. D—D

SEC. C—C

SEC. E—E

d

HOOD

FRONT FENDER
PANEL

HOOD

HOOD

RADIATOR
GRILLE

FRONT COMBINATION
LIGHT

b

HOOD

BUMPER

RADIATOR
GRILLE

A

A

B

B

C

C

D

D

E

E

acxuuw00001321

BODY SIDE

STOP RUBBER

STOP RUBBER

DOWN

DOWN

UP

UP

HOOD SIDE

acxuuw00001322

BODY PANELS

09-10–12

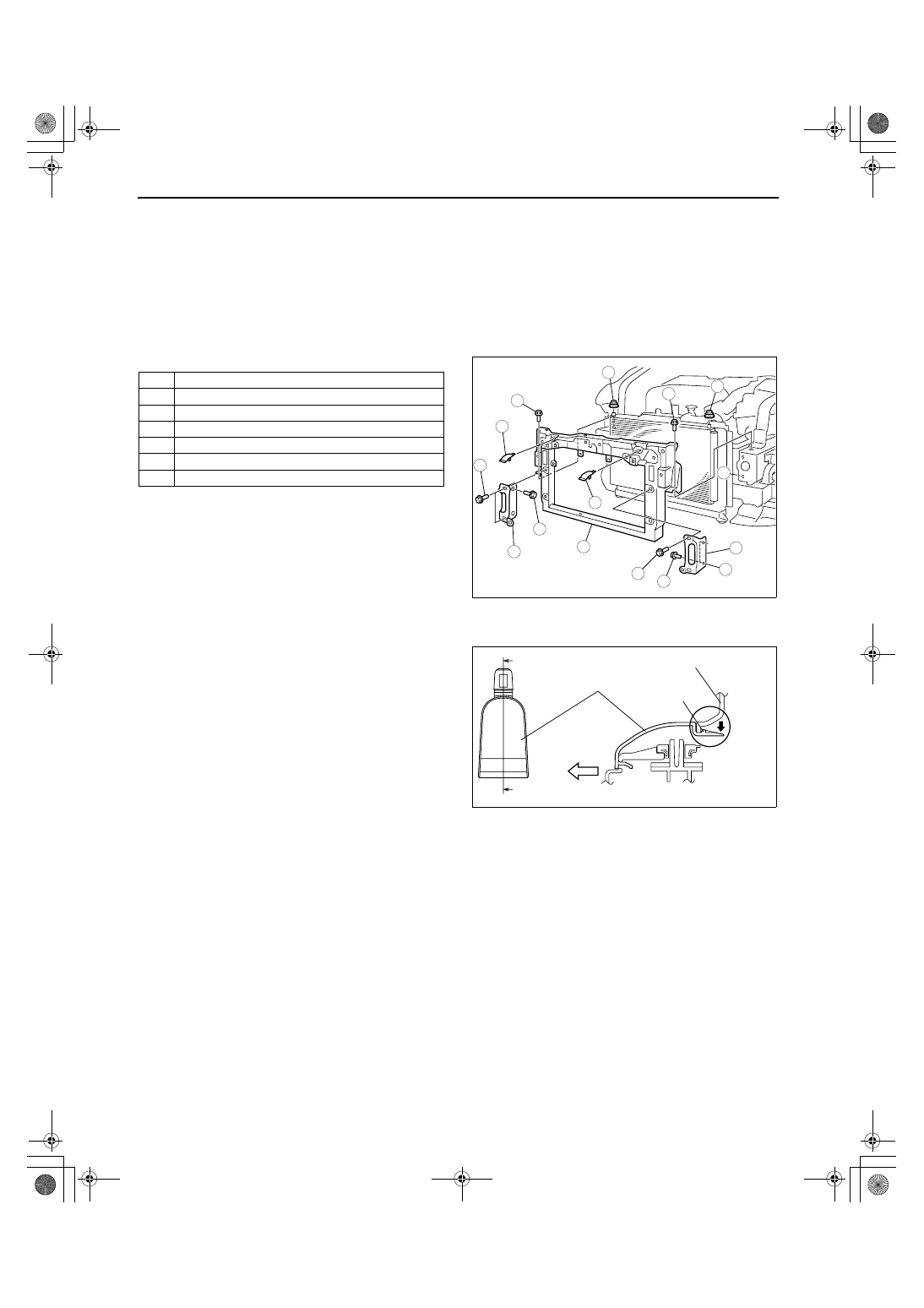

SHROUD PANEL REMOVAL/INSTALLATION

id091000801900

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Front bumper. (See09-10-2 FRONT BUMPER REMOVAL/INSTALLATION)
(2) Front combination lights. (See09-18-5 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION)
(3) Front bumper reinforcement. (See09-10-4 FRONT BUMPER REINFORCEMENT REMOVAL/

INSTALLATION)

(4) Hood latch. (See09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION)
(5) Hood stay. (See09-10-9 HOOD REMOVAL/INSTALLATION)

3. Put the oil cooler aside.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

Upper Mount Rubber Bracket

1. Remove the upper mount rubber bracket while

pressing down the upper mount rubber bracket
tab in the direction of the arrow.

End Of Sie

WM: COWL UPPER PLATE

1

Bolt  A

2

Bolt  B

3

Bumper bracket

4

Upper mount rubber bracket

5

Upper mount rubber

6

Bolt  C

7

Shroud panel

B

B

2

2

7

4

4

3

6

5

5

6

3

1

1

acxuuw00001323

A

A

FRONT

UPPER MOUNT
RUBBER BRACKET

SHROUD PANEL

ENGINE
COMPARTM
ENT SIDE

TAB

SEC. A—A

acxuuw00001324

BODY PANELS

09-10–13

09-10

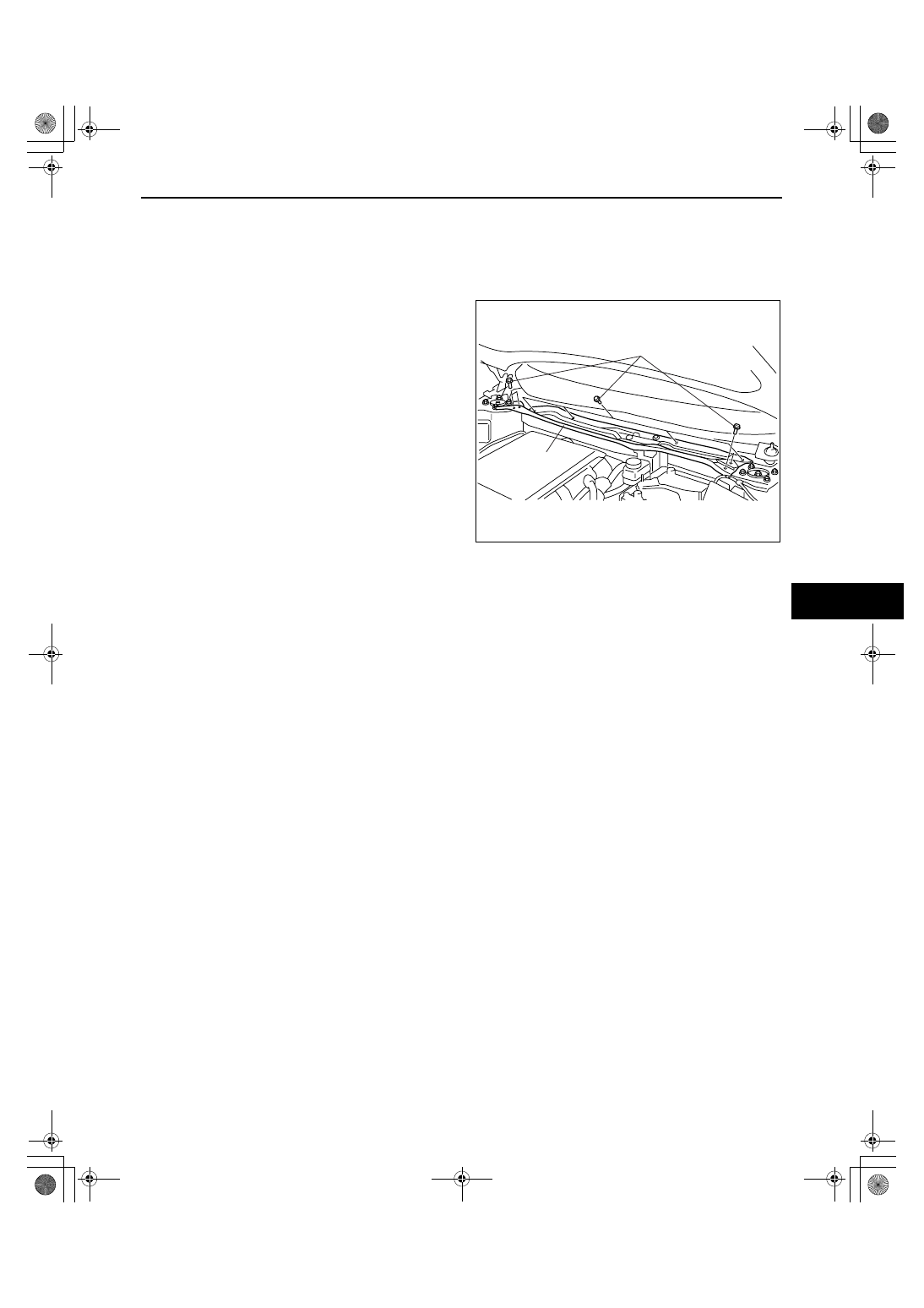

COWL PANEL REMOVAL/INSTALLATION

id091000802000

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Windshield wiper arm and blade. (See09-19-3 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION)

(2) Cowl grill. (See09-16-11 COWL GRILLE REMOVAL/INSTALLATION)

3. Remove the bolts, then remove the cowl panel.
4. Install in the reverse order of removal.

End Of Sie

COWL PANEL

6.9—9.8 N·m
{70.4—99.9 kgf·cm,
62—86 in·lbf}

BOLT :

acxuuw00001325
