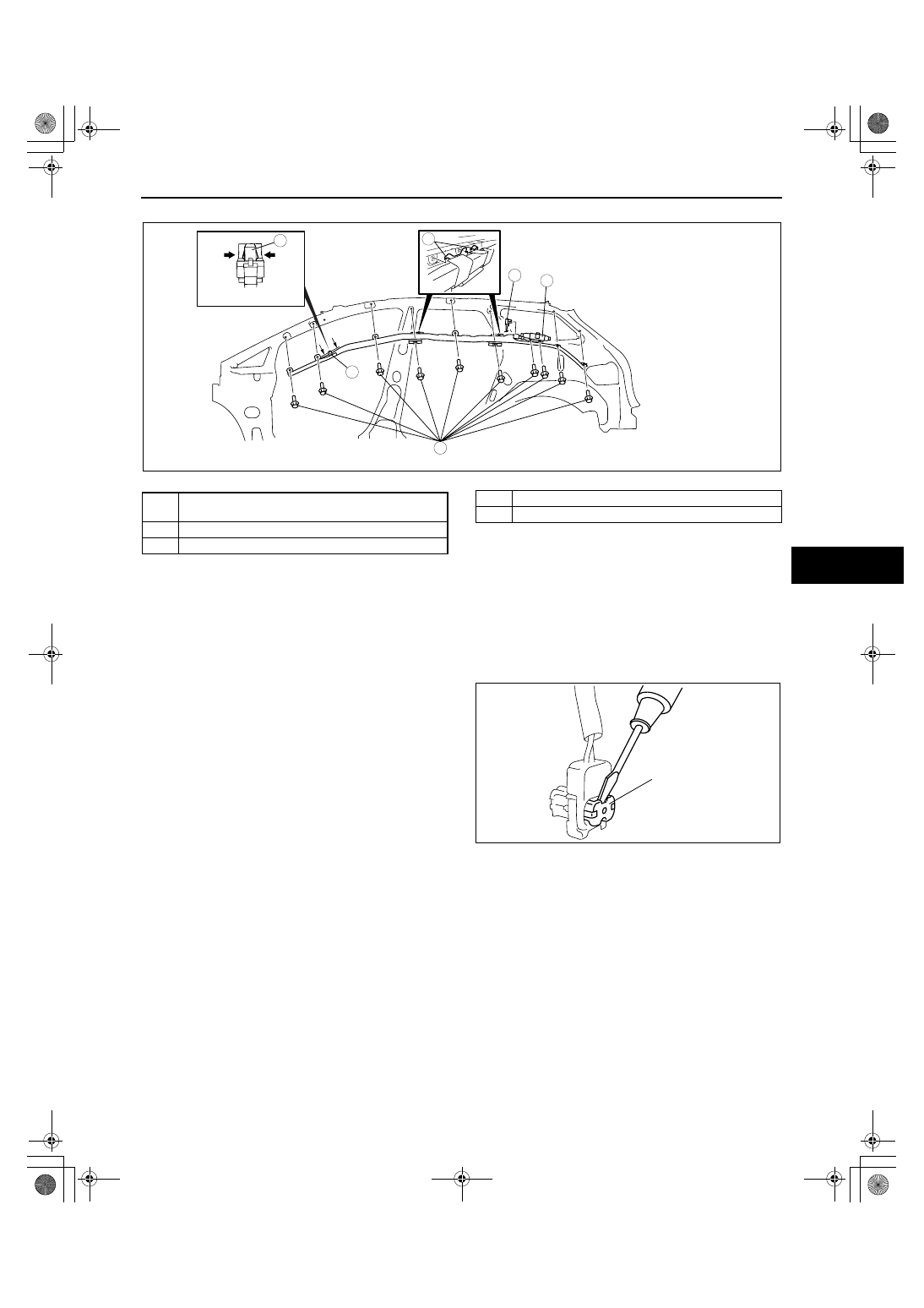

AIR BAG SYSTEM

08-10–9

08-10

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. When the ignition switch is turned to the ON position verify that the air bag system warning light illuminates for

approx. 6 s and goes out.

• If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air

bag system) and perform inspection of the system.

Connector Removal Note

1. Using flathead screwdriver, pry out the connector

stopper plate.

2. Disconnect the connector.

End Of Sie

WM: CRASH ZONE SENSOR

1

2

8.8—12.8 {89.8—130.5,
77.8—113.2}

N·m {kgf·cm, in·lbf}

TAB

TAB

SEC. A—A

A

A

3

5

4

3

acxuuw00000641

1

Connector
(See 08-10-9 Connector Removal Note.)

2

Bolt

3

Clip

4

Hook

5

Curtain air bag module

STOPPER
PLATE

acxuuw00000638

1871-1U-06B(08-10).fm  9 ページ  2006年3月15日 水曜日 午前11時36分

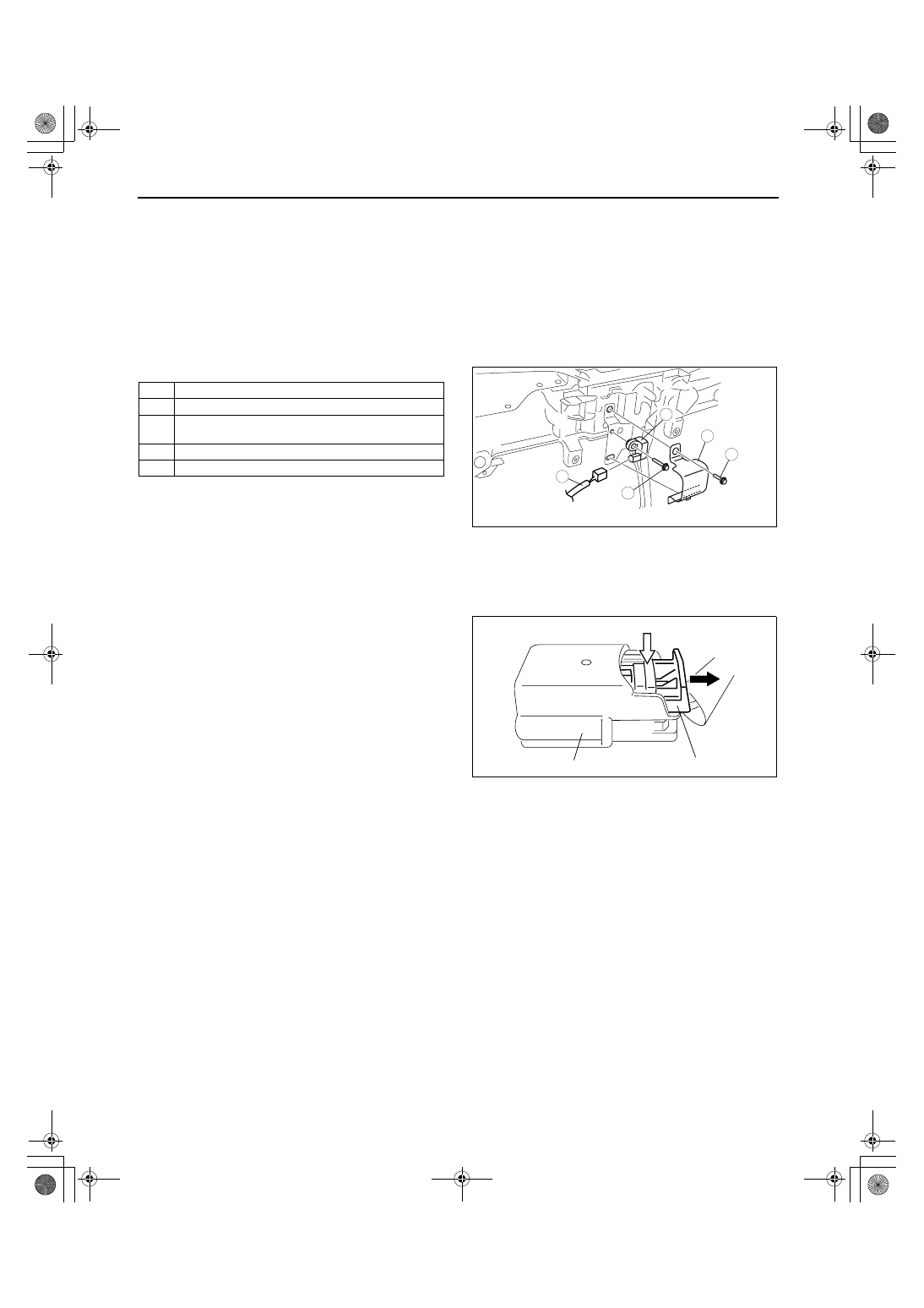

AIR BAG SYSTEM

08-10–10

CRASH ZONE SENSOR REMOVAL/INSTALLATION

id081000800500

Warning

• Handling the crash zone sensor improperly can accidentally deploy the air bags and pre-tensioner

seat belts, which may seriously injure you. Read the air bag system service warnings and cautions
before handling the crash zone sensor. (See 08-10-3 AIR BAG SYSTEM SERVICE WARNINGS.)
(See 08-10-5 AIR BAG SYSTEM SERVICE CAUTIONS.)

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the front bumper. (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Turn the ignition switch to the ON position.
7. Verify that the air bag system warning light

illuminates for approx. 6 s and goes out.

• If the air bag system warning light does not

operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the
system.

Connector Removal Note

1. Disconnect the connector from the crash zone

sensor by pressing the connector tab and pulling
out the lock lever in the direction of the arrow.

End Of Sie

WM: SAS UNIT

SAS CONTROL MODULE REMOVAL/INSTALLATION

id081000801400

Warning

• Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-

tensioner seat belt, which may seriously injure you. Read the air bag system service warnings and
cautions before handling the air bag module. (See 08-10-3 AIR BAG SYSTEM SERVICE
WARNINGS.) (See 08-10-5 AIR BAG SYSTEM SERVICE CAUTIONS.)

• Connecting the SAS control module with the SAS control module not securely fixed to the vehicle

is dangerous. When the ignition switch is turned to the ON position, the SAS control module could
tilt causing the SAS control module to detect that the vehicle is in a rollover condition, which may
accidentally operate (deploy) the curtain air bag module and pre-tensioner seat belt. Therefore,
before turning the ignition switch to the ON position with the connector connected, securely fix
the SAS control module to the vehicle.

Caution

• Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-

tensioner seat belt, which may seriously injure you. If configuration is not completed before
removing the SAS control module, DTC B2477 or B1017 will be displayed.

1. Perform SAS control module configuration when replacing it. (See 08-10-11 SAS CONTROL MODULE

CONFIGURATION.)

2. Turn the ignition switch to the LOCK position.

1

Bolt  A

2

Cover

3

Connector
(See 08-10-10 Connector Removal Note.)

4

Bolt  B

5

Crash zone sensor

5

4

3

1

2

8.8—12.8
{89.8—130.5,
77.8—113.2}

N·m {kgf·cm, in·lbf}

8.0—11.0
{82—112,
71—97}

acxuuw00000642

TAB

CONNECTOR

LOCK LEVER

acxuuw00000643

1871-1U-06B(08-10).fm  10 ページ  2006年3月15日 水曜日 午前11時36分

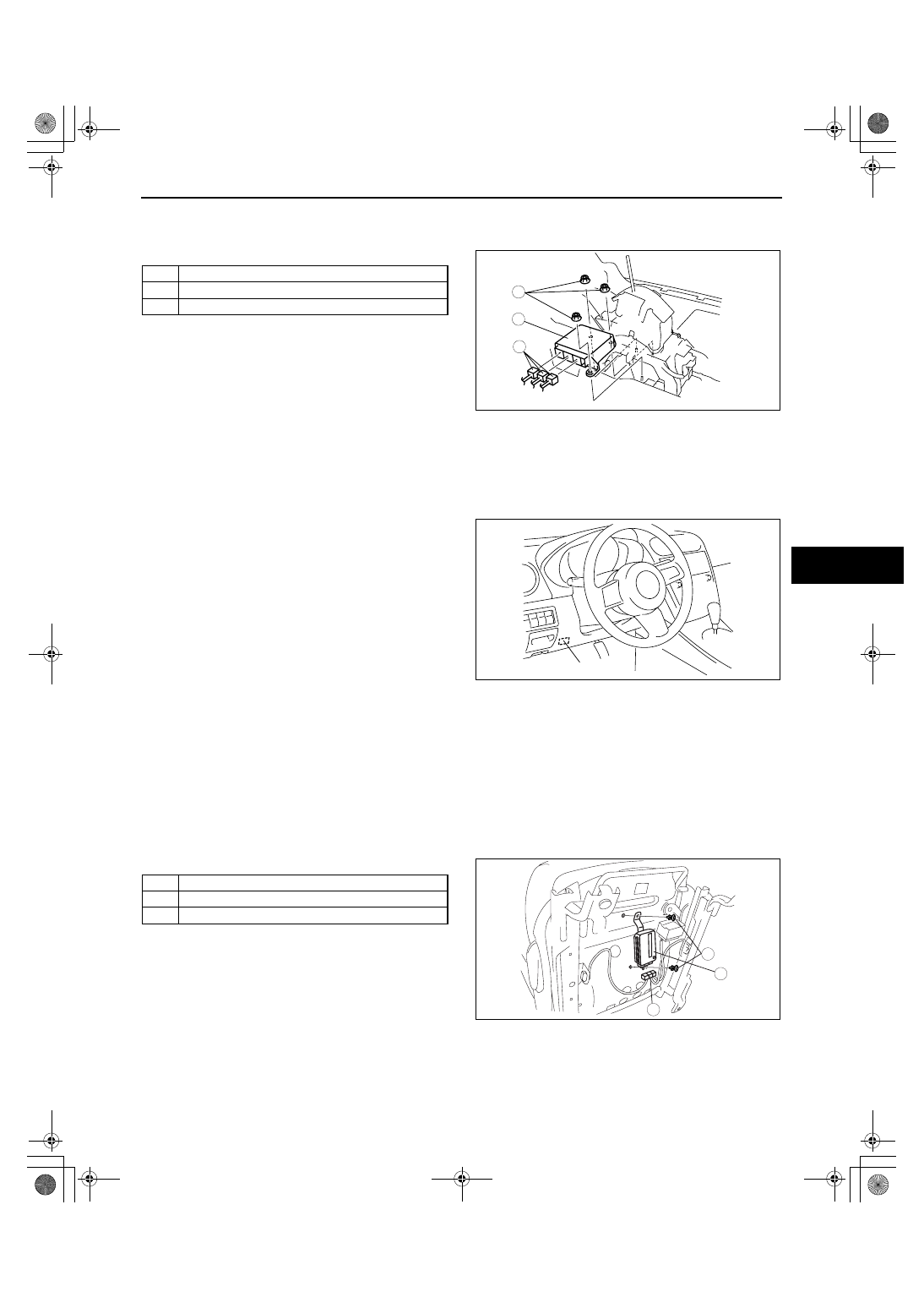

AIR BAG SYSTEM

08-10–11

08-10

3. Disconnect the negative battery cable and wait for 1 min or more.
4. Remove the console panel. (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
5. Remove the console. (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.
8. Turn the ignition switch to the ON position.

• If the SAS control module is replaced, turn the

ignition switch to the ON position for 20 s or
more
after completing the configuration. (See
08-10-11 SAS CONTROL MODULE
CONFIGURATION.)

9. Verify that the air bag system warning light

illuminates for approx. 6 s and goes out.

• If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air

bag system) and perform inspection of the system.

End Of Sie

SAS CONTROL MODULE CONFIGURATION

id081000801500

1. Connect the M-MDS to the DLC-2 connector.
2. After the vehicle is identified, select the following

items from the initialization screen of the M-MDS.

• When using the IDS (notebook PC)

1. Select “Module Programming”.

• When using the PDS (pocket PC)

1. Select “Programming”.
2. Select “Module Programming”.

3. Then, select items from the screen menu in the

following order.

1. Select “Programmable Module Installation”.
2. Select “RCM”.

4. Perform the configuration according to the

directions on the screen.

End Of Sie

SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION

id081000801600

Caution

• When the seat weight sensor control module is replaced with a new one, perform the seat weight

sensor calibration using the M-MDS. (See 08-10-12 SEAT WEIGHT SENSOR CALIBRATION.)

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for1 min or more.
3. Remove the front passenger’s seat. (See 09-13-2 FRONT SEAT REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

1

Connector

2

Nut

3

SAS control module

3

1

2

8.8—12.8
{89.8—130.5,
77.8—113.2}

N·m {kgf·cm, in·lbf}

acxuuw00000646

DLC-2

acxuuw00000647

1

Connector

2

Fastener

3

Seat weight sensor control module

3

1

2

acxuuw00000648

1871-1U-06B(08-10).fm  11 ページ  2006年3月15日 水曜日 午前11時36分

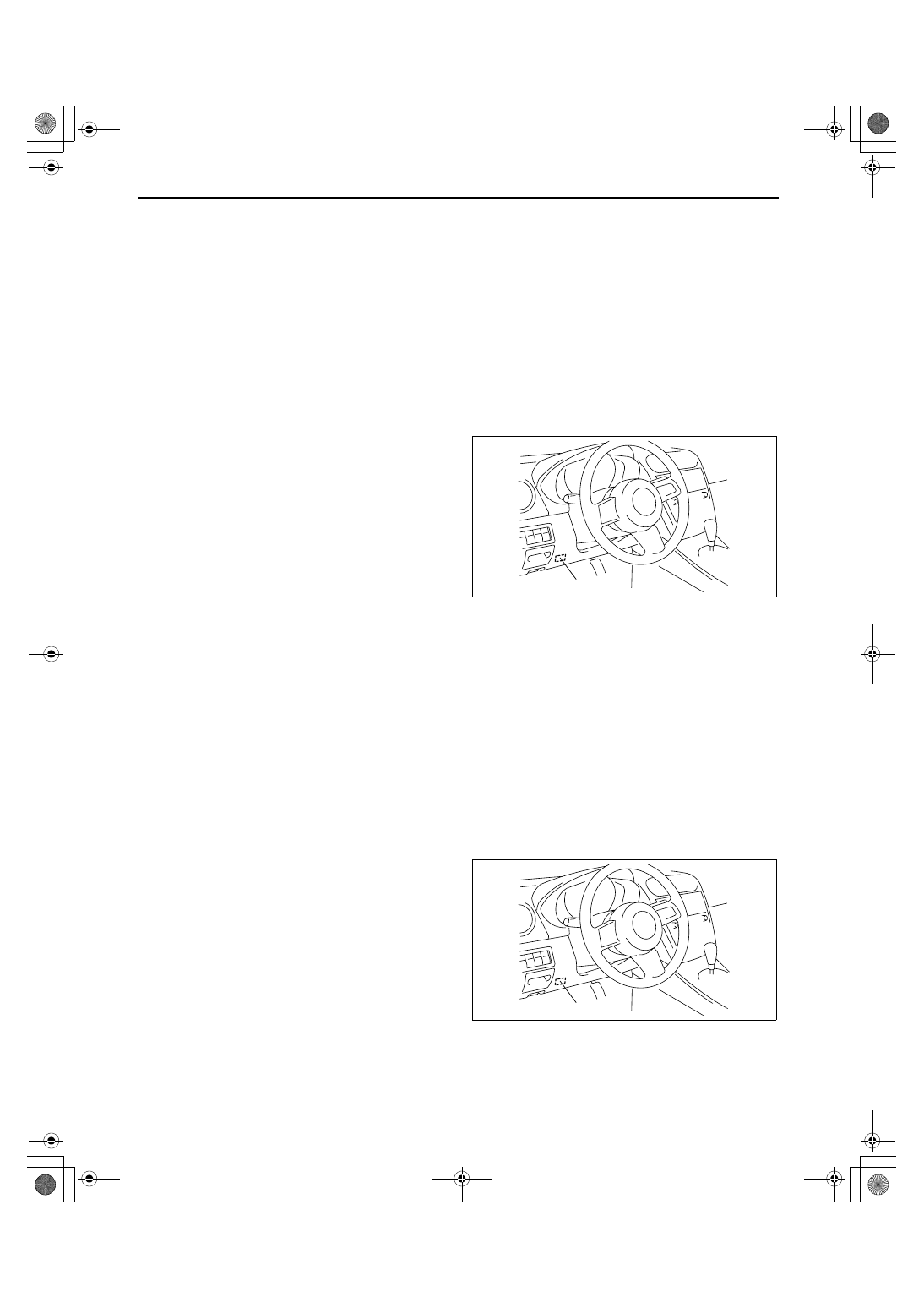

AIR BAG SYSTEM

08-10–12

SEAT WEIGHT SENSOR CALIBRATION

id081000801700

Caution

• If any of the following work is performed, perform the seat weight sensor calibration using the M-

MDS.

— Replacement with a new seat weight sensor

— Replacement with a new seat weight sensor control module

— Replacement with new passenger-side seat parts

— Disassembly of the passenger-side seat

• If any of the following work is performed, perform the seat weight sensor inspection using the M-

MDS. (See 08-10-12 SEAT WEIGHT SENSOR INSPECTION.)

— Removal of the passenger-side seat

— Loosening and retightening of passenger’s seat fixing bolts

— Or, the vehicle is involved in a collision

1. Have two 20 kg {44 lb} weights ready to use.
2. Connect the M-MDS to the DLC-2 connector.
3. After the vehicle is identified, select the following

items from the initialization screen of the M-MDS.

• When using the IDS (notebook PC)

1. Select “Body”.
2. Select “Restraints”.

• When using the PDS (pocket PC)

1. Select “All Tests and Calibrations”.

4. Then, select item from the screen menu in the

following order.

1. Select “Passenger Seat Weight Sensor

ReZero”.

5. Perform calibration following the procedures on

the M-MDS screen.

End Of Sie

SEAT WEIGHT SENSOR INSPECTION

id081000801800

Caution

• If any of the following work is performed, perform the seat weight sensor inspection using the M-

MDS.

— Removal of the passenger-side seat

— Loosening and retightening of passenger’s seat fixing bolts

— Or, the vehicle is involved in a collision

• If any of the following work is performed, perform the seat weight sensor calibration using the M-

MDS. (See 08-10-12 SEAT WEIGHT SENSOR CALIBRATION.)

— Replacement with a new seat weight sensor

— Replacement with a new seat weight sensor control module

— Replacement with new passenger-side seat parts

— Disassembly of the passenger-side seat

1. Connect the M-MDS to the DLC-2 connector.
2. After the vehicle is identified, select the following

items from the initialization screen of the M-MDS.

• When using the IDS (notebook PC)

1. Select “Body”.
2. Select “Restraints”.

• When using the PDS (pocket PC)

1. Select “All Tests and Calibrations”.

3. Then, select item from the screen menu in the

following order.

1. Select “Passenger Seat Weight Sensor

ReZero”.

4. Perform inspection following the procedures on

the M-MDS screen.

End Of Sie

WM: SIDE AIR BAG SENSOR

DLC-2

acxuuw00000647

DLC-2

acxuuw00000647

1871-1U-06B(08-10).fm  12 ページ  2006年3月15日 水曜日 午前11時36分
