FUEL SYSTEM [L3 WITH TC]

01-14–1

01-14

01-14

FUEL SYSTEM [L3 WITH TC]

FUEL SYSTEM LOCATION INDEX

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–2

Engine Room Side . . . . . . . . . . . . . . . .  01-14–2
Fuel Tank Side . . . . . . . . . . . . . . . . . . .  01-14–3

FUEL SYSTEM DIAGRAM

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–3

BEFORE REPAIR PROCEDURE

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–4

Fuel Line Safety Procedure . . . . . . . . .  01-14–4

AFTER REPAIR PROCEDURE

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–4

Fuel Leakage Inspection . . . . . . . . . . .  01-14–4

FUEL LINE PRESSURE INSPECTION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–5

Low Pressure Line (From the Fuel Tank

 to the High Pressure
 Fuel Pump) . . . . . . . . . . . . . . . . . . . .  01-14–5

High Pressure Line (From the High

Pressure Fuel Pump to the
 Fuel Injector) . . . . . . . . . . . . . . . . . . .  01-14–6

FUEL TANK REMOVAL/INSTALLATION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–7

Rivet Removal Note . . . . . . . . . . . . . . .  01-14–9
Fuel-filler Pipe Removal Note  . . . . . . .  01-14–9
Joint Hose Installation Note . . . . . . . . .  01-14–9
Breather Hose Installation Note . . . . . .  01-14–10

FUEL SHUT-OFF/ROLLOVER VALVE

INSPECTION[L3 WITH TC]. . . . . . . . . .  01-14–10

FUEL PUMP UNIT

 REMOVAL/INSTALLATION
[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–11

FUEL PUMP UNIT

DISASSEMBLY/ASSEMBLY
[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–13

FUEL PUMP UNIT INSPECTION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-14–13

Continuity Inspection . . . . . . . . . . . . . .  01-14–13
Circuit Open/Short Inspection  . . . . . . .  01-14–14
Fuel Pump Hold

Pressure Inspection . . . . . . . . . . . . . .  01-14–14

FUEL PUMP RESISTOR

REMOVAL/INSTALLATION
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–15

FUEL PUMP RESISTOR INSPECTION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–16

Resistance Inspection . . . . . . . . . . . . . . 01-14–16

HIGH PRESSURE FUEL PUMP

REMOVAL/INSTALLATION
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–16

Fuel Leakage Inspection After High

Pressure Fuel Pump Installation . . . . . 01-14–18

HIGH PRESSURE FUEL PUMP

 INSPECTION[L3 WITH TC]. . . . . . . . . . 01-14–19

QUICK RELEASE CONNECTOR

REMOVAL/INSTALLATION
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–19

Quick Release Connector Type. . . . . . . 01-14–19
Type A Removal  . . . . . . . . . . . . . . . . . . 01-14–20
Type B Removal  . . . . . . . . . . . . . . . . . . 01-14–21
Type C Removal  . . . . . . . . . . . . . . . . . . 01-14–22
Type A Installation . . . . . . . . . . . . . . . . . 01-14–22
Type B Installation . . . . . . . . . . . . . . . . . 01-14–23
Type C Installation . . . . . . . . . . . . . . . . . 01-14–23

FUEL INJECTOR

 REMOVAL/INSTALLATION
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–23

High Pressure Line Pipe

Removal Note . . . . . . . . . . . . . . . . . . . 01-14–24

Fuel Injector Removal Note. . . . . . . . . . 01-14–25
Fuel Delivery Pipe

 Installation Note . . . . . . . . . . . . . . . . . 01-14–26

High Pressure Line Pipe

 Installation Note . . . . . . . . . . . . . . . . . 01-14–26

FUEL INJECTOR INSPECTION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–27

Operation Test . . . . . . . . . . . . . . . . . . . . 01-14–27
Resistance Inspection . . . . . . . . . . . . . . 01-14–27
Circuit Open/Short Inspection . . . . . . . . 01-14–28

PRESSURE REGULATOR INSPECTION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-14–28

End of Toc

WM: FUEL SYSTEM

1871-1U-06B(01-14).fm  1 ページ  2006年3月15日 水曜日 午前10時45分

FUEL SYSTEM [L3 WITH TC]

01-14–2

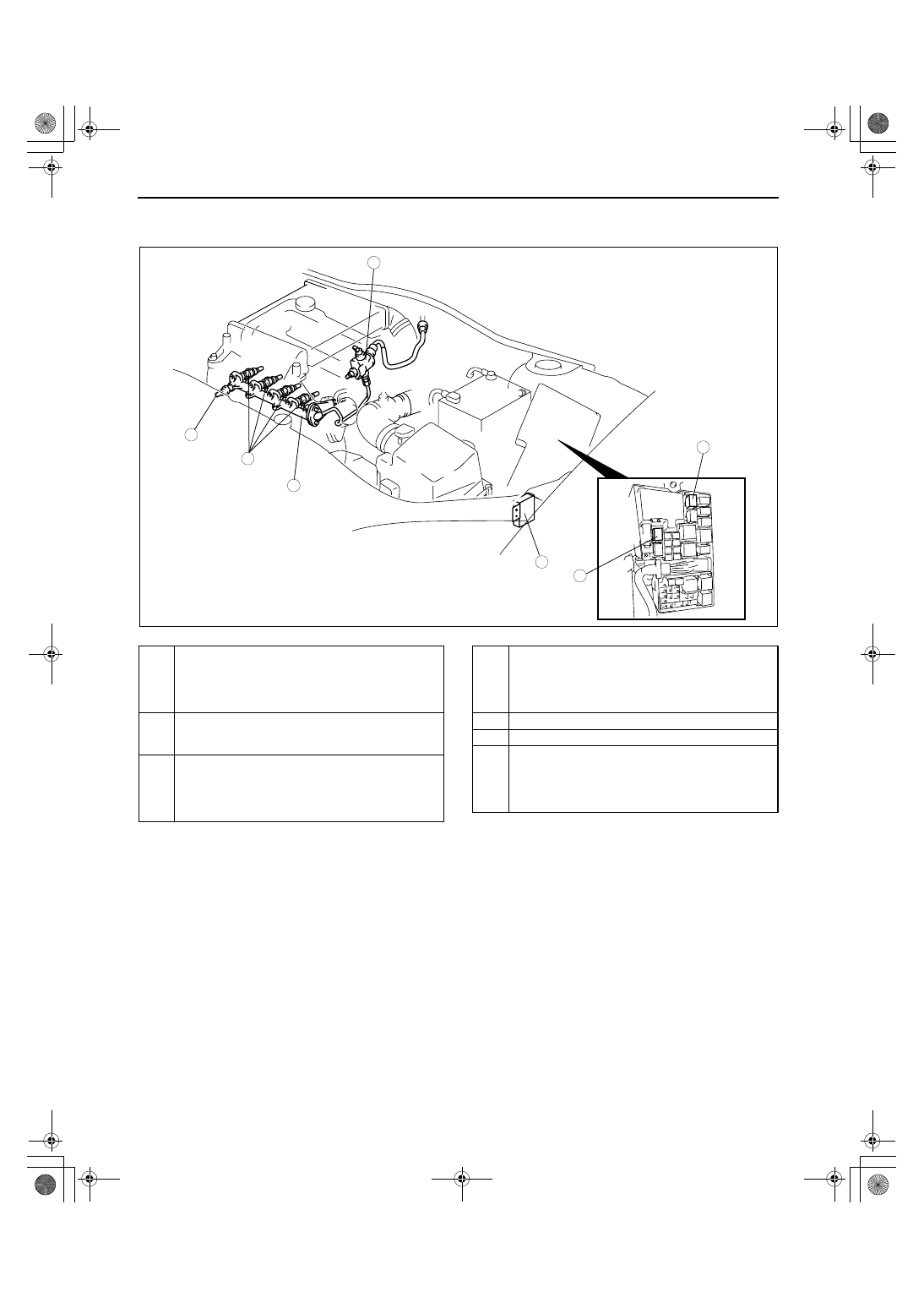

FUEL SYSTEM LOCATION INDEX[L3 WITH TC]

id011439800100

Engine Room Side

.

4

2

1

3

5

6

7

acxuuw00000154

1

Fuel injector
 (See01-14-23 FUEL INJECTOR REMOVAL/
INSTALLATION[L3 WITH TC].)
 (See01-14-27 FUEL INJECTOR INSPECTION[L3
WITH TC].)

2

Fuel delivery pipe
 (See01-14-23 FUEL INJECTOR REMOVAL/
INSTALLATION[L3 WITH TC].)

3

Fuel pressure sensor
(See01-14-23 FUEL INJECTOR REMOVAL/
INSTALLATION[L3 WITH TC].)
(See01-40-35 FUEL PRESSURE SENSOR
INSPECTION[L3 WITH TC].)

4

High pressure fuel pump
(See01-14-16 HIGH PRESSURE FUEL PUMP
REMOVAL/INSTALLATION[L3 WITH TC].)
(See01-14-19 HIGH PRESSURE FUEL PUMP
INSPECTION[L3 WITH TC].)

5

Fuel pump relay

6

Fuel pump speed control relay

7

Fuel pump resistor
(See01-14-15 FUEL PUMP RESISTOR REMOVAL/
INSTALLATION[L3 WITH TC].)
(See01-14-16 FUEL PUMP RESISTOR
INSPECTION[L3 WITH TC].)

1871-1U-06B(01-14).fm  2 ページ  2006年3月15日 水曜日 午前10時45分

FUEL SYSTEM [L3 WITH TC]

01-14–3

01-14

Fuel Tank Side

End Of Sie

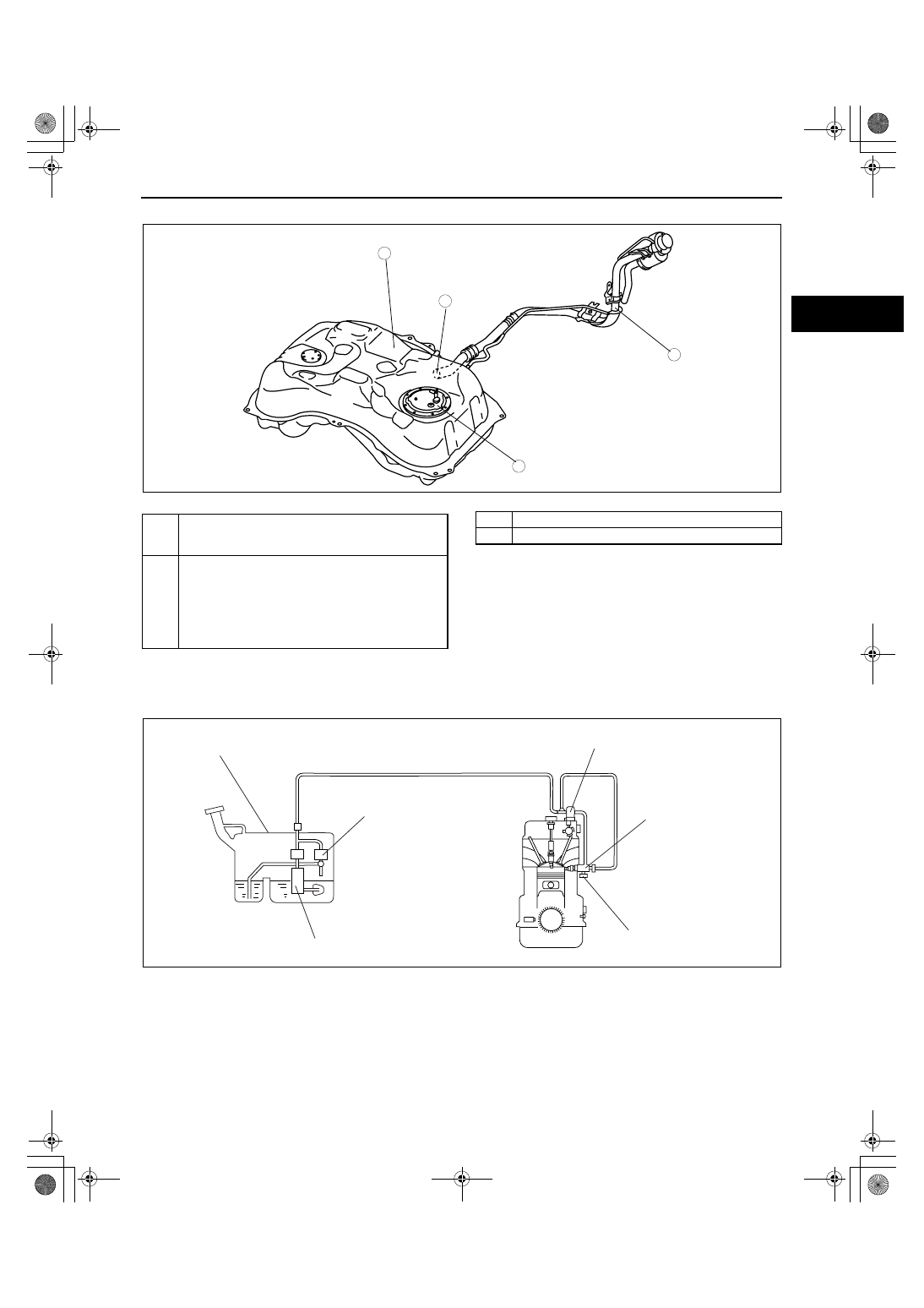

FUEL SYSTEM DIAGRAM[L3 WITH TC]

id011439800200

End Of Sie

1

2

3

4

acxuuw00000155

1

Fuel  tank
 (See01-14-7 FUEL TANK REMOVAL/
INSTALLATION[L3 WITH TC].)

2

Fuel pump unit
 (See01-14-11 FUEL PUMP UNIT REMOVAL/
INSTALLATION[L3 WITH TC].)
 (See01-14-13 FUEL PUMP UNIT DISASSEMBLY/
ASSEMBLY[L3 WITH TC].)
 (See01-14-13 FUEL PUMP UNIT INSPECTION[L3
WITH TC].)

3

Nonreturn valve

4

Fuel filler pipe

FUEL TANK

FUEL PUMP

PRESSURE REGULATOR

HIGH PRESSURE
FUEL PUMP

FUEL PRESSURE
SENSOR

FUEL INJECTOR

D6U114ZWC006

1871-1U-06B(01-14).fm  3 ページ  2006年3月15日 水曜日 午前10時45分

FUEL SYSTEM [L3 WITH TC]

01-14–4

BEFORE REPAIR PROCEDURE[L3 WITH TC]

id011439800300

Warning

• Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep

sparks and flames away from fuel.

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. Fuel can also irritate skin and eyes. To prevent this, always complete the following “Fuel
Line Safety Procedure”.

• A person charged with static electricity could cause a fire or explosion, resulting in death or

serious injury. Before performing work on the fuel system, discharge static electricity by touching
the vehicle body.

Fuel Line Safety Procedure

Note

• Fuel in the fuel system is under high pressure even when the engine is not running.

1. Remove the fuel-filler cap and release the pressure in the fuel tank.
2. Remove the fuel pump relay.
3. Start the engine.
4. After the engine stalls, crank the engine several

times.

5. Turn the ignition switch to the LOCK position.
6. Install the fuel pump relay.

End Of Sie

AFTER REPAIR PROCEDURE[L3 WITH TC]

id011439800400

Warning

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. When installing the fuel hose, perform “Fuel Leakage Inspection” described below.

Fuel Leakage Inspection

Warning

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. Always carry out the following procedure with the engine stopped.

• A person charged with static electricity could cause a fire or explosion, resulting in death or

serious injury. Before performing work on the fuel system, discharge static electricity by touching
the vehicle body.

Caution

• Connecting to the wrong check connector terminal may cause a malfunction. Carefully connect

only to the specified terminal.

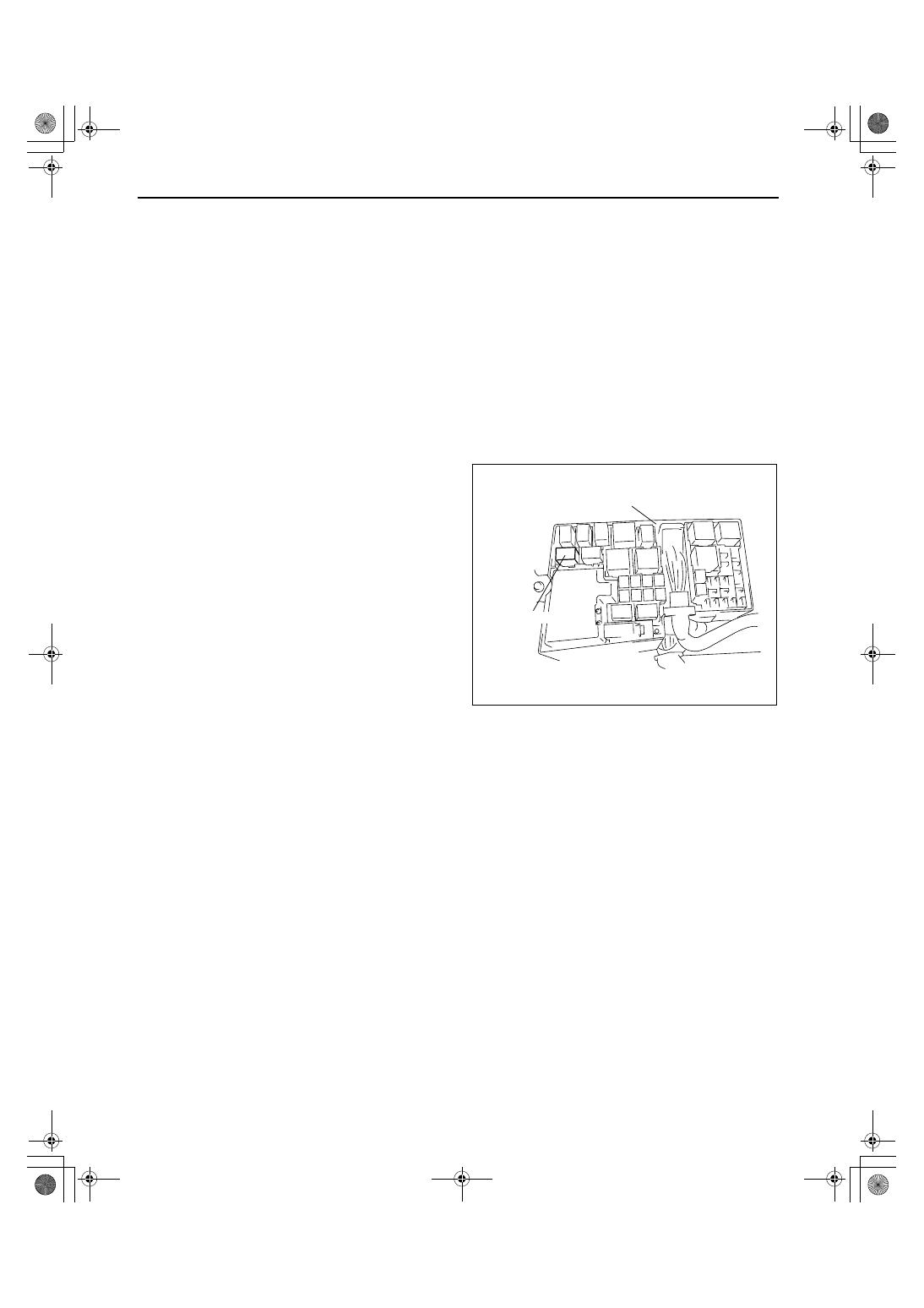

FUEL PUMP RELAY

MAIN FUSE BLOCK

acxuuw00000262

1871-1U-06B(01-14).fm  4 ページ  2006年3月15日 水曜日 午前10時45分
