III–2

PANEL REPLACEMENT

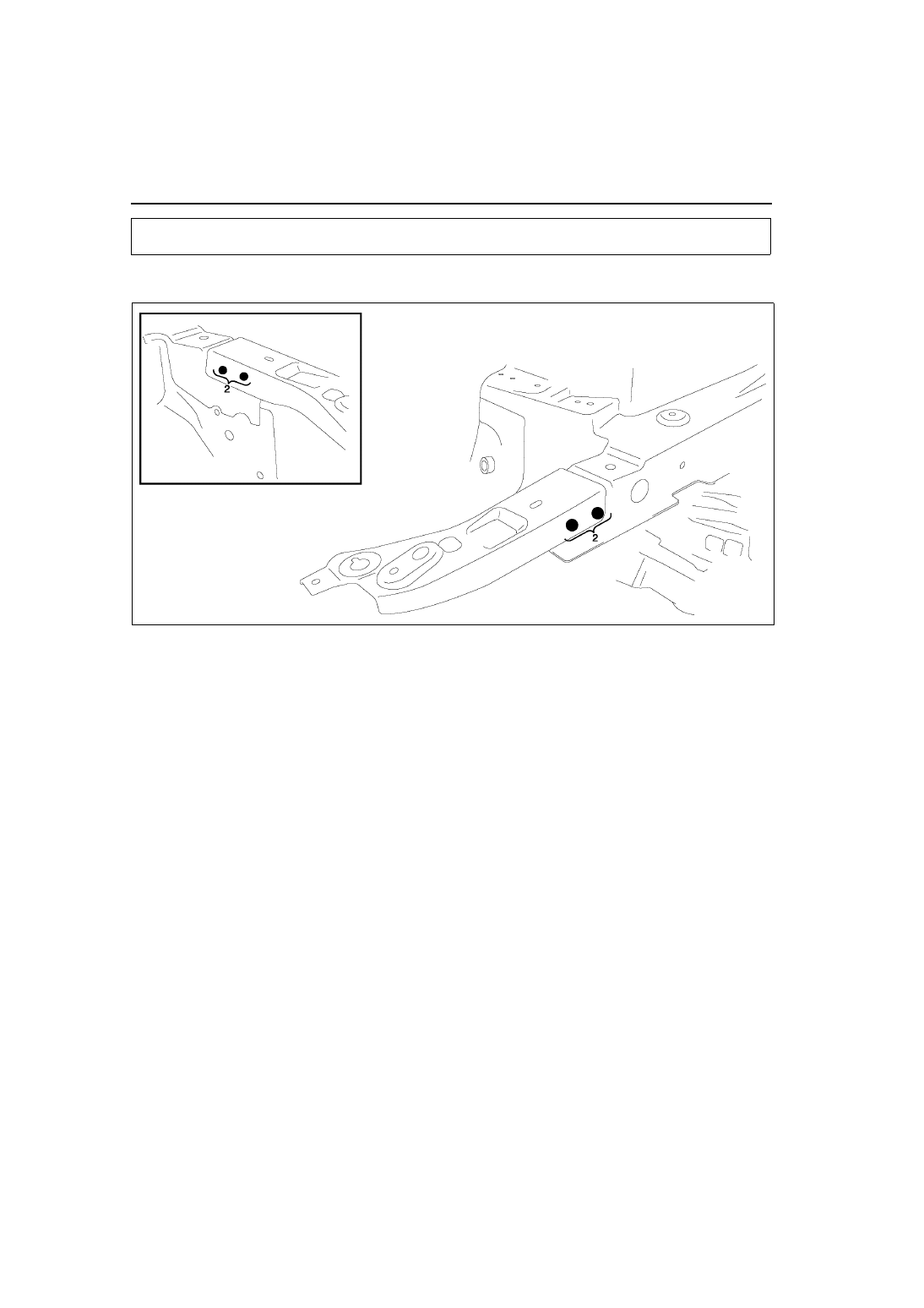

SHROUD UPPER REINFORCEMENT REMOVAL

A6E981253152B01

1. Remove the shroud upper reinforcement.

End Of Sie

PANEL REPLACEMENT

A6E9812B001

PANEL REPLACEMENT

III–3

III

SHROUD UPPER RAINFORCEMENT INSTALLATION

A6E981253152B02

1. Drill holes for plug welds before installing new parts.
2. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B002

III–4

PANEL REPLACEMENT

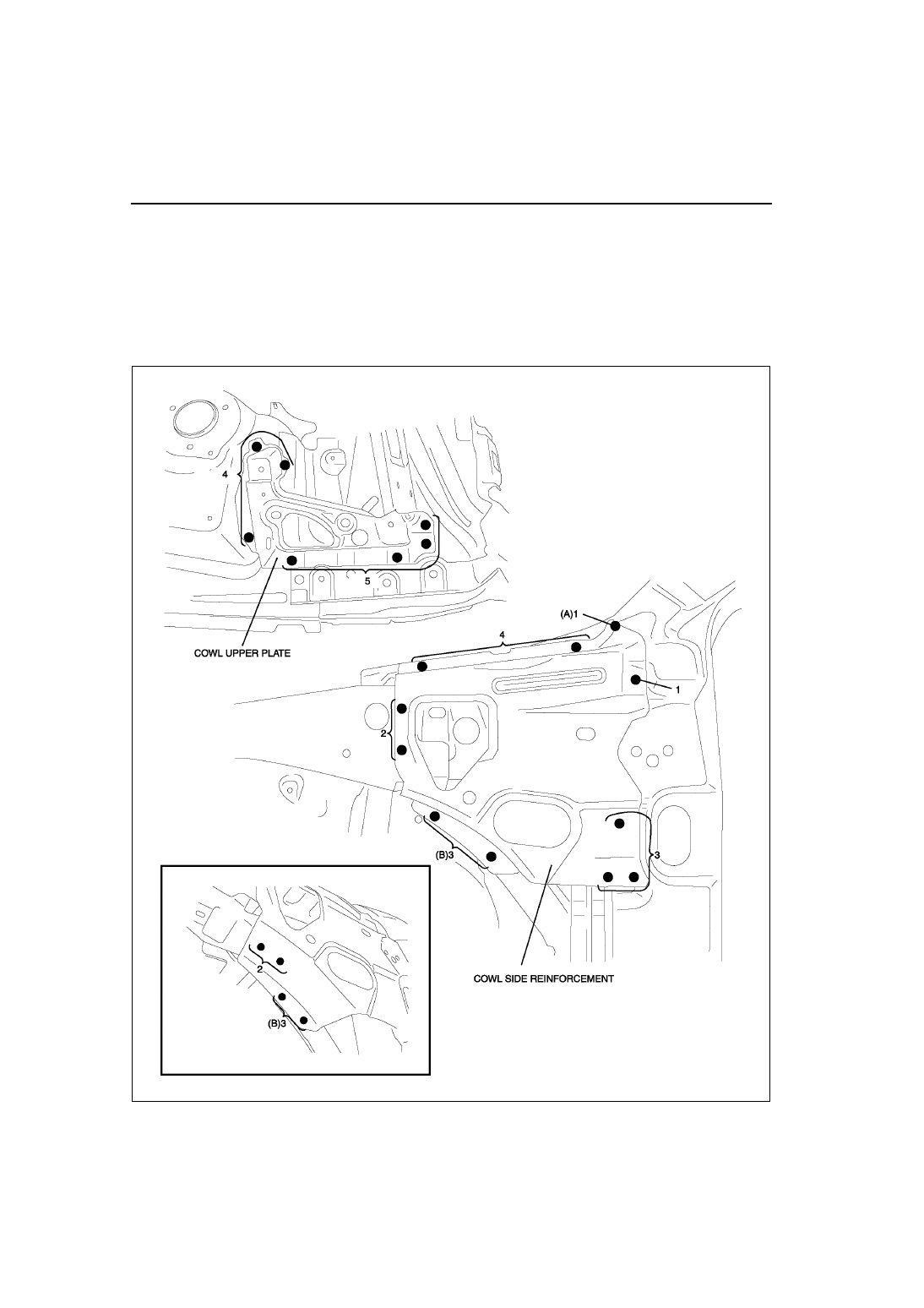

COWL SIDE REINFORCEMENT AND COWL UPPER PLATE REMOVAL

A6E981253290B01

1. Remove the cowl side reinforcement.

Note

• The weld locations (B) in the figure indicate the same locations.

Caution

• Be careful not to damage the windshield when drilling the location indicated by (A).

2. Remove the cowl upper plate.

End Of Sie

A6E9812B003

PANEL REPLACEMENT

III–5

III

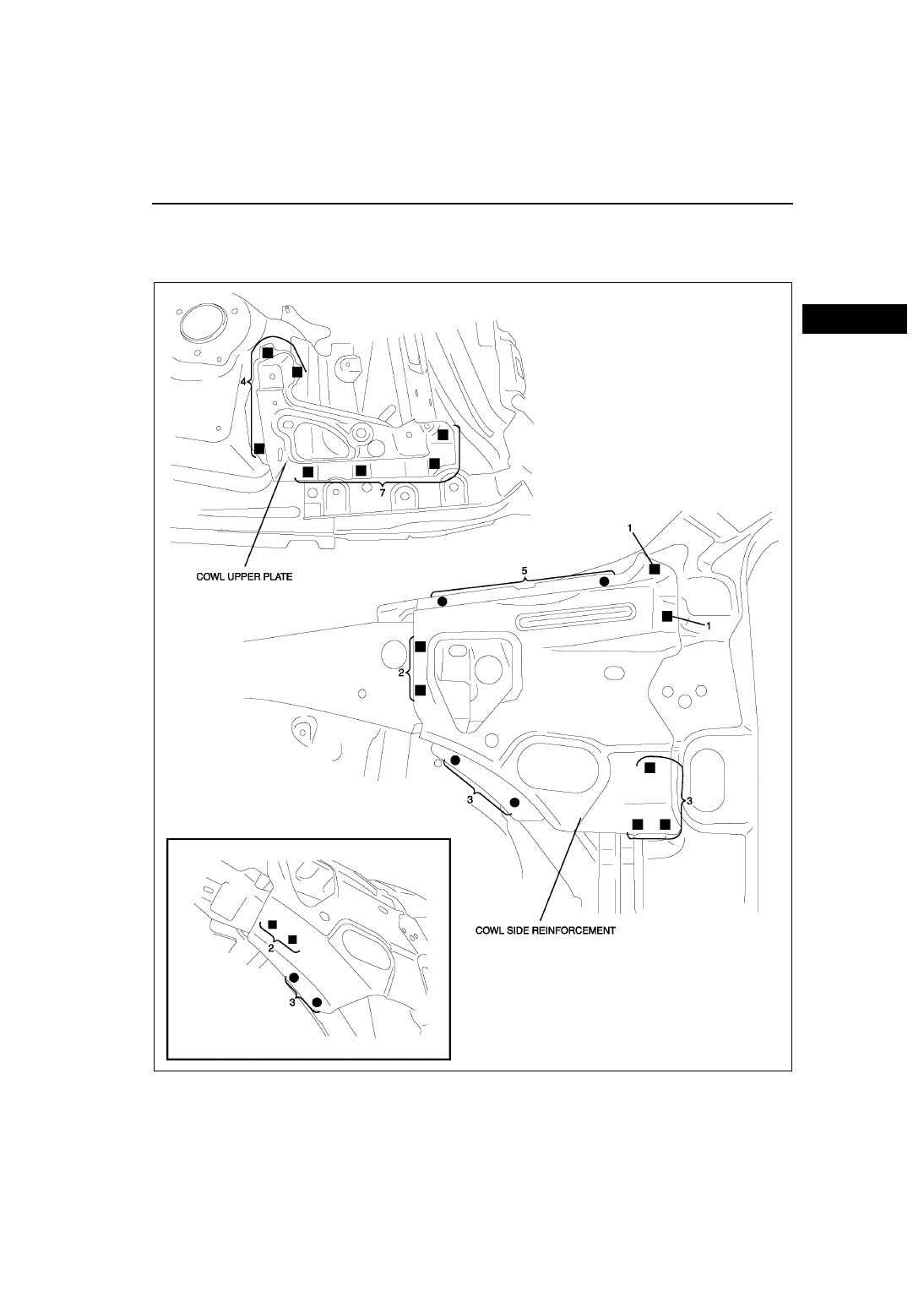

COWL SIDE REINFORCEMENT AND COWL UPPER PLATE INSTALLATION

A6E981253290B02

1. When installing new parts, position each part so that the section measurement aligns to the body dimension.
2. Drill holes for plug welds before installing new parts.
3. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B004
