T–20

POWER SYSTEM

FUSE BLOCK REMOVAL/INSTALLATION

A6E811066730W01

1. Disconnect the negative battery cable.
2. Remove the left-side front side trim. (See

S–88 FRONT SIDE TRIM REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

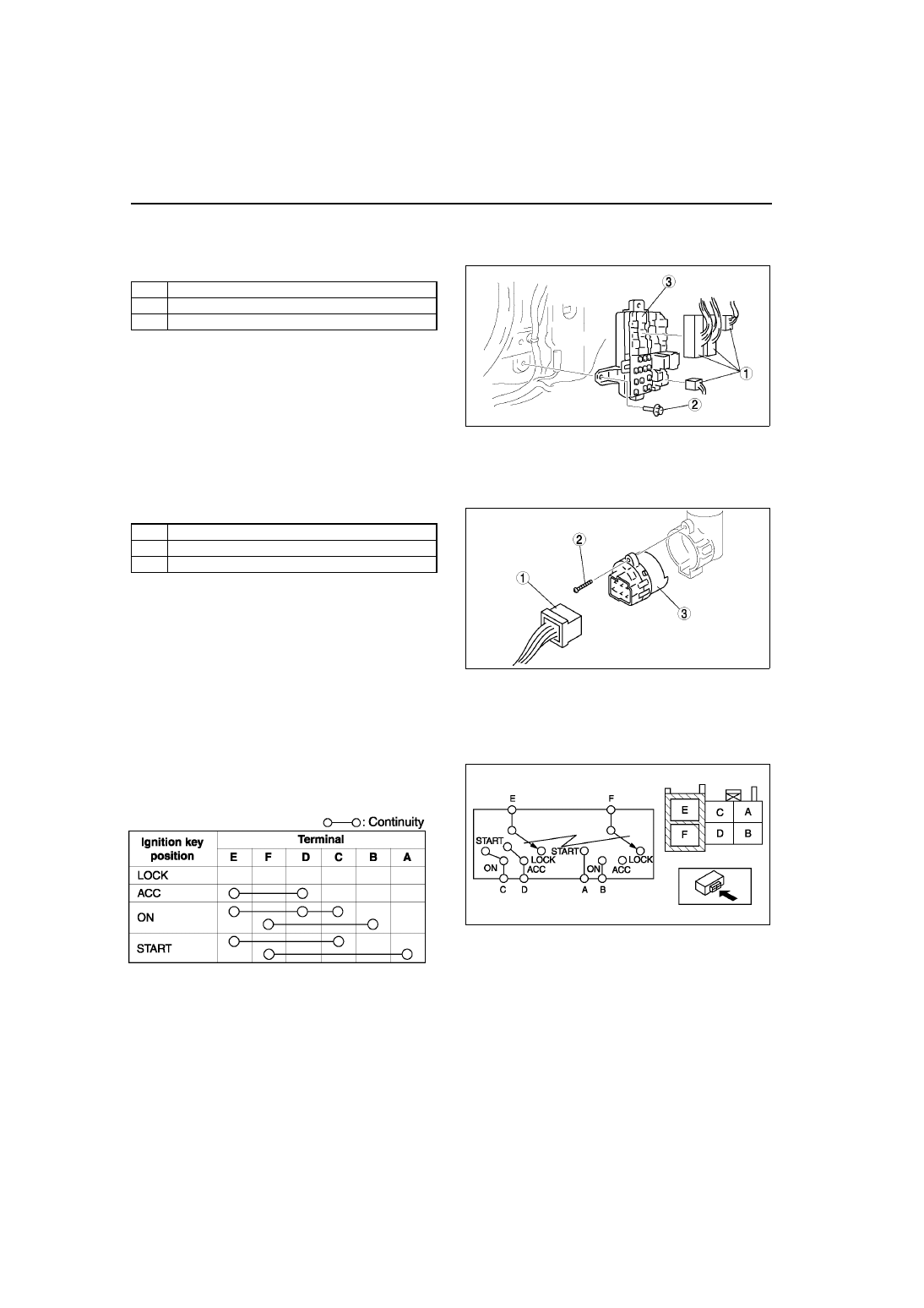

IGNITION SWITCH REMOVAL/INSTALLATION

A6E811066151W01

1. Disconnect the negative battery cable.
2. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

IGNITION SWITCH INSPECTION

A6E811066151W02

1. Disconnect the negative battery cable.
2. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

3. Disconnect the ignition switch connectors.
4. Inspect for continuity between the ignition switch

terminals using an ohmmeter.

• If not as specified, replace the ignition switch.

End Of Sie

1

Connector

2

Bolt

3

Fuse block

A6E8110W107

1

Connector

2

Screw

3

Ignition switch

A6E8110W101

A6E8110W116

A6E8110W114

POWER SYSTEM

T–21

T

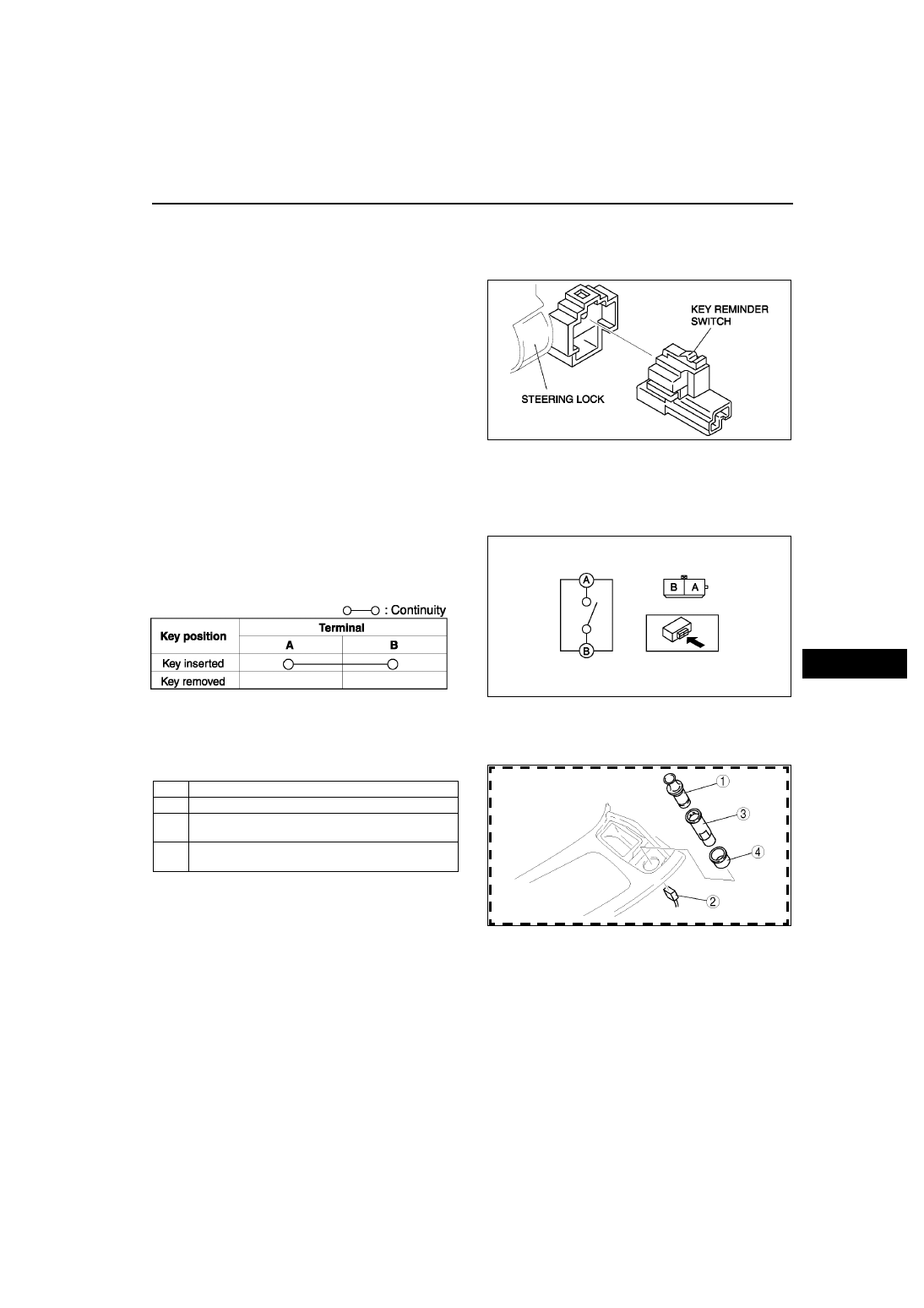

KEY REMINDER SWITCH REMOVAL/INSTALLATION

A6E811066152W01

1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the key reminder switch connector.
4. Remove the key reminder switch.
5. Install in the reverse order of removal.

End Of Sie

KEY REMINDER SWITCH INSPECTION

A6E811066152W02

1. Disconnect the negative battery cable.
2. Remove the column cover. (See

S–84 COLUMN COVER REMOVAL/INSTALLATION

)

3. Disconnect the key reminder switch connector.
4. Inspect for continuity between the key reminder

switch terminals using an ohmmeter.

• If not as specified, replace the key reminder

switch.

End Of Sie

CIGARETTE LIGHTER REMOVAL/INSTALLATION

A6E811067000W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

A6E8110W102

A6E8110W117

A6E8110W115

1

Cigarette lighter plug

2

Connector

3

Socket
(See

T–22 Socket Removal Note

)

4

Ring
(See

T–22 Ring Removal Note

)

A6E8110W103

T–22

POWER SYSTEM

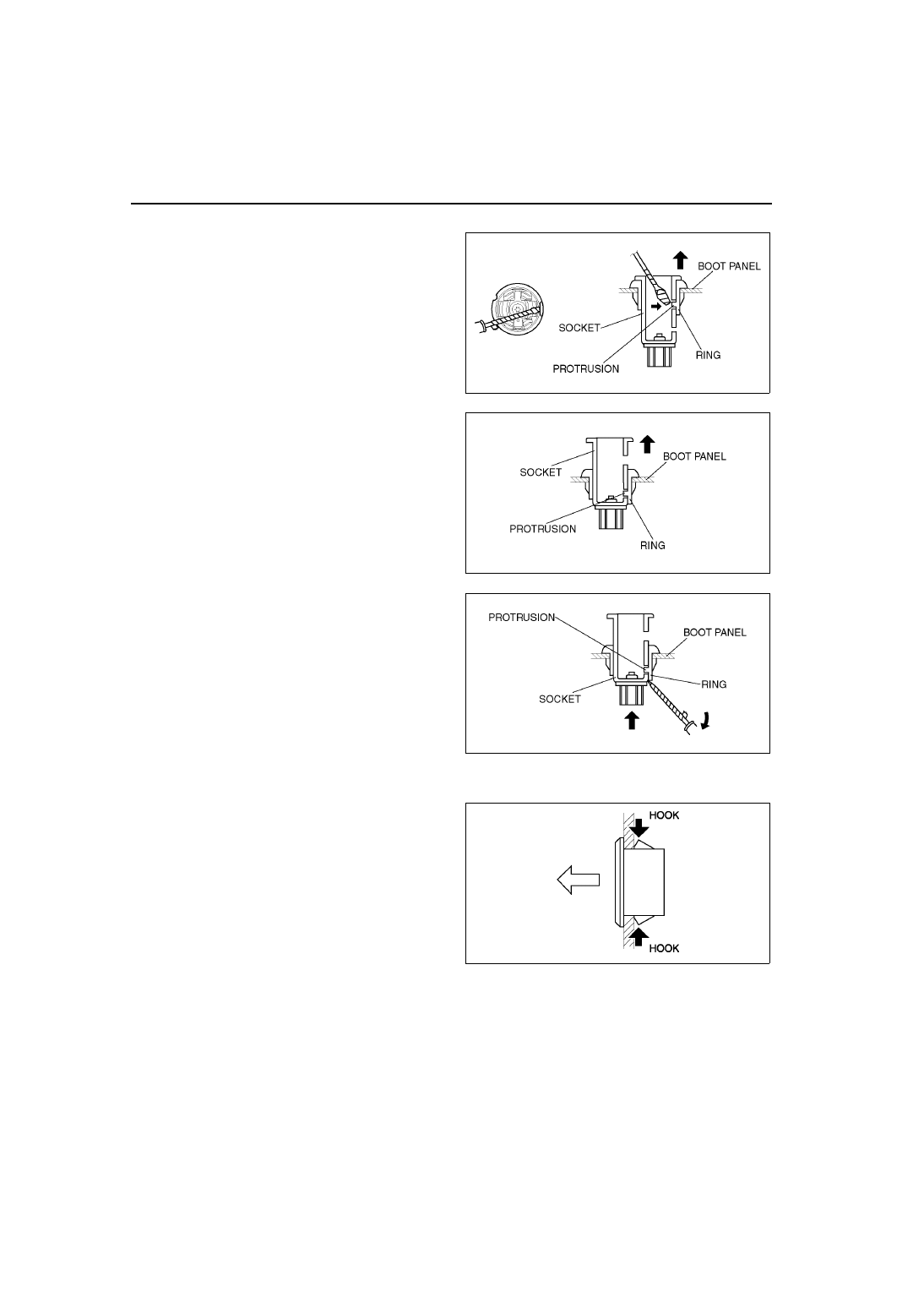

Socket Removal Note

1. Insert a tape-wrapped screwdriver into the socket

hole, then press against the ring protrusion to lift
the socket toward you.

2. As shown in the figure, lift out the socket until the

ring protrusion locks into the lower socket hole.

3. Remove the boot panel.

4. From behind the boot panel, slide a tape-wrapped

screwdriver in between the socket and the ring
protrusion..

5. While twisting the ring protrusion with the

screwdriver, push out and remove the socket.

Ring Removal Note

1. Pull the ring forward while compressing the

hooks.

End Of Sie

CIGARETTE LIGHTER INSPECTION

A6E811067000W02

1. Turn the ignition switch to ACC position.
2. Verify that the cigarette lighter comes out within 10—20 seconds, after pressing the plug into the socket.

• If the cigarette lighter does not operate normally, replace the cigarette lighter plug and socket.

End Of Sie

A6E8110W104

A6E8110W106

A6E8110W201

A6E8110W105

POWER SYSTEM

T–23

T

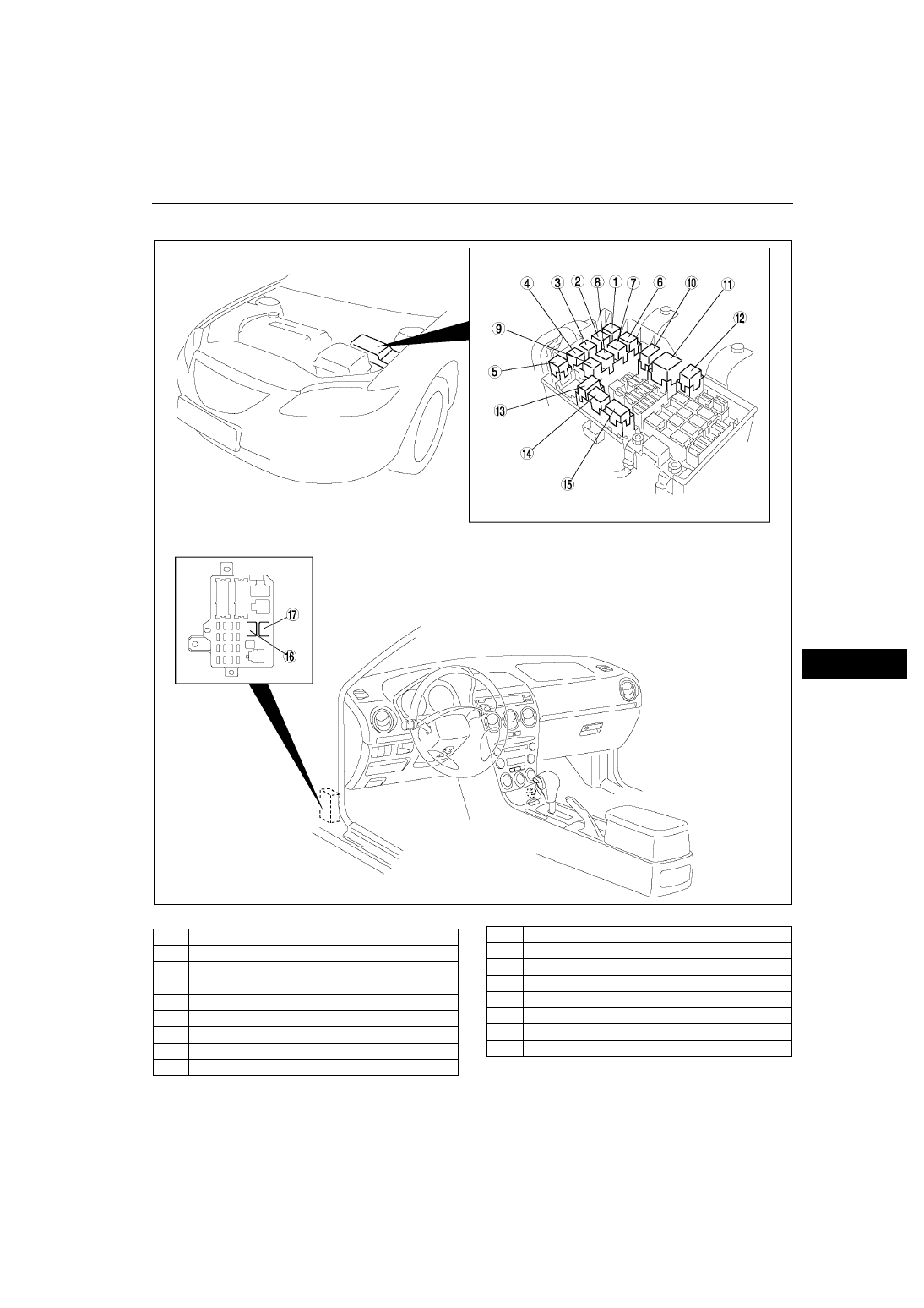

RELAY LOCATION

A6E811067730W01

.

End Of Sie

A6E8110T102

1

Cooling fan relay No.2

2

Horn  relay

3

Cooling fan relay No.3

4

Stater  relay

5

Cooling fan relay No.4

6

Woofer  relay

7

Rear window defroster relay

8

Rear fog light relay

9

A/C  relay

10

Main relay

11

Headlight relay

12

TNS relay

13

Cooling fan relay No.1

14

Headlight cleaner relay

15

Front fog light relay

16

Fuel pump relay

17

Blower relay
