ENGINE SPEED SENSING POWER STEERING

N–7

N

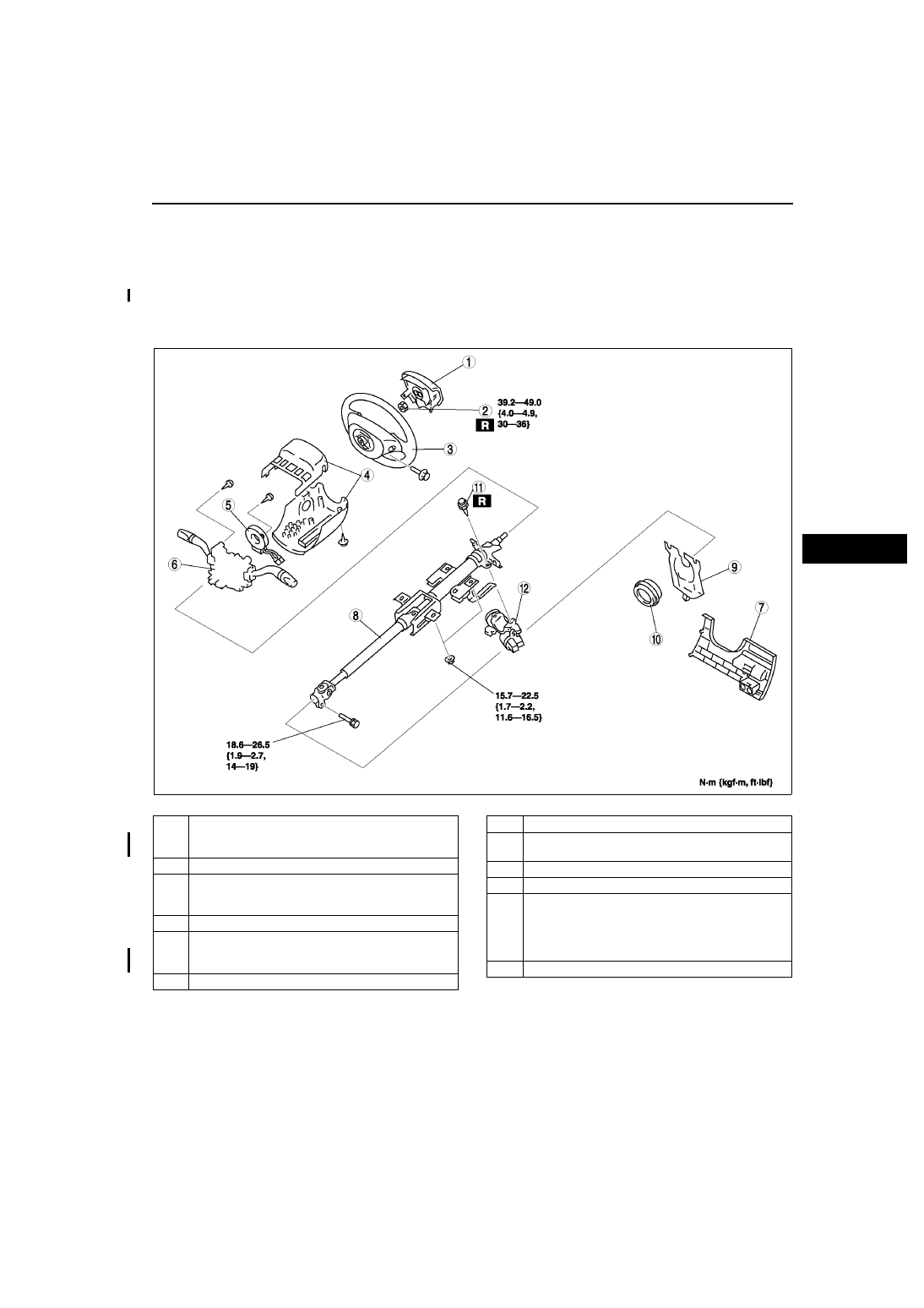

STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION

A6E661432010W02

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may

seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See

T–117 SERVICE WARNINGS

.)

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

3.

.

A6E0612W017

1

Air bag module
(See

T–120 DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION

)

2

Locknut

3

Steering wheel
(See

N–8 Steering Wheel Removal Note

)

(See

N–8 Steering Wheel Installation Note

)

4

Column cover

5

Clock spring
(See

T–125 CLOCK SPRING REMOVAL/

INSTALLATION

)

6

Combination switch

7

Lower panel

8

Steering shaft
(See

N–8 Steering Shaft Installation Note

)

9

Joint cover

10

Dust cover

11

Steering lock mounting bolts
(See

N–8 Steering Lock Mounting Bolts Removal

Note

)

(See

N–8 Steering Lock Mounting Bolts Installation

Note

)

12

Steering lock component

N–8

ENGINE SPEED SENSING POWER STEERING

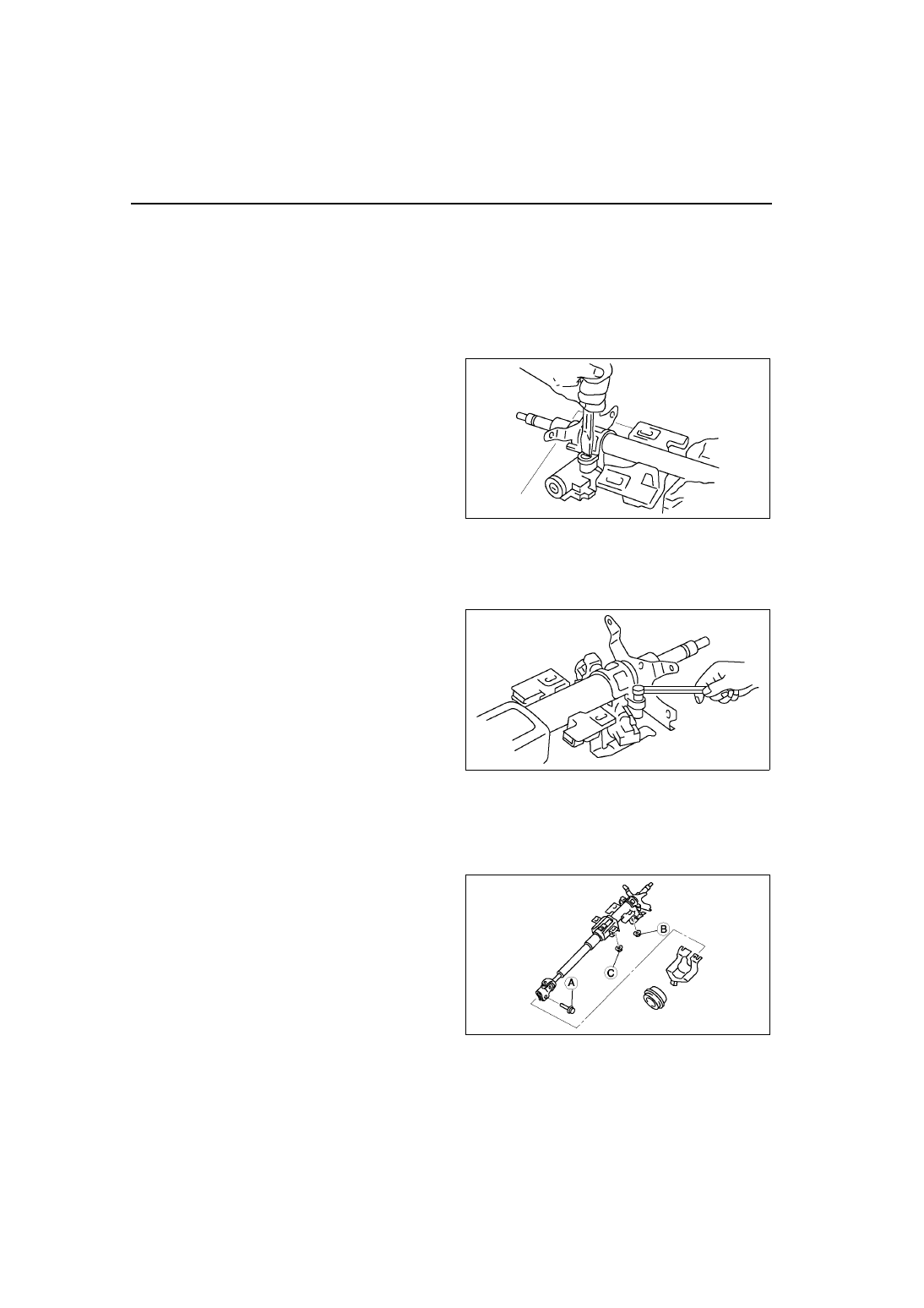

Steering Wheel Removal Note

Caution

• Do not try to remove the steering wheel by hitting the shaft with a hammer. The column will

collapse.

1. Set the vehicle in the straight-ahead position.
2. Remove the steering wheel using a suitable puller.

Steering Lock Mounting Bolts Removal Note

1. Make a groove in the heads of the steering lock

mounting bolts using a chisel and a hammer.

2. Remove the bolts using a screwdriver.
3. Disassemble the steering lock component.

Steering Lock Mounting Bolts Installation Note

1. Assemble the steering lock component to the steering shaft.
2. Verify that the lock operates correctly.
3. Install new steering lock mounting bolts.
4. Tighten the bolts until the heads break off.

Steering Shaft Installation Note

Caution

• Do not apply a shock in the axial direction of the shaft.

1. Lock the tilt lever.
2. Tighten bolt A.
3. Tighten nut B.
4. Tighten nut C.

Steering Wheel Installation Note

1. Set the wheels in the straight-ahead position, and install the steering wheel.

End Of Sie

A6E0612W018

A6E0612W020

A6E0612W103

ENGINE SPEED SENSING POWER STEERING

N–9

N

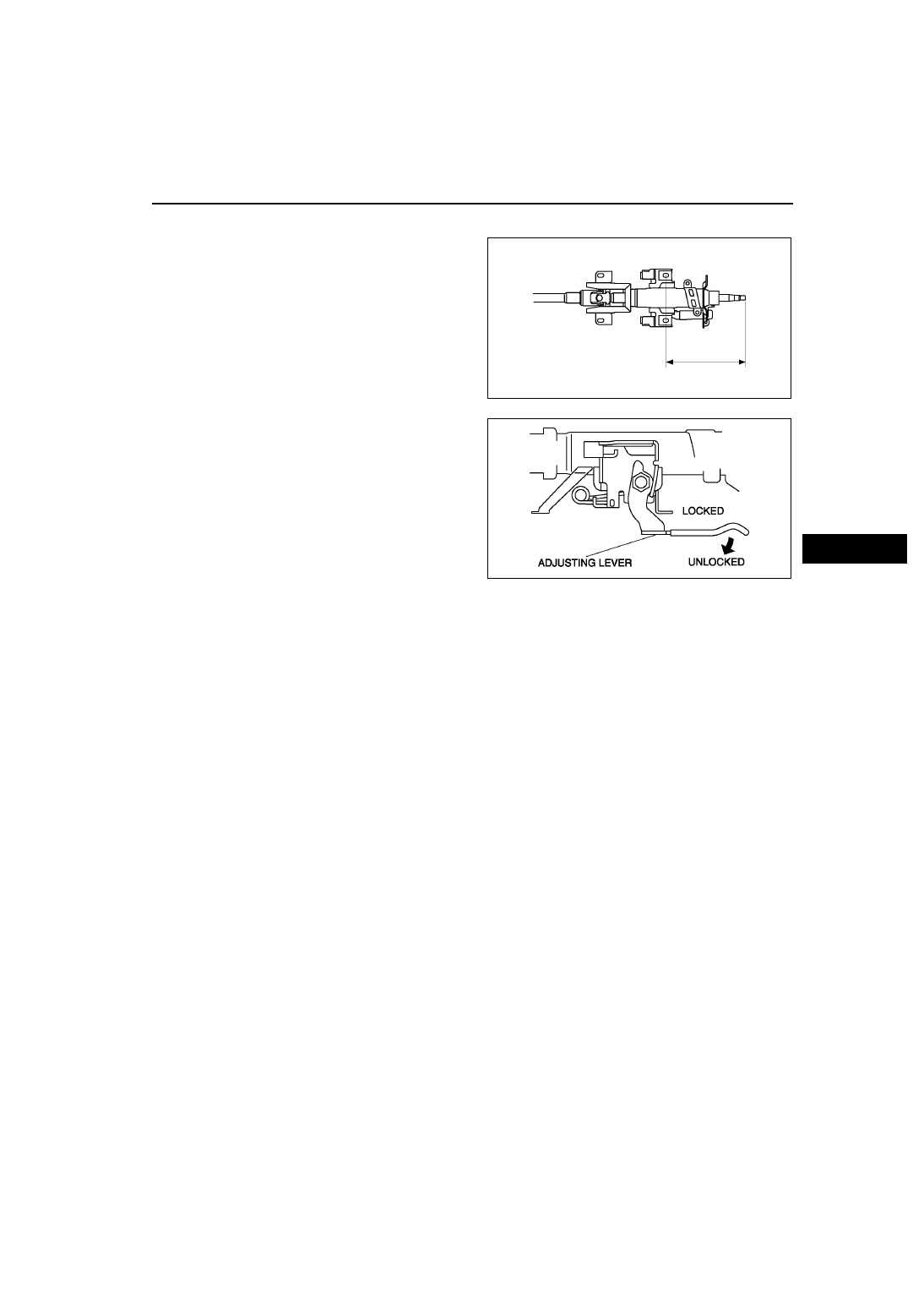

STEERING SHAFT INSPECTION

A6E661432100W01

1. Inspect the following.

(1) Column bearing for damage
(2) Steering shaft length

• Replace the steering shaft component as

necessary.

Length

211.6 mm {8.3 in}

2. Inspect the tilt and telescope operation

(1) Verify that the adjusting lever moves smoothly

from unlock position to lock position.

(2) Verify that the steering shaft is fixed firmly

when the adjusting lever is locked.

• Replace the steering shaft component as

necessary.

End Of Sie

A6E0612W022

A6E0612W023

N–10

ENGINE SPEED SENSING POWER STEERING

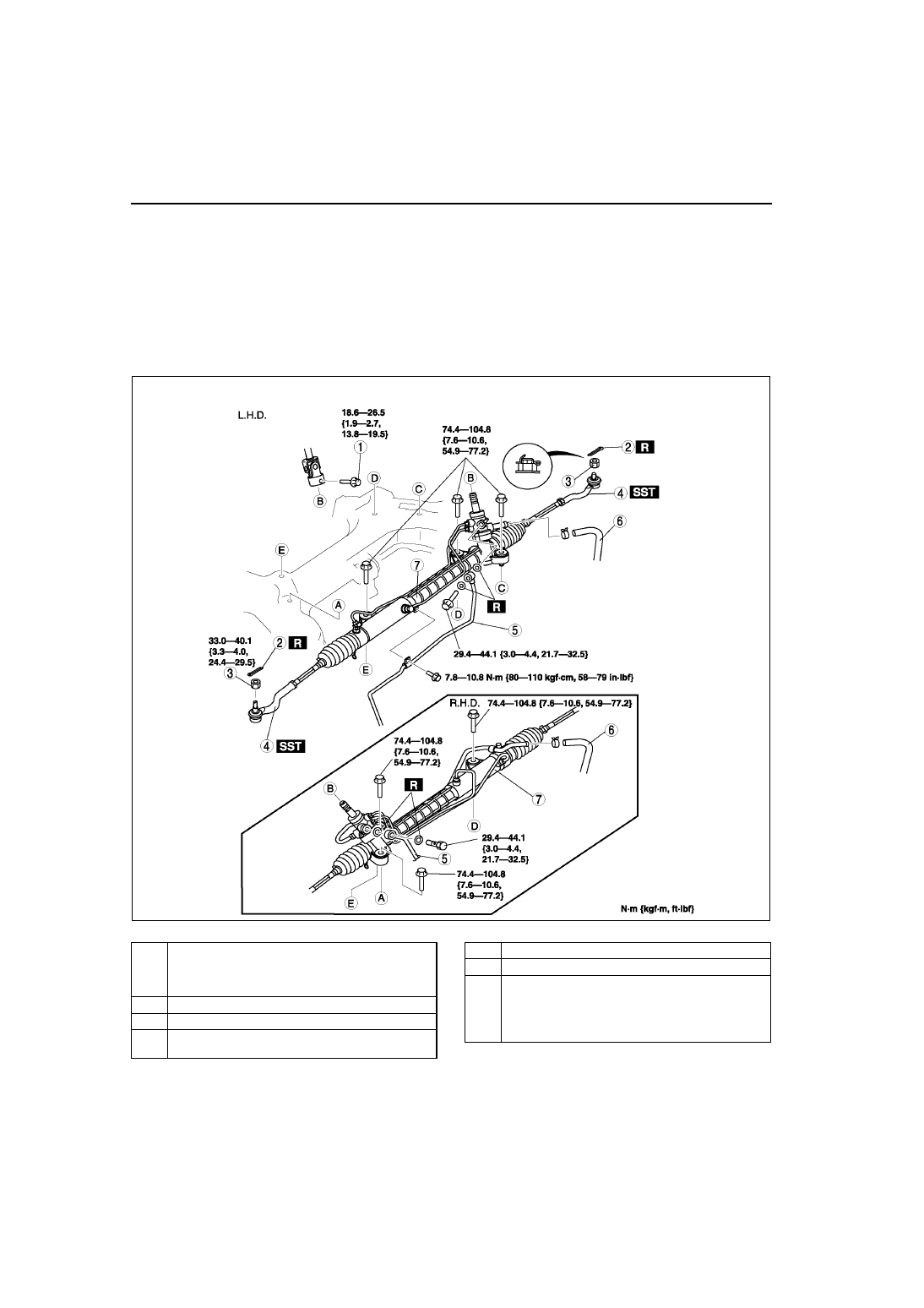

STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION

A6E661432960W01

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may

possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, inspect the toe-in. (See

R–5 FRONT WHEEL ALIGNMENT

.)

.

A6E0612W108

1

Bolt (intermediate shaft)
(See

N–11 Bolt (Intermediate Shaft) Removal Note

)

(See

N–12 Bolt (Intermediate Shaft) Installation

Note

)

2

Cotter pin

3

Nuts (tie-rod end ball joint)

4

Tie-rod end ball joint
(See

N–11 Tie-rod End Ball Joint Removal Note

)

5

Pressure pipe

6

Return pipe

7

Steering gear and linkage
(See

N–11 Steering Gear and Linkage Removal

Note

)

(See

N–12 Steering Gear and Linkage Installation

Note

)
