F–32

FUEL SYSTEM

— No.2 cylinder fuel injector terminal A (harness-side) and power supply.
— No.3 cylinder fuel injector terminal A (harness-side) and power supply.
— No.4 cylinder fuel injector terminal A (harness-side) and power supply.

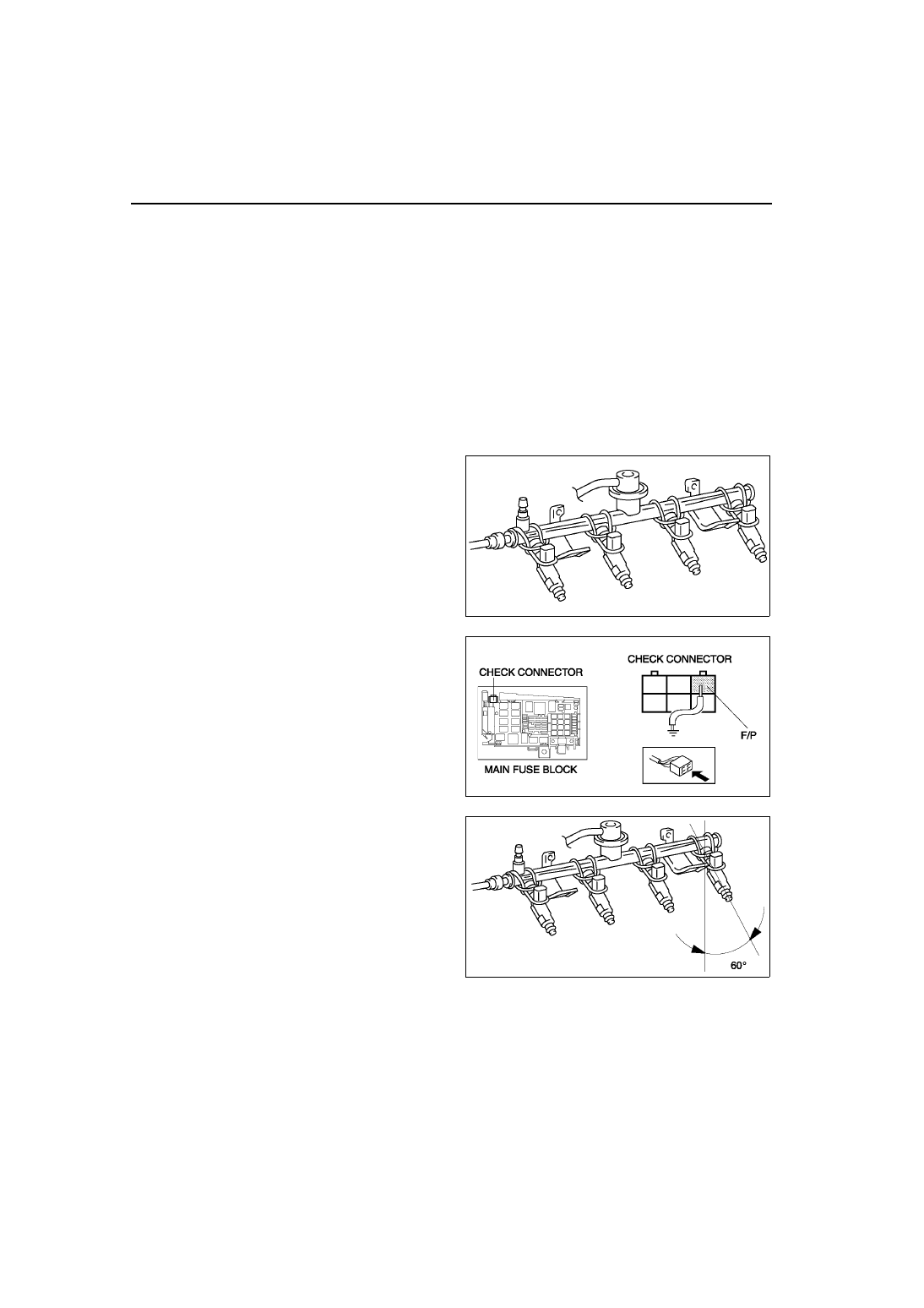

Fuel Leakage Inspection

Warning

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. Always carry out the following procedure with the engine stopped.

Note

• Perform the following test only when directed.

1. Complete the “BEFORE REPAIR PROCEDURE”. (See

F–17 BEFORE REPAIR PROCEDURE

.)

2. Disconnect the negative battery cable.
3. Remove the fuel injectors together with the fuel distributor with the fuel hose connected. (See

F–28 FUEL

INJECTOR REMOVAL/INSTALLATION

.)

4. Fasten the fuel injectors firmly to the fuel

distributor with wire.

5. Connect the negative battery cable.

Caution

• Connecting the wrong check connector

terminal may possibly cause
malfunction. Carefully connect the
specified terminal only.

6. Short the check connector terminal F/P to body

GND using a jumper wire.

7. Turn the ignition switch to ON position to operate

the fuel pump.

8. Tilt the fuel injectors approx. 60 degrees.
9. Verify that fuel leakage from the fuel injector

nozzles is within the specification.

• If not as specified, replace the fuel injector.

Fuel leakage

Less than 1 drop/2 minutes

10. Turn the ignition switch to LOCK position and

remove the jumper wire.

11. Complete the “AFTER REPAIR PROCEDURE”.

(See

F–17 AFTER REPAIR PROCEDURE

.)

A6E3912W009

A6E3912W037

A6E3912W010

FUEL SYSTEM

F–33

F

Volume Inspection

Warning

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. Always carry out the following procedure with the engine stopped.

Note

• If there is an after market fuel injector tester, perform the following test.

• If there is no an after market fuel injector tester, perform “Operation Test”, “Resistance Inspection”, and

“Fuel Leakage Test” to verify the fuel injector is okay or not.

1. Complete the “BEFORE REPAIR PROCEDURE”. (See

F–17 BEFORE REPAIR PROCEDURE

.)

2. Disconnect the negative battery cable.
3. Remove the fuel injectors. (See

F–28 FUEL INJECTOR REMOVAL/INSTALLATION

.)

4. Connect the fuel injector to the fuel injector tester.
5. Measure the injection volume of each fuel injector using a graduated container.

• If not as specified, replace the fuel injector.

Injection volume

L3: 61—71 ml {61—79 cc, 2.2—2.7 fl oz}/15 sec.
LF: 53—69 ml {53—69 cc, 1.9—2.4 fl oz}/15 sec.
L8: 48—63 ml {48—63 cc, 1.7—2.2 fl oz}/15 sec.

6. Turn the ignition switch to LOCK position and disconnect the jumper wire.
7. Complete the “AFTER REPAIR PROCEDURE”. (See

F–17 AFTER REPAIR PROCEDURE

.)

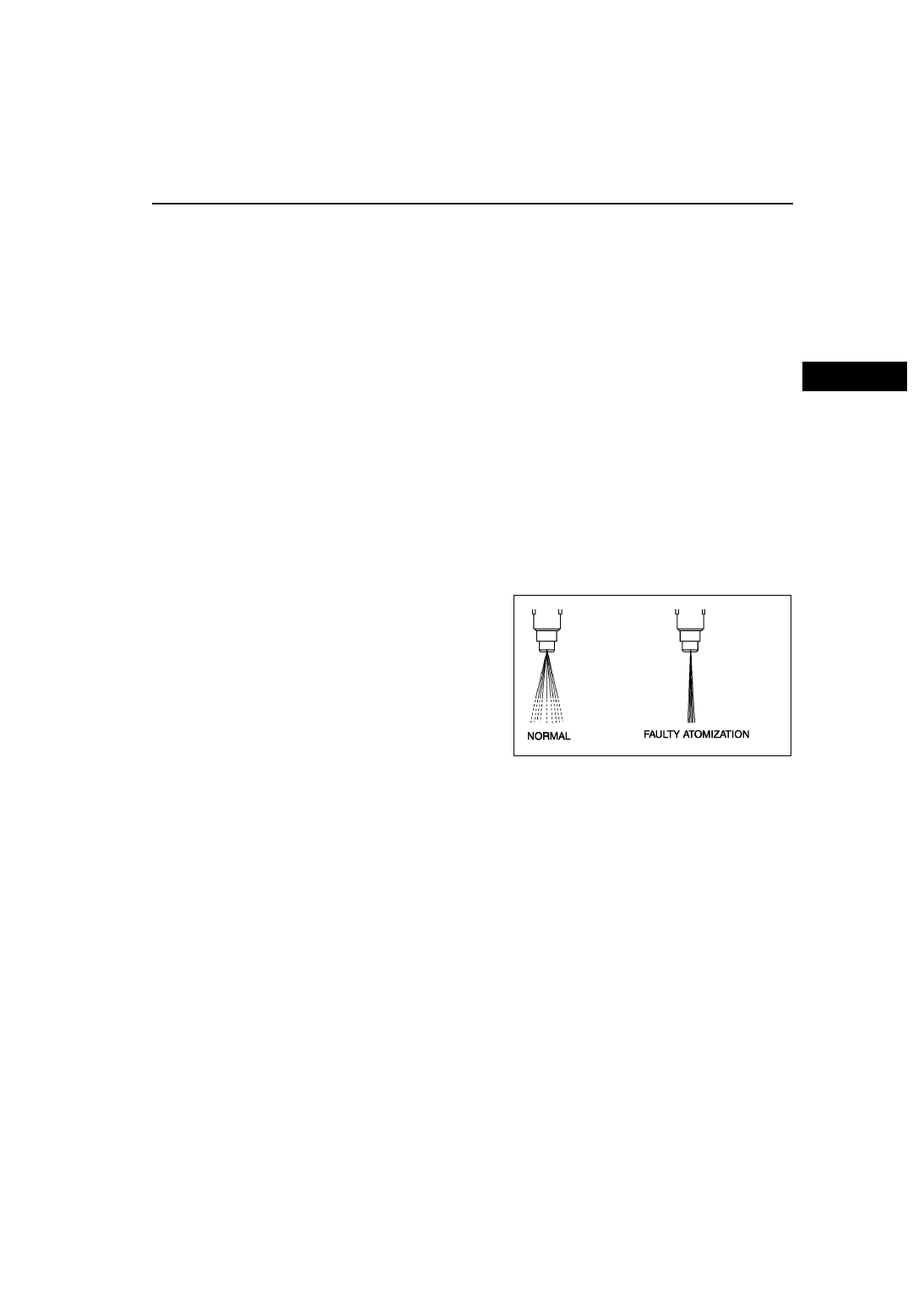

Atomization

1. Inspect atomization pattern.

• If the atomization is faulty, replace the fuel injector.

End Of Sie

A6E3912W011

F–34

FUEL SYSTEM

PRESSURE REGULATOR INSPECTION

A6E391213280W01

Note

• Due to the adoption of the mechanical returnless fuel system, the pressure regulator cannot be inspected

separately.

1. Perform “FUEL LINE PRESSURE INSPECTION”. (See

F–20 FUEL LINE PRESSURE INSPECTION

.)

End Of Sie

PULSATION DAMPER REMOVAL/INSTALLATION

A6E391220180W01

1. Remove and install the pressure regulator.(See

F–28 FUEL INJECTOR REMOVAL/INSTALLATION

.)

End Of Sie

PULSATION DAMPER INSPECTION

A6E391220180W02

1. Complete the “BEFORE REPAIR PROCEDURE”. (See

F–17 BEFORE REPAIR PROCEDURE

.)

2. Remove the pulsation damper. (See

F–34 PULSATION DAMPER REMOVAL/INSTALLATION

.)

3. Visually inspect the pulsation damper for damage and cracks. Also verify that there is no extreme rust which

will cause fuel leakage.

• If either is observed, replace the pulsation damper.

4. Complete the “AFTER REPAIR PROCEDURE”. (See

F–17 AFTER REPAIR PROCEDURE

.)

End Of Sie

EXHAUST SYSTEM

F–35

F

EXHAUST SYSTEM INSPECTION

A6E391440000W01

1. Start the engine and inspect each exhaust system component for exhaust gas leakage.

• If leakage is found, repair or replace as necessary.

End Of Sie

EXHAUST SYSTEM REMOVAL/INSTALLATION

A6E391440000W02

Warning

• When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait

until they are cool before removing the exhaust system.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
