FAN MOTOR
E–11
E
COOLING FAN MOTOR INSPECTION
A6E362215025W03

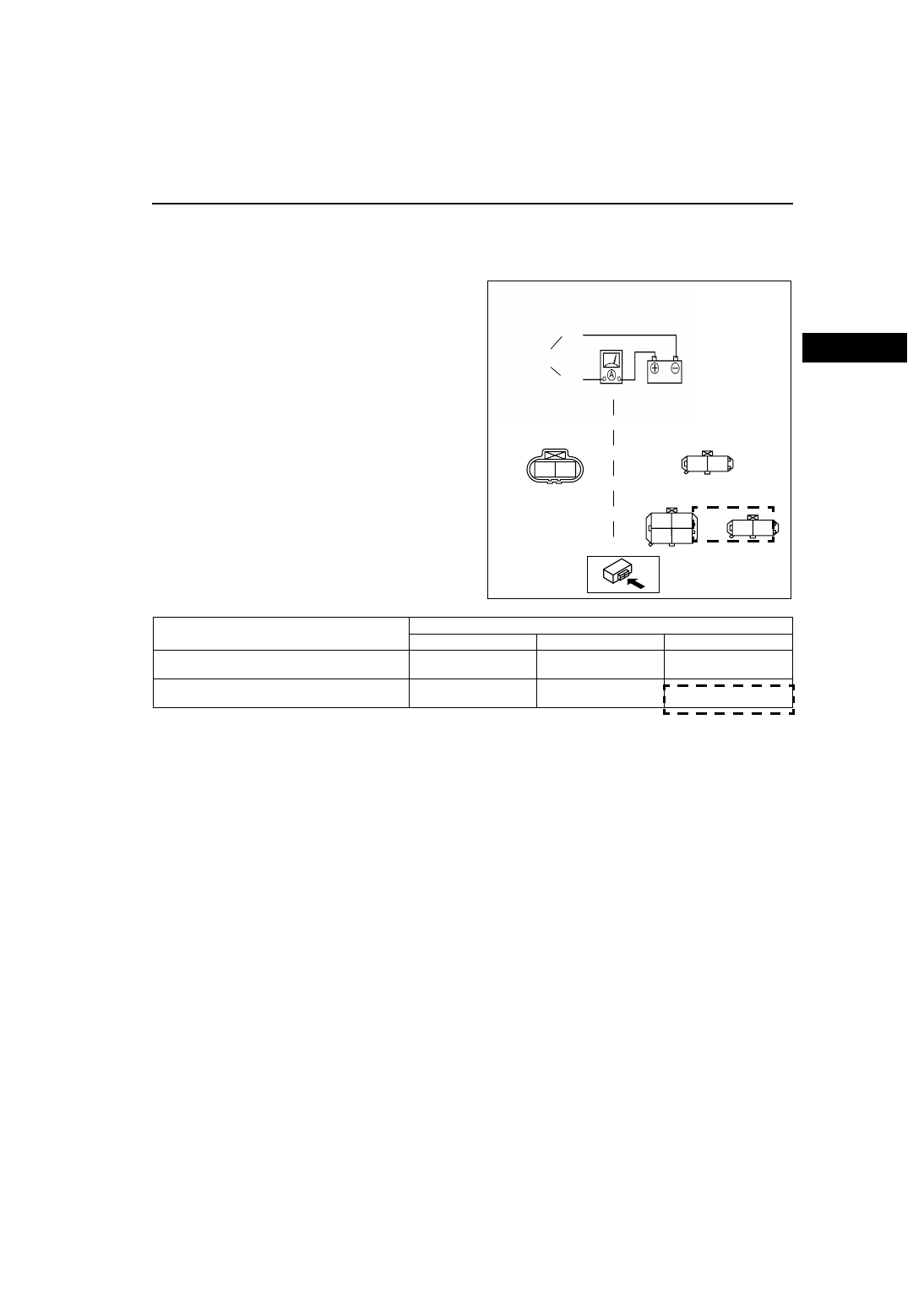

1. Verify that the battery is fully charged.
2. Connect battery positive voltage and an ammeter to the fan motor connector.
3. Verify that the fan motor operates smoothly at the standard current draw.
• If not as spcifid, replace the fan motor.
End Of Sie
TERMINAL No.
B
A
COOLING FAN HARNESS
CONNECTOR
LF
COOLING FAN
MOTOR No.1, 2
L3
COOLING FAN
MOTOR No.1
No.2
A
B
A
B
A
A
B
B
A
B
OR
A6A0112W001
Part name
Current (A)
L8
LF
L3
Cooling fan motor No.1
6.6
6.6 (Except Israel)
10 (For Israel)
5.9 (Except Israel)
10 (For Israel)
Cooling fan motor No.2
6.6
6.6(Except Israel)
10 (For Israel)
8
–
10
