T–80

AUDIO AND NAVIGATION SYSTEM

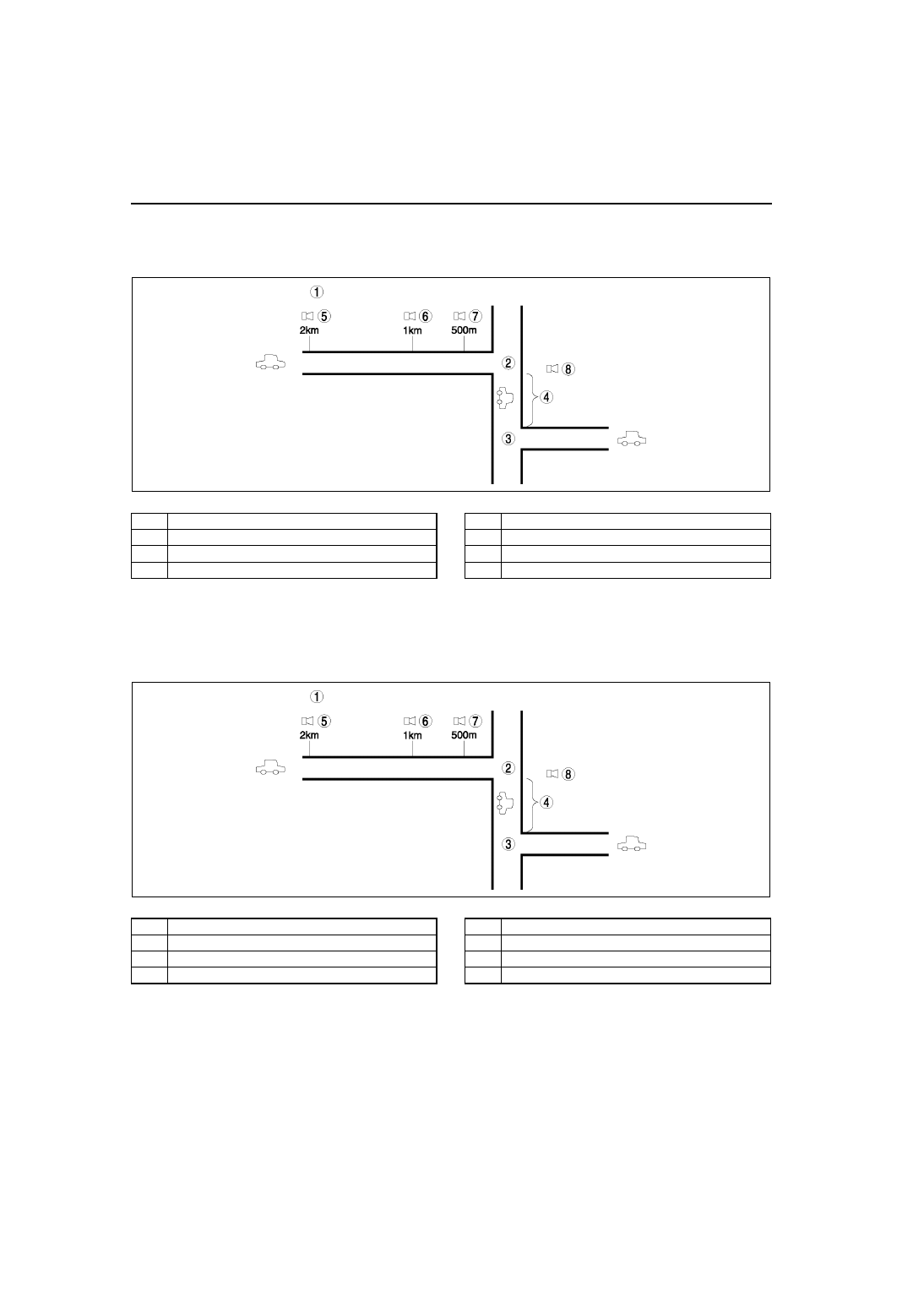

Continuous highway junction guidance

A continuous highway junction condition occurs when the distance from the first to the second turn point is
more than 500 meters and less than or equal to 750 meters.

After passing the first turn point, the next voice guidance is provided.

.

Multiple highway junction guidance

A multiple highway junction condition occurs when the distance from the first to the second turn point is less
than or equal to 500 meters.

When the last guidance for the first turn point is announced, guidance for the second turn point is also
provided.

.

A6E8126T073

1

Right turn followed by left turn guidance example

2

Right turn point

3

Left turn point

4

X m (500 m<X<=750 m)

5

In 2 kilometers right turn to exit motorway

6

In 1 kilometer right turn to exit motorway

7

Right turn ahead to exit motorway

8

In X meters keep left

A6E8126T073

1

Right turn followed by left turn guidance example

2

Right turn point

3

Left turn point

4

X m (X<=500 m)

5

In 2 kilometers right turn to exit motorway

6

In 1 kilometer right turn to exit motorway

7

Right turn ahead to exit motorway then keep left

8

Keep left ahead

AUDIO AND NAVIGATION SYSTEM

T–81

T

T

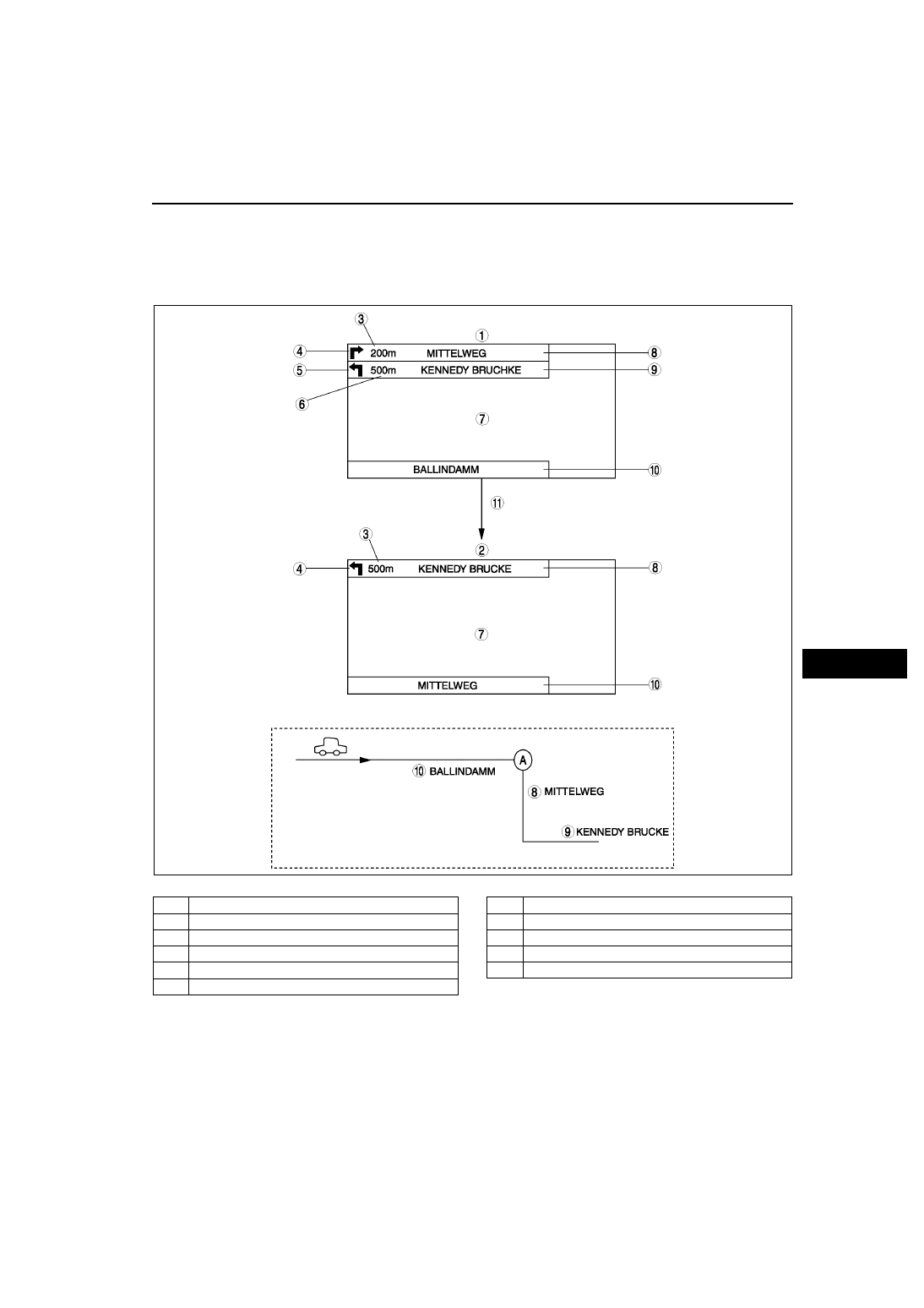

Intersection Distance Display

When approaching the next guidance point, the distance to that point is counted down.

In case of a continuous or multiple junction, guidance point bars for the next two turns will be displayed.

In case of a continuous or multiple junction, after the first turn point is passed the following occurs:

1. Next turn guidance point bar

 Current road

2. Turn after next turn guidance point bar

 Next turn guidance point bar

.

A6E8126T075

1

Continuous, multiple junction

2

Simple junction

3

Distance to the next turn

4

Shape of the next turn

5

Shape of the turn after the next turn

6

Distance to the turn after the next turn

7

Current map screen

8

Name of the next road

9

Name of the road after the next road

10

Name of the current road

11

Vehicle arriving at point A

T–82

AUDIO AND NAVIGATION SYSTEM

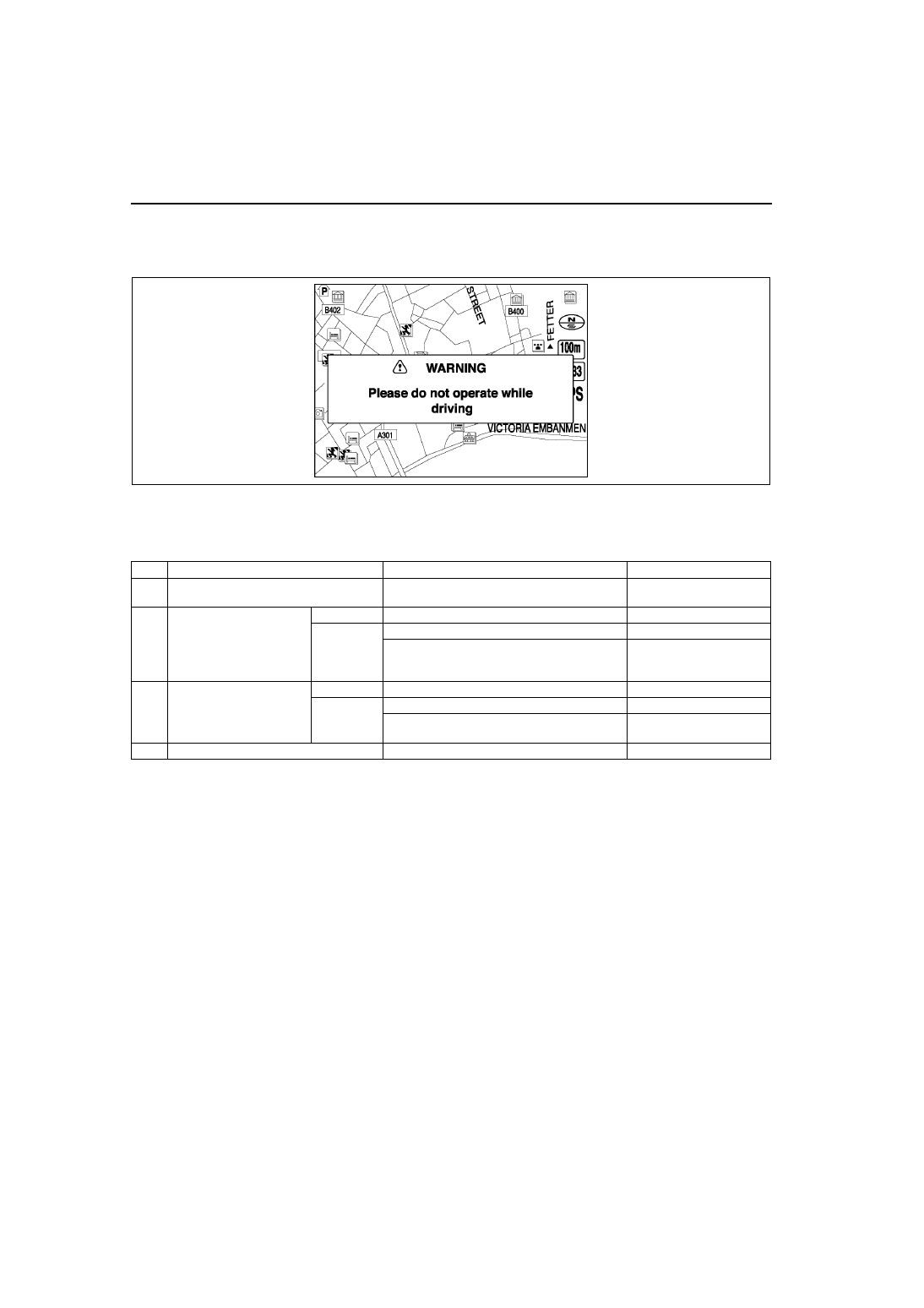

Operation While Driving Display Function
Screen activation

The following operation while driving warning screen appears when the unit determines from the pulse of the
speedometer sensor that the vehicle is moving.

Activation condition

When driving and the following screens are displayed, operating the following buttons will activate the warning
screen.

End Of Sie

A6E8126T076

No.

Items

Screen contents/Cursor position

Indicated buttons

1

Menu screen

Menu screen, destination setting screen, set up
screen

[Joystick], [ENTER],
[ZOOM], [MENU]

2

Current position map
screen, scroll map screen

No pop-up

[Joystick], [MENU]

Pop-up

Detour, Destination, Nearest POI

[ENTER], [MENU]

Route Preview, Maneuver List, Marked Point,
Head up/North up, Calc Method, Reroute,
Volume, Guidance Off

[MENU]

3

Guide mode map screen

No pop-up

[MENU]

Pop-up

Detour

[ENTER], [MENU]

Route Preview, Maneuver List, Marked Point,
Calc Method, Reroute, Volume, Guidance Off

[MENU]

4

Intersection zoom map

[MENU]

CRUISE CONTROL SYSTEM

T–83

T

T

OUTLINE

A6E812801011T01

The cruise control system allows the driver to maintain selected vehicle speed without operating the
accelerator when driving on an open highway.

The cruise actuator controls the throttle valve to maintain vehicle speed.

The construction and operation of cruise control system is essentially carried over from that of the 626 (GF)
model, except for the following:

Comparison with 626 (GF) model

End Of Sie

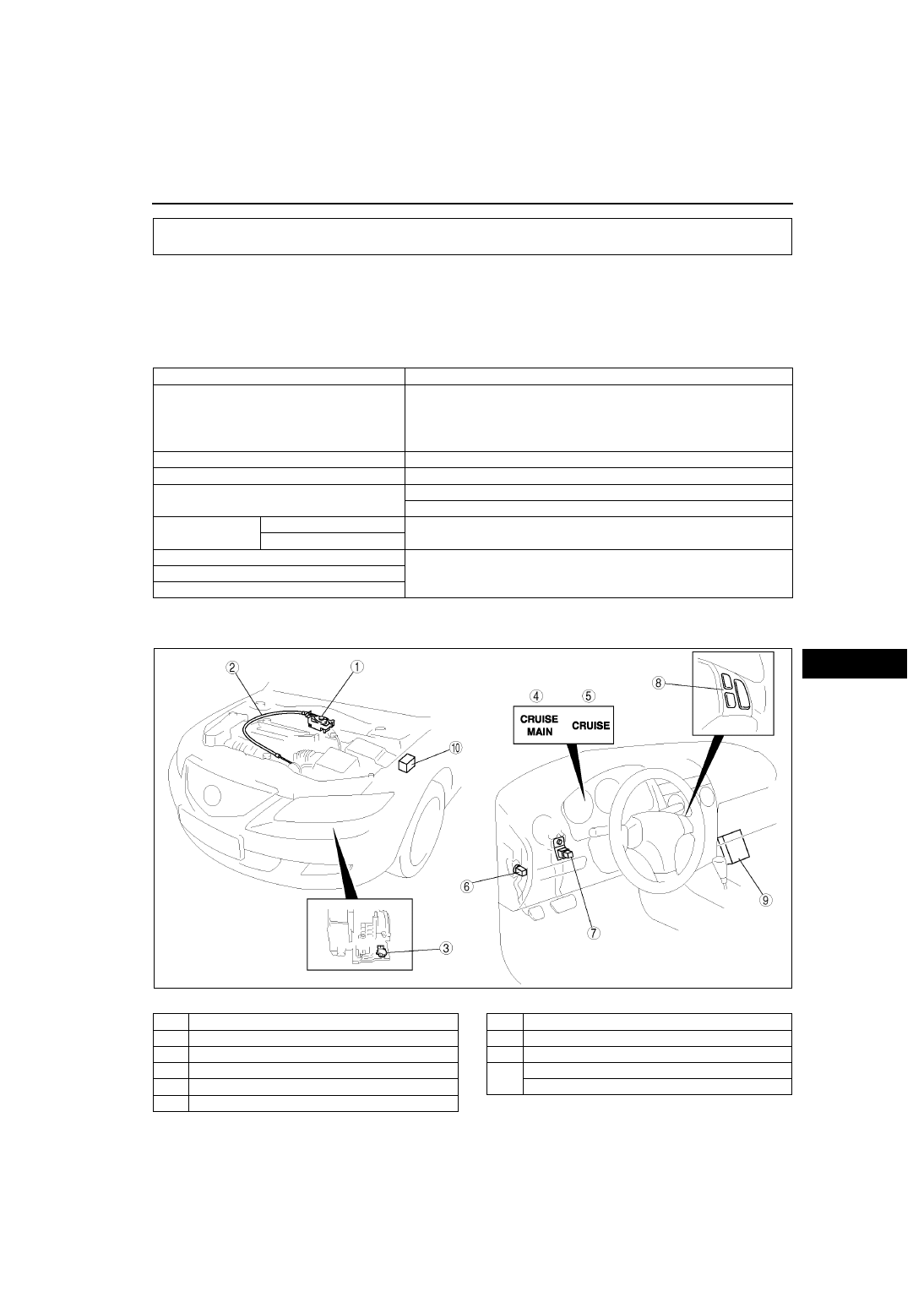

STRUCTURAL VIEW

A6E812801011T02

.

CRUISE CONTROL SYSTEM

Item

Comparison

Cruise actuator

Cruise actuator with built-in control module has been adopted

Motor-type system has been adopted

Tap up/tap down function has been added

Vehicle speed at which cruise control setting is available has been
changed

Actuator cable

Actuator cable with adjuster has been adopted

Cruise control switch

Embedded type (in steering wheel) has been adopted

Vehicle speed signal input

ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS))

DSC HU/CM (with DSC)

Instrument cluster

Cruise set indicator light

LED has been adopted

Cruise main indicator light

Clutch switch (MTX)

Same as the 626 (GF) model

TR switch (ATX)

Brake switch

A6E8128T001

1

Cruise actuator

2

Actuator cable

3

TR switch (ATX)

4

Cruise main indicator light

5

Cruise set indicator light

6

Clutch switch (MTX)

7

Brake switch

8

Cruise control switch

9

PCM

10

ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS))

DSC HU/CM (with DSC)
