Mazda 6. Manual - part 64





T–32

WIPER AND WASHER

End Of Sie

WINDSHIELD WIPER SYSTEM (VEHICLE-SPEED SENSING TYPE)

A6E811601052T03

Function

A vehicle-speed sensing type windshield wiper system, which automatically adjusts the intermittent wiping time
according to vehicle speed, has been adopted. Accordingly, this system reduces the bothersome need for the
driver to adjust the intermittent wiping time.

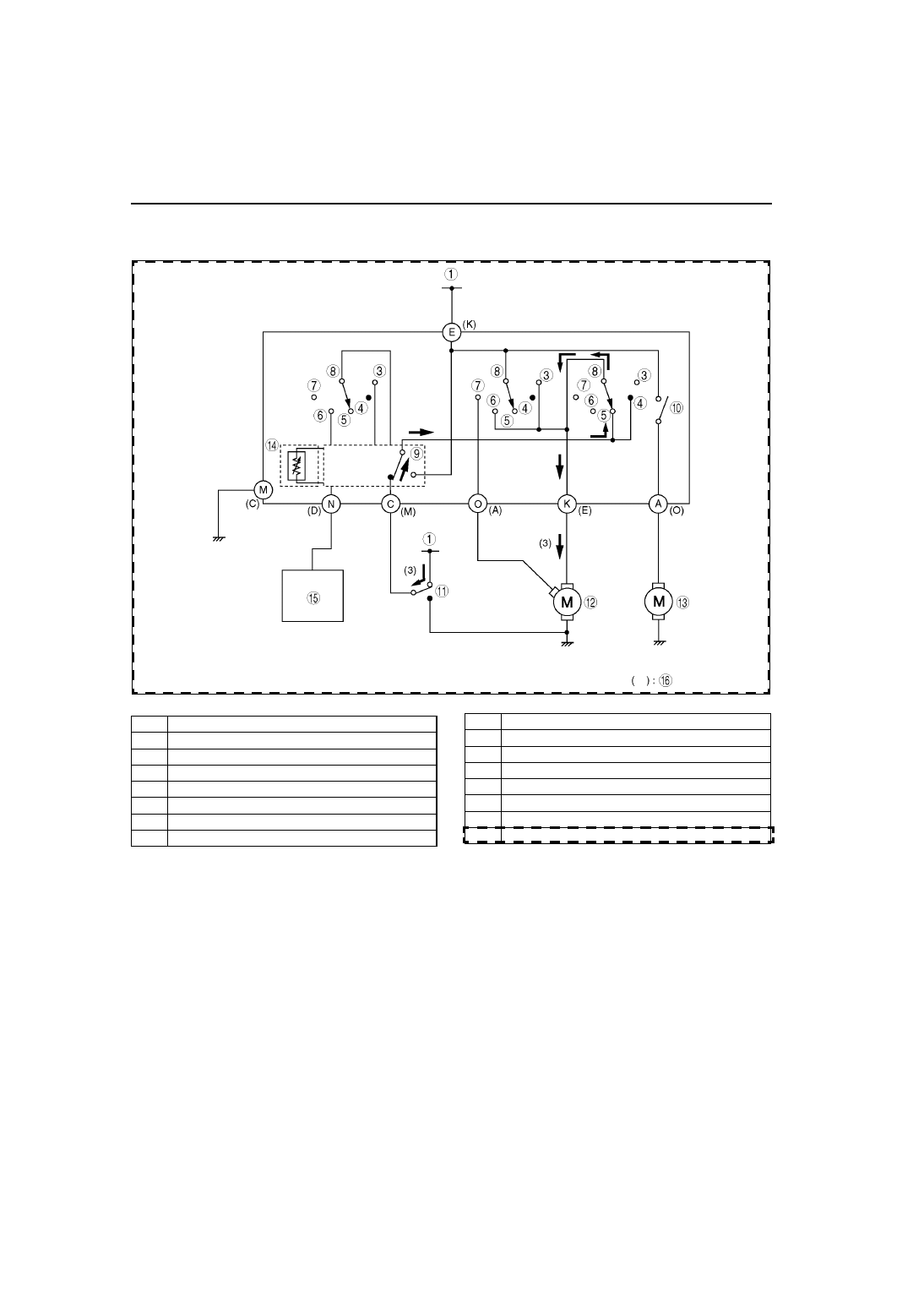

Structural View

Operation

1. When the wiper switch is placed in the INT position, the intermittent wiper relay is turned on and current flows

to the windshield wiper motor, which is driven at low speed.

2. Based on the vehicle speed signal sent from the ABS (DSC) HU/CM, the intermittent wiper relay controls the

timing is as follows:

Vehicle speed of 0 km/h:
— INT volume max.—approx. once each 11.6 seconds
— INT volume min. —approx. once each 4.2 seconds

Vehicle speed of 30 km/h and above:
— INT volume max.—approx. once each 9.6 seconds
— INT volume min. —approx. once each 1.1 seconds

A6E8116T102

1

IG1

2

Wiper and washer switch

3

One-touch switch

4

OFF

5

INT

6

1

7

2

8

Wiper switch

9

Intermittent wiper relay

10

Washer switch

11

Autostop switch

12

Windshield wiper motor

13

Windshield washer motor

14

INT volume

15

ABS/TCS HU/CM or DSC HU/CM

16

Wiper and washer switch RH side

WIPER AND WASHER

T–33

T

T

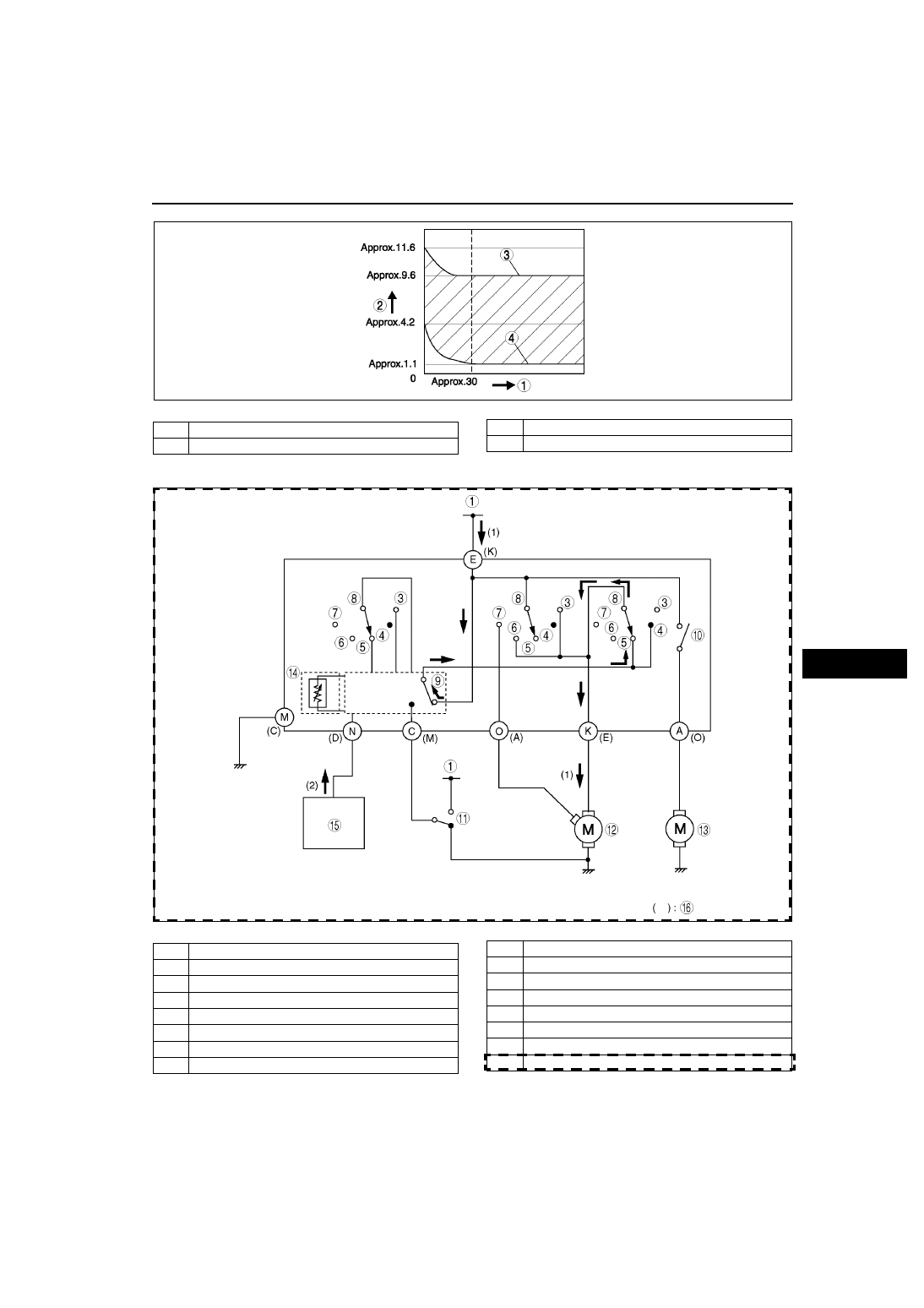

A6E8116T105

1

Vehicle speed (km/h)

2

Time  (S)

3

INT volume max.

4

INT volume min.

A6E8116T103

1

IG1

2

Wiper and washer switch

3

One-touch switch

4

OFF

5

INT

6

1

7

2

8

Wiper switch

9

Intermittent wiper relay

10

Washer switch

11

Autostop switch

12

Windshield wiper motor

13

Windshield washer motor

14

INT volume

15

ABS/TCS HU/CM or DSC HU/CM

16

Wiper and washer switch RH side

T–34

WIPER AND WASHER

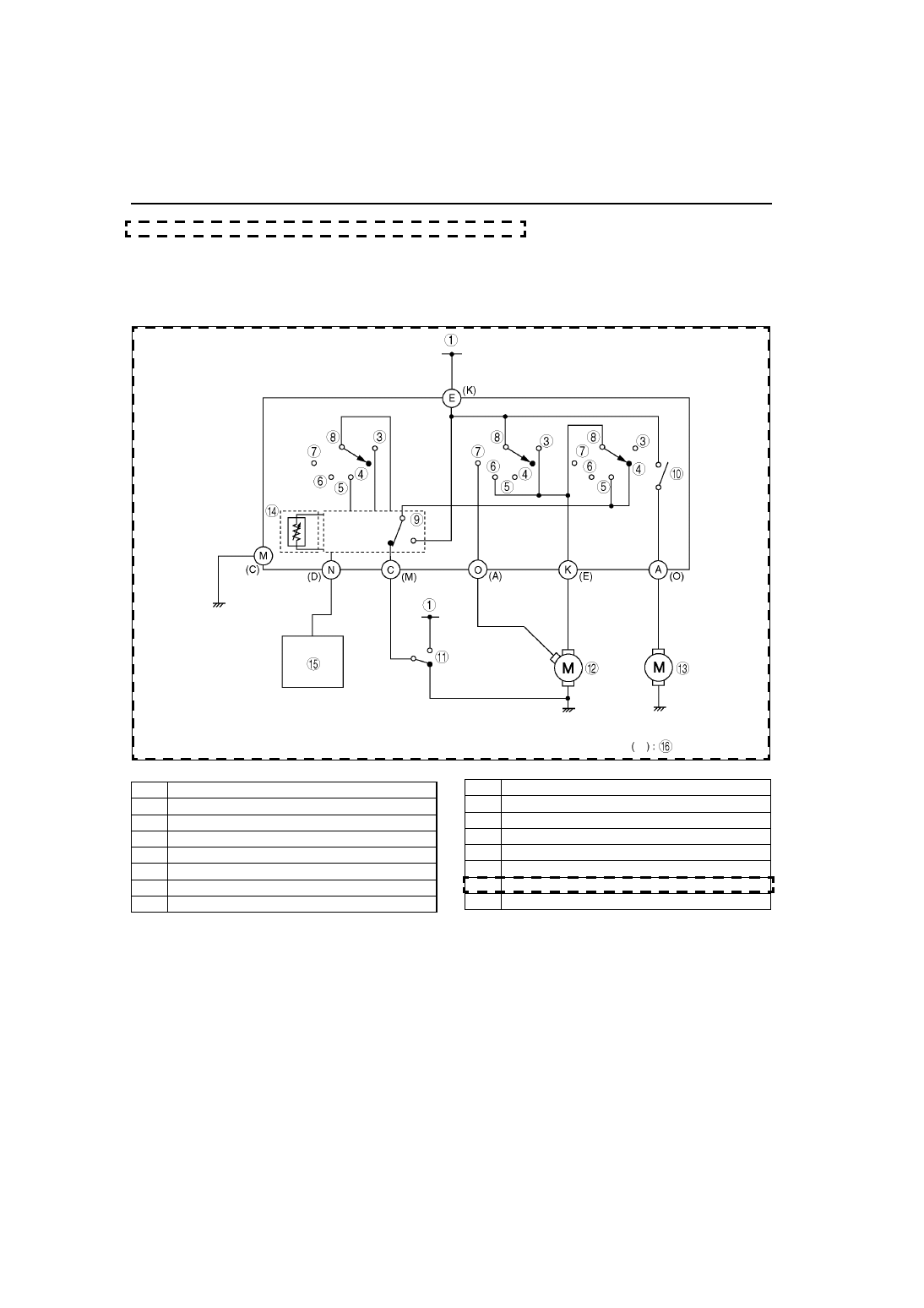

3. When the controlled intermittent time is passed, the intermittent wiper relay is turned off, stopping the flow of

current to the windshield wiper motor, and the autostop function returns the wipers to the resting position. This
action is repeated intermittently.

End Of Sie

A6E8116T104

1

IG1

2

Wiper and washer switch

3

One-touch switch

4

OFF

5

INT

6

1

7

2

8

Wiper switch

9

Intermittent wiper relay

10

Washer switch

11

Autostop switch

12

Windshield wiper motor

13

Windshield washer motor

14

INT volume

15

ABS/TCS HU/CM or DSC HU/CM

16

Wiper and washer switch RH side

WARNING AND INDICATOR SYSTEM

T–35

T

T

OUTLINE

A6E811801069T01

A CAN system has been adopted for the control signals of the input/output communication circuit of the meters,
gauges and warning and indicator lights. (See

T–5 OUTLINE

.)

LEDs have been adopted for all warning and indicator lights installed on the instrument cluster.

The information display, which includes clock, audio system, and A/C system displays, has been placed in the
center of the instrument panel. It also includes the drive information system, depending on the vehicle grade.

A trumpet-type horn with spiral, resonant pipes, has been adopted.

End Of Sie

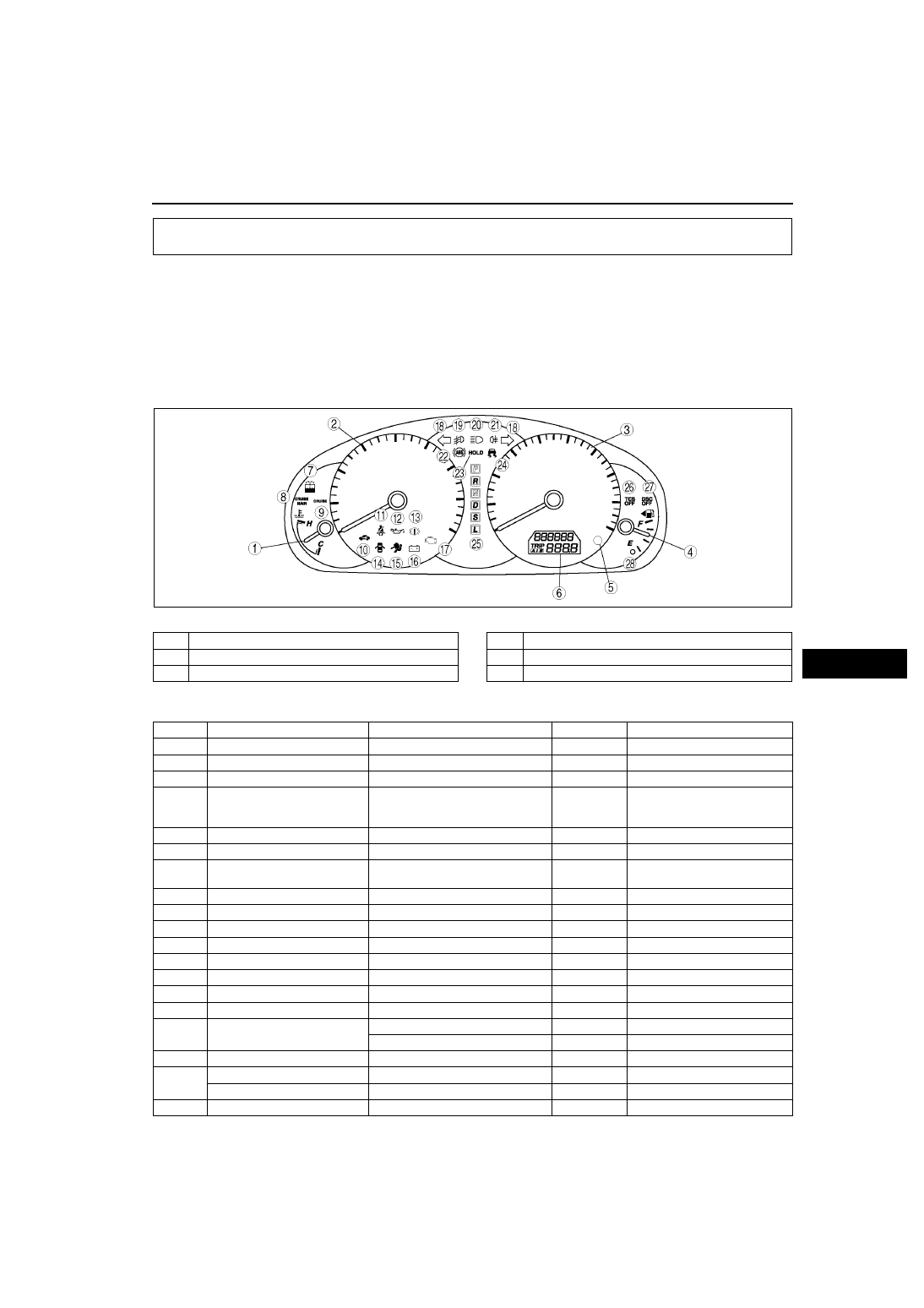

INSTRUMENT CLUSTER

A6E811855430T01

Structural View

.

X: Applied

WARNING AND INDICATOR SYSTEM

A6E8118T001

1

Water temperature gauge

2

Tachometer

3

Speedometer

4

Fuel gauge

5

Odometer/tripmeter switch

6

Odometer/tripmeter

No.

Warning and indicator light

Input signal source

CAN system

Note

7

Washer fulid-level warning light Washer fulid-level sensor

8

Cruise main indicator light

Cruise actuator

With cruise control system

9

Cruise set indicator light

Cruise actuator

With cruise control system

10

Security light

PCM

Theft-deterrent control module

Door lock timer unit

11

Seat belt warning light

Buckle switch

12

Oil pressure warning light

Oil pressure switch

13

Brake system warning light

Parking brake switch

Brake fluid level sensor

14

Door ajar warning light

Door switch

15

Air bag system warning light

SAS unit

16

Generator warning light

PCM

X

17

MIL

PCM

X

18

Turn indicator light

Turn switch

19

Front fog light indicator light

Front fog light relay

European (L.H.D. U.K.) specs.

20

High-beam indicator light

Head light switch

21

Rear fog light indicator light

Rear fog light relay

European (L.H.D. U.K.) specs.

22

ABS warning light

ABS (ABS/TCS) HU/CM

X

Vehicles with ABS (ABS/TCS)

DSC HU/CM

X

Vehicles with DSC

23

HOLD indicator light

PCM

X

ATX

24

TCS indicator light

ABS/TCS HU/CM

X

Vehicles with TCS

DSC indicator light

DSC HU/CM

X

Vehicles with DSC

25

Selector indicator light

PCM

X

ATX
