F–4

OUTLINE

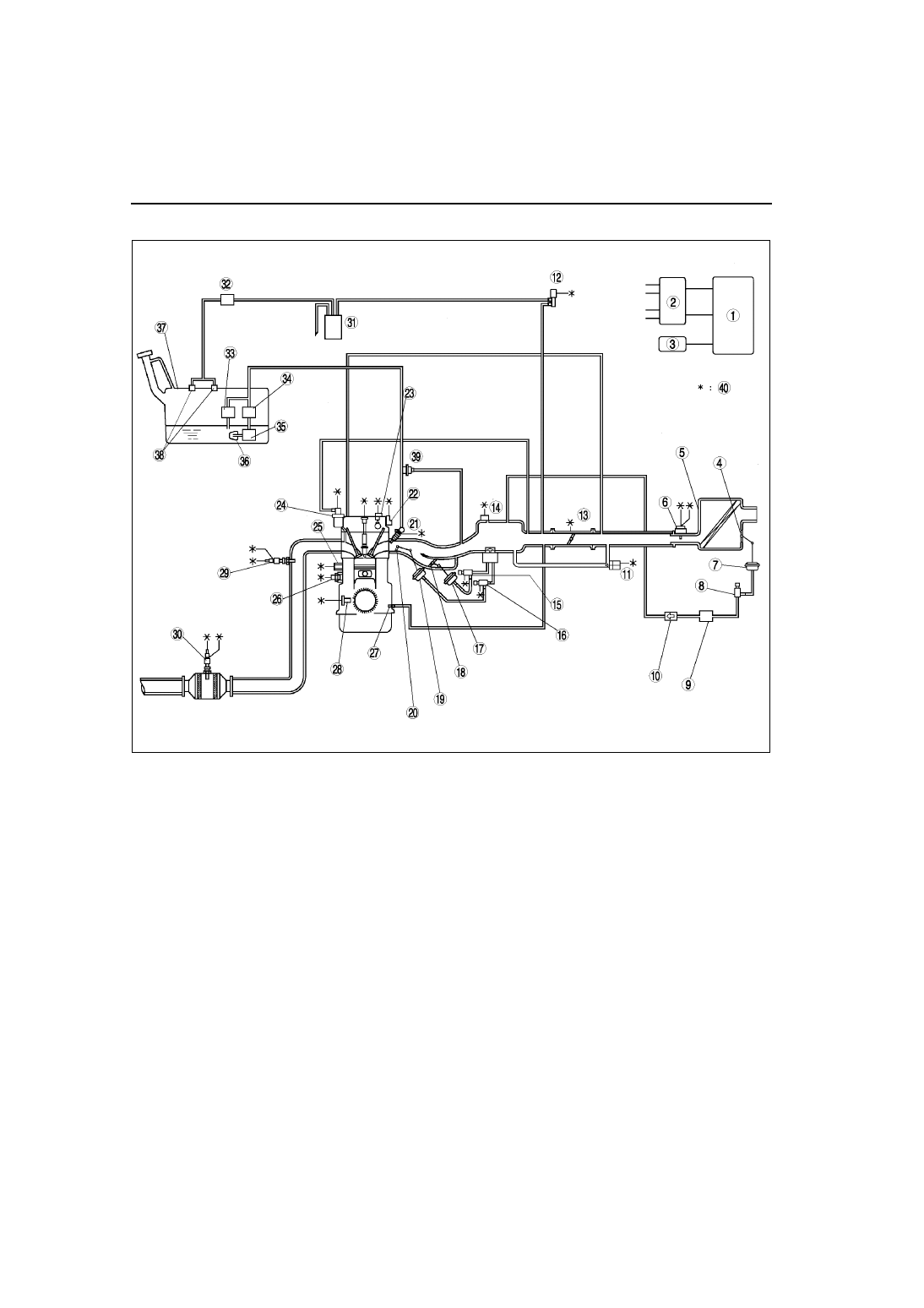

CONTROL SYSTEM DIAGRAM

A6E390218881T04

.

A6E3902T000

OUTLINE

F–5

F

*

: Equipped for L3 engine model

End Of Sie

1

PCM

2

Ignition coil

3

Generator

4*

VAD shutter valve

5

Air cleaner

6

MAF sensor

7*

VAD shutter valve actuator

8*

VAD control solenoid valve

9*

Vacuum chamber

10*

VAD check valve (one-way)

11

IAC

12

Purge solenoid valve

13

TP sensor

14

MAP sensor

15*

VIS control solenoid valve

16

Variable tumble control solenoid valve

17*

VIS shutter valve actuator

18*

VIS shutter valve

19

VTCS shutter valve actuator

20

VTCS shutter valve

21

Fuel injector

22*

OCV

23

CMP sensor

24

EGR valve

25

Knock sensor

26

ECT sensor

27

PCV valve

28

CKP sensor

29

Heated oxygen sensor (front)

30

Heated oxygen sensor (rear)

31

Charcoal canister

32

Check valve (two-way)

33

Pressure regulator

34

Fuel filter (high pressure)

35

Fuel pump

36

Fuel filter (low pressure)

37

Fuel tank

38

Rollover valve

39

Pulsation damper

40

To PCM

F–6

OUTLINE

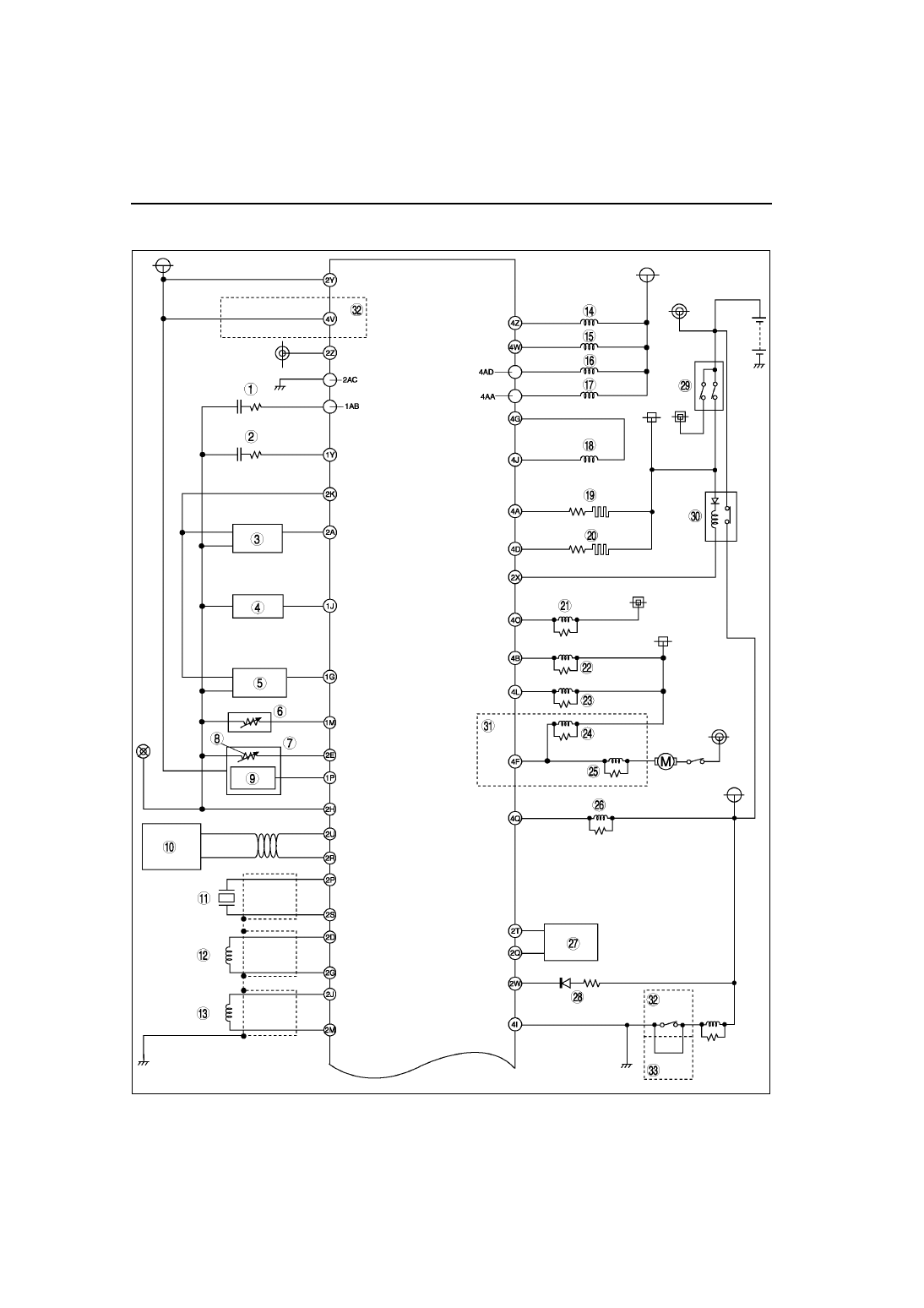

CONTROL SYSTEM WIRING DIAGRAM

A6E390218881T05

With Immobilizer System

.

A6E3940T901

OUTLINE

F–7

F

1

Heated oxygen sensor (front)

2

Heated oxygen sensor (rear)

3

TP sensor

4

MAP sensor

5

BARO sensor

6

ECT  sensor

7

MAF/IAT sensor

8

IAT sensor

9

MAF sensor

10

Controller area network (CAN)

11

Knock sensor

12

CKP sensor

13

CMP sensor

14

Fuel injector No.1

15

Fuel injector No.2

16

Fuel injector No.3

17

Fuel injector No.4

18

IAC

19

Oxygen sensor heater (front)

20

Oxygen sensor heater (rear)

21

A/C relay

22

Cooling fan relay

23

Cooling fan relay

24

Cooling fan relay

25

Cooling fan relay

26

Fuel pump relay

27

Coil

28

Security light

29

Ignition switch

30

Main relay

31

L8, LF (Intensely hot area) and L3 engine models

32

ATX model

33

MTX model
