CRUISE CONTROL SYSTEM

01–20–1

01–20

01–20

CRUISE CONTROL SYSTEM

LOCATION INDEX  . . . . . . . . . . . . . . . . .  01–20–1
CRUISE CONTROL MODULE

REMOVAL/INSTALLATION . . . . . . . . .  01–20–2

CRUISE CONTROL MODULE

INSPECTION . . . . . . . . . . . . . . . . . . . . .  01–20–2

Terminal Voltage List (Reference) . . . .  01–20–2

CRUISE ACTUATOR

REMOVAL/INSTALLATION . . . . . . . . .  01–20–4

CRUISE ACTUATOR INSPECTION. . . . . 01–20–4
ACTUATOR CABLE REMOVAL . . . . . . . 01–20–5
ACTUATOR CABLE INSTALLATION . . . 01–20–5
CRUISE CONTROL SWITCH

REMOVAL/INSTALLATION . . . . . . . . . . 01–20–7

CRUISE CONTROL SWITCH

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 01–20–8

End of Toc

LOCATION INDEX

A3U012001011W01

.

Z3U0120W001

1

Transmission range (TR) switch (ATX)
(See 05–17–20 TRANSAXLE RANGE (TR)
SWITCH INSPECTION)
(See 05–17–20 TRANSAXLE RANGE (TR)
SWITCH REMOVAL/INSTALLATION)
(See 05–17–23 TRANSAXLE RANGE (TR)
SWITCH ADJUSTMENT)

2

Clutch switch (MTX)
(See 01–40B–42 CLUTCH SWITCH INSPECTION
[FS])
(See 01–40A–41 CLUTCH SWITCH INSPECTION
[ZM])

3

Brake switch
(See 04–11–5 BRAKE SWITCH INSPECTION)

4

Cruise control module
(See 01–20–2 CRUISE CONTROL MODULE
REMOVAL/INSTALLATION)
(See 01–20–2 CRUISE CONTROL MODULE
INSPECTION)

5

Cruise actuator
(See 01–20–4 CRUISE ACTUATOR REMOVAL/
INSTALLATION)
(See 01–20–4 CRUISE ACTUATOR INSPECTION)

6

Actuator cable
(See 01–20–5 ACTUATOR CABLE REMOVAL)
(See 01–20–5 ACTUATOR CABLE
INSTALLATION)

7

Cruise control switch
(See 01–20–7 CRUISE CONTROL SWITCH
REMOVAL/INSTALLATION)
(See 01–20–8 CRUISE CONTROL SWITCH
INSPECTION)

8

Vacuum hose

1712-1U-01G(01-20).fm  1 ページ  ２００１年６月２９日 金曜日 午前９時４９分

CRUISE CONTROL SYSTEM

01–20–2

End Of Sie

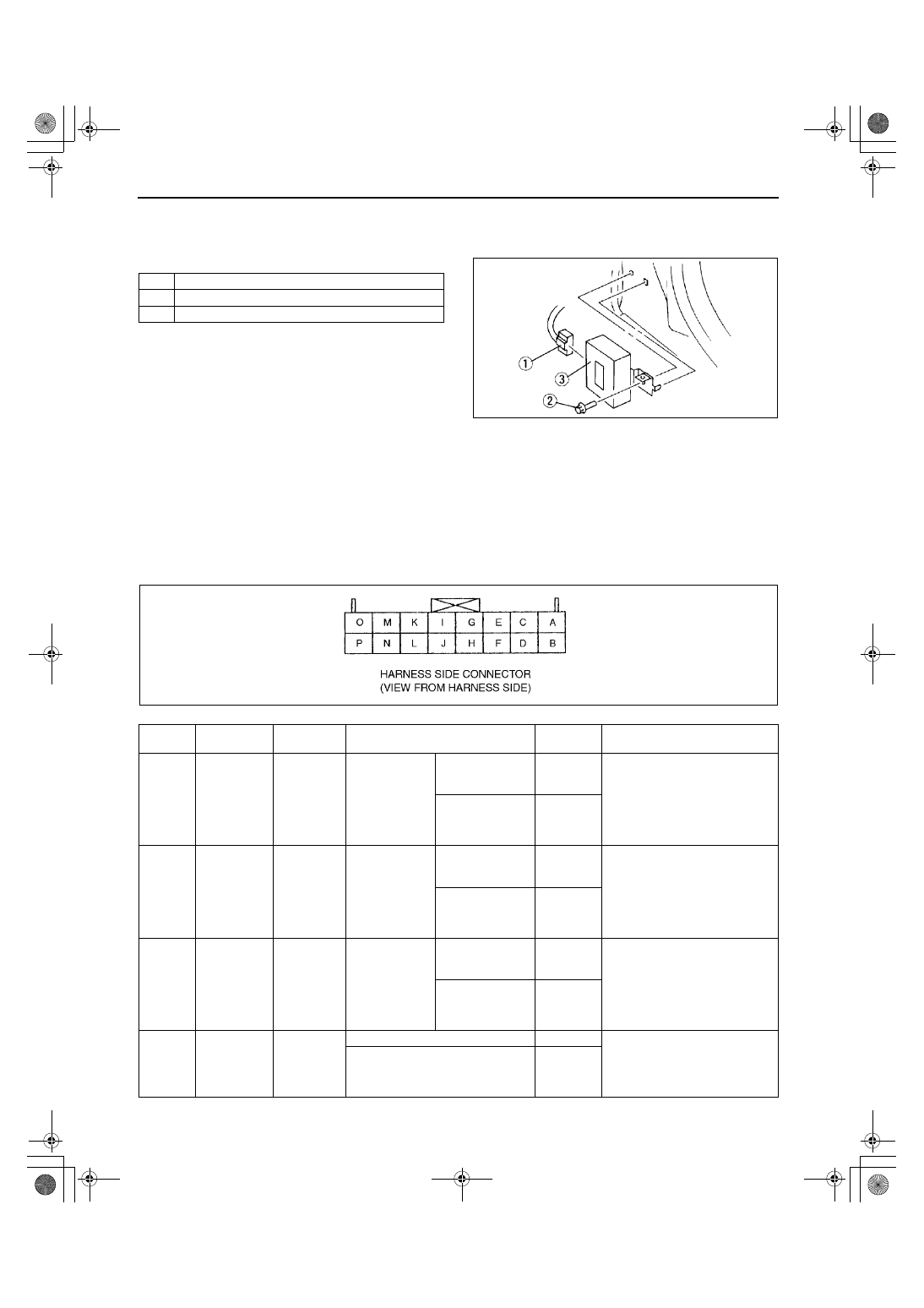

CRUISE CONTROL MODULE REMOVAL/INSTALLATION

A3U012066320W01

1. Disconnect the negative battery cable.
2. Remove the passenger-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

CRUISE CONTROL MODULE INSPECTION

A3U012066320W02

1. Remove the passenger-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
2. Remove the cruise control module without disconnecting the connector.
3. Measure the voltage at the cruise control module terminals as indicated below.
4. Disconnect the cruise control module connector before inspecting for continuity at terminal P.

•

If not as specified, inspect the parts listed under “Action.”

•

If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise
control module.

Terminal Voltage List (Reference)

1

Connector

2

Bolt

3

Cruise control module

X3U120WA0

Terminal

Signal

Connected

to

Test condition

Voltage (V)
/Continuity

Action

A

Cruise
actuator
control

Cruise
actuator
(Vent 1)

Ignition switch
at ON position

Cruise control
main switch at ON
position

B+

•

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

•

Inspect cruise actuator
(See 01–20–4 CRUISE
ACTUATOR INSPECTION)

•

Inspect related harness

Other

Below 1.0

B

Cruise
actuator
control

Cruise
actuator
(Vacuum)

Ignition switch
at ON position

Cruise control
main switch at ON
position

B+

•

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

•

Inspect cruise actuator
(See 01–20–4 CRUISE
ACTUATOR INSPECTION)

•

Inspect related harness

Other

Below 1.0

C

Cruise
actuator
control

Cruise
actuator
(Vent 2)

Ignition switch
at ON position

Cruise control
main switch at ON
position

B+

•

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

•

Inspect cruise actuator
(See 01–20–4 CRUISE
ACTUATOR INSPECTION)

•

Inspect related harness

Other

Below 1.0

D

Cruise set
indicator light
output

Cruise set
indicator
light

Ignition switch at ON position

B+

•

Inspect METER 10 A fuse

•

Inspect instrument cluster
(See 09–22–4 INSTRUMENT
CLUSTER INSPECTION)

•

Inspect related harness

Ignition switch at LOCK or ACC
position

Below 1.0

Y3U120WA0

1712-1U-01G(01-20).fm  2 ページ  ２００１年６月２９日 金曜日 午前９時４９分

CRUISE CONTROL SYSTEM

01–20–3

01–20

End Of Sie

E

IG1

METER
10 A fuse

Ignition switch at ON position

B+

•

Inspect METER 10 A fuse

•

Inspect related harness

Ignition switch at LOCK or ACC
position

Below 1.0

F

—

—

—

—

—

G

O/D off

PCM

Ignition switch at ON position

B+

•

Inspect PCM
(See 01–40A–7 PCM
INSPECTION [ZM])
(See 01–40B–7 PCM
INSPECTION [FS])

•

Inspect related harness

Ignition switch at LOCK or ACC
position

Below 1.0

H

Cruise
actuator
power supply

Brake switch

Ignition switch
at ON position

Cruise control
main switch at ON
position

B+

—

Cruise control
main switch at
OFF position

Below 1.0

I

Test

Data link
connector

—

—

—

J

ATX

Selecto
r lever
position

Transaxle
range switch

Ignition switch
at ON position
and cruise
control main
switch at ON
position

Selector lever at
N or P range

Below 1.0

•

Inspect transaxle range
switch
(See 05–17–20 TRANSAXLE
RANGE (TR) SWITCH
INSPECTION)

•

Inspect related harness

Other

B+

MTX

Clutch
switch
on/off

Clutch
switch

Ignition switch
at ON position
and cruise
control main
switch at ON
position

Depress clutch
pedal

Below 1.0

•

Inspect clutch switch
(See 01–40A–41 CLUTCH
SWITCH INSPECTION [ZM])
(See 01–40B–42 CLUTCH
SWITCH INSPECTION [FS])

•

Inspect related harness

Other

B+

K

Brake switch
on/off

Brake switch

Depress brake pedal

B+

•

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

•

Inspect related harness

Other

Below 1.0

L

Cruise control
switch
position

Cruise
control
switch

Ignition switch
at ON position
and cruise
control main
switch at ON
position

SET/COAST
switch hold at on

Approx. 1.5

•

Inspect cruise control switch
(See 01–20–8 CRUISE
CONTROL SWITCH
INSPECTION)

•

Inspect related harness

RESUME/ACCEL
switch hold at on

Approx. 0.5

CANCEL switch
hold at on

Approx. 3

Other

Approx. 5

M

Brake switch
on/off

Brake switch

Ignition switch at
ON position and
cruise control
main switch at
ON position

Depress brake
pedal

Below 1.0

•

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

•

Inspect related harness

Other

B+

N

Vehicle
speed

Vehicle
speed
sensor

Ignition switch at
ON position and
cruise control
main switch at
ON position

Rear tires rotating

Alternates

below 1.0

and 5

•

Inspect METER 10 A fuse

•

Inspect instrument cluster
(See 09–22–4 INSTRUMENT
CLUSTER INSPECTION)

•

Inspect related harness

Other

Below 1.0

or 5

O

Cruise control
main switch
input

Cruise
control
switch

Ignition switch
at ON position

Cruise control
main switch at ON
position

Below 1.0

•

Inspect cruise control switch
(See 01–20–8 CRUISE
CONTROL SWITCH
INSPECTION)

•

Inspect related harness

Other

B+

P

Cruise control
module
ground

GND

Constant: inspect for continuity to
ground

Yes

•

Inspect related harness

Terminal

Signal

Connected

to

Test condition

Voltage (V)
/Continuity

Action

1712-1U-01G(01-20).fm  3 ページ  ２００１年６月２９日 金曜日 午前９時４９分

CRUISE CONTROL SYSTEM

01–20–4

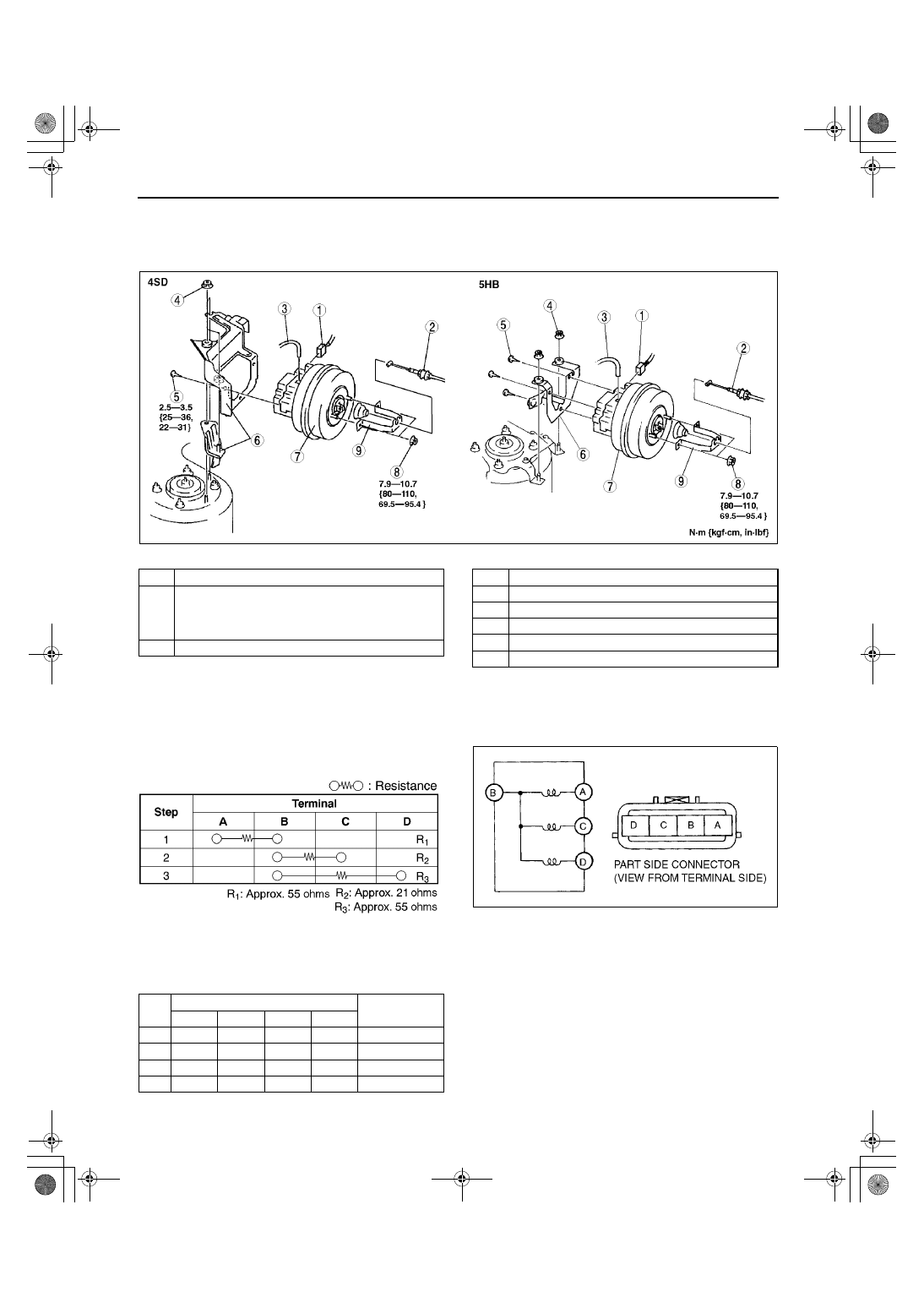

CRUISE ACTUATOR REMOVAL/INSTALLATION

A3U012066310W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

.

End Of Sie

CRUISE ACTUATOR INSPECTION

A3U012066310W02

1. Disconnect the negative battery cable.
2. Disconnect the cruise actuator connector.
3. Measure the resistance between the cruise

actuator terminals using an ohmmeter.

4. Disconnect the actuator cable from the accelerator pedal.
5. Allow the engine to idle.
6. Connect B+ and a ground to the terminals as shown and confirm the operation of the actuator cable.

•

If not as specified, replace the cruise actuator.

End Of Sie

A3U0120W101

1

Cruise actuator connector

2

Actuator cable
(See 01–20–5 ACTUATOR CABLE REMOVAL)
(See 01–20–5 ACTUATOR CABLE
INSTALLATION)

3

Vacuum hose

4

Nut

5

Screw

6

Bracket

7

Cruise actuator

8

Nut

9

Bracket

Step

Terminal connection

Operation of

actuator cable

A

B

C

D

1

Ground

B+

Ground Ground Pull

2

Ground

B+

—

Ground Hold

3

—

B+

—

Ground Extend

4

—

—

—

—

Released

Y3U120WA2
