Disconnect A/C switch connector. Turn A/C switch on. Check continuity between indicated terminals. See A/C
SWITCH TEST table. See Fig. 1 . Replace A/C switch if continuity is not as specified.

A/C SWITCH TEST

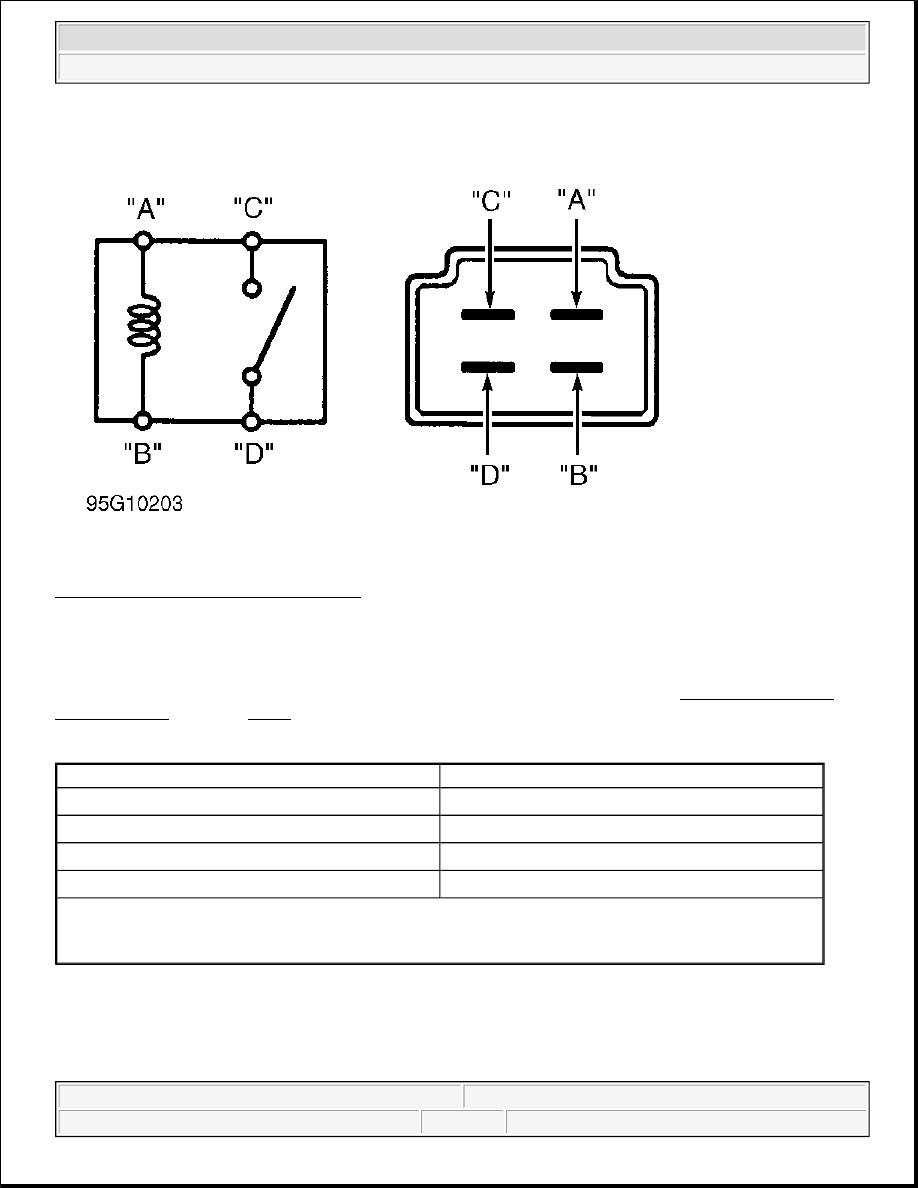

Fig. 1: Identifying A/C Switch Terminals
Courtesy of MAZDA MOTORS CORP.

A/C RELAY

Remove relay. Check continuity between indicated relay terminals. See A/C RELAY TEST table. See Fig. 2 .
Replace relay if continuity is not as specified.

A/C RELAY TEST

Terminal

Continuity

"D" & "A"

(1)

 Yes

"F" & "A"

(1)

 Yes

(1)

Continuity exists in only one direction.

Test Between Terminals

Continuity

"A" & "B"

(1)

 Yes

"C" & "D"

(1)

 No

"C" & "D"

(2)

 Yes

(1)

With no voltage applied.

(2)

With battery voltage applied to terminals "A" and "B".



1997 Mazda MX-5 Miata

A/C-HEATER SYSTEM - MANUAL 1997 Manual A/C-Heater System

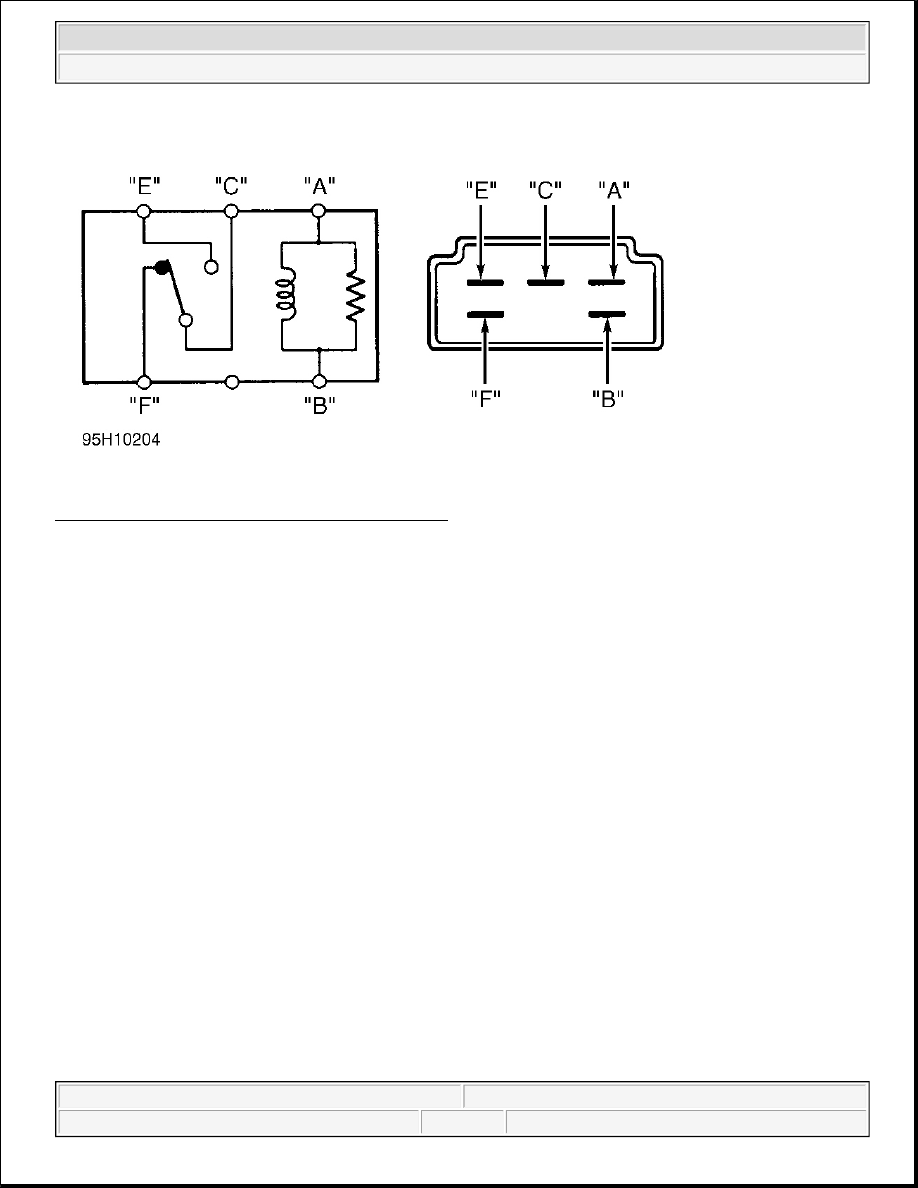

Fig. 2: Identifying A/C Relay Terminals
Courtesy of MAZDA MOTORS CORP.

CONDENSER FAN RELAY

Remove condenser fan relay. Check continuity between indicated relay terminals. See CONDENSER FAN
RELAY TEST table. See Fig. 3 . If continuity is not as specified, replace relay.

CONDENSER FAN RELAY TEST

Test Between Terminals

Continuity

"A" & "B"

(1)

 Yes

"C" & "E"

(1)

 No

"C" & "F"

(1)

 Yes

"C" & "E"

(2)

 Yes

(1)

With no voltage applied.

(2)

With battery voltage applied to terminals "A" and "B".



1997 Mazda MX-5 Miata

A/C-HEATER SYSTEM - MANUAL 1997 Manual A/C-Heater System



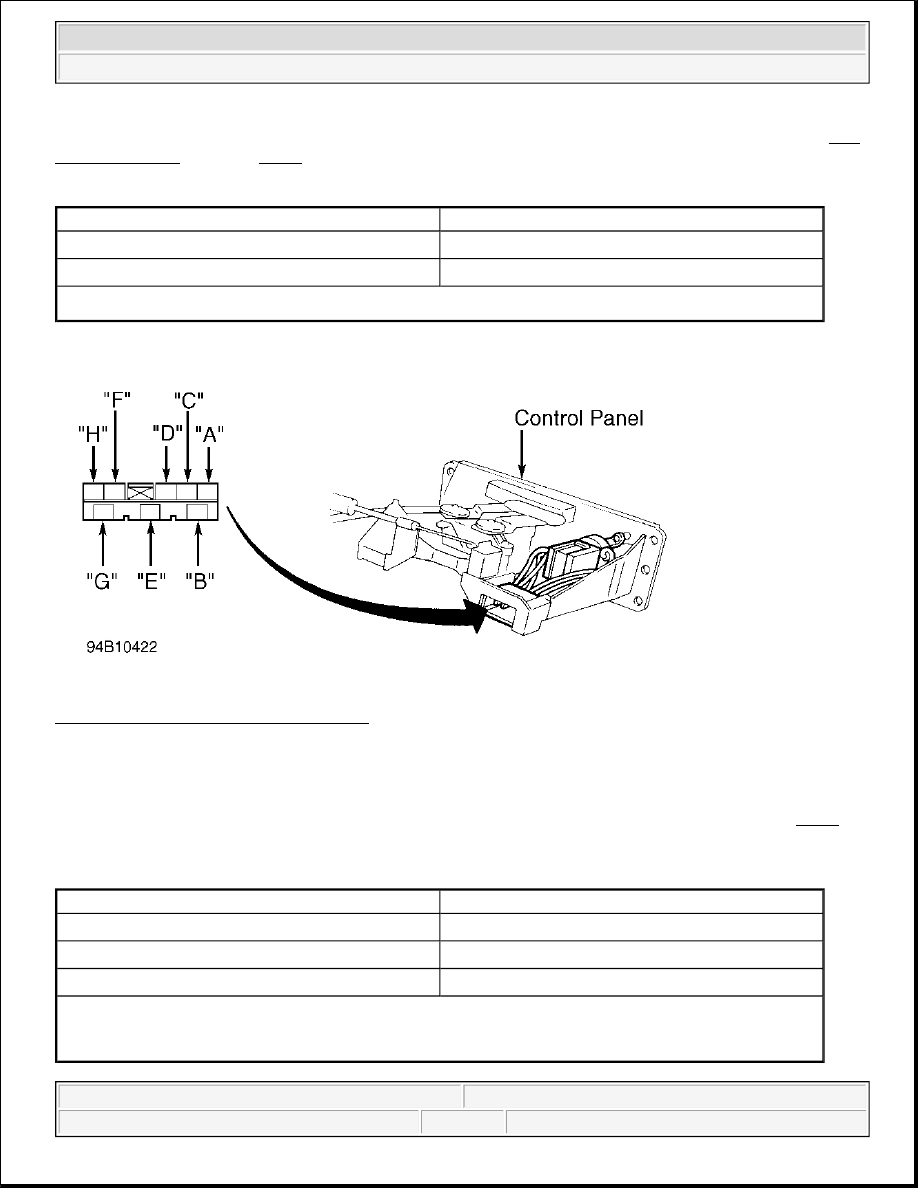

Fig. 3: Identifying Condenser Fan Relay Terminals
Courtesy of MAZDA MOTORS CORP.

CONDENSER FAN MOTOR

Disconnect condenser fan motor connector. Connect positive battery lead to condenser fan motor Black/Yellow
wire terminal, and ground Black wire terminal. Replace condenser fan motor if it does not operate.

EVAPORATOR THERMOSWITCH

1. Remove glove box. Operate engine at idle. Turn A/C off. Turn blower switch to 4th position (high) for a

few minutes to ensure evaporator temperature is greater than 32°F (0°C). Turn blower switch and engine
off.

2. Disconnect evaporator thermoswitch connector. Check continuity between thermoswitch terminals. If

continuity exists, go to next step. If there is no continuity, replace thermoswitch.

3. Submerge thermoswitch sensing bulb in ice cold water of less than 32°F (0°C). Ensure continuity does

not exist between thermoswitch terminals. Replace thermoswitch if continuity is not as specified.

PRESSURE SWITCH

1. Turn ignition off. Connect manifold pressure gauge set to system. If high-side pressure is 37-310 psi (2.6-

22.0 kg/cm

2

 ), go to next step. If pressure is not as specified, check refrigerant level.

2. Disconnect pressure switch connector. Check continuity between switch terminals. If continuity exists,

pressure switch is okay. If there is no continuity, replace pressure switch.

REMOVAL & INSTALLATION



1997 Mazda MX-5 Miata

A/C-HEATER SYSTEM - MANUAL 1997 Manual A/C-Heater System



COMPRESSOR

Removal & Installation

1. Before disconnecting negative battery cable, obtain radio anti-theft code from vehicle owner. Disconnect

negative battery cable.

2. Raise and support front of vehicle with safety stands. Discharge A/C system using approved refrigerant

recovery/recycling equipment. Remove splash shield and air guide.

3. Disconnect compressor clutch connector. Disconnect refrigerant lines from compressor, and plug open

fittings. Remove compressor drive belt. Remove compressor bolts and compressor. To install, reverse
removal procedure. Adjust drive belt deflection. Apply clean compressor oil to "O" ring before
connecting fittings. DO NOT apply compressor oil to fitting nuts. Evacuate and charge A/C system.
Check for leaks.

CONDENSER & RECEIVER-DRIER

Removal

Raise and support front of vehicle with safety stands. Discharge A/C system using approved refrigerant
recovery/recycling equipment. Remove splash shield and air guide. Remove condenser. Remove receiver-drier.
Plug open fittings.

Installation

To install, reverse removal procedure. Apply clean compressor oil to "O" rings before connecting fittings. DO
NOT apply compressor oil to fitting nuts. If installing new condenser, add 1.0 ounce of compressor oil to A/C
compressor. If installing new receiver-drier, add .3 ounce of compressor oil to A/C compressor. Evacuate and
charge A/C system. Check for leaks.

EVAPORATOR UNIT

Removal

1. Discharge A/C system using approved refrigerant recovery/recycling equipment. Disconnect refrigerant

pipes from evaporator tubes at engine compartment firewall and plug open fittings. Remove passenger-
side instrument panel undercover. Remove glove box.

2. Disconnect electrical connectors. Loosen seal plates between evaporator unit, heater unit and blower unit.

Remove evaporator unit. Disassemble evaporator unit to remove evaporator core and thermo-switch. See

WARNING:

To avoid injury from accidental air bag deployment, read and follow all
SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG
SYSTEM procedures in AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT section.

NOTE:

For removal and installation procedures not covered in this article, see HEATER
SYSTEM article.



1997 Mazda MX-5 Miata
