Lifan 620. Manual - part 86





V. Rear wall

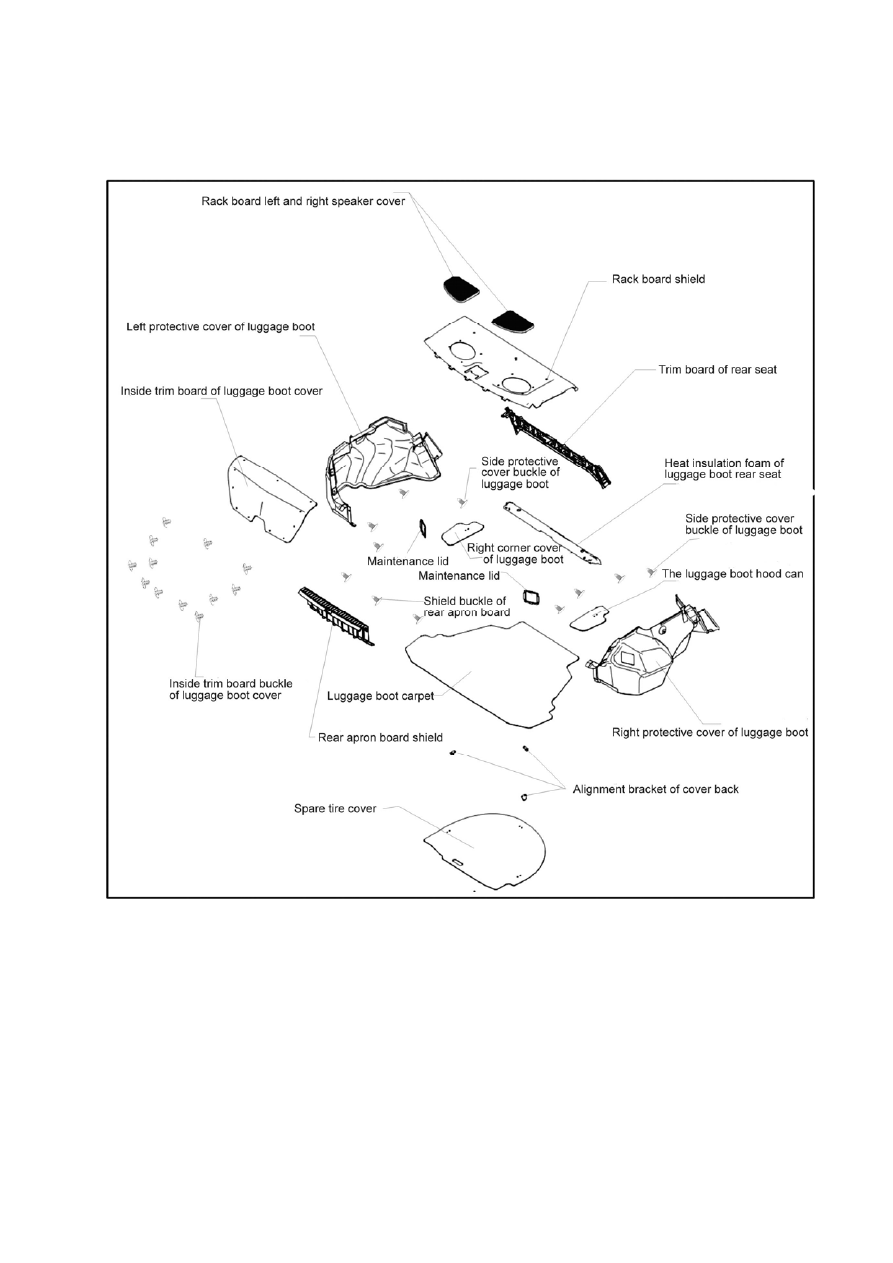

1. Removal of rear wall, as shown in Fig. 7-25:





Fig. 7-25



The luggage boot hood can be removed after dismantling the 11 fixing buckles. The luggage

carpet is on the top of the inner luggage boot. Uncovering the carpet, the caudal cover board and

spare tire cover board can be revealed, all of which are not fixed by the fasteners. The left and

right protective covers and the rear skirt plate is firmed by the plastic buckles so they can be

dismantled after removing the buckles. The cover boards for check and maintenance are clipped

on the left and right protective covers respectively.

(Note: The rear skirt plate has its own buckle corner so don’t damage the corner when removing.)

345

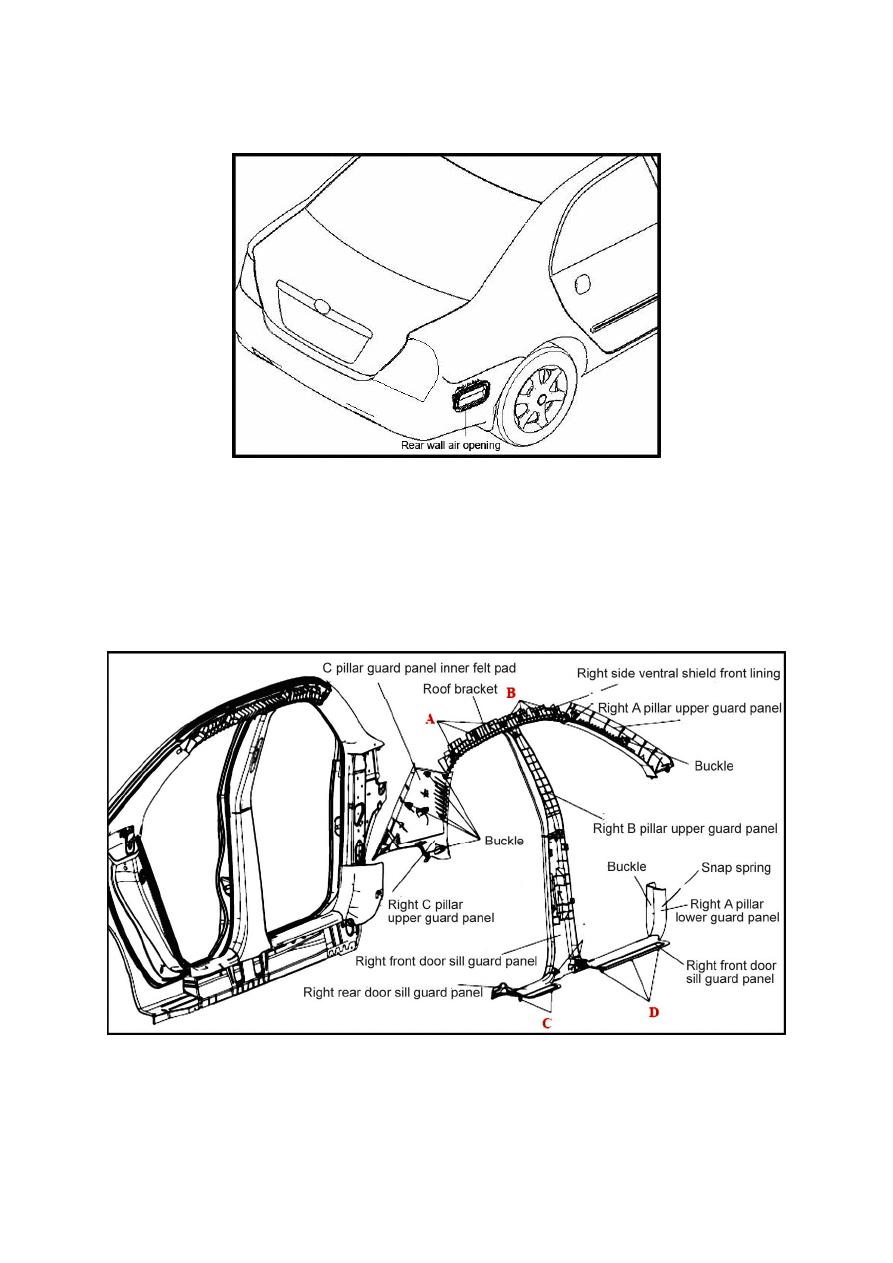

Removal of rear wall air opening, as shown in Fig. 7-26.







Fig. 7-27

(1) The front and rear linings of the ventral shield are fixed on the body through 4 places (A in the

Fig.) and 3 places (B in the Fig.) respectively. During the installation, fix the buckles in the buckle

holes directly and then install the roof. After that, the A, B, C pillar guard panels can be installed.

346

(2) Fix the buckle on the buckle installing bracket (Total: 2) of the A pillar upper guard panel. First

put the front small buckle foot into the corresponding installing holes on the dash board, the two

buckles into the buckle holes of the A pillar metal sheet so that the A pillar upper guard panel can

be fixed.

(3) Firm the inner felt pad of the C pillar upper guard panel and five fixing buckles on the C pillar

upper guard panel. First put the rear side small buckle foot into the metal sheet hole of the C pillar

and five buckles into the buckle hole of the C pillar metal sheet so that the C pillar upper guard

panel can be firmed.

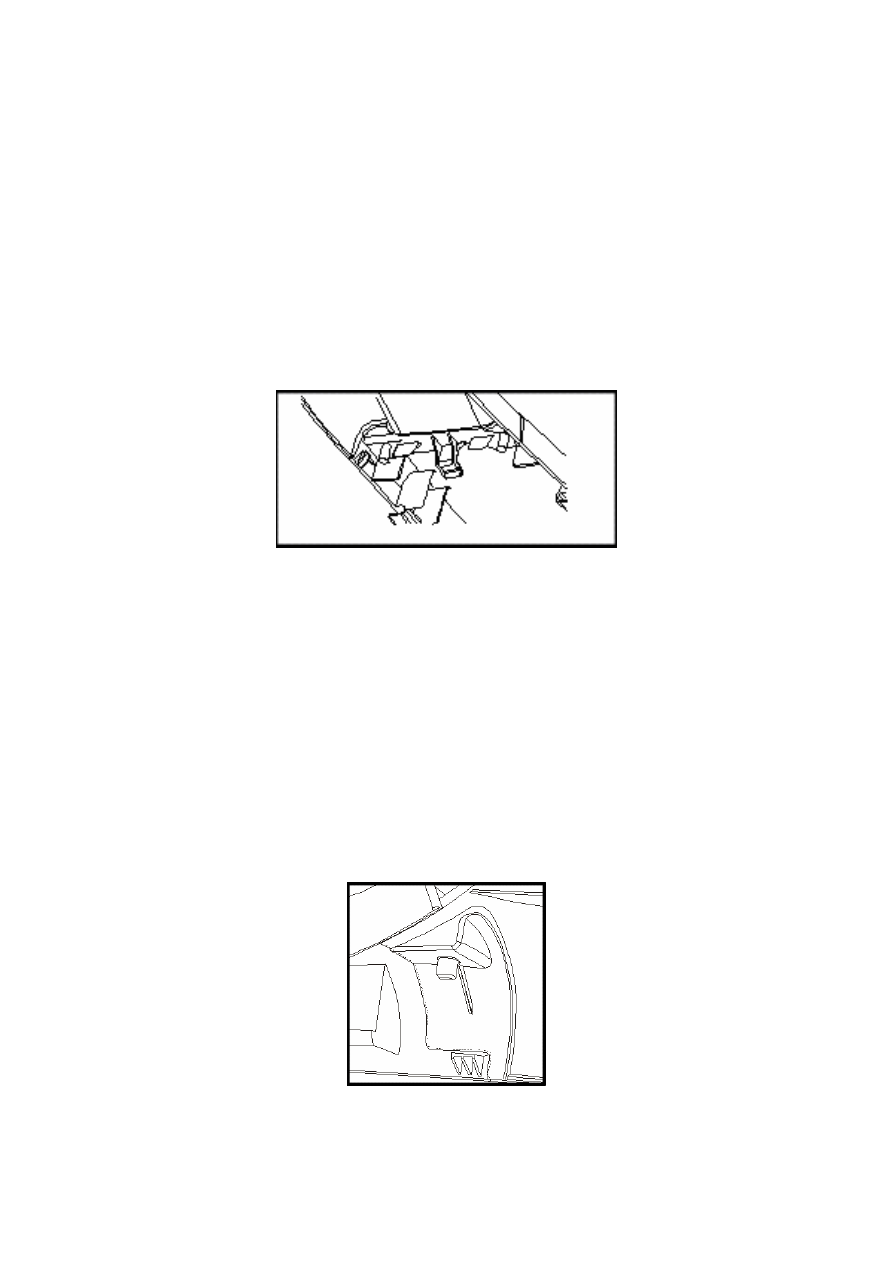

(4) Make the small buckle foot on the lower part of the B pillar upper guard panel into the metal







Fig. 7-29

Note: The buckles at the lower side of the door sill guard panel shall aim at the metal sheet buckle

347

holes precisely, or the buckles will be bent. The door sill guard panel will match with the thread clip

below.



VII. Heat-insulating pad

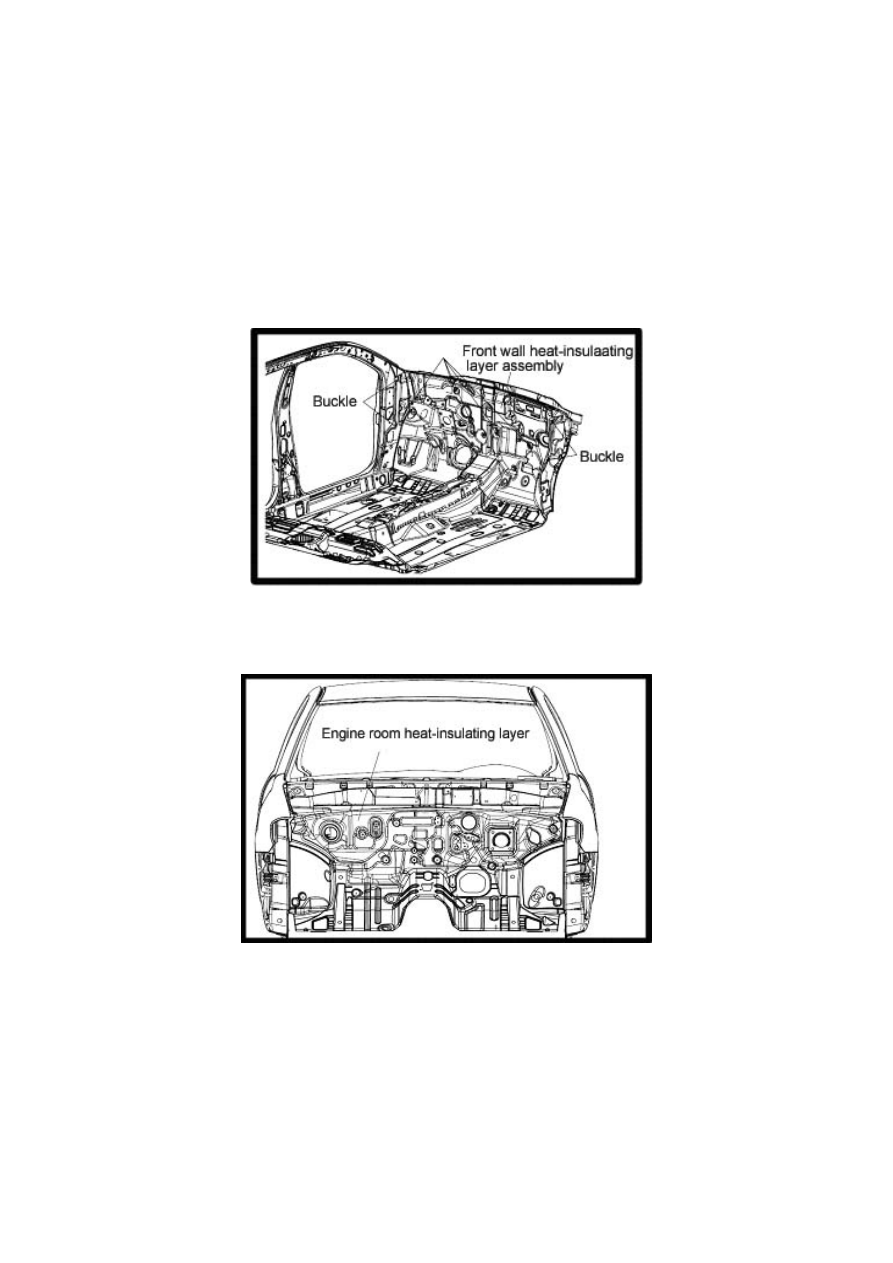

1. Installation of heat-insulating pad of front wall

(1) First install five buckles on the buckle installing holes of the heat-insulating pad of front wall,

open the upper mouth of the pad and hang it on the beam under the windshield (see Fig. 7-30),

and after gluing its surface with the dash panel, place the five buckles into the corresponding bolts

on the dash panel.



Fig. 7-31

Engine room heat-insulating layer installation: Joint the engine room heat-insulating layer with the

front side of the dash panel; after the installation of the other components of the dash panel, the

layer can be fixed. The installation of the auxiliary fascia console heat-insulating layer, see Fig.

7-32: Joint the auxiliary fascia console heat-insulating layer on the central passage cover board; if

matched well, they can be fixed by two fixing buckles, as shown in the above figure.

348
