2) Disconnect the motor harness of the electric glass frame riser.

3) Remove the bolt of the glass frame riser, and take out the glass frame riser.

2. Exam:

1) Check whether the components for movement and rotation of the glass frame riser need

lubricating or not.

2) Check whether the trolley is frayed or damaged.

3. Installation: Install the front window glass frame riser as per the reverse order.

Note: During the installation of the glass, check whether the top of the glass and the sliding

channel contact evenly or not, and the up-and-down movement is stable or not.



2. Installation: install the rear side door as per the reverse order.

(1) Coat the hinge installing surface with the sealant and the rotation components with grease

lubricant.

(2) The induration of the sealing strip will lead to the leakage. In such conditions, renew the strip.

(3) Adjust the position of the door locking ring according to “door lock installation”, so as to locate

the door correctly.

(4) Keep the door contact with the boy when closed.

(5) Check the door gap through opening and closing the door after installation. When the gap

exists, adjust the door.

333

Section VI  Seat Assembly



I. Structure of the driver seat assembly:

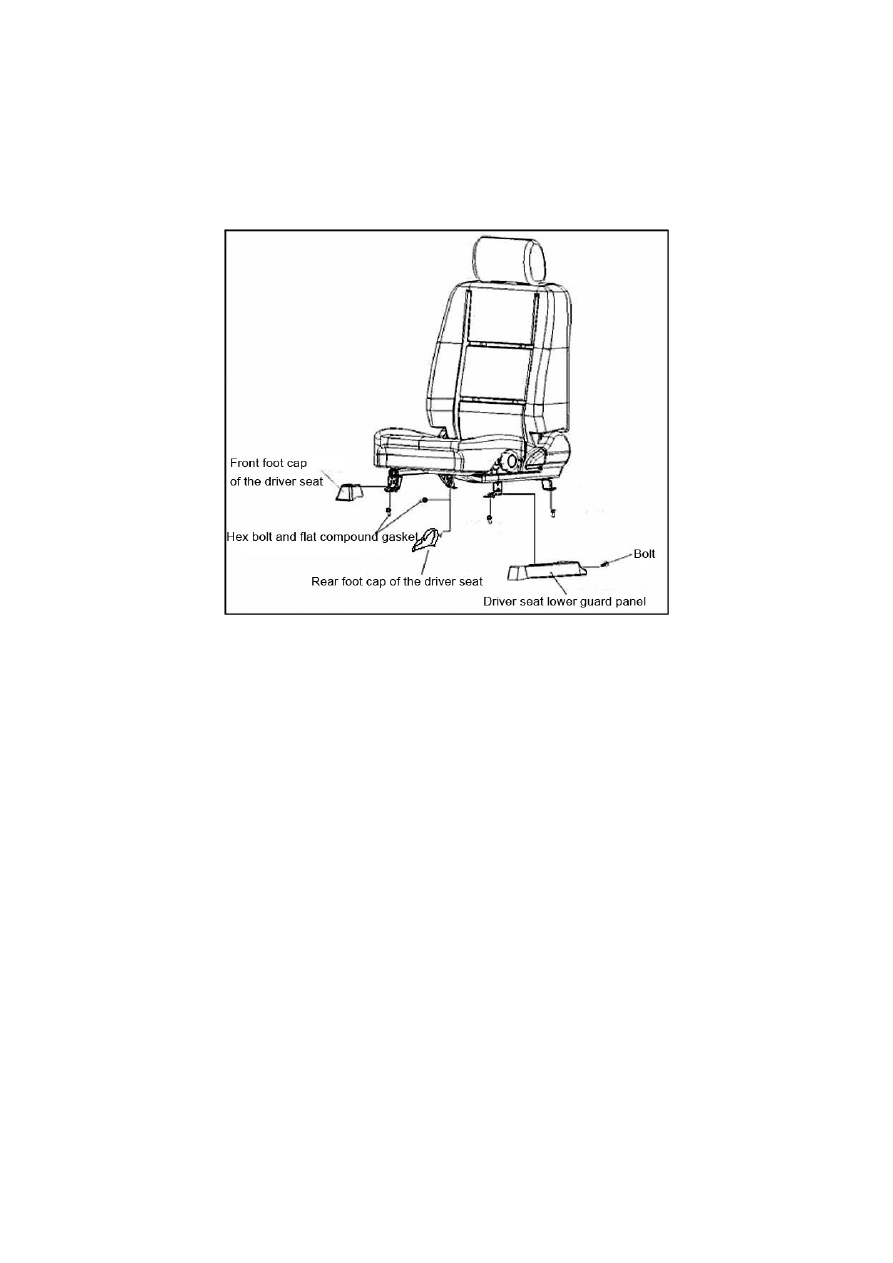

The assembly structure as shown in Fig. 7-7.



(5) Remove the rear two bolts of the driver seat and the whole assembly.

2. Installation

Installing as per the reverse order, and pay attention to the following points:

(1) Remove the glass frame riser switch assembly of the rear side door.











334

III. Structure of the front passenger seat assembly:

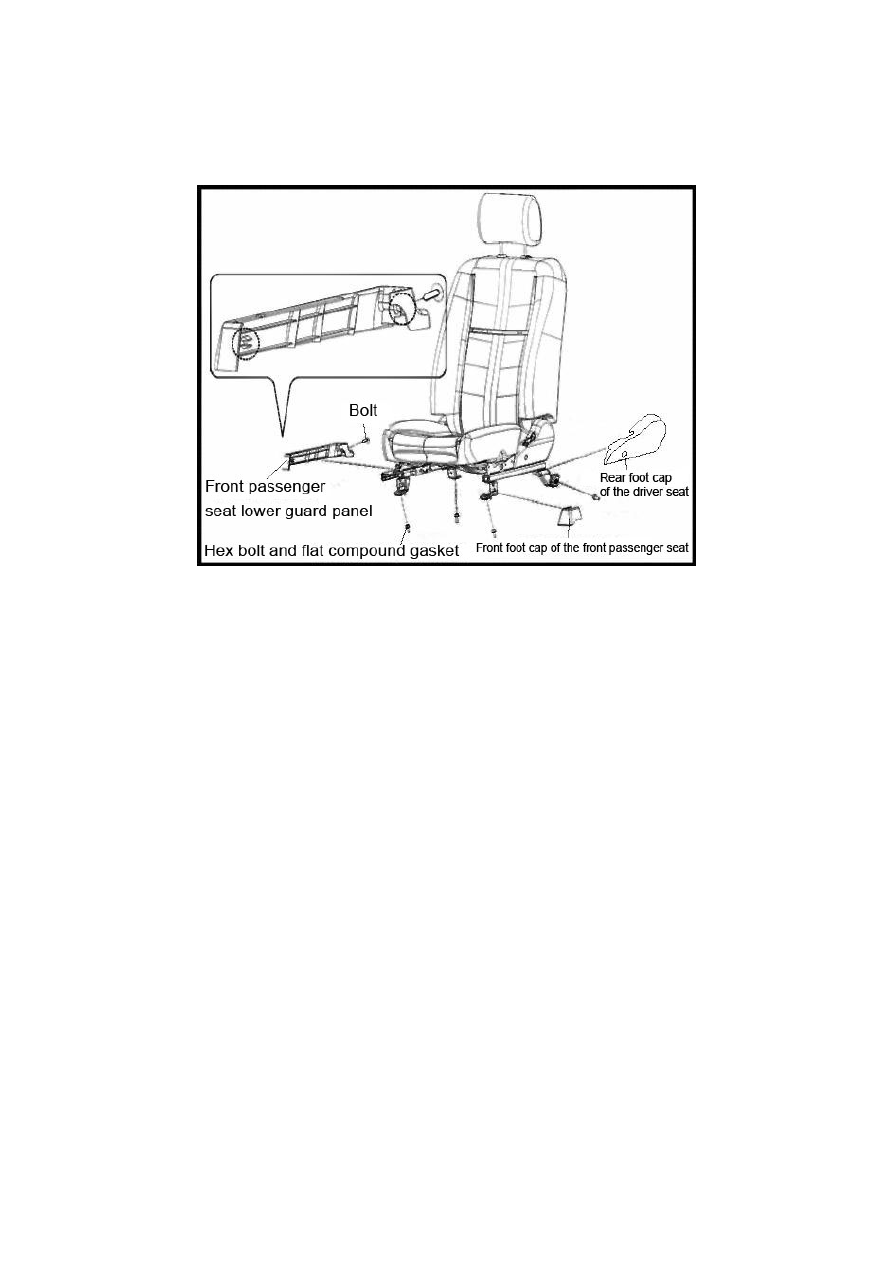

1. The assembly structure as shown in Fig. 7-8.





Fix the bolt at the torque of 20.4N·m

















335

IV. Components and maintenance of the rear seat assembly

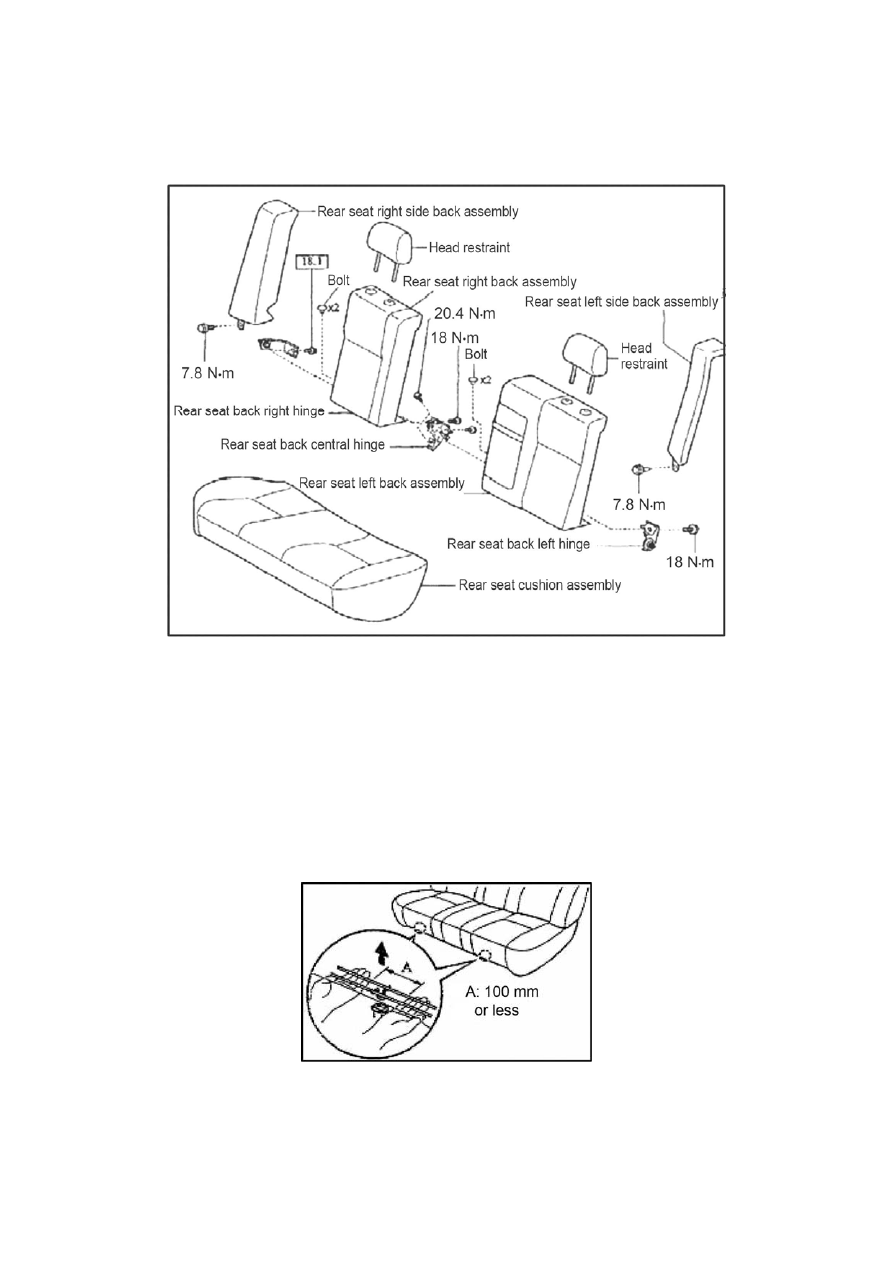

1. The assembly structure as shown in Fig. 7-9.









Fig. 7-10

Note: The pad bracket is easy to be deformed. In order to avoid the deforming, make sure the

hands beside the two pothooks as shown in the Fig.

336
