Range Rover Sport. Manual - part 48





system, and away from any section of air line with a heat shield installed.

  CAUTION: Do not trim air line ends. If the end of the air line is damaged, the air line must be cut and a new

section added using a Land Rover approved air line connector, or the air line must be renewed completely.

NOTE:



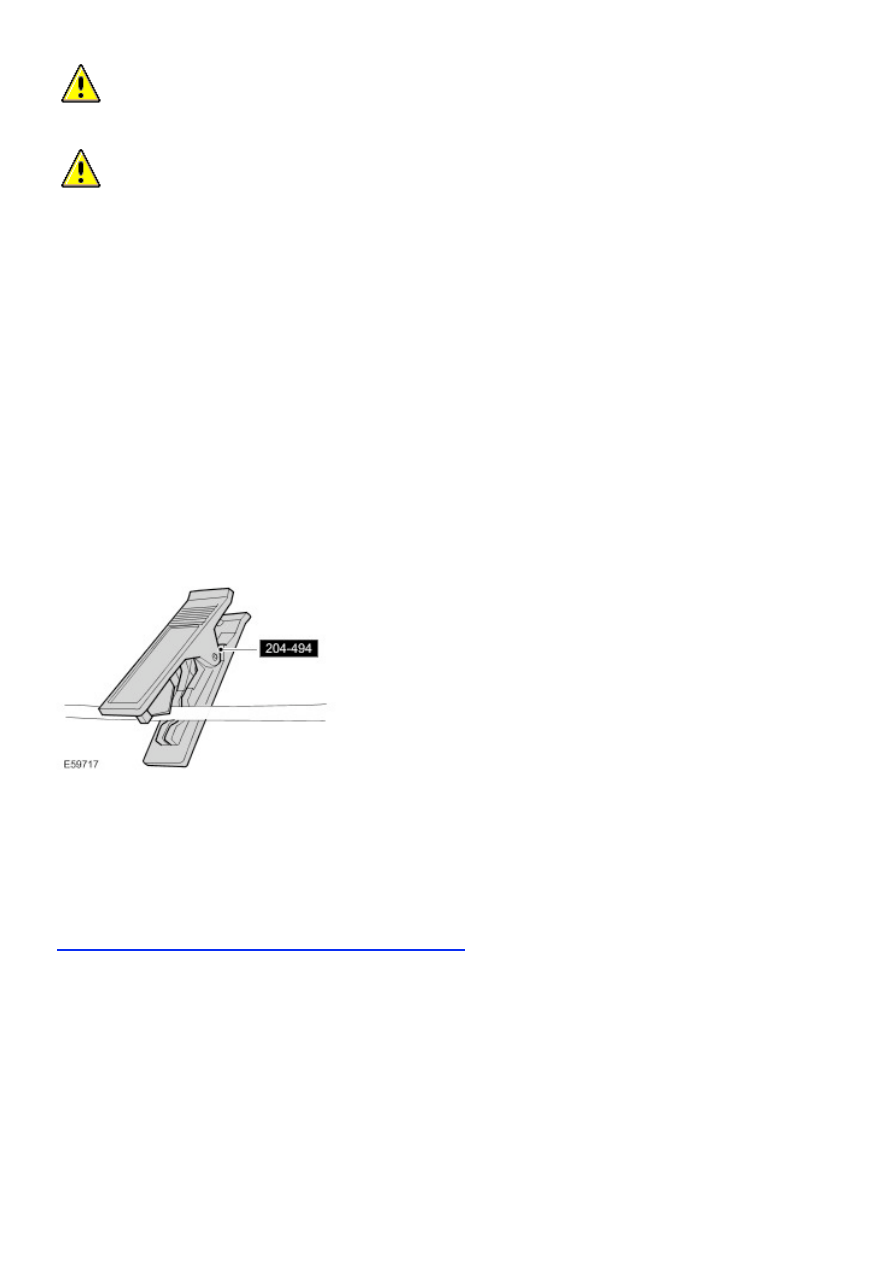

Air lines must only be cut using either Hose cutter 204-494 (LRT 60-002), available from SPX LTD or Hose cutter
YA1000A, available from Snap-On Tools. Make sure the cut air line end is free from damage or burrs.

NOTE:



Only Land Rover approved air lines have been tested to the correct pressure and temperature specifications.

NOTE:



Only the Land Rover approved air line connector, RYC500210, has been tested to the correct pressure and
temperature specifications.

NOTE:



If the markings or tape adjacent to the air line connections are removed when cutting air lines, the cut end of the air
line must be clearly marked with a suitable colored tape or paint mark.

If the source of the air leak is found to be an air line connection, renew the Voss connector and, if required, the end of the
air line. Using the special tool, cut off the damaged end of the air line and replace with new Land Rover approved air line
and air line connectors as required.

7.  If the source of the air leak is found to be in a section of air line, either; renew the air line, or, using the special tool, cut
out the damaged section of air line and replace with new Land Rover approved air line, and air line connectors, as required.

8.  NOTE:



If the repair has been unsuccessful repeat the above steps until the air leak is rectified.

Using T4, pressurize the air suspension system.

Air Suspension System Depressurize and Pressurize (60.50.38)



Vehicle Dynamic Suspension

Dynamic Suspension - Component Location

NOTE:



Right hand drive vehicle shown

Item Part Number

Description

1

 -

Front RH air spring damper module

2

 -

Front RH height sensor

 -

Air suspension control module

4

 -

Air suspension control switch

5

 -

Rear RH height sensor

6

 -

Rear RH air spring damper module

7

 -

Air supply unit silencer

8

 -

Rear LH air spring damper module

9

 -

Air filter

10

 -

Rear valve block

11

 -

Rear LH height sensor

12

 -

Upper acoustic cover

13

 -

Lower acoustic cover

14

 -

Air supply unit

15

 -

Reservoir valve block

16

 -

Air reservoir

17

 -

Front LH height sensor

18

 -

Front LH air spring damper module

19

 -

Front valve block

GENERAL

NOTE:



This section covers the air suspension control system. Front suspension, rear suspension, Dynamic Response and
Terrain Response™ are detailed in separate sections. For additional information, refer to

Front Suspension

 (204-01

Front Suspension)
For additional information, refer to

Rear Suspension

 (204-02 Rear Suspension)

For additional information, refer to

Active Stabilization System

 (204-06 Ride and Handling Optimization)

For additional information, refer to

Ride and Handling Optimization

 (204-06 Ride and Handling Optimization)

The dynamic suspension system is a four corner air suspension system which is fitted as standard to all models.

The dynamic suspension system is electronically controlled by an air suspension control module which controls the air
supply unit, reacts to inputs from four height sensors and distributes air around the system via valve blocks.

The main air suspension system components are:

Air suspension control module
Air supply unit
Four height sensors
Three valve block assemblies
Reservoir
Air harness
Four suspension air spring damper modules.

The four corner air suspension system maintains the vehicle height under all operating conditions by controlling the mass of
air in the air springs. The air suspension control module uses signals from the four height sensors to maintain the correct
suspension height. This is achieved by operating pneumatic control valves to increase or decrease the mass of air in the air
spring damper modules.

The air suspension system has three driver selectable, pre-determined ride heights. A driver interface indicates the selected
ride height and direction of movement. Additional information is also relayed to the driver via the instrument cluster
message center and by audible warnings also transmitted by the instrument cluster.

Height changes can only be made when the engine is running and the driver's and passenger doors are closed.

Access height can be selected with the engine not running, within 40 seconds of moving the ignition switch to the off
position provided the driver's door has not been opened in this time.

Schematic Pneumatic Circuit

Item Part Number

Description

1

 -

Compressor

2

 -

Compressor temperature sensor

3

 -

Air dryer

4

 -

Reservoir

5

 -

Front LH air spring damper module

6

 -

Front valve block

7

 -

Cross link valve

8

 -

Front RH air spring damper module

9

 -

Front RH corner valve

10

 -

Front LH corner valve

11

 -

Reservoir control valve

12

 -

Pressure sensor
