Range Rover Sport. Manual - part 27







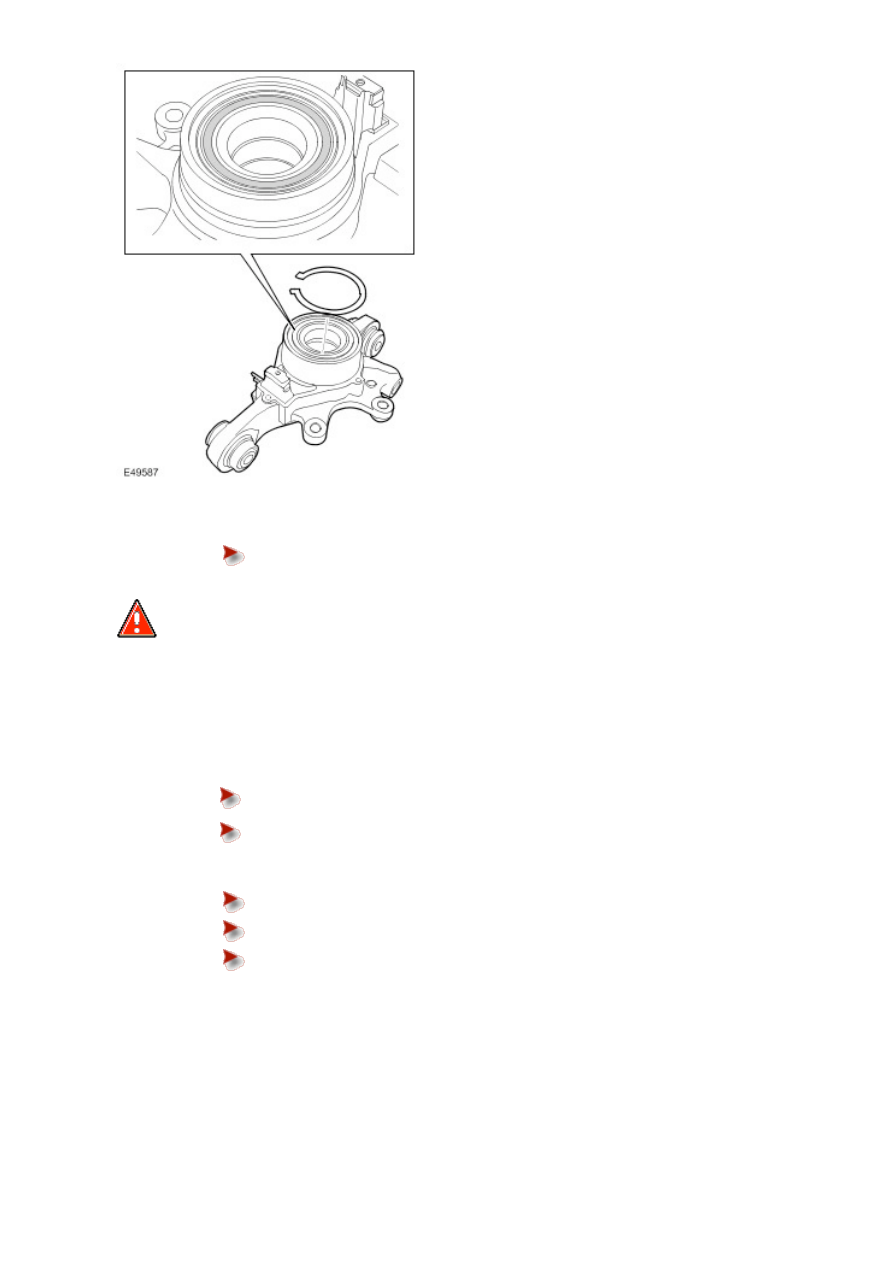

Tighten the bolts to 9 Nm (7 lb.ft).

5
.

  WARNING: Do not use compressed air to clean brake components. Dust from friction materials can

be harmful if inhaled.

Clean the backing plate and apply grease to the brake shoe contacts.

6 . Clean the adjuster and set it to its minimum extension.

7
.

Install the secondary brake shoe.



Connect the parking brake cable retaining spring to the brake shoe lever, making sure the
spring is not twisted.



Install the hold-down spring and retaining pin.

8 . Install the primary brake shoe.



Install the spreader plate and the spring.



Install the return spring.



Install the hold-down spring and retaining pin.

9 . Install the return spring.

10 . Install the brake shoe adjuster.

11 . Using the special tools, install the drive flange.

For additional information, refer to

Wheel Knuckle (64.35.10)

Upper Arm (64.35.60)

Removal

1
.

  WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle

on safety stands.

Raise and support the vehicle.

2 . Remove the wheel and tire.

3 .

  CAUTION: Always plug any open connections to prevent contamination.

Remove the brake tube.



Disconnect the 2 brake tube unions.



Remove the brake hose clips and release the hoses.



Release the brake tube from the clip.

4 . Disconnect the height sensor link.

5 . Release the wheel speed sensor lead.

6 . RH side only: Release the brake pad wear indicator sensor lead.

7 . Remove the upper arm.



Loosen the upper arm bolts.

Mark the position of the bolt in relation to the upper arm.



Remove the nut and bolt, then release the upper arm from the wheel knuckle.



Remove the upper arm bolts.

Installation

1 . Install the upper arm.



Fit the bolts but do not fully tighten at this stage.

2 . Set the height, between the center of the halfshaft end and the edge of the fender trim, to 463 mm (18.23'').



Support with an axle stand.

3
.

  CAUTION: Ensure the ball joint seal is not damaged. A damaged seal will lead to the premature

failure of the joint.

Connect the upper arm and wheel knuckle.
