BMW DIESEL

15

REPAIR

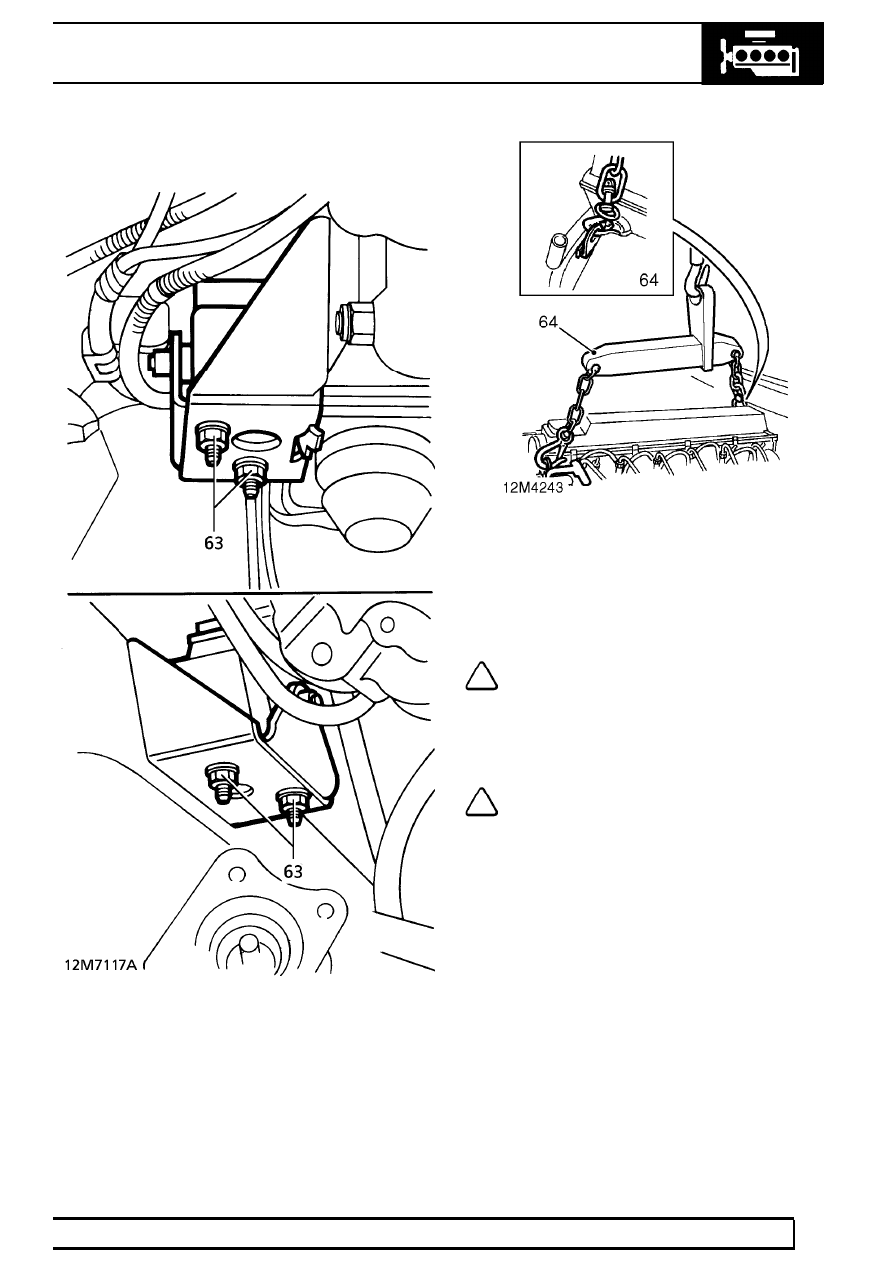

63. Remove 4 nuts securing each engine mount to

chassis. Discard nuts.

64. Fit lifting bracket to engine lifting eyes. Attach

suitable hoist.

65. Raise engine slightly. Ensure that lifting bracket

does not foul bulkhead. Remove both engine
mountings.

NOTE: It may be necessary to lower
gearbox support slightly during above
operation.

66. Raise power unit and draw forward.
67. Lower support from transmission.

NOTE: Power unit must be tilted at an
angle of approximately 45 degrees before
it can be withdrawn from engine

compartment.

68. Remove engine/transmission assembly.

12

ENGINE

NEW RANGE ROVER

16

REPAIR

Refit

69. Raise power unit. Guide into engine bay.
70. Position transmission jack beneath transmission

brake drum.

71. With assistance, raise transmission and lower

engine until engine mountings can be fitted.

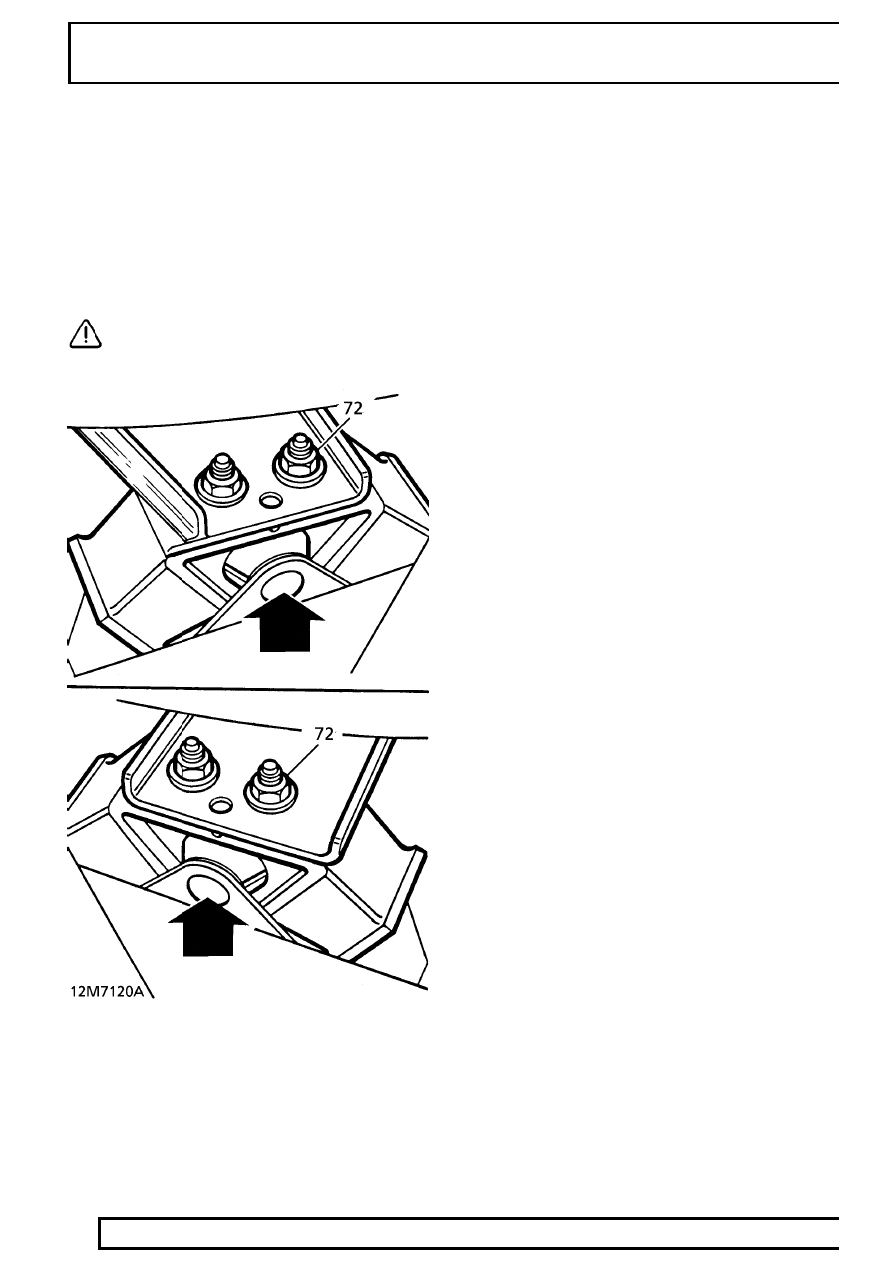

72. Attach mountings to chassis with new flange

nuts. Do not tighten at this stage.

CAUTION: Engine mountings must be
fitted with centre bolt head facing
outboard as shown.

73. Lower and guide engine onto mounting studs.

74. Attach engine to mountings with new flange

nuts. Do not tighten at this stage.

75. Release lifting bracket from engine lifting eyes.

Remove hoist.

76. Route gearbox harness. Secure with clips.
77. Connect multiplug to engine harness
78. Connect multiplugs to High/Low motor and

output shaft speed sensor.

Manual Vehicles:

79. Secure gearbox harness bracket with bolt.

Tighten to

6 Nm (4 lbf.ft).

80. Connect multiplugs to reverse and neutral

switches.

81. Secure harness to gearbox bracket with clips.
82. Connect Lucars to transfer box fluid temperature

sensor.

83. Raise transmission on jack.
84. Align harness bracket to gearbox.

Automatic Vehicles:

85. Connect multiplugs to gear selection position

switch and gearbox speed sensor.

86. Position selector cable abutment bracket to

gearbox. Secure with bolts.

87. Adjust gear selector cable.

See AUTOMATIC

GEARBOX, Adjustment.

All Vehicles:

88. Raise one wheel on each axle to allow rotation

of propeller shafts.

89. Position shafts to transfer box flanges. Align

marks.

90. Secure propeller shaft flanges with nuts and

bolts. Tighten to

48 Nm (35 lbf.ft)

91. Fit propeller shaft guard. Tighten bolts.
92. Guide hand brake cable through grommet in

transmission tunnel.

93. Fit exhaust front pipe.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

94. Fit chassis cross member.

See CHASSIS AND

BODY, Repair.

95. Remove support from under transmission.
96. Tighten engine mounting nuts to

45 Nm (33

lbf.ft)

97. Lower lift.
98. Connect handbrake cable to lever, secure with

clevis pin and clip.

BMW DIESEL

17

REPAIR

Manual Vehicles:

99. Fit seal around gearbox remote housing to

transmission tunnel aperture.

100. Fit gear lever bolts. Tighten to

25 Nm. (18 lbf.ft)

101. Fit gaiter and ring. Secure with nuts.
102. Fit centre console.

See CHASSIS AND BODY,

Repair.

Automatic Vehicles:

103. Fit window switch pack.

See ELECTRICAL,

Repair.

Manual Vehicles:

104. Connect clutch flexible hose. Remove hose

clamp.

105. Secure flexible hose union to gearbox bracket

with clip.

106. Bleed clutch hydraulic system.

See CLUTCH,

Repair.

All Vehicles:

107. With assistance, position radiator/condenser

assembly.

108. Connect multiplugs to condenser cooling fans.
109. Engage radiator in lower mounting rubbers.

Secure with nuts and bolts.

110. Align air conditioning pipe to condenser fans.

Secure with nuts.

111. Remove plugs from air conditioning compressor

and pipes.

112. Fit new ’O’ rings to compressor pipes. Lubricate

’O’ rings with compressor oil. Connect to
compressor.

113. Fit compressor connection bolts. Tighten to

23

Nm (17 lbs.ft)

114. Remove plugs from air conditioning condenser

and pipes.

115. Fit new ’O’ rings to condenser pipes. Lubricate

’O’ rings with compressor oil. Secure pipes to
condenser. Tighten to

15 Nm (11 lbf.ft)

116. Fit washer bottle filler neck. Secure with bolt and

screw.

117. Remove plugs from power steering pump and

pipes.

118. Using new sealing washers, secure feed pipe to

power steering pump. Tighten to

30 Nm (22

lbf.ft)

119. Untie power steering reservoir from engine.

Remove plugs. Connect return pipe. Secure
return pipe to reservoir with clip.

120. Secure fog lamp breather hoses to clips on

either side of radiator.

121. Connect heater hoses to engine coolant pipes.

Secure with clips.

122. Connect coolant bleed hose to radiator. Secure

with clip.

123. Connect bottom hose to radiator. Secure with

clip.

124. Remove plugs from transmission oil cooler and

pipes.

125. Lubricate pipes with transmission fluid, fit new

’O’ rings. Connect to oil cooler. Tighten to

30

Nm (22 lbf.ft)

126. Replenish transmission fluids.

See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information.

127. Fit engine oil cooler.

See this section.

128. Fit cooling fan.

See COOLING SYSTEM,

Repair.

129. Evacuate and recharge air conditioning system.

See AIR CONDITIONING, Adjustment.

130. Refill cooling system.

See COOLING SYSTEM,

Repair.

131. Refill engine oil.

See LUBRICANTS, FLUIDS

AND CAPACITIES, Information.

132. Connect multiplugs to fuel heater and turbo

boost sensor.

133. Connect fuel return hose to FIP. Secure with

clip.

134. Using new ’O’ rings, connect fuel feed hose to

fuel heater/filter head.

135. Route engine harness along valance. Secure

clip.

136. Connect engine harness multiplug to main

harness. Secure earth terminal to valance stud.

137. Connect engine harness multiplug to base of

fuse box.

138. Position fuse box. Secure with bolts.
139. Position earth lead to shock absorber turret.

Secure with bolt.

140. Fit battery tray. Secure with bolts.
141. Fit starter feed wire to battery positive terminal

clamp. Secure with nut.

142. Position engine harness to battery tray. Secure

harness grommets.

143. Secure harness clamp to battery tray with

screws.

12

ENGINE

NEW RANGE ROVER

18

REPAIR

144. Fit ECM.

See FUEL SYSTEM, Repair.

145. Fit inlet manifold.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

146. Refit battery.

See ELECTRICAL, Repair.

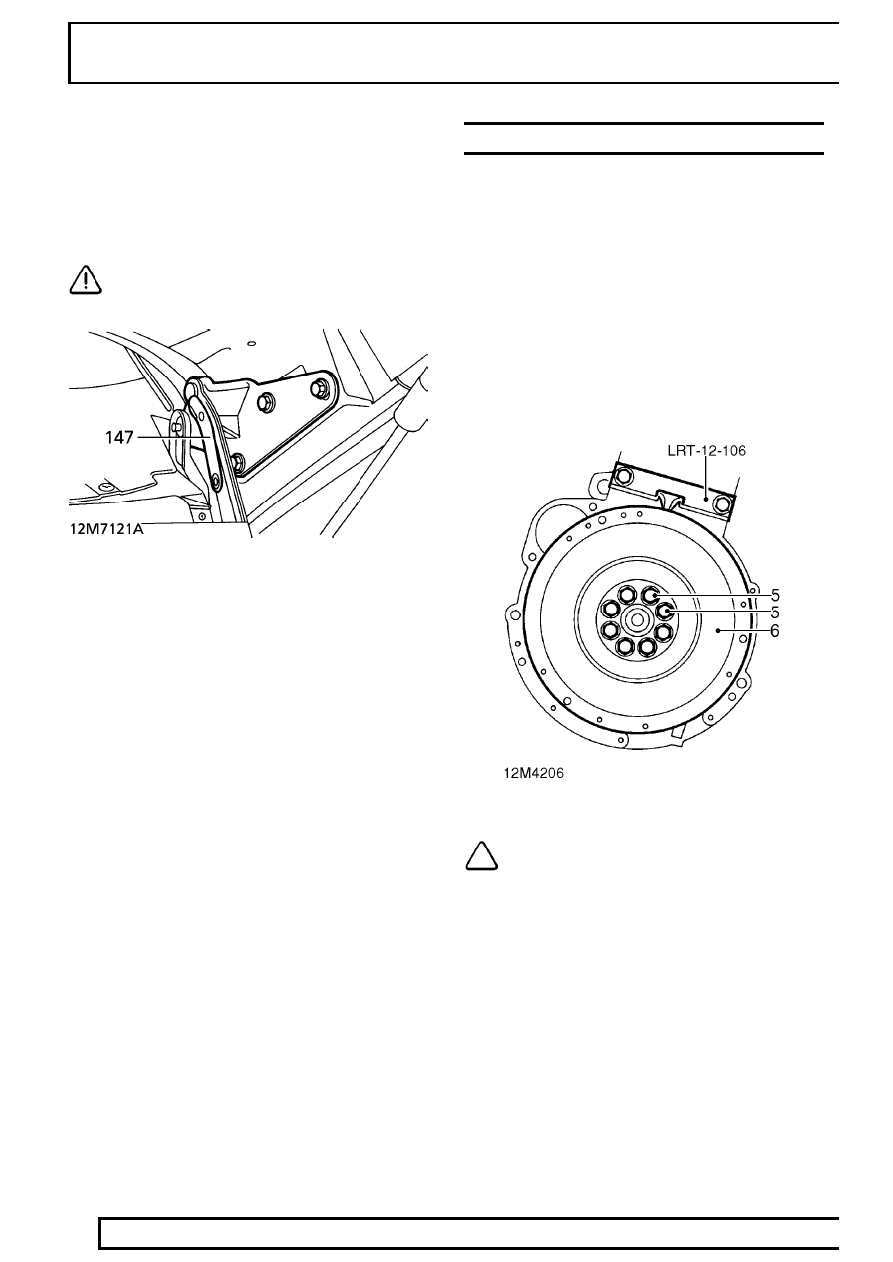

147. With assistance, release bonnet stay clips.

Engage bonnet struts.

CAUTION: Ensure bonnet stay clips are
returned to their original positions as
shown.

148. Start engine. Check for fuel, coolant and oil

leaks.

FLYWHEEL/DRIVE PLATE

Service repair no - 12.53.07

Remove

1. Disconnect battery negative lead.
2.

Manual gearbox: Remove clutch assembly. See
CLUTCH, Repair.

3.

Automatic gearbox: Remove gearbox. See
AUTOMATIC GEARBOX, Repair.

4. Lock flywheel/drive plate using LRT-12-106.
5. Remove and discard 8 bolts securing

flywheel/drive plate.

6. Remove flywheel/drive plate.

NOTE: Flywheel illustrated

Inspection

7. Inspect flywheel clutch face/drive plate for

cracks, scores or overheating.

8. Inspect ring gear for worn, chipped or broken

teeth.

9. Replace defective parts as necessary.
