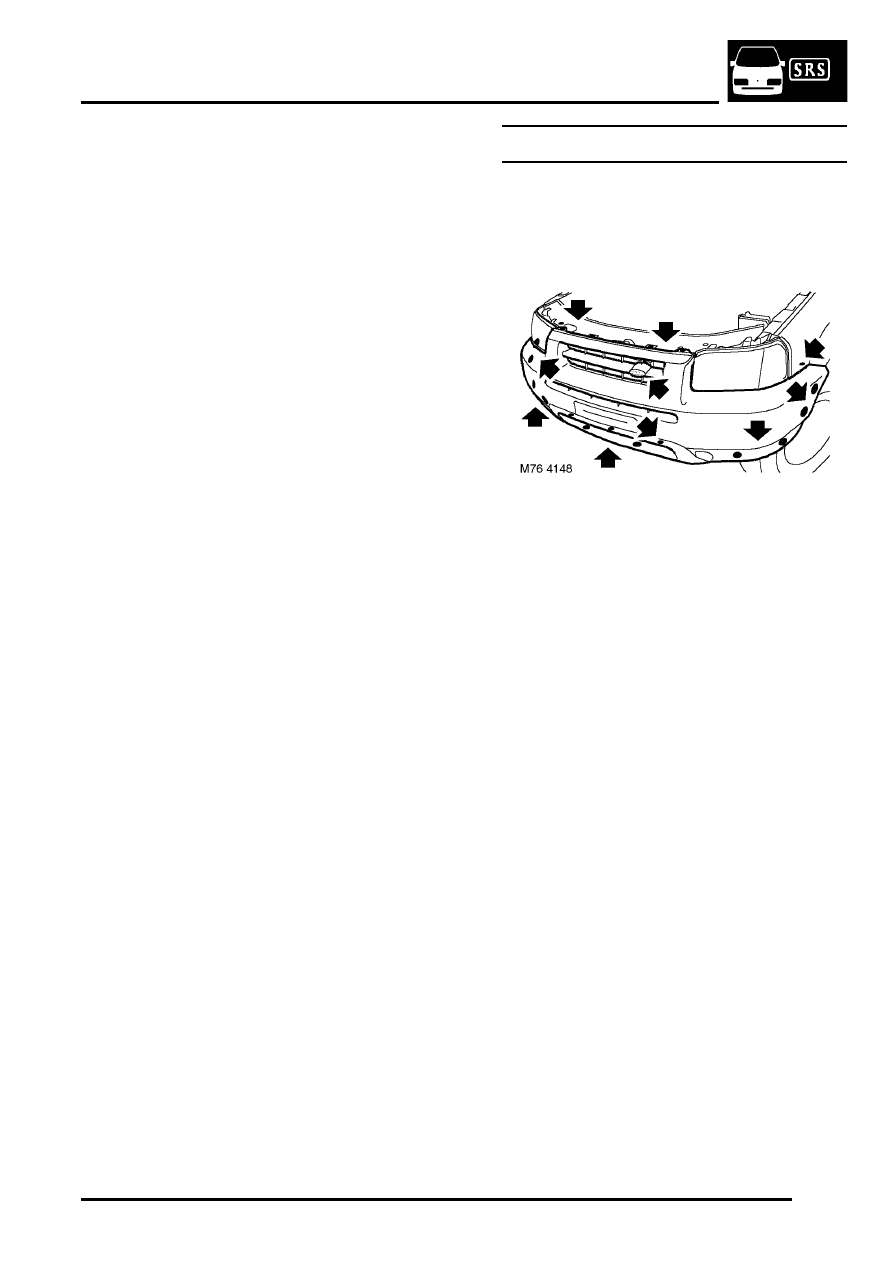

EXTERIOR FITTINGS REPAIRS 76-2-9 9. Remove bonnet release cable. Refit 1. Fit bonnet release cable through bulkhead. bonnet release cable to lever. 3. Fit release lever to 'A' post and tighten bolt to 9 Nm (7 lbf.ft). 4. Fit bonnet release cable grommet to bulkhead. and secure with cable ties. 6. Fit sound insulation to bulkhead. through bonnet locking platform. 9. Untie draw string from bonnet release cable. 10. Fit bonnet lock. operation. Bumper - assembly - front $% 76.22.72 Remove 1. Open bonnet. 2. Remove 8 screws securing wheel arch liners to bumper, release liners from wheelarch for 3. Remove 2 screws securing bumper valance to underbelly panel brackets. 4. Remove 3 scrivets securing bumper to armature. 5. Remove 2 bolts securing rear edge of front bumper to inner front wing. 6. Remove 4 screws securing bumper to bonnet locking platform. 7. NAS Models: Release side repeater, disconnect multiplug and remove repeater. 8. With assistance carefully lift and pull forward each side of bumper to release bumper side CAUTION: Always protect paintwork when 9. Remove front number plate. 10. Remove badge from grill and discard clips. |
