STEERING

REPAIRS

57-13

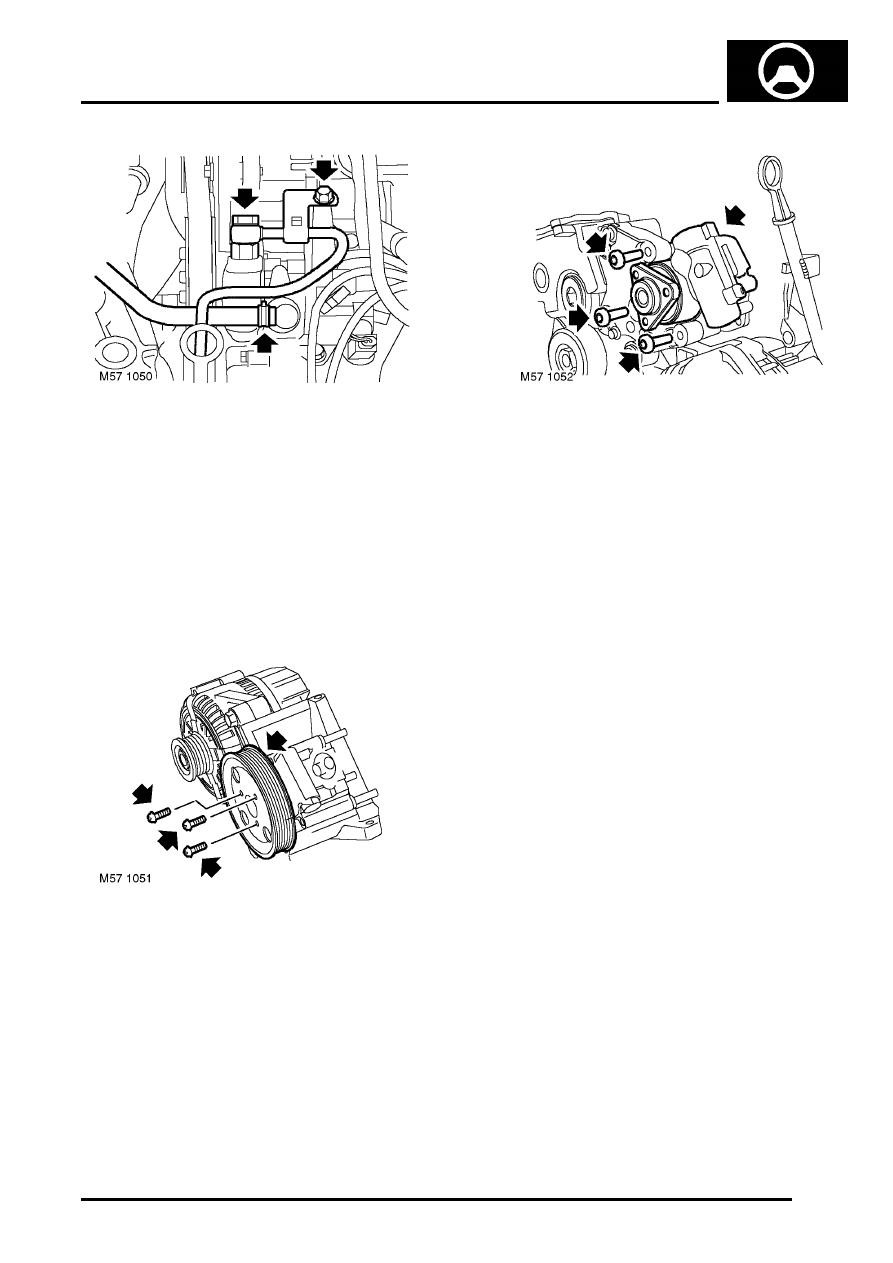

6. Release clip and disconnect fluid inlet hose

from PAS pump.

7. Remove banjo bolt securing fluid outlet hose to

PAS pump, release hose, remove and discard
sealing washers.

CAUTION: To prevent damage to
components, use two spanners when
loosening or tightening unions.

8. Remove bolt securing PAS outlet pipe support

bracket to cylinder head and move pipe aside.

9. Remove 3 bolts securing PAS pump pulley to

PAS pump and remove pulley.

CAUTION: Always fit plugs to open
connections to prevent contamination.

10. Remove 3 bolts securing PAS pump to

mounting bracket.

11. Remove PAS pump.

Refit

1. Position PAS pump and align to mounting

bracket.

2. Fit bolts securing PAS pump to mounting

bracket and tighten to 25 Nm (18 lbf.ft).

3. Fit PAS pump pulley to PAS pump and tighten

bolts to finger tight.

4. Remove plug from fluid outlet hose.
5. Clean banjo bolt and mating faces.
6. Using new sealing washers, fit PAS outlet hose

to pump and tighten banjo bolt to 20 Nm (15
lbf.ft).

CAUTION: To prevent damage to
components, use two spanners when
loosening or tightening unions.

7. Align outlet pipe clip. Fit bolt and tighten to 22

Nm (16 lbf.ft).

8. Clean elbow on PAS pump.
9. Remove plug from fluid inlet hose, fit new clip

and connect hose to PAS pump.

10. Remove container.
11. Clean pulley 'V's and tensioner pulley running

surface.

12. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and fit drive belt to
pulleys.

13. Tighten PAS pump pulley bolts to 10 Nm (7.5

lbf.ft).

14. Fit engine mounting top arm.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Arm assembly - engine mounting RH.

15. Connect battery earth lead.
16. Bleed PAS system.



 +

 STEERING, ADJUSTMENTS, Power

assisted steering (PAS) system - bleed.

STEERING

57-14

REPAIRS

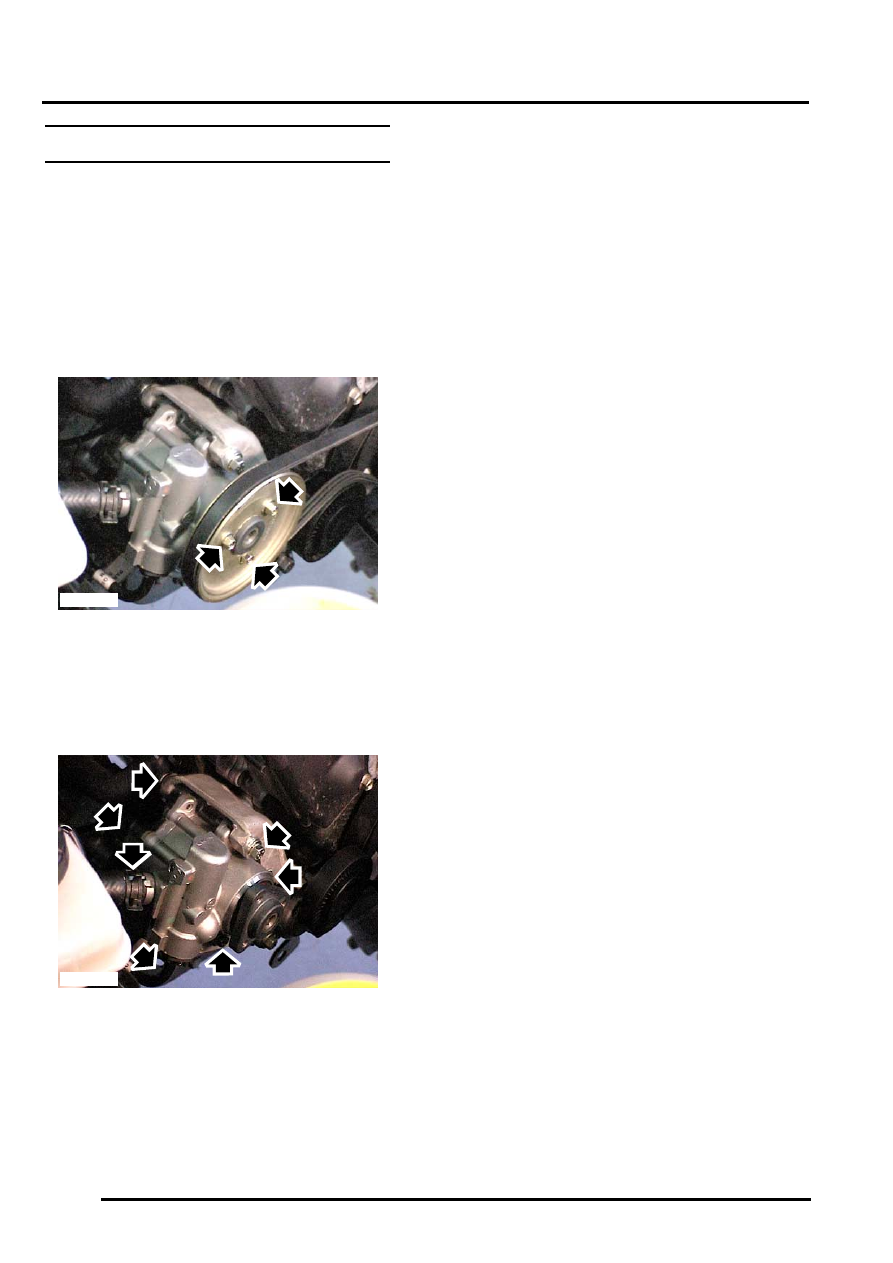

Pump - steering - K1.8

$% 57.20.14

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

3. Loosen PAS pump pulley bolts.
4. Remove PAS pump drive belt.



 +

 STEERING, REPAIRS, Drive belt -

K1.8.

5. Position container to collect PAS fluid spillage.

6. Release clip and disconnect fluid inlet hose

from PAS pump.

CAUTION: Always fit plugs to open
connections to prevent contamination.

7. Loosen union securing fluid outlet pipe, release

outlet pipe remove and discard 'O' ring.

8. Remove 3 bolts securing PAS pump pulley to

PAS pump and remove pulley.

9. Remove 5 bolts securing PAS pump to

mounting bracket.

10. Remove PAS pump.

Refit

1. Position PAS pump and align to mounting

bracket.

2. Fit bolts securing PAS pump to mounting

bracket and tighten to 25 Nm (18 lbf.ft).

3. Fit PAS pump pulley and align bolts holes.

Ensure FRONT mark is facing outwards. Fit
bolts finger tight.

4. Remove plug from fluid outlet hose.
5. Clean PAS pump and pipe union.
6. Using a new 'O' ring, align outlet pipe and

tighten union to 20 Nm (15 lbf.ft).

7. Clean elbow on PAS pump.
8. Remove plug from fluid inlet hose, fit new clip

and connect hose to PAS pump.

9. Remove container.

10. Clean pulley 'V's and tensioner pulley running

surface.

11. Fit PAS pump drive belt.



 +

 STEERING, REPAIRS, Drive belt -

K1.8.

12. Tighten PAS pump pulley bolts to 10 Nm (7.5

lbf.ft).

13. Connect battery earth lead.
14. Bleed PAS system.



 +

 STEERING, ADJUSTMENTS, Power

assisted steering (PAS) system - bleed.

M57 1069

M57 1070

STEERING

REPAIRS

57-15

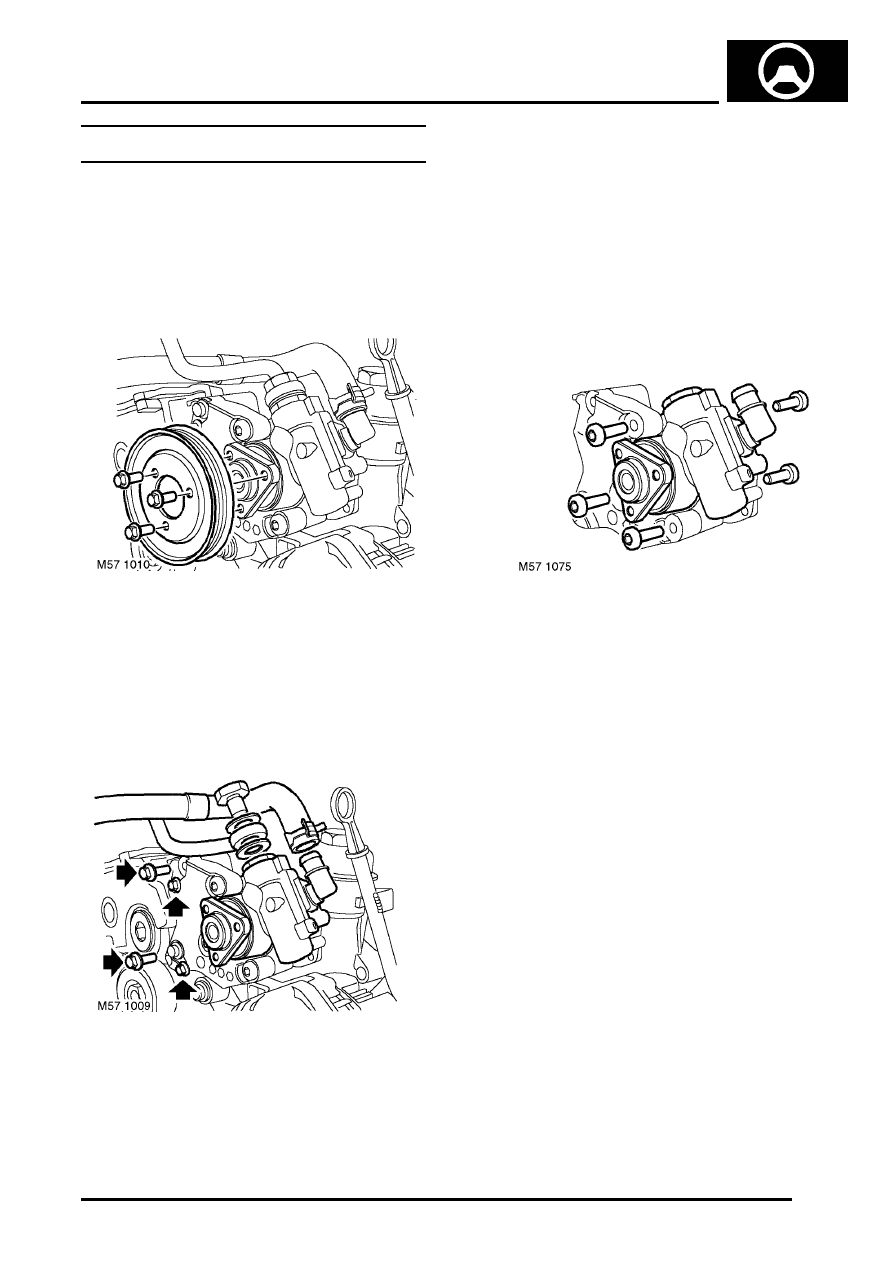

Pump - steering - Td4

$% 57.20.14

Remove

1. Disconnect battery earth lead.
2. Remove hydramount.



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

3. Loosen 3 PAS pump pulley bolts.
4. Remove ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

5. Raise engine on hoist.
6. Remove bolts and remove PAS pump pulley.
7. Cover alternator to prevent PAS oil

contamination.

8. Place container beneath PAS pump, release

clip and remove feed hose to pump. Allow fluid
to drain.

CAUTION: Care must be taken to ensure
that oil or fluid does not enter or
contaminate the alternator.

9. Remove banjo bolt securing fluid outlet hose to

PAS pump, release hose, remove and discard
sealing washers.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

10. Remove 4 bolts and remove PAS pump.

11. Remove 5 Torx bolts securing PAS pump to

mounting brackets. Collect mounting brackets.

Refit

1. Position PAS pump to mounting brackets, fit

and tighten Torx bolts to 25 Nm (18 lbf.ft).

2. Position pump to mounting, fit bolts and tighten

M8 bolts to 25 Nm (18 lbf.ft) and M6 bolts to 10
Nm (7.5 lbf.ft).

3. Using new sealing washers, fit PAS outlet hose

to pump and tighten banjo bolt to 25 Nm (18
lbf.ft).

4. Clean PAS pump and mating faces.
5. Fit inlet hose to PAS pump and secure with new

clip.

6. Fit PAS pump pulley to PAS pump and tighten

bolts to finger tight.

7. Fit ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

8. Tighten PAS pump pulley bolts to 10 Nm (7.5

lbf.ft).

9. Fit hydramount.



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

10. Connect battery earth lead.

STEERING

57-16

REPAIRS

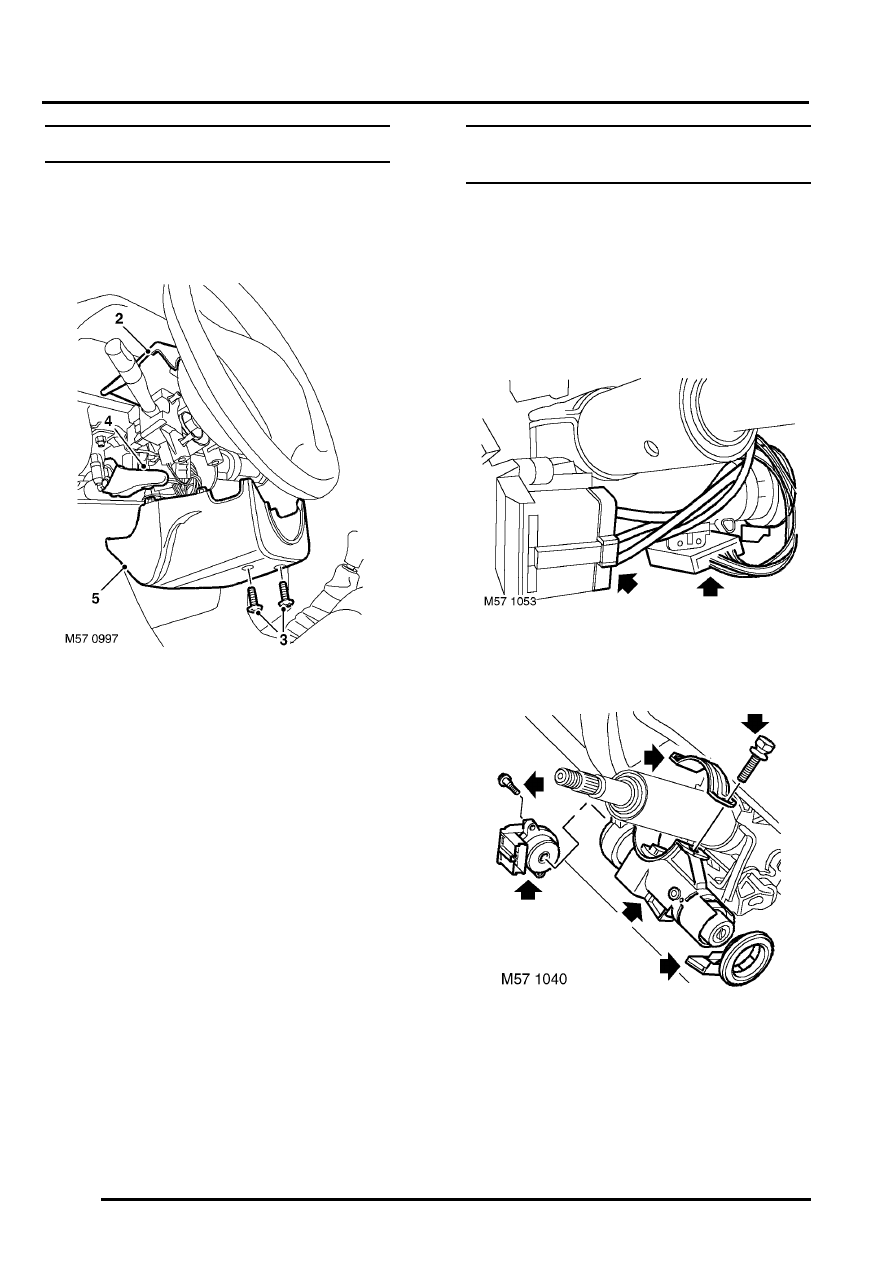

Nacelle - column

$% 57.40.29

Remove

1. Remove key from starter switch.

2. Carefully remove upper half of nacelle. Take

care when releasing clips from lower half of
nacelle.

3. Remove 2 screws securing lower nacelle to

steering column.

4. Lower steering column tilt lever.
5. Carefully remove cover from starter switch

being careful not to damage the passive coil.

6. Carefully pull lower half of nacelle from

retaining clip on column lock

Refit

1. Ensure that the steering column tilt lever is

lowered.

2. Position lower half of nacelle and engage with

clip on column lock.

3. Raise column tilt lever.
4. Fit and tighten 2 screws securing lower half of

nacelle to steering column.

5. Fit cover to starter switch.
6. Fit upper half of nacelle and ensure that clips

engage with lower half.

Column lock & ignition/starter switch
assembly

$% 57.40.31

Remove

1. Disconnect battery earth lead.
2. Remove starter key from ignition lock.
3. Remove steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

4. Disconnect multiplugs from ignition switch and

passive coil.

5. Remove passive coil.
6. Remove 2 screws and remove ignition switch.
7. Move rubber column  cover aside to access

column lock bolts.

8. Mark both column lock bolts using a centre

punch.

9. Drill out both column lock bolts.
