caused to new seals when inserting plungers into cylinder bore. Generous amounts of new brake fluid should be used to

lubricate parts during assembly.

• NOTE: Thoroughly check that no debris is lodged in fluid passageways and drillings. If debris is found, carefully

remove, re-clean cylinder and re-check.

1. Install new swirl tube to bottom of cylinder bore.

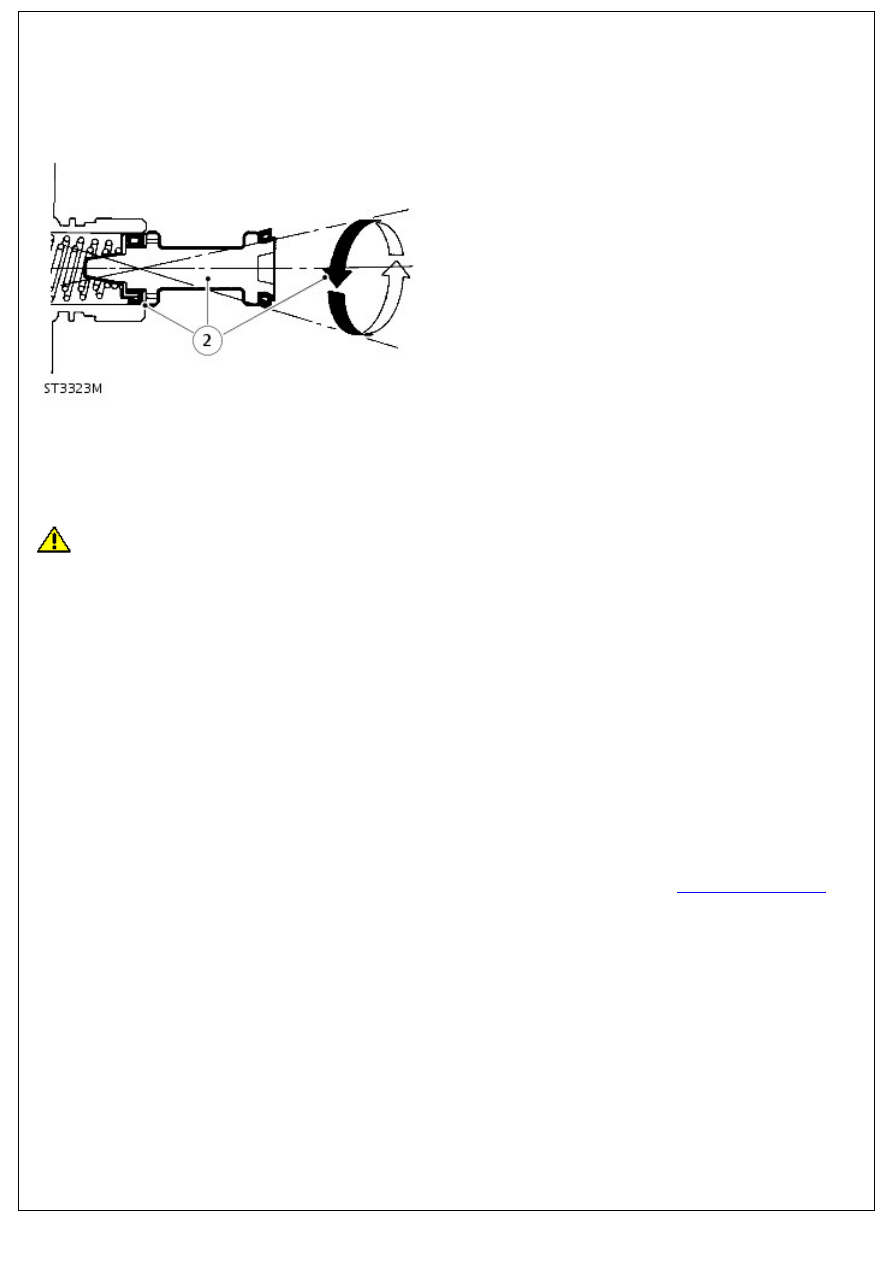

2. Lubricate secondary plunger and cylinder bore. Offer

plunger assembly to cylinder until recuperation seal is

resting centrally in mouth of bore. Gently introduce plunger

with a circular rocking motion, as illustrated. Ensuring that

seal does not become trapped, ease seal into bore and

slowly push plunger down bore in one continuous

movement.

3. Install primary plunger assembly using same method as for

secondary plunger, push plunger down bore.

4. Install original guide ring to support primary plunger.
5. Coat a new O-ring with brake fluid and install to its

respective groove on outer location surface of master

cylinder.

CAUTION: O-ring should not be rolled down outer location surface of master cylinder but should be slightly

stretched and eased down cylinder and into its groove. Do not over stretch seal.

6. Install a new retaining ring on outer surface of master

cylinder ensuring that serrations of ring are facing mounting

flange.

7. Install two new reservoir seals in their respective ports.
8. Install a new vacuum seal to either primary plunger or to

bottom of transfer housing bore, open face of seal towards

primary plunger guide ring.

9. Lubricate vacuum seal with brake fluid, install transfer

housing to master cylinder, push housing fully up to cylinder

mounting flange. Do not adjust transfer housing after fitting.

10. Lubricate a new water ingress seal with brake fluid, slightly

stretch seal and ease it down housing until seal is in correct

position between housing and flange.

11. Roll reservoir into top of master cylinder, reversing

procedure described in instruction 3.

12. Install master cylinder to booster.

For additional information, refer to:

Brake Master Cylinder

(206-06 Hydraulic Brake Actuation, Removal and Installation).

13. Reconnect battery, and road test vehicle.

Power Brake Actuation -

Description

Nm

lb-ft

Brake vacuum pump bolts

23

17

Brake booster nuts

14

10

Brake master cylinder nuts

26

19

Power Brake Actuation - Brake Booster

Removal and Installation

Removal

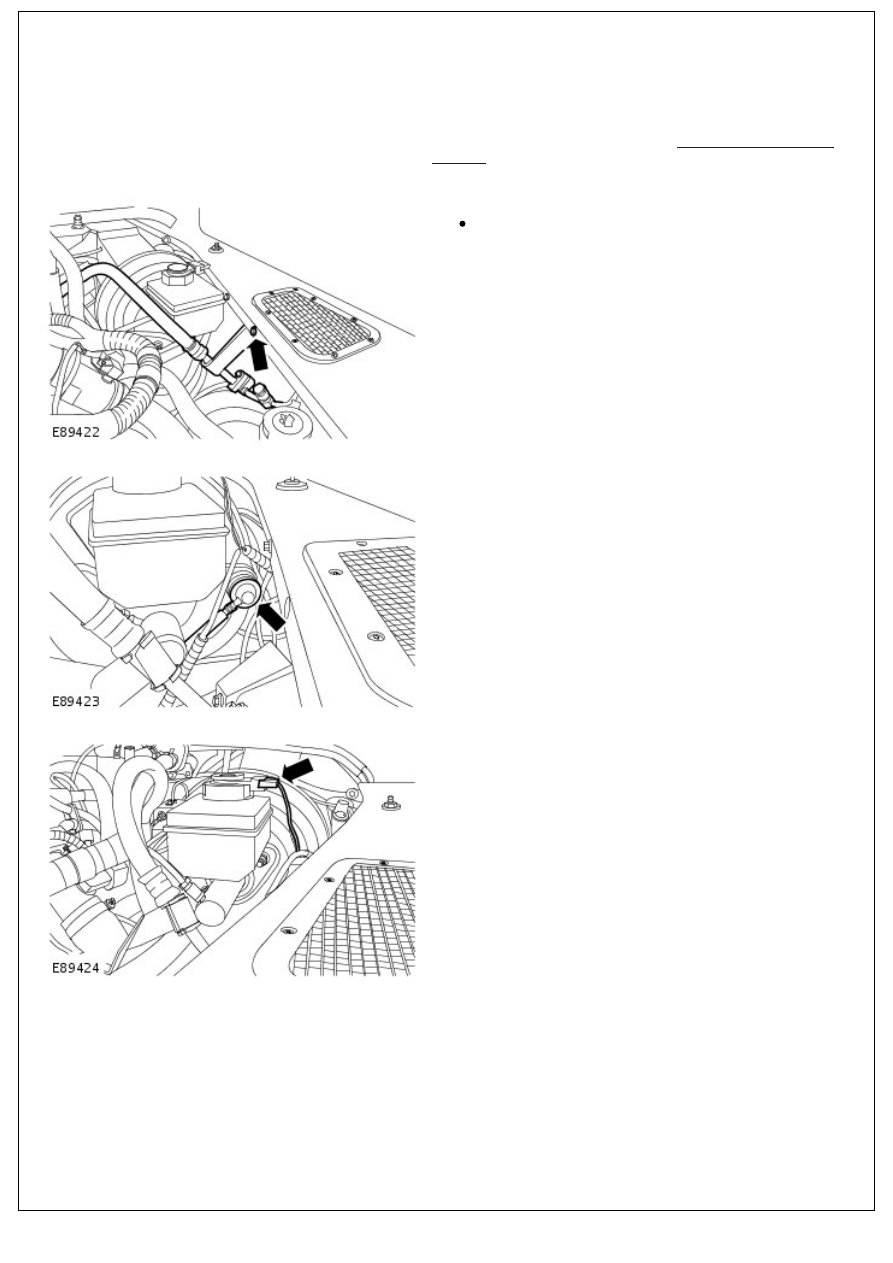

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Release the air conditioning (A/C) high-pressure pipe.

Remove the bolt.

3. Release the brake booster vacuum hose.

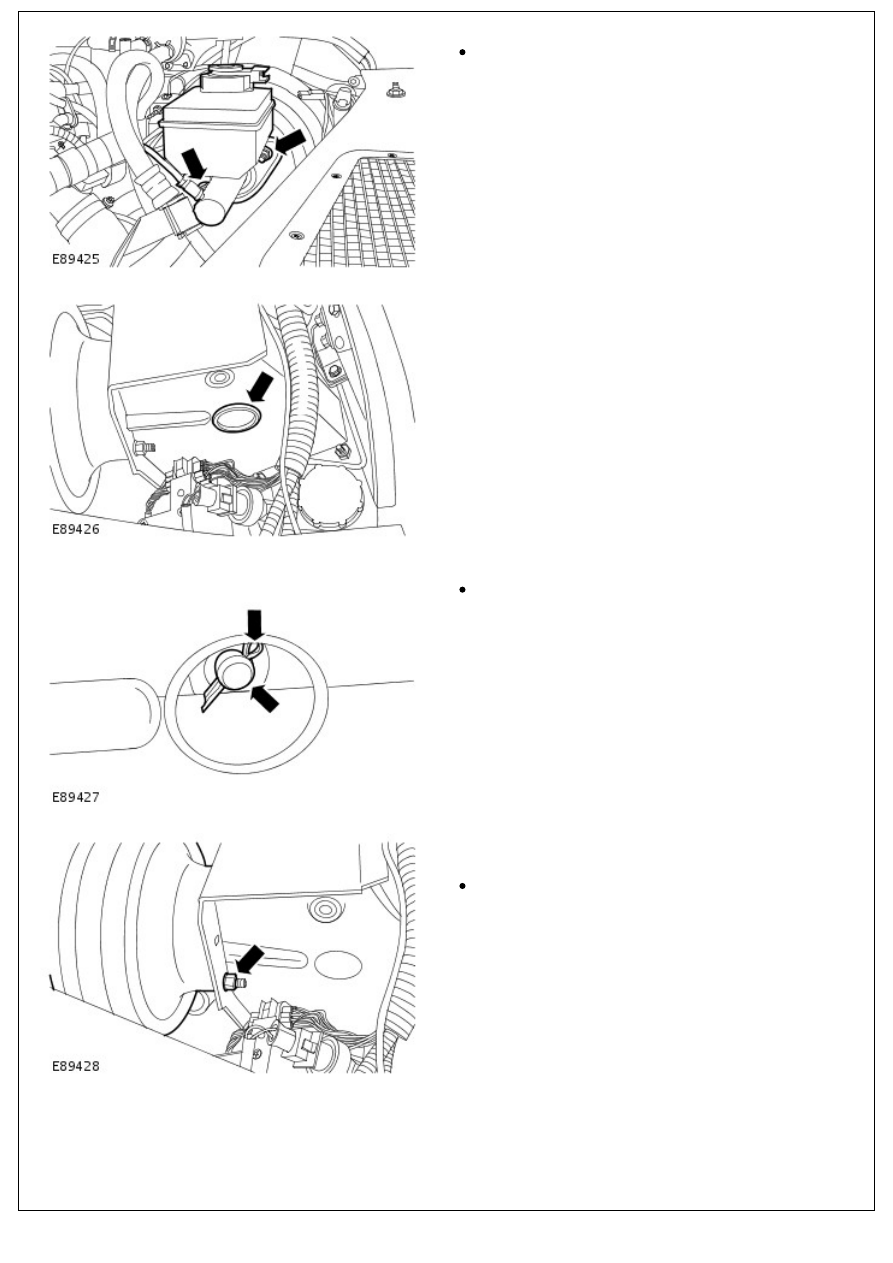

4. Disconnect the 2 electrical connectors from the brake fluid

low level warning indicator.

5. Release the brake master cylinder.

5. Release the brake master cylinder.

Remove the 2 nuts.

6. NOTE: RH shown, LH similar.

Remove the 2 grommets from the brake pedal box.

7. Remove the brake booster clevis pin.

Remove and discard the split pin.

8. NOTE: RH shown, LH similar.

Remove the brake booster.

Remove the 2 nuts.

Installation

1. To install, reverse the removal procedure.
